CCD solder joint detector is an automatic equipment for lithium battery processing, which has the functions of automatic positive and negative pole detection, positive and negative solder joint detection, solder joint defect differentiation, automatic discharge, etc.
Brand:
ACEYItem No.:
ACEY CCD-5038Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:
7daysCylindrical Battery Pack Positive and Negative CCD Tester
Description

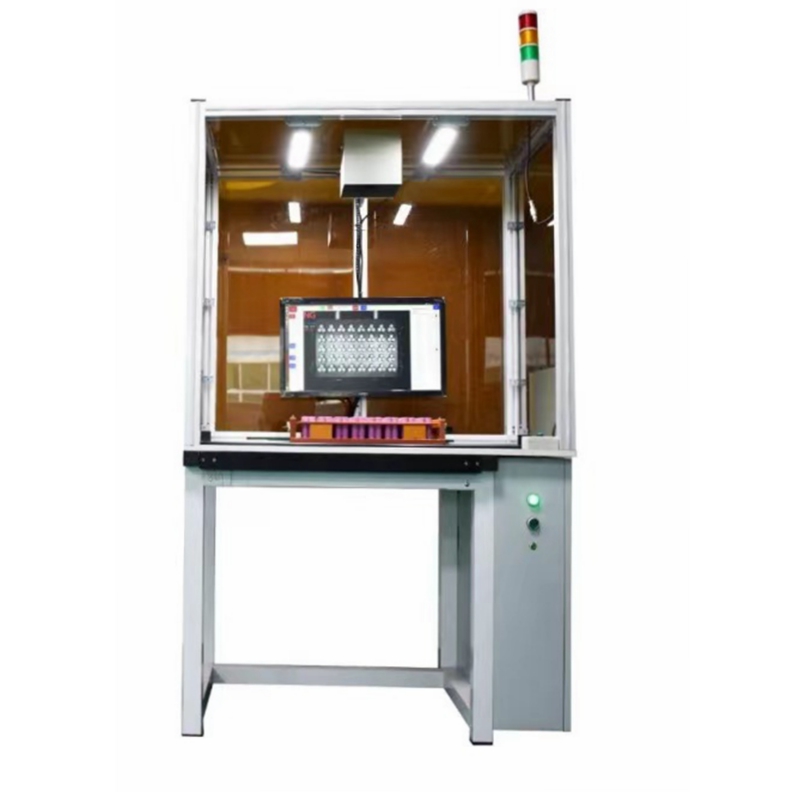

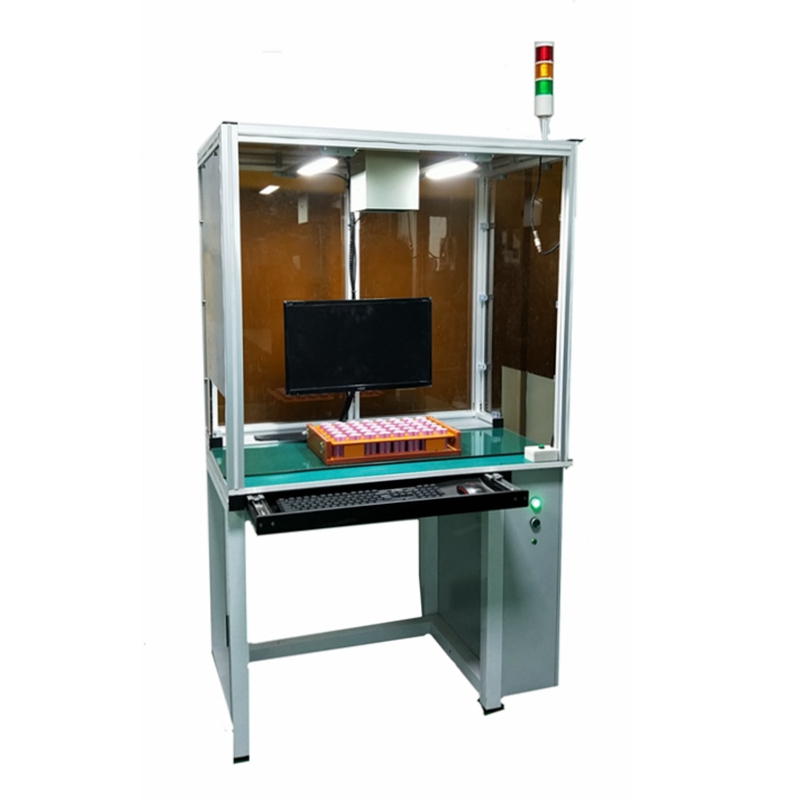

ACEY CCD-5038 is a multi-purpose CCD visual inspection system using machine vision technology based on CCD industrial camera. It is suitable for the polarity detection of a variety of batteries, saving labor costs and being able to perform highly repetitive tasks. CCD visual inspection can work stably for a long time, with good reliability and high detection accuracy.
Working Process
1) Through the CCD computer system, set the measurement mode and accuracy parameter range, adjust the parameters, and the equipment starts to monitor and enter the working state.
2) Action process: manual loading of the whole box of batteries → start CCD detection button → CCD system analysis → → CCD system discrimination (OK/NG) → material receiving personnel to receive materials
3) The equipment is equipped with sound and light alarm, fault alarm, etc. Operating parameters can be freely set according to the actual requirements of customers.
Specification
|
Adapt to battery specifications |
a variety of finished battery cell polarity detection |
|
Detection range |
500*380（MM）（Customization） |
|
Efficiency |
50-80PPM |
|
Operating Environment |
Temperature range:26℃±5℃, Humidity：≤82%， |
|
Maximum equipment size |
L：1000；W：650mm；H：1900mm |
|
Total weight |
≈55kg |
|
Equipment electrical |
AC220V±10% 50Hz；Power 300W； |
One-stop Solution

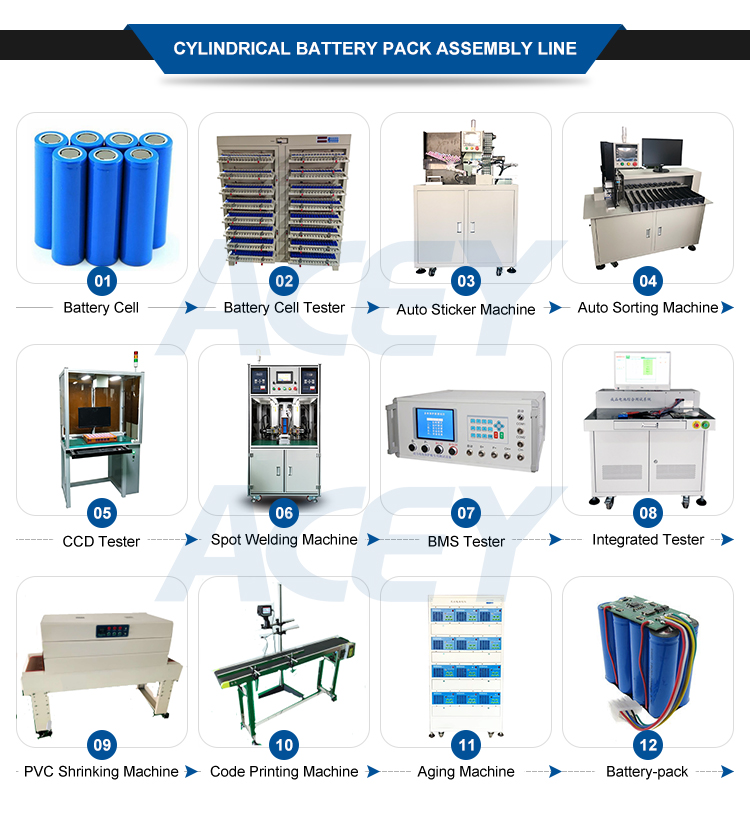

Lithium Ion Battery Manufacturing Machines Cylindrical Battery Pack Line
Acey New Energy can offers the whole cylindrical battery pack assemble equipments for battery laboratory research and manufacturing.
5V3A 5A 6A 128 Channel Cylindrical Batteries Charging And Discharging Tester For Battery Pack Assembly
This battery testing machine can be used for cylindrical battery pack's capacity, internal resistance, charging and discharging test, etc.
Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell
ACEY-BS01 is an automatic equipment for pasting barley paper on cylindrical batteries.
Automatic 5 Channel Cylinder Batteries Sorting Machine For 18650 Battery Pack Line
ACEY-AS5S can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting.
11 Channel 18650 21700 26650 32650 Battery Sorting Grading Machine For Cylindrical Cell
18650/21700/26650/32650/32700 li-ion batteries test & sorting machine.
11 Channel Battery Sorting Machine For Battery Internal Resistance and VoltageTesting
This 18650 battery automatic sorting machine is used for cylindrical battery pack assembly line.
Multifunction 2 In 1 Insulation Paper Sticker And Sorting Machines For Battery Pack Assembly
The cylindrical 18650 battery automatic sticker sorting machine is a test sorting device for checking the internal resistance and voltage of the cylindrical battery after the surface mat, and comes with a high-precision internal resistance and voltage automatic test system.
Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding
ACEY-S200B is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
