HK3560 Battery Voltage And Internal Resistance IR Tester

ACEY-HK3560 battery voltage and ir tester is suitable for low-resistance batteries, large-capacity lithium battery packs, and rapid product classification on production lines.



  • Brand:

    ACEY

  • Item No.:

    ACEY-HK3560

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
Product Catalog
  • Product Detail

HK3560 Battery Voltage And Internal Resistance IR Tester



Description

ACEY-HK3560 high-precision battery voltage and internal resistance tester is designed for the new measurement requirements of the battery industry. It can provide 0.1uΩ high resolution, maximum test voltage of 60V, test cycle of 10ms, equipped with standard RS232 interface and HANDLER interface, with battery automatic measurement function. The maximum test speed can reach 100 times/second.


Features

  • High sampling test, with a minimum feedback time of 10ms, suitable for rapid classification on the production line.
  • Voltage testing up to 60V, suitable for performance testing of battery packs.
  • High resolution for resistance and voltage measurements.
  • Strong anti-interference capability.
  • Support for data export via USB drive.


Specification

ACEY-HK3560
Measurement parameters ESR, DCV
Basic accuracy Internal resistance Ω: 0.3%  voltage V: 0.01%
Test Range Internal resistance Ω : 0.1μΩ ~3kΩ  V: 10μV~60V
Singnal Source Measure the current frequency: 1kHz;
Open circuit voltage <5V; test current <100mA
Range 7 ranges: -3mΩ, 30mΩ, 300mΩ, 3Ω, 30Ω, 300Ω, 3kΩ; automatic or manual test mode for full range.
Sampling Rate 100 times per second, 50 times per second,
20 times per second, 3 times per second
Max Reading IR Ω 32,000 &Voltage V 600,000
Calibration Short circuit is cleared within the full range
Comparator 30 groups of records, 7 levels of sorting, and level counting
Others The data is exported and stored in the U disk
Trigger mode Internal/manual/external

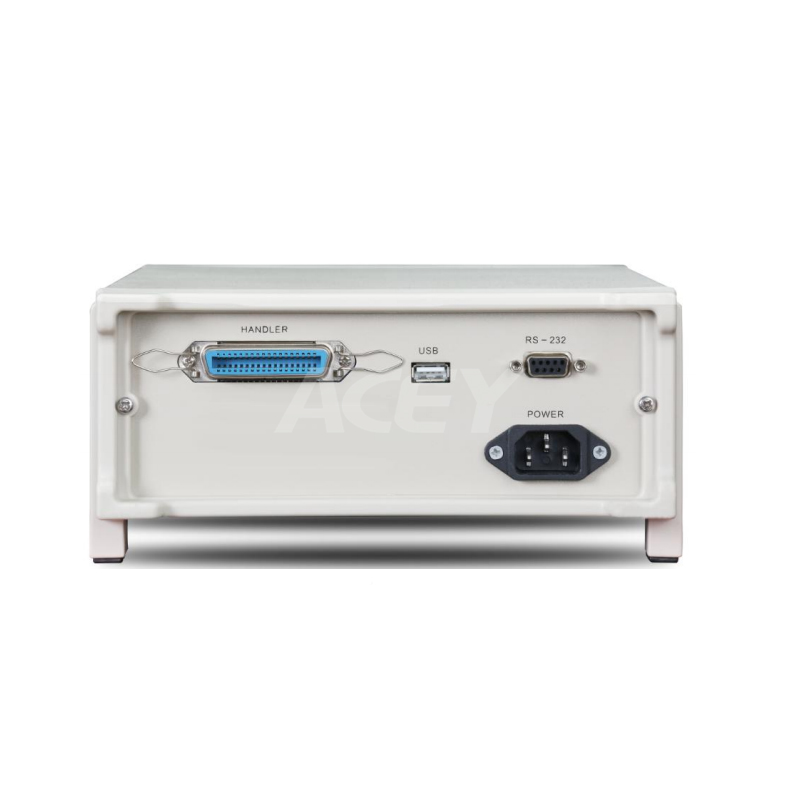

Interface RS-232C, Handler (PLC interface), USB(Host)
Power supply Voltage :90VAC~250VAC; Frequency: 47Hz~400Hz ;
Power: Max 15VA
Dimension & weight Size: 325 mm*215 mm*80 mm; Weight: 3 kg

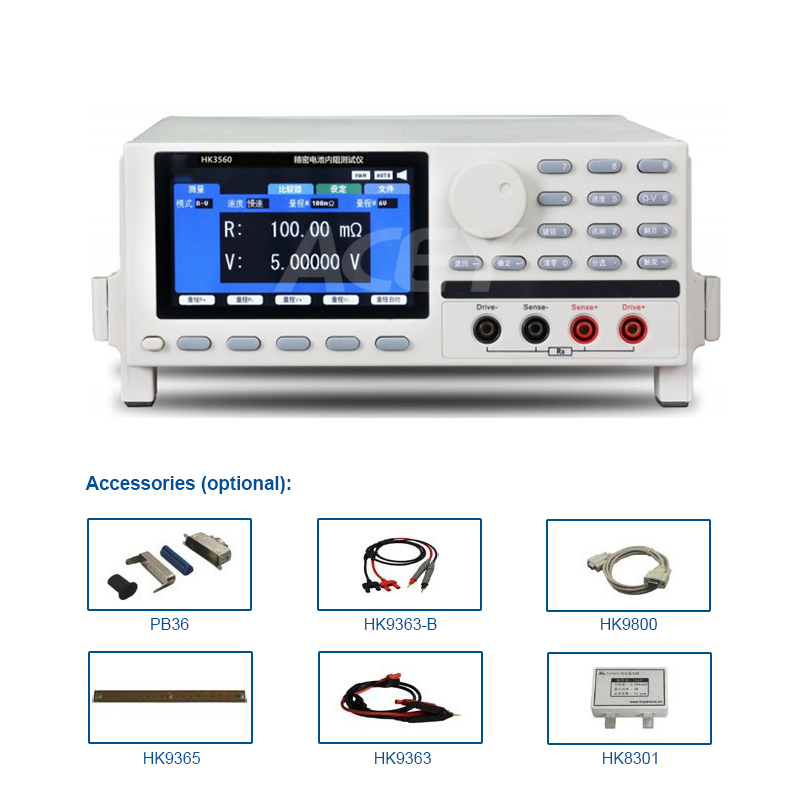

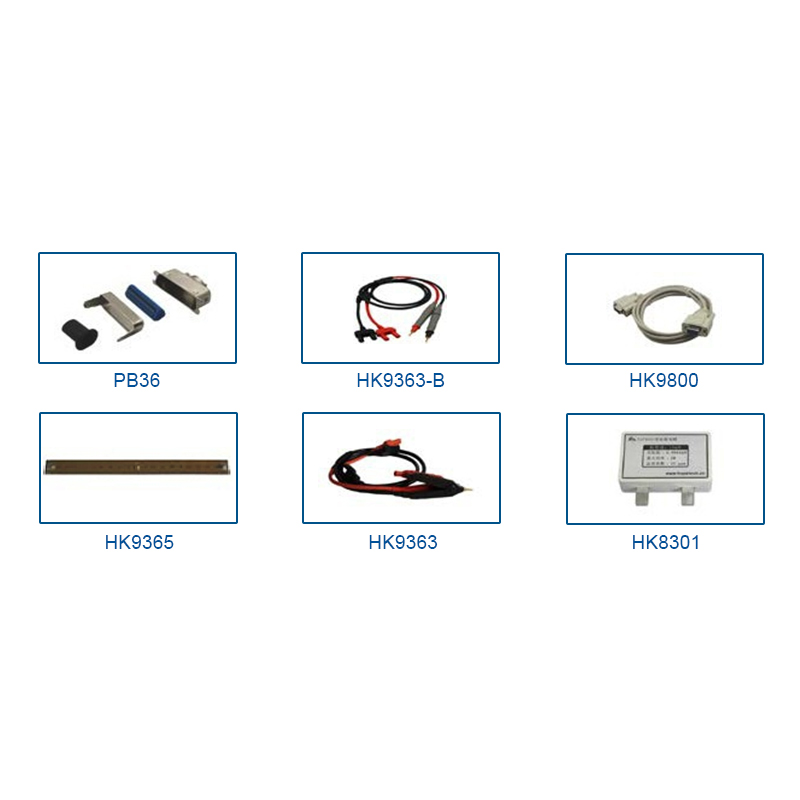

Accessories FB36 HK9363 HK9800
Options HK9363-B test probe HK9365
Others Internal resistance Ω : 0.1μΩ ~3kΩ /V: 10μV~60V

Product Display

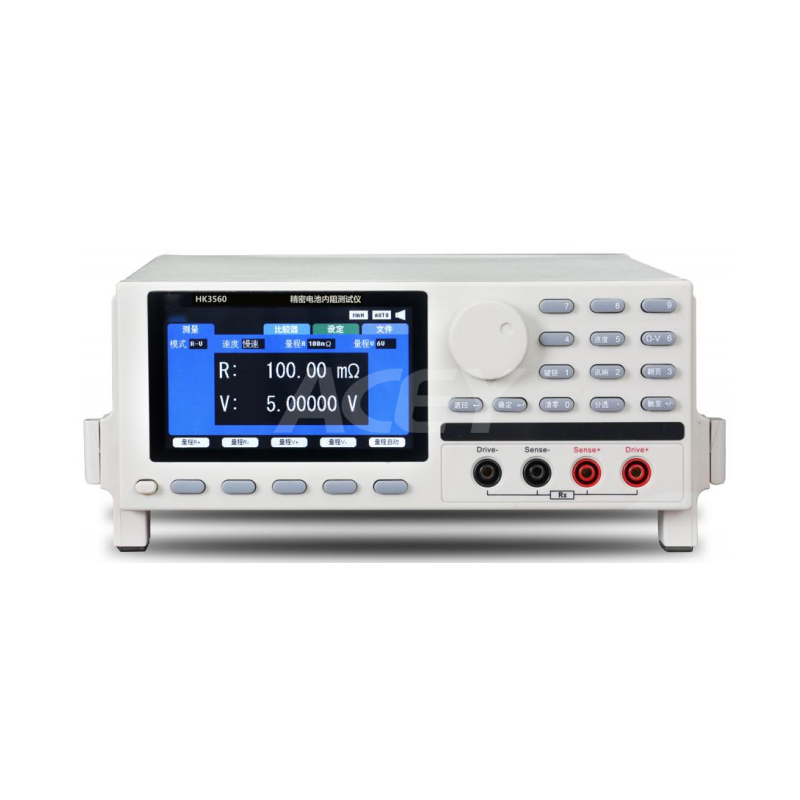

HK-3560 battery ir tester
