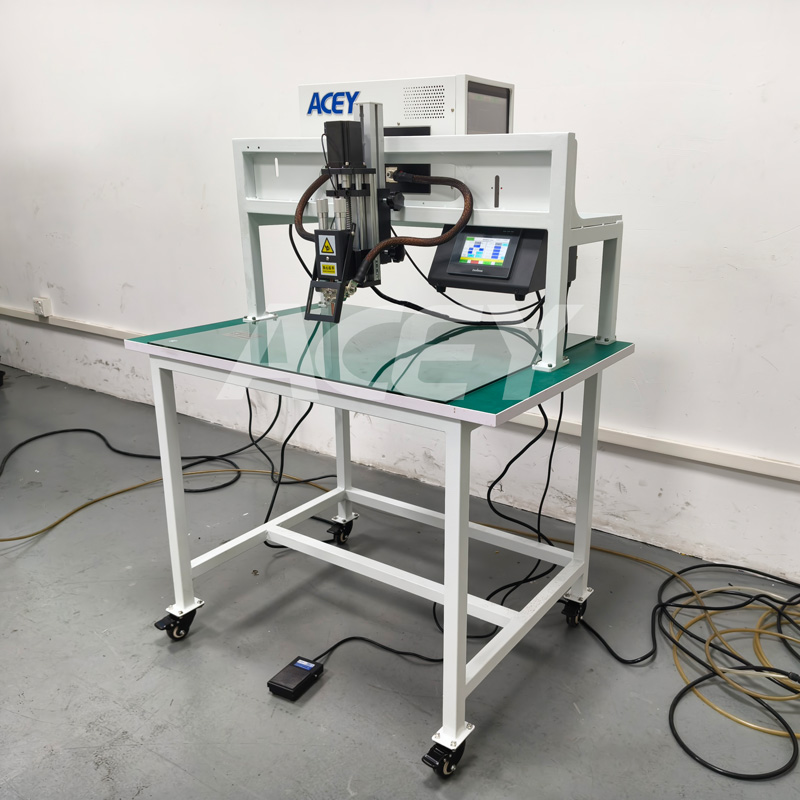

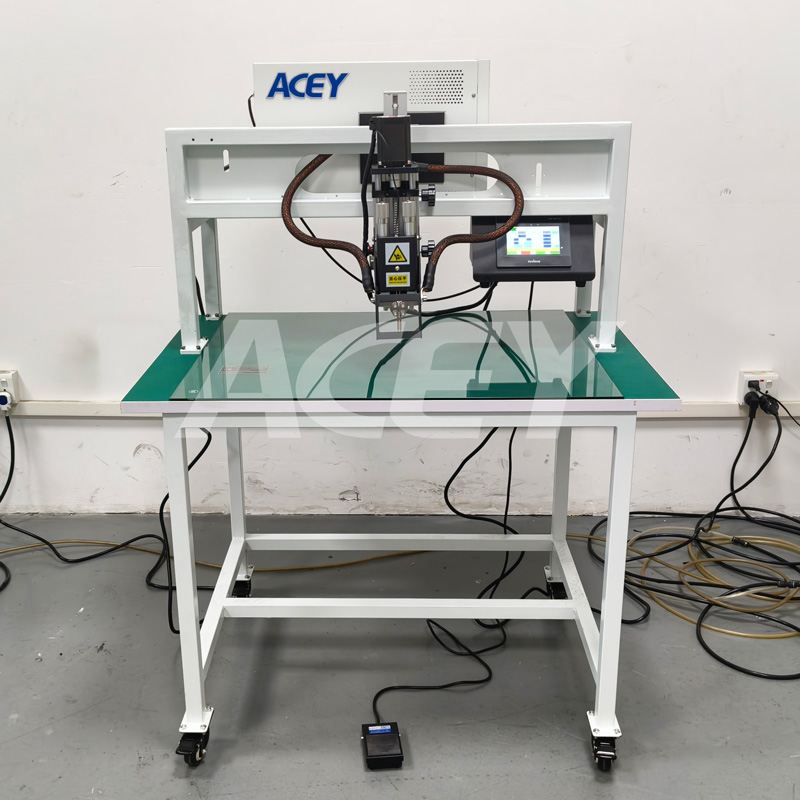

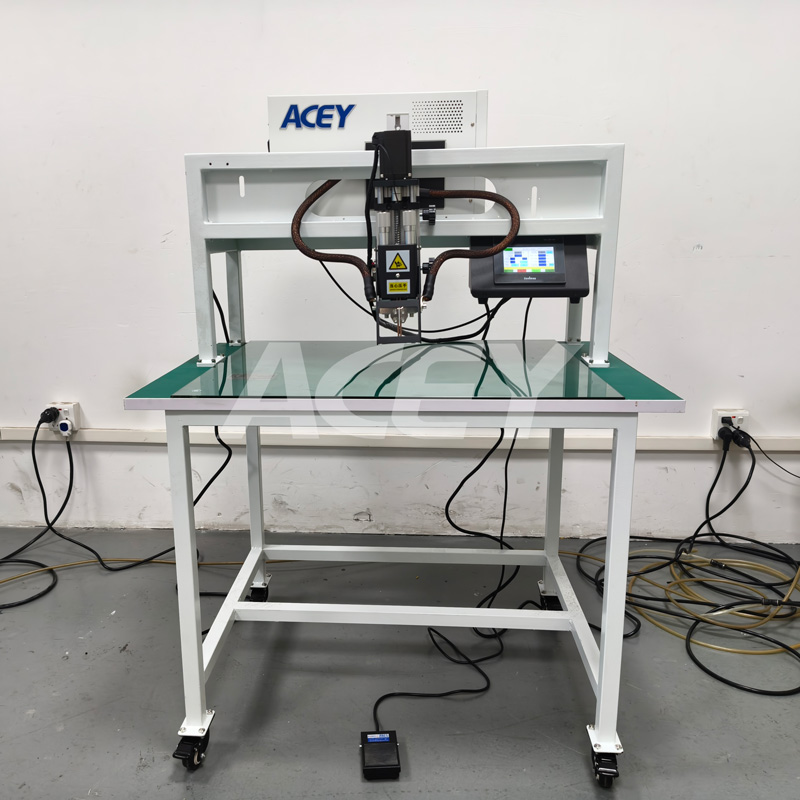

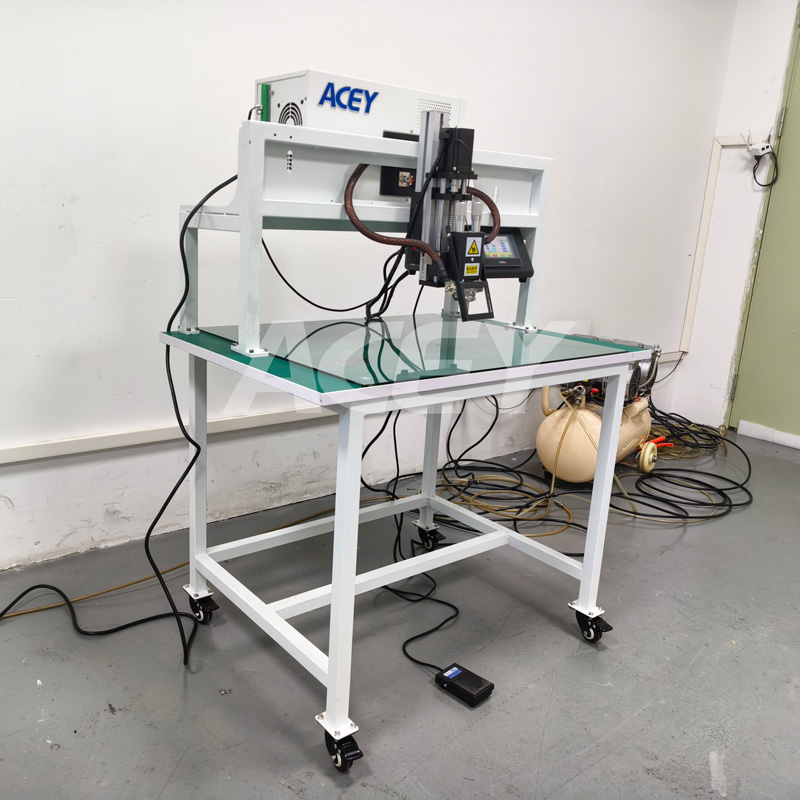

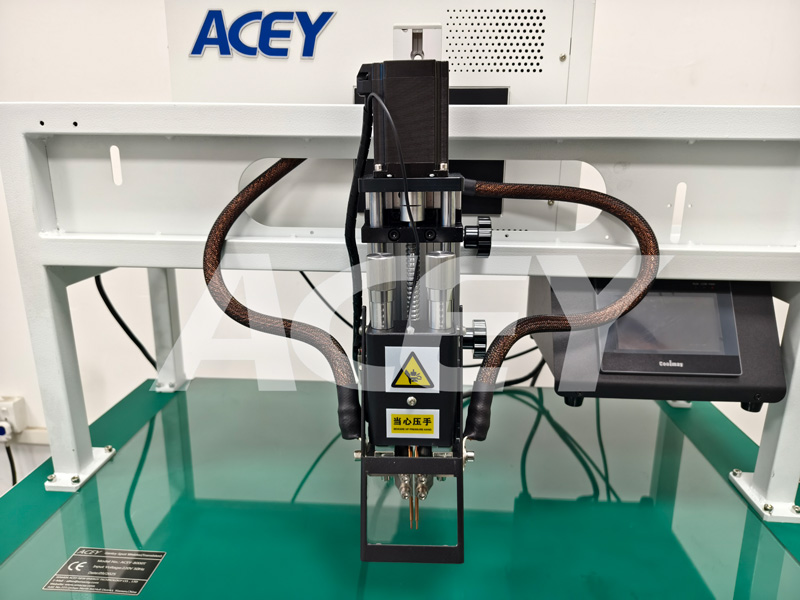

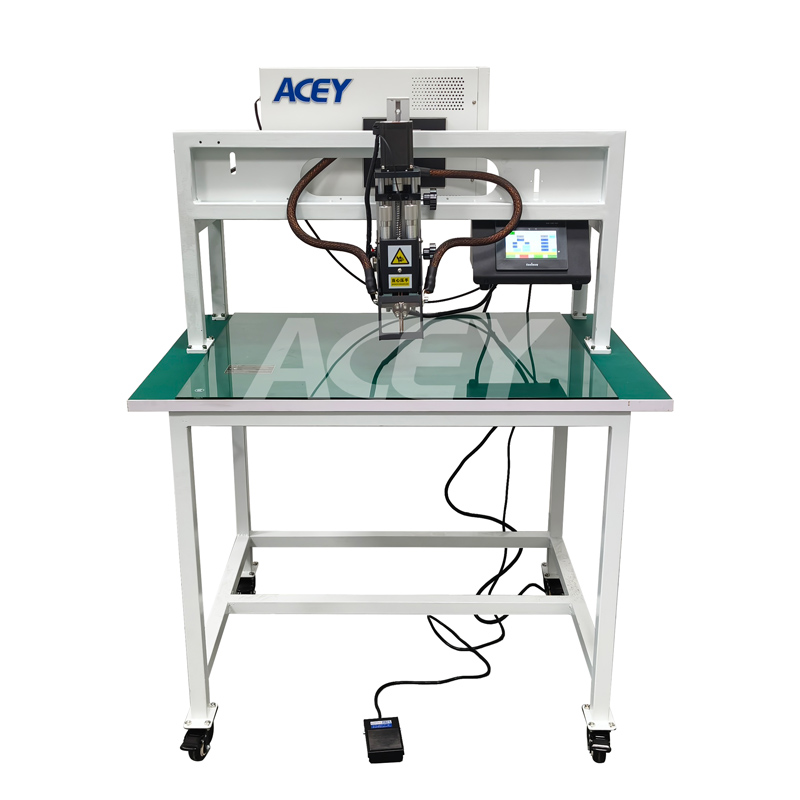

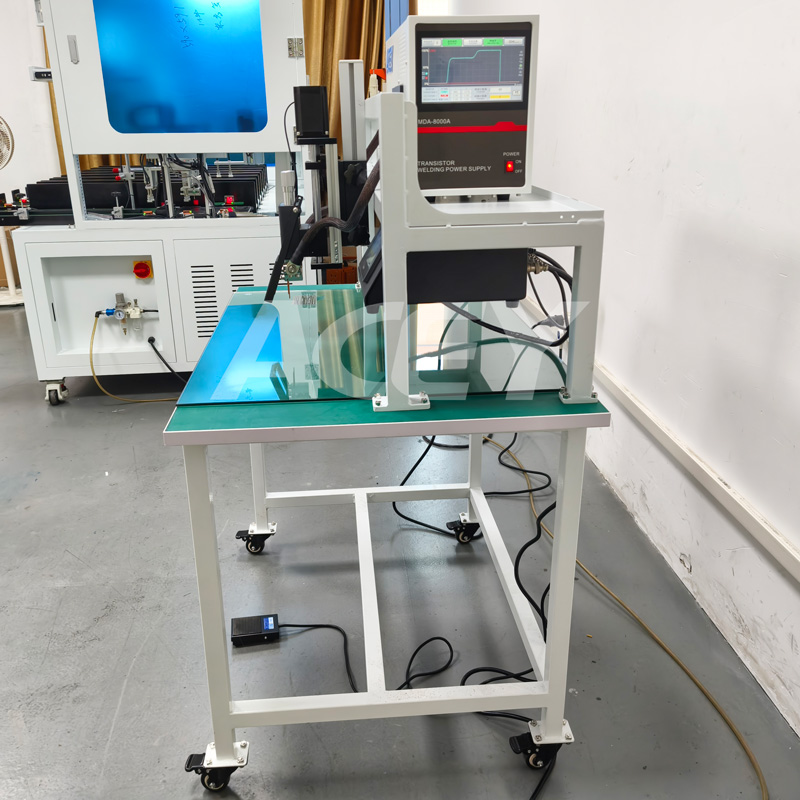

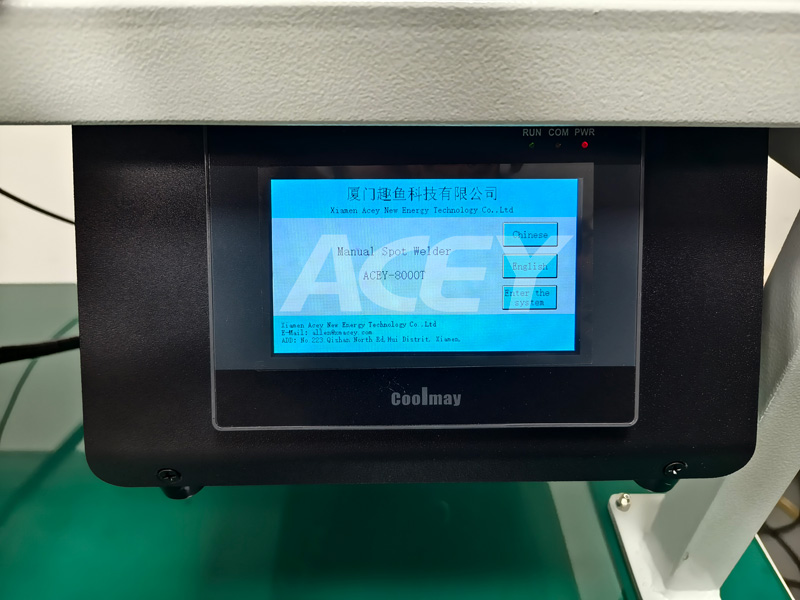

ACEY-8000T manual battery spot welding machine is suitable for assembling and welding cylindrical lithium battery packs such as 18650, 21700, 26650, 32700, and 32140. The equipment has functions such as weld point tracking, explosion detection, false welding, and missing welding monitoring, recording, and alarms, and is suitable for welding battery packs for small batches of products.
Brand:
ACEYItem No.:
ACEY-8000TCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days8000A Professional Ebike Battery Spot Welder 18650 21700 Battery Pack Spot Welding Machine
Product Description

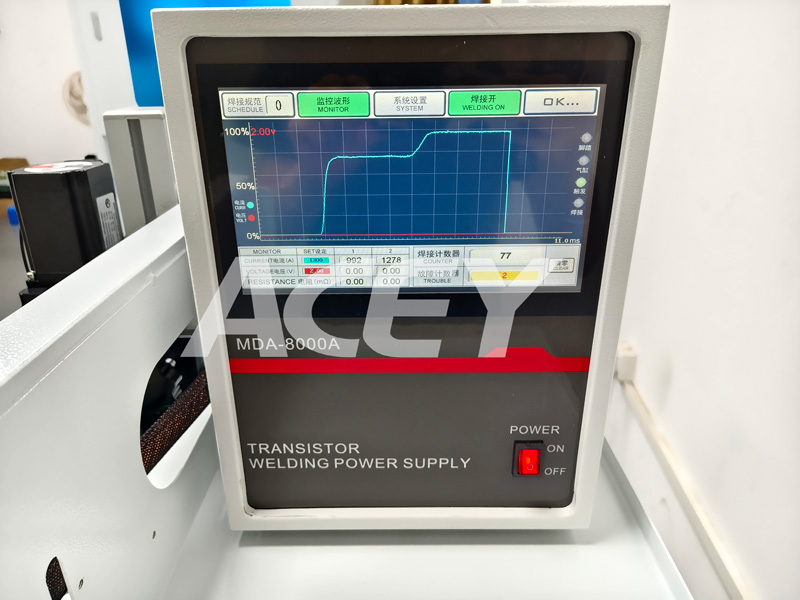

ACEY-8000T lithium battery spot welder machine can be used to weld cylindrical battery packs such as 18650, 21700, 26650, 32700, and 33140 to materials such as nickel or nickel-plated steel. Welding time and welding current and other parameters can be precisely adjusted by a microcomputer controller and can be stored in the controller. They are widely used in the assembly of battery packs for power tools, electric bicycles, scooters, etc.
Features
Specification
| Ambient Temperature | -30ºC to 50ºC |
| Humidity | Below 90% |
|
Air Source Pressure |
0.4～0.6 MPa (pneumatic type only) |
| Power Supply Voltage | 220V or 380V-50Hz/60Hz |
| Load Capacity | ≤200kg/m² |
| Grounding Type | Direct Grounding |
| Site | Free from pollution and strong electromagnetic interference |
| Installation Environment | Flat, vibration-free, and shock-free |
| Equipment Noise | ≤80db |
| Equipment Dimensions (L x W x H) | L900mm * W650mm * H1220mm |
| Equipment Weight | Approx. 60Kg |
| Equipment Color | Computer White (can be adjusted upon request) |
| Total Power | ≤1.5KW |
