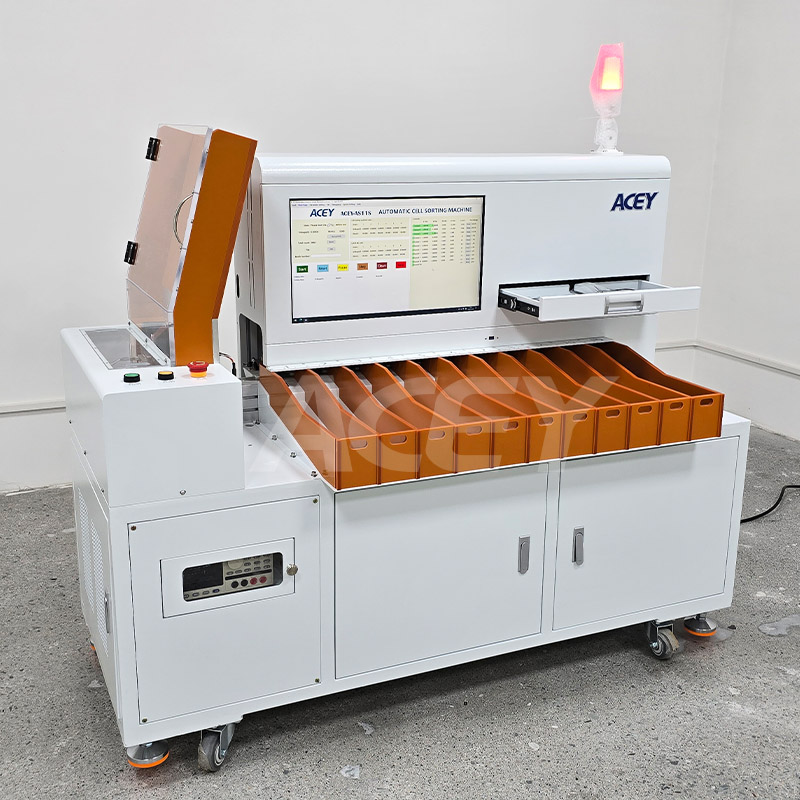

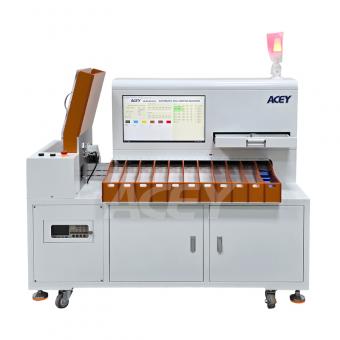

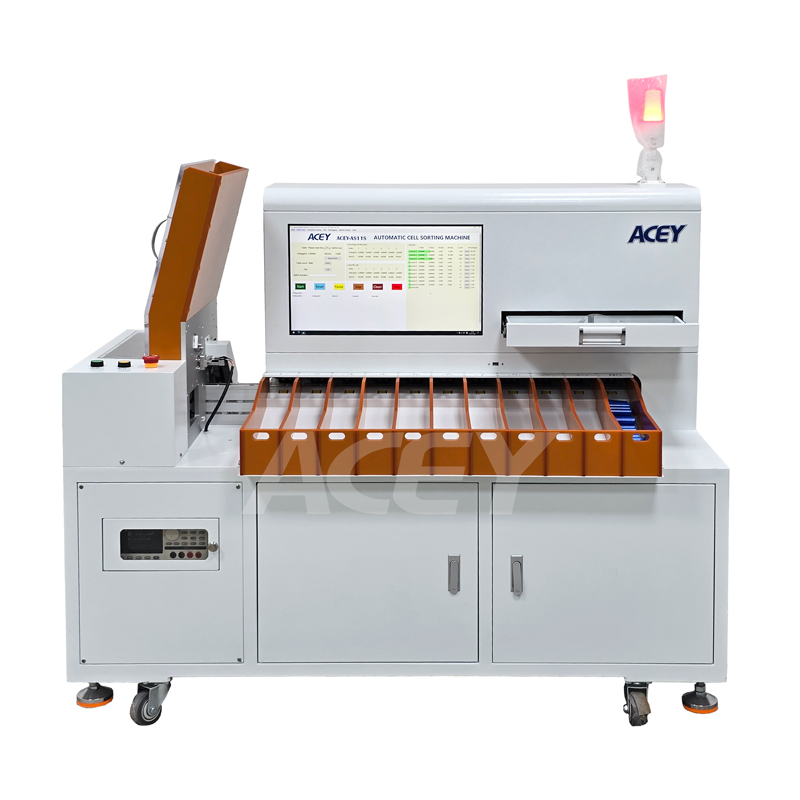

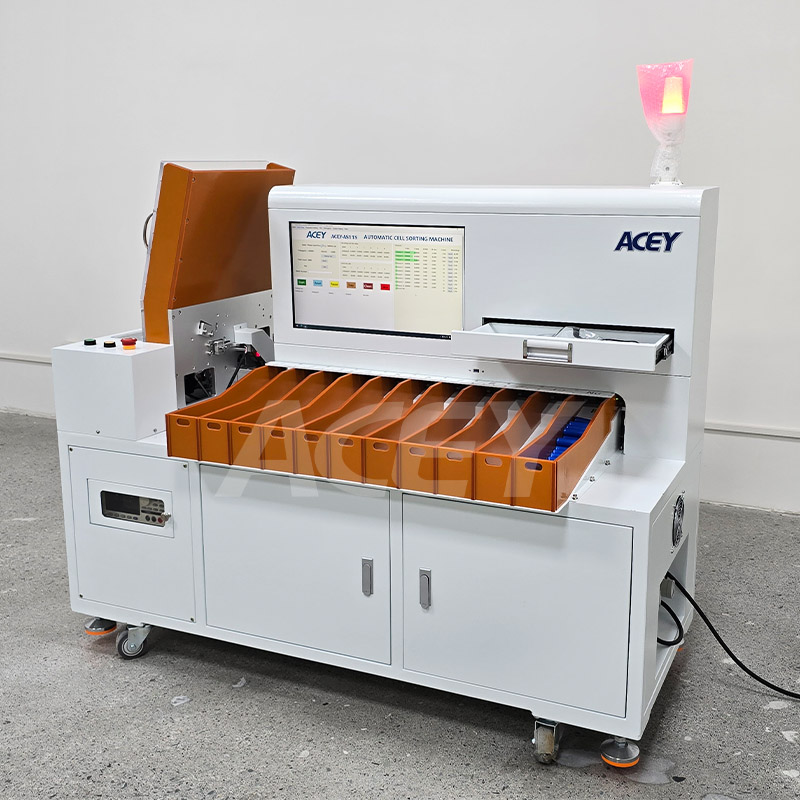

ACEY-AS11S Cylindrical Battery Sorting Machine is used for automaticly sorting voltage & internal resistance for 14650, 18650, 21700, 26650 and 32700 cylindrical cells.
Brand:
ACEYItem No.:
ACEY-AS11SCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days
Automatic Lithium Battery Sorting Machine for 18650 21700 26650 32700
Product Description
ACEY-AS11S 11-Channel Cylindrical Battery Sorting Machine is designed for automatic testing, sorting and matching of cylindrical lithium-ion cells before battery pack assembly. It combines PC-based control, motion control, servo drives and a high-precision battery internal resistance tester to manage cell testing, data processing and multi-group classification in one system.
The machine supports 14650, 18650, 21700, 26650 and 32700 cylindrical cells. Sorting parameters can be adjusted for different production requirements, while product changeover can typically be completed in approximately 15 minutes.
With a production capacity up to 4800 cells per hour, the system is suitable for battery pack production where consistent cell grouping, production data management and process traceability are required.
Product Features
| Parameter | Specification |
| Product Type | 11-Channel Cylindrical Battery Sorting Machine |
| Applicable Cells | 14650 / 18650 / 21700 / 26650 / 32700 |
| Main Sorting Parameters | Battery voltage and internal resistance |
| Sorting Capacity | Approx. 4800 pcs/hour |
| Product Changeover Time | Approx. 15 minutes |
| Feeding Method | Hopper / chute feeding |
| Control System | PC + motion controller + servo system |
| Internal Resistance Tester | Different brands and models available |
| Barcode / QR Code Scanning | Optional |
| MES Connection | Supported |

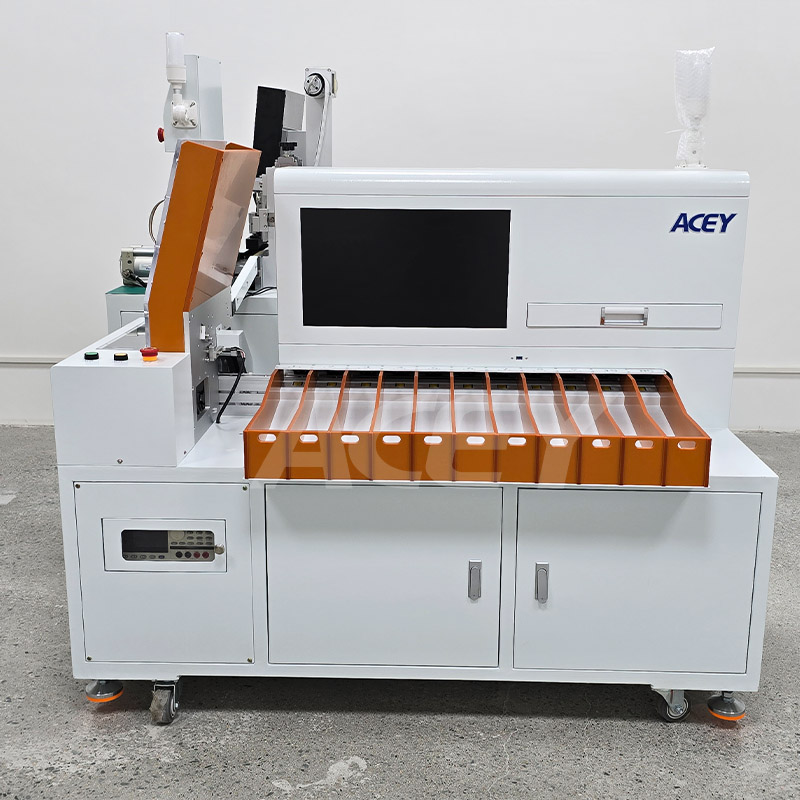

| Inline Connection | Can connect with automatic insulation paper pasting machine |
| Machine Dimensions | L1510 × W700 × H1360 mm |
| Machine Weight | Approx. 198 kg |
| Total Power | ≤1.5 kW |
| Power Supply | AC 220V, 50/60Hz |
| Required Air Pressure | 0.5–0.6 MPa |
| Machine Mobility | Universal movable casters |
Operating Environment
| Item | Requirement |
| Ambient Temperature | -30°C to 50°C |
| Relative Humidity | Below 90% |
| Floor Load | ≤200 kg/m² |
| Grounding | Direct grounding |
| Installation Surface | Flat, without significant vibration or impact |
| Site Conditions | Free from severe pollution and strong electromagnetic interference |
| Equipment Noise | ≤80 dB |
Applications

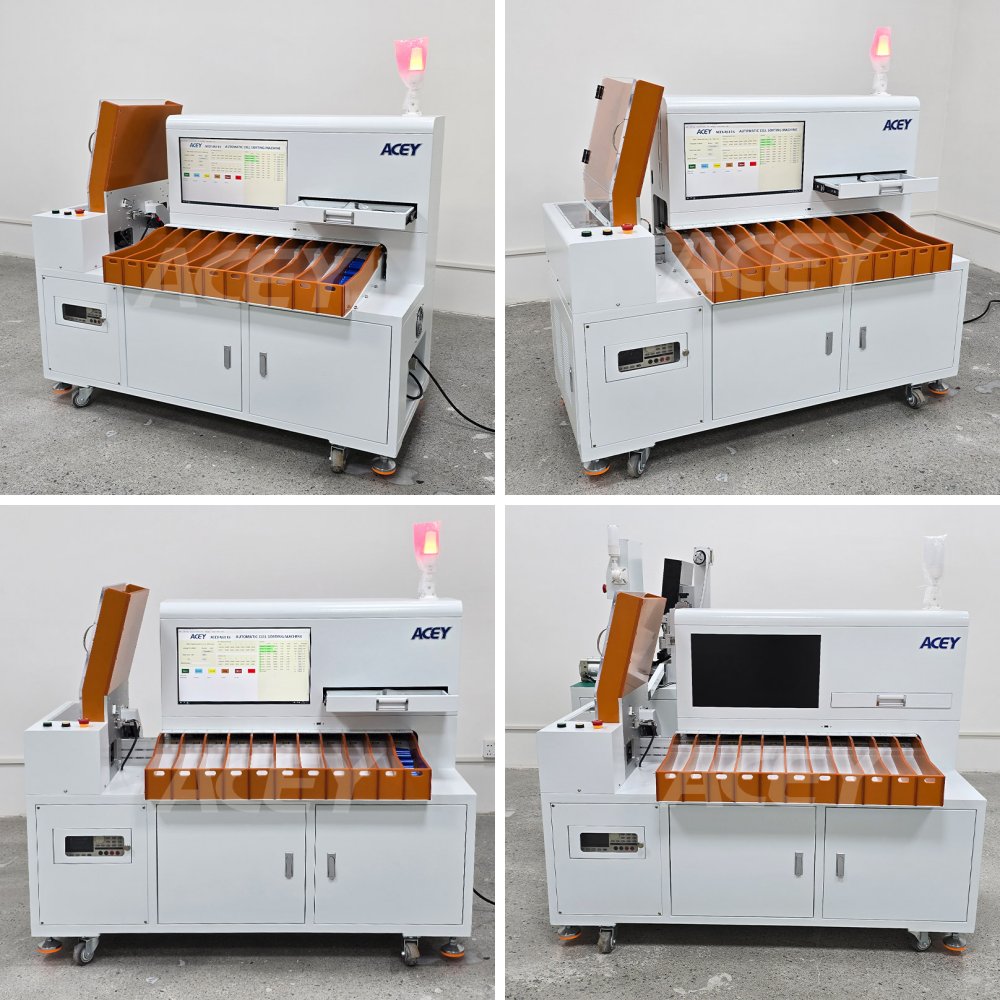

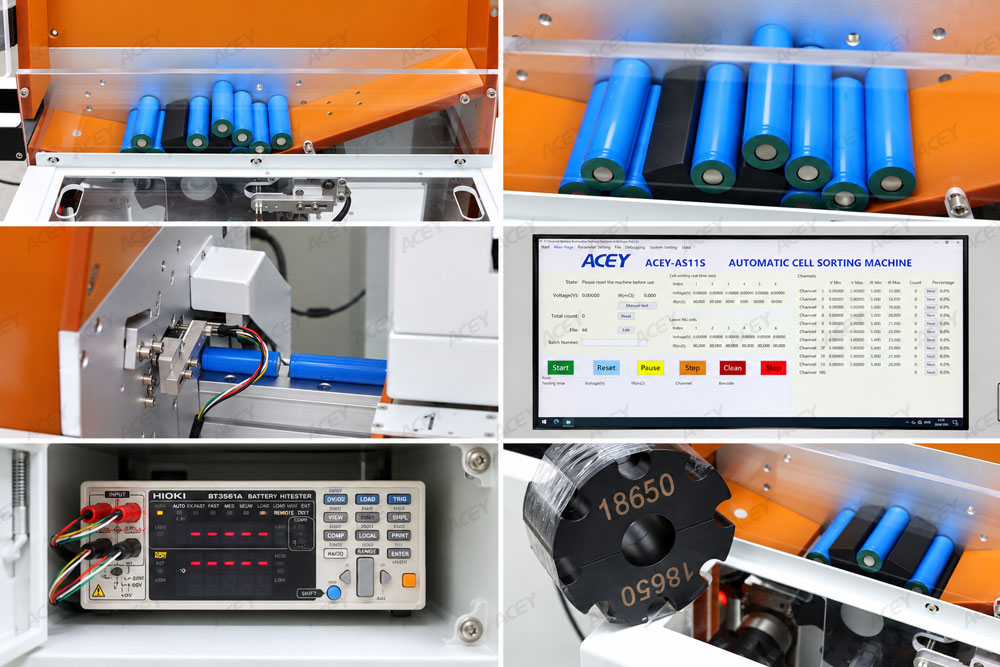

Product Details
FAQ
*What does this 11-channel battery sorting machine test?
The machine is used to classify cylindrical lithium-ion cells according to battery voltage and internal resistance, allowing cells with similar electrical characteristics to be grouped before battery pack assembly.
*Which cylindrical battery sizes are supported?
Standard configurations support 14650, 18650, 21700, 26650 and 32700 cells.

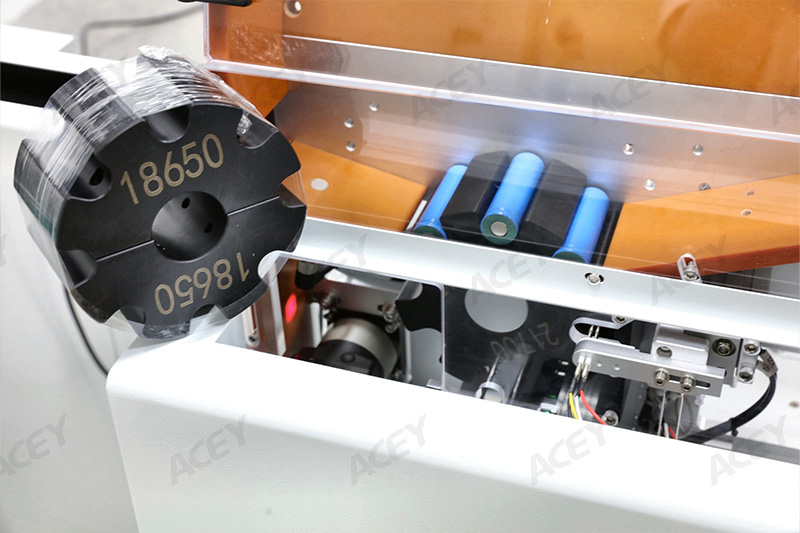

*How long does it take to change to another battery size?
The changeover takes approximately 15 minutes.
*Does the machine support barcode scanning?
Yes. Barcode and QR code scanning can be added as an optional function for cell identification and test-data traceability.
