Cylindrical Battery Pack Machine

/

Auto Sorter

/18650 21700 26650 32700 Cylindrical Battery Cell Sorting Machine

18650 Lithium Cell Sorting Machine
18650 21700 26650 32700 Cylindrical Battery Cell Sorting Machine 18650 21700 26650 32700 Cylindrical Battery Cell Sorting Machine 18650 21700 26650 32700 Cylindrical Battery Cell Sorting Machine 18650 21700 26650 32700 Cylindrical Battery Cell Sorting Machine

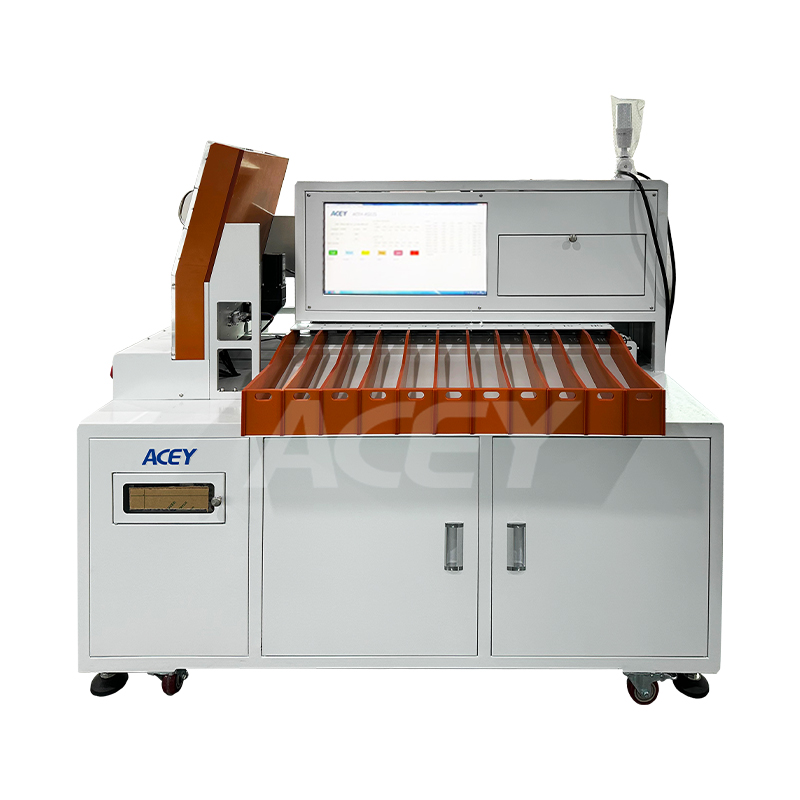

18650 21700 26650 32700 Cylindrical Battery Cell Sorting Machine

ACEY-AS11S lithium cell sorting machine is used to test the voltage and internal resistance of cylindrical lithium battery such as 18650 21700 26650 32650 32700 batteries by HK3561 or HIOKI 3561 high-precision internal resistance tester.

  • Brand:

    ACEY

  • Item No.:

    ACEY-AS11S

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
Product Catalog
  • Product Detail

18650 21700 26650 32700 Cylindrical Battery Cell Sorting Machine


Description

ACEY-AS11S lithium battery cell sorting machine is an efficient and high-precision device designed for rapid sorting of cylindrical lithium batteries. It uses an advanced internal resistance tester to accurately measure battery voltage and internal resistance. The equipment is compatible with various specifications of batteries (18650/21700/26650/32700, etc.), with a sorting speed of up to 5000 PCS/hour, which greatly improves production efficiency and supports data export for easy quality traceability. It is widely used in battery production, recycling testing and quality control laboratories.


Features

  • Automatically sort the voltage and internal resistance of cylindrical batteries like 18650, 21700, 26650, 32700;
  • High precision and fast speed, High degree of automation, high productivity;
  • Touch screen operation, easy and fast responding;
  • The process detection signal is comprehensive and diverse, ensuring sufficient maturity and reliability;
  • Humanized processing of subtle links greatly guarantees the safety of operators and products;


Specification

Model No.

ACEY-AS11S

Voltage Supply

Single-phase ~220V±10%/50Hz±10%, power <800W

Battery Types
 18650/21700/26650/32700
Receiving channel
 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters
 AC internal resistance, DC voltage
Internal resistance test
 Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test
 Test range： 8V
Accuracy ：±0.015%rdg,
Display resolution： 0.01mV
Sorting speed
 80ppm
AI.Set function
 Intelligent one-button setting, specially designed for new functions of battery pack.
Size
 L1430mm*W660mm*H1350mm
Weight
 <200Kg


Product Details

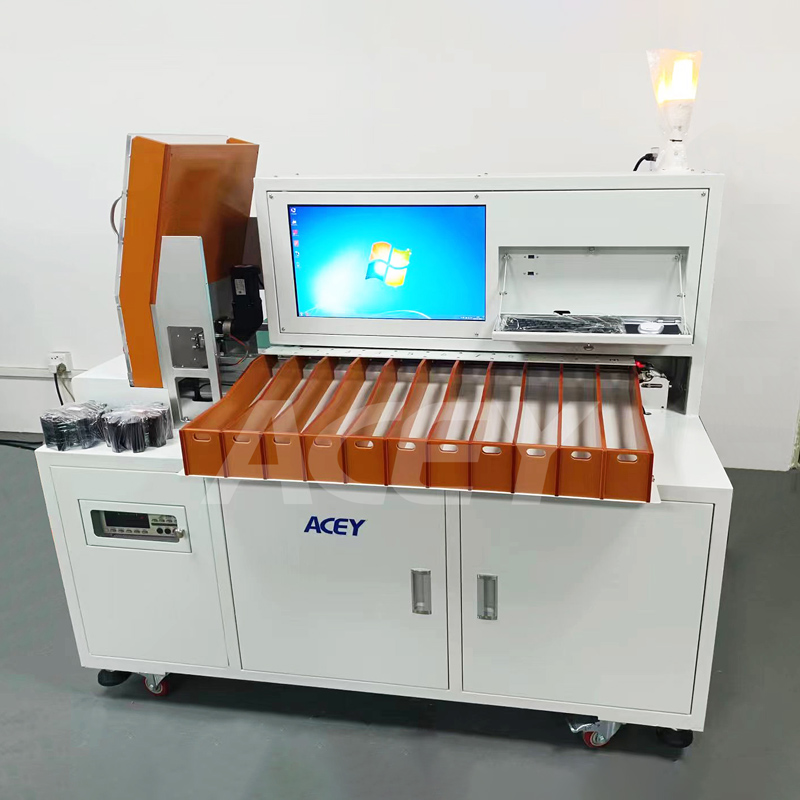

18650 lithium cell sorting machine

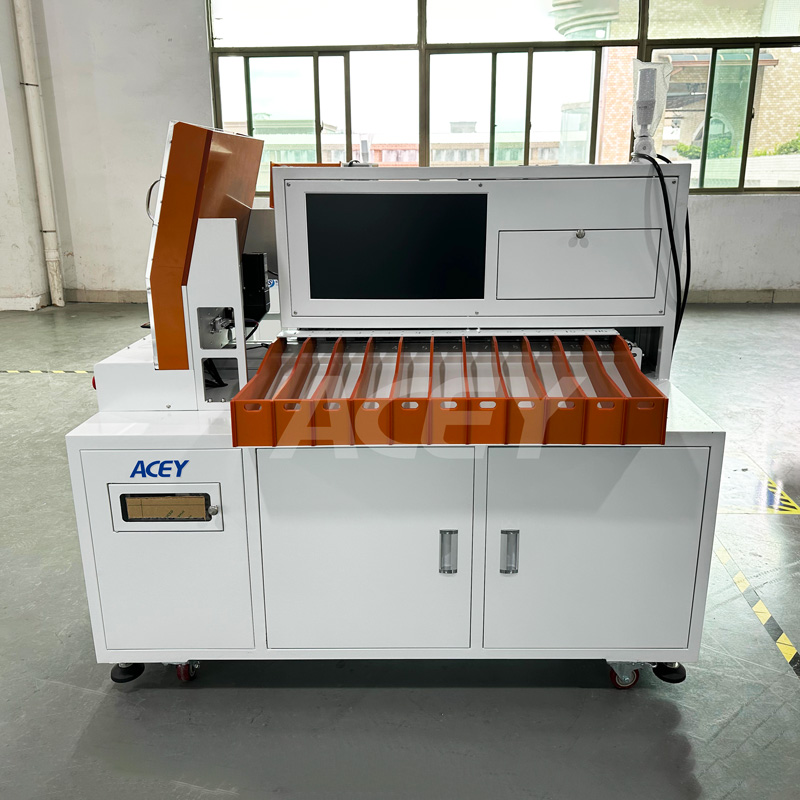

Lithium Cell Sorting Machine

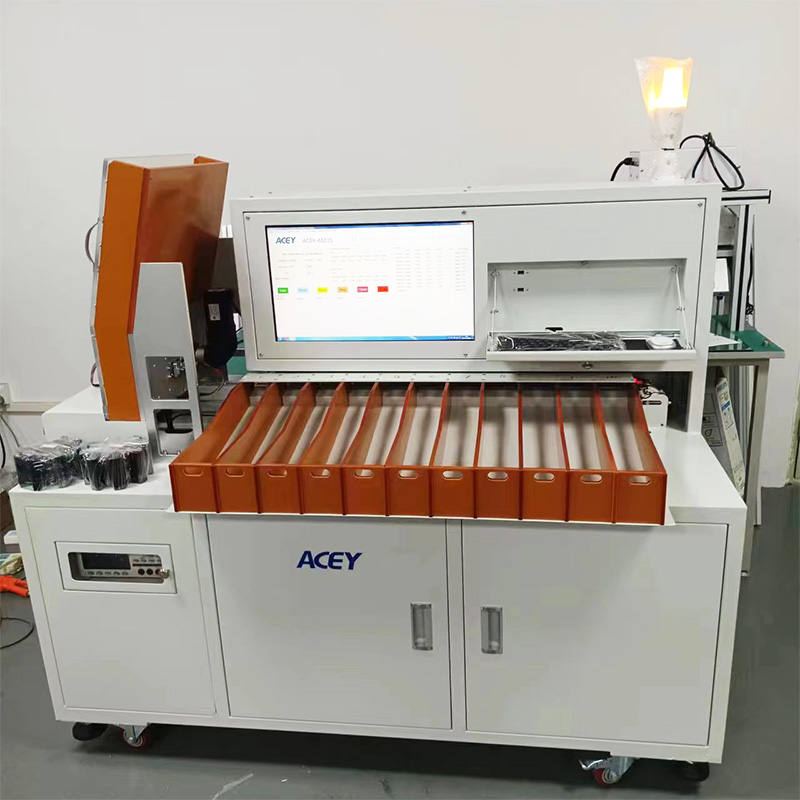

Cylindrical battery sorting machine
