Manual Battery OCV And Internal Resistance Tester For Cylindrical/Prismatic/Pouch Cells

Manual Battery OCV And Internal Resistance Tester For Cylindrical/Prismatic/Pouch Cells

Product Description

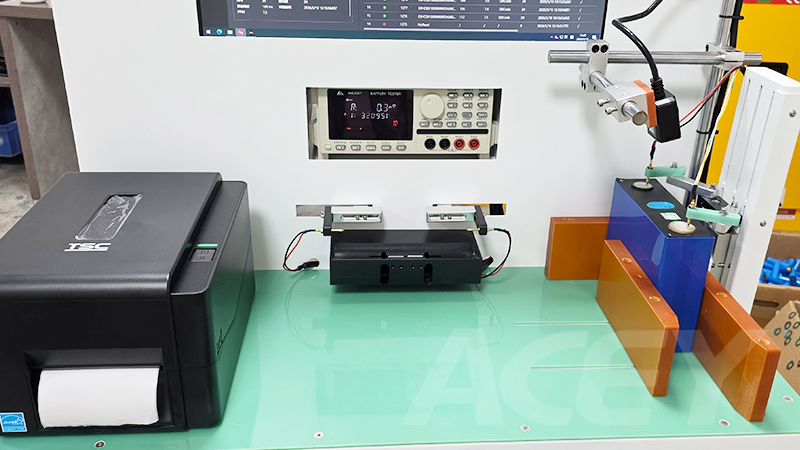

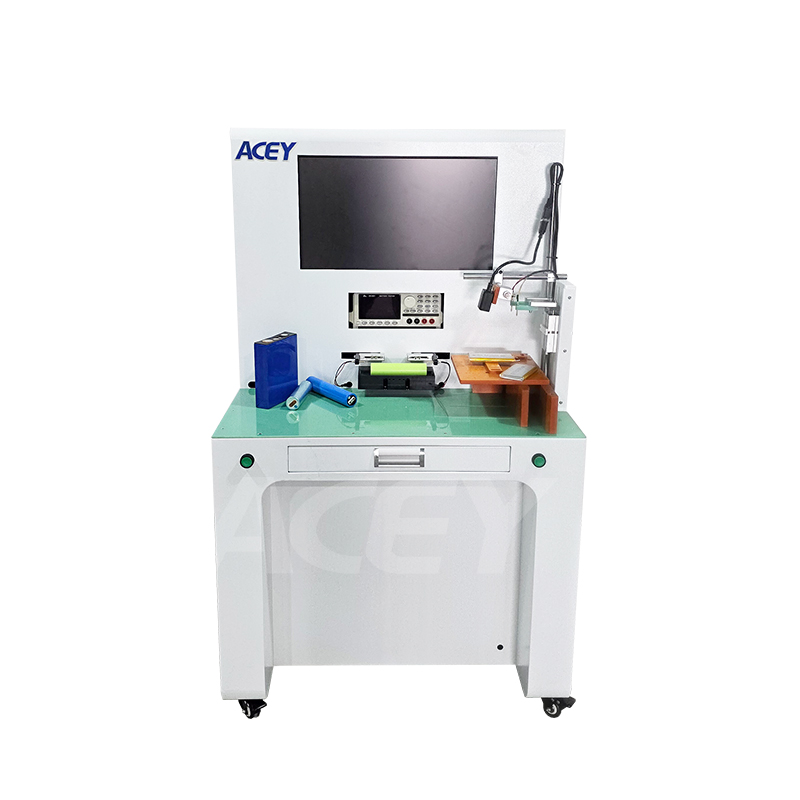

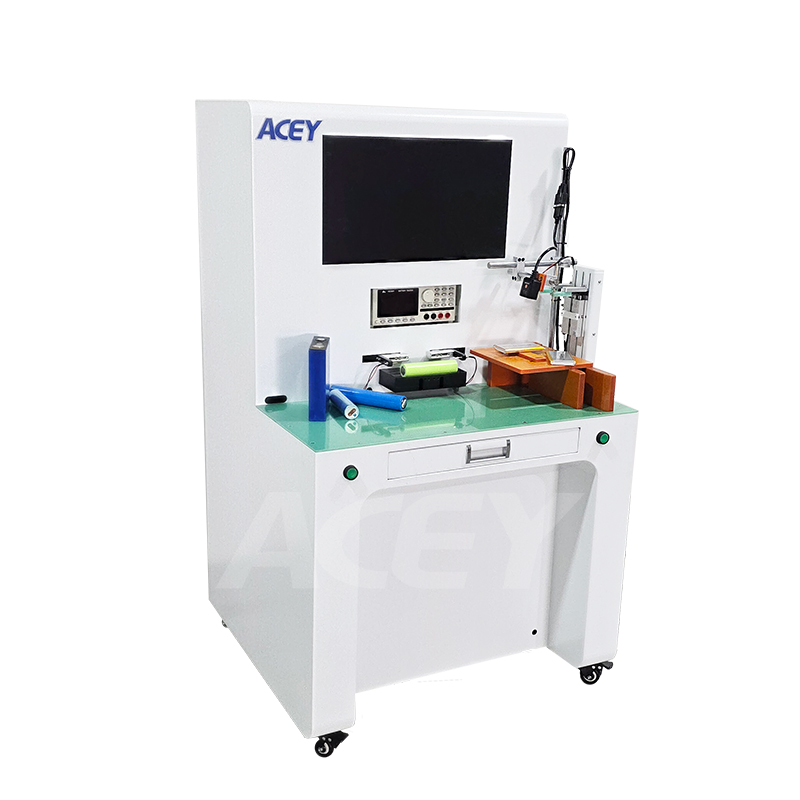

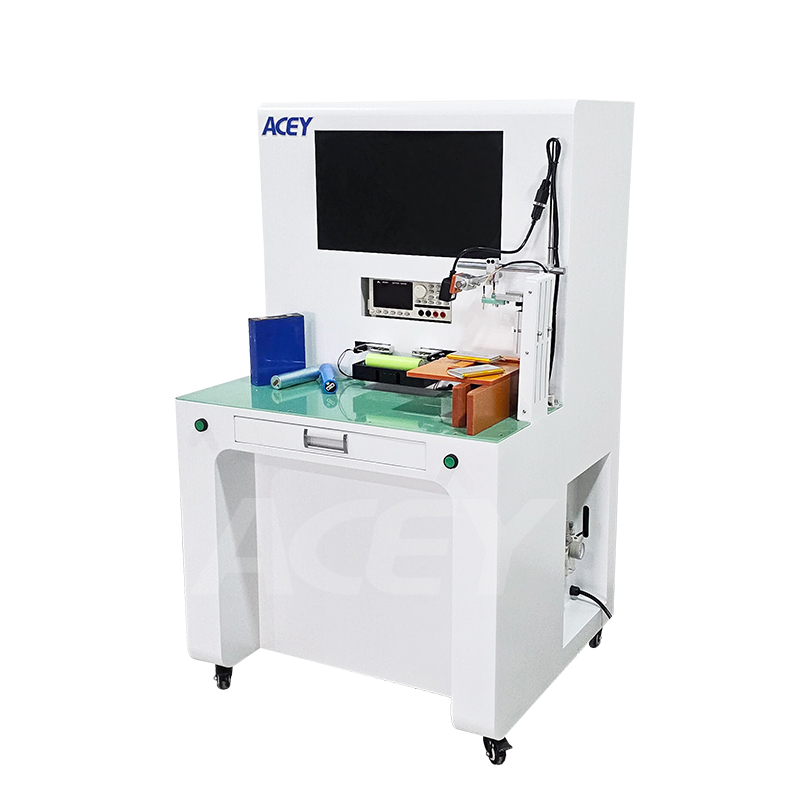

ACEY-MS03 is a manual OCV and internal resistance testing machine specially designed for cylindrical batteries, prismatic lithium batteries, and pouch cells.

Unlike conventional testing equipment that is usually designed for only one battery format, ACEY-MS03 is developed to support all three battery types on one machine, meeting the testing needs of different lithium battery applications.

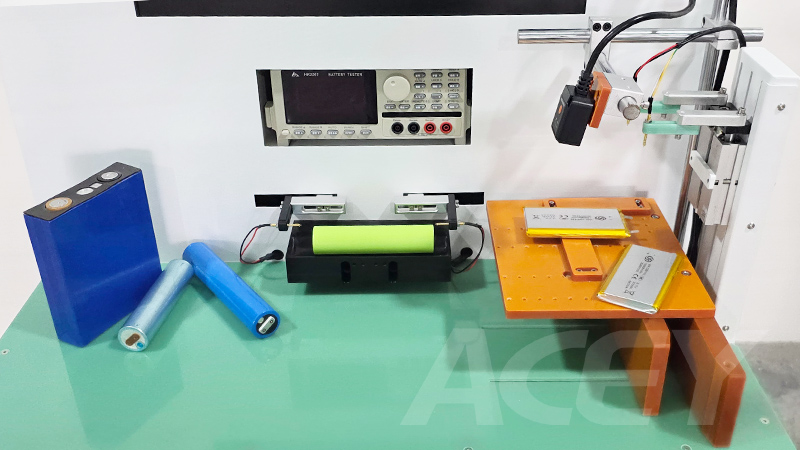

The operator manually places the battery into the testing position. After pressing the dual-hand start buttons, the cylinder automatically presses or clamps the battery. The internal resistance tester then collects and records voltage and internal resistance data, while the display shows the corresponding grading result. After testing, the cylinder automatically releases, and the operator removes the battery manually.

The machine is suitable for battery manufacturers, laboratories, pilot lines, and battery pack assembly applications requiring multi-format battery testing.

Product Features

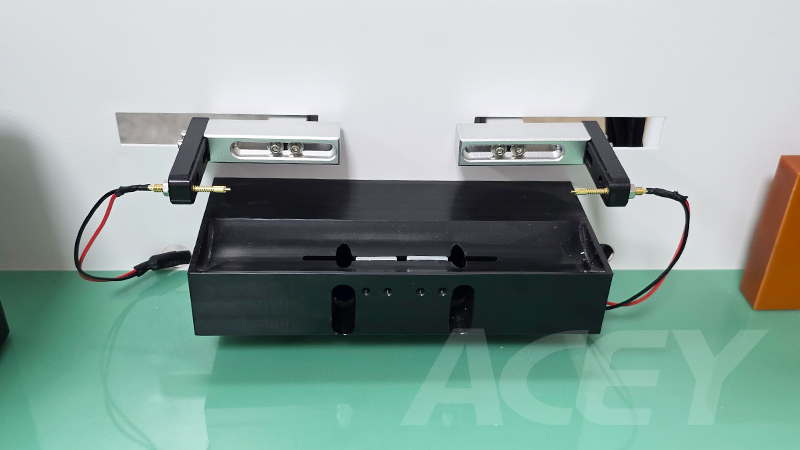

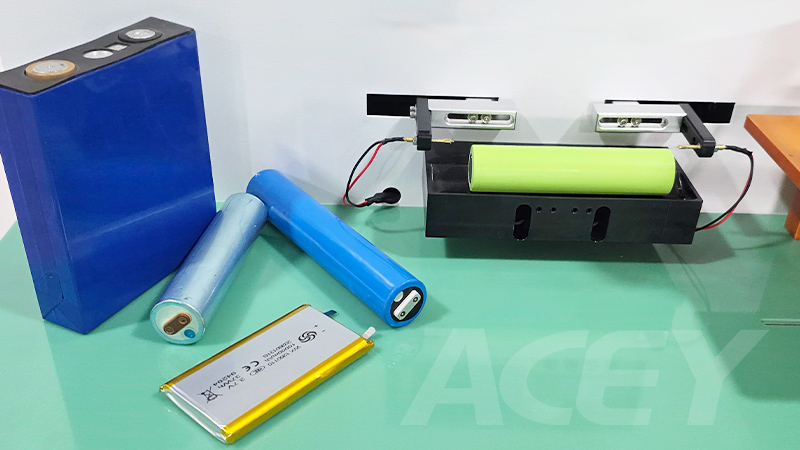

• Specially designed for cylindrical lithium batteries, prismatic lithium batteries, pouch cells (polymer batteries)
• Supports battery voltage and internal resistance testing with stable and reliable performance.
• PLC control system provides stable operation and easy parameter adjustment.
• Dual-hand start buttons improve operator safety during testing.
• Supports up to 10 channel grading parameter settings for battery sorting applications.
• The machine automatically completes clamping and testing after startup.

• Length: 80-300mm
• Thickness: 10-100mm
• Height: 80-300mm

• Diameter: 21-50mm
• Length: 65-200mm

Pouch Cell

• Width: 30-300mm
• Length: 50-500mm

Product Display
