Automatic Battery Film Coating Machine With Dying Cover

It is an ideal tool for low-cost research and development of battery electrode materials.

  • Brand:

    ACEY
  • Item No.:

    ACEY-HFC800
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

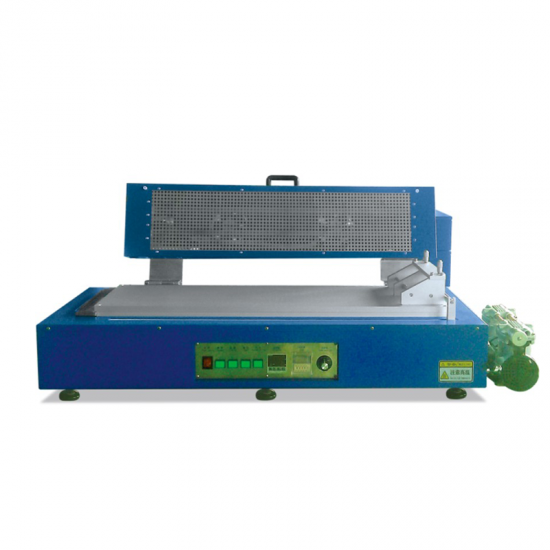

Automatic Battery Film Coating Machine With Dying Cover

Description

ACEY-HFC800 is a 800mm long cast coating machine, including a vacuum suction cup and an oil-free vacuum pump, and a scraper can produce long thick films.With a unique automatic propulsion device, it can produce smooth coatings on any material. Strong wind circulation drying heating, digital display temperature control, maximum working temperature 130 ℃.

Features

*Digital display timer, drying time can be set freely;

*The coating speed is adjustable within the range of 0~120mm/sec;

*Vacuum aluminum plate can quickly place or remove the substrate;

*The stroke can be adjusted by the stroke switch between 0~800mm;

*With adjustment of the coating thickness ( Scraper with precision 0.01mm);

*Small size, can save space;

*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;

*Includes 1 oil-free vacuum pump.

Specification

Film coating speed

0120mm/sec;

Vacuum plate

aluminum plate with vacuum;

Vacuum plate size

L900mm×W200mm×H32mm;

Scraper adjustable range

03.5mm;

Heating drying system

room temperature130℃, digital display temperature controller, accuracy ± 1℃

Power supply

220V/50Hz;

Power

1.8KW

Weight

70KG;

Dimensions

L1000mm×W355mm×H325mm;

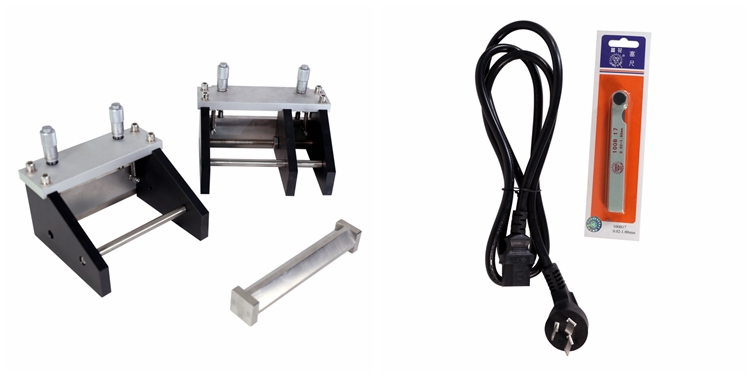

Product Display



Packing


One-stop Solution

Flow-chart of Coin Cell Lab-scale Fabrication

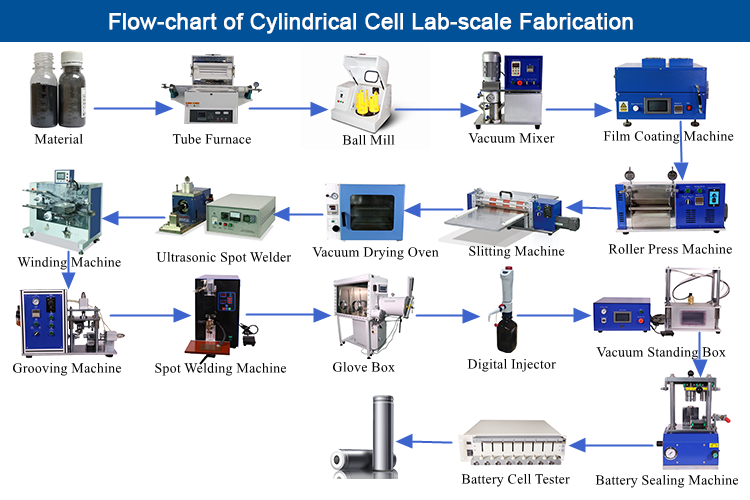

Flow-chart of Cylindrical Cell Lab-scale Fabrication

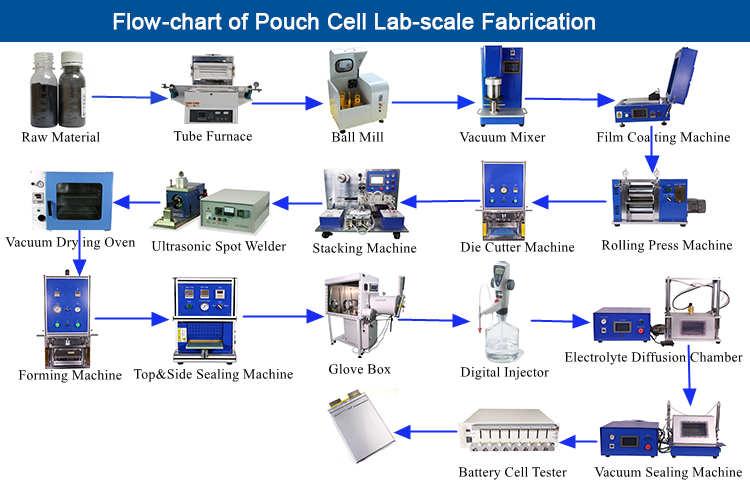

Flow-chart of Pouch Cell Lab-scale Fabrication
