XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/21ba821835cda2ca9839bd228e6114af.jpg)
Brand:
ACEYItem No.:
ACEY-WP315Compliance:
CE CertifiedOrder(Moq):
1Payment:
T/TProduct Origin:
ChinaLead Time:

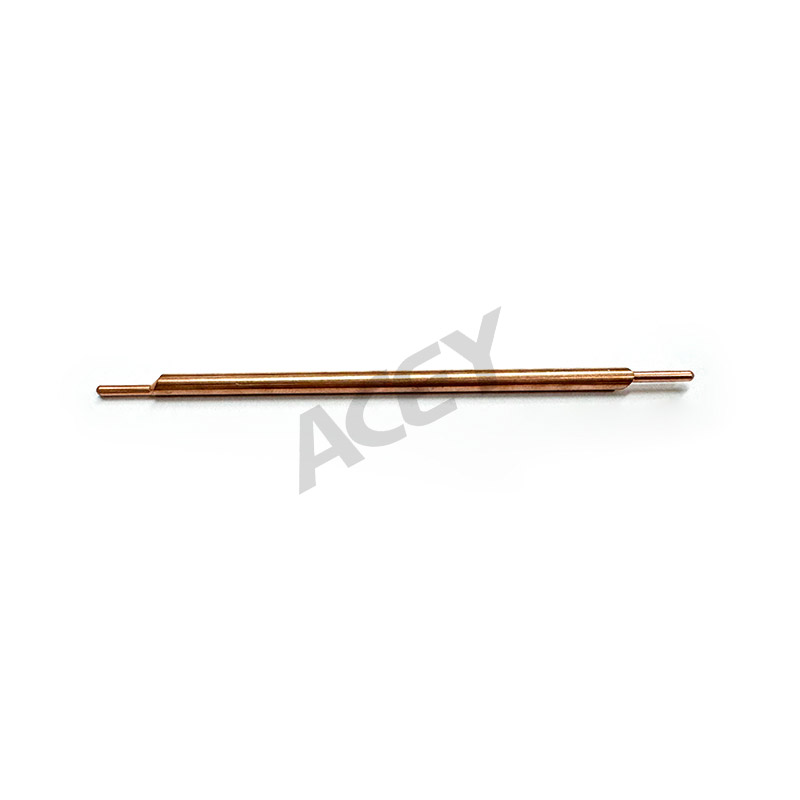

7-35 daysAlumina Copper Double-Ended Eccentric Ball Tip Battery Spot Welding Electrode Pin
Product Description
ACEY-WP315 Battery Spot Welding Electrode Pin is made from alumina dispersion-strengthened copper for good conductivity, heat resistance, and wear resistance during repeated spot welding.

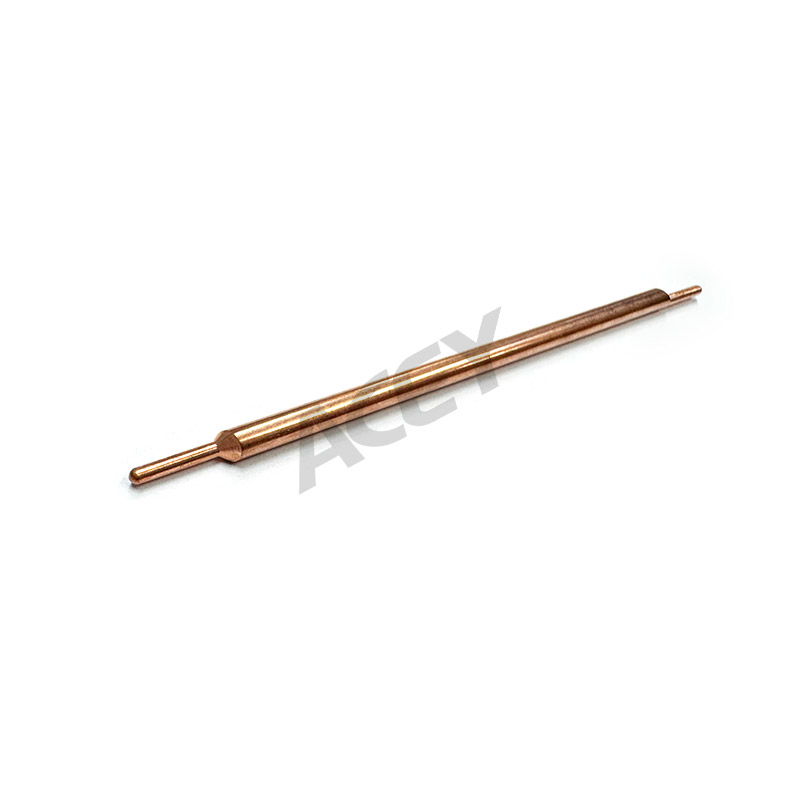

Its double-ended eccentric ball tip allows the welding contact point to be offset from the electrode center, making it suitable for welding positions close to fixtures, battery holders, or adjacent cells.
Product Features
Product Specification
| Model | ACEY-WP315 Battery Spot Welding Electrode Pin |
| Material | Alumina Copper |
| Electrode Type | Double-Ended Eccentric Ball Tip |
| Main Diameter | Ø3 mm |
| Tip Diameter | Ø1.5 mm |
| Length | 80 mm |
| Welding Process | Resistance Spot Welding |
| Application | Battery Pack Welding |
Applications
ACEY-WP315 Battery Spot Welding Electrode Pin is suitable for nickel strip, battery tab, and cell connection welding, especially where the welding point is close to fixtures, battery holders, or adjacent cells.

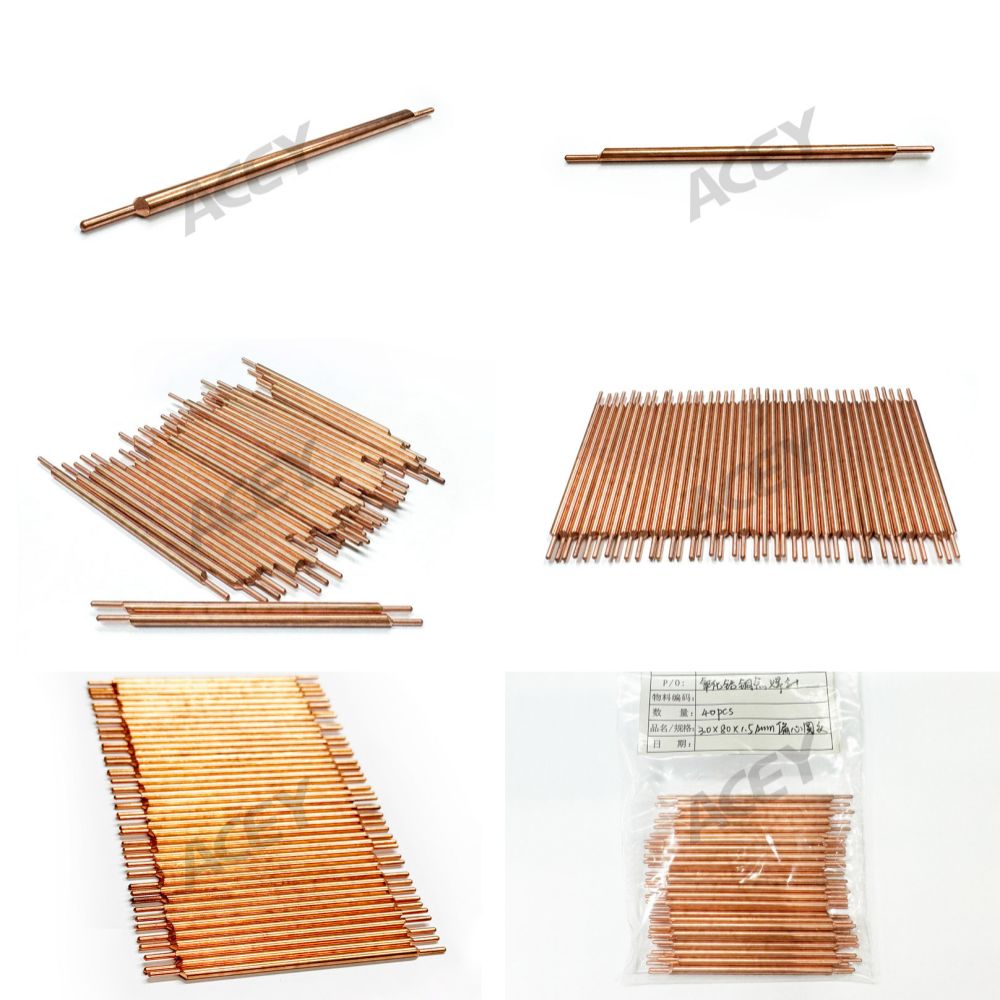

Product Details
FAQ
*What is the ACEY-WP315 Battery Spot Welding Electrode Pin used for?
It is used for lithium battery resistance spot welding, especially for welding positions that require offset electrode contact.
*What is an eccentric ball tip?
The welding contact point is offset from the center axis of the electrode pin, allowing more flexible access to restricted welding positions.
*Can it be used with automatic battery spot welding machines?
Yes. It can be used with compatible semi-automatic and automatic battery spot welding equipment.
