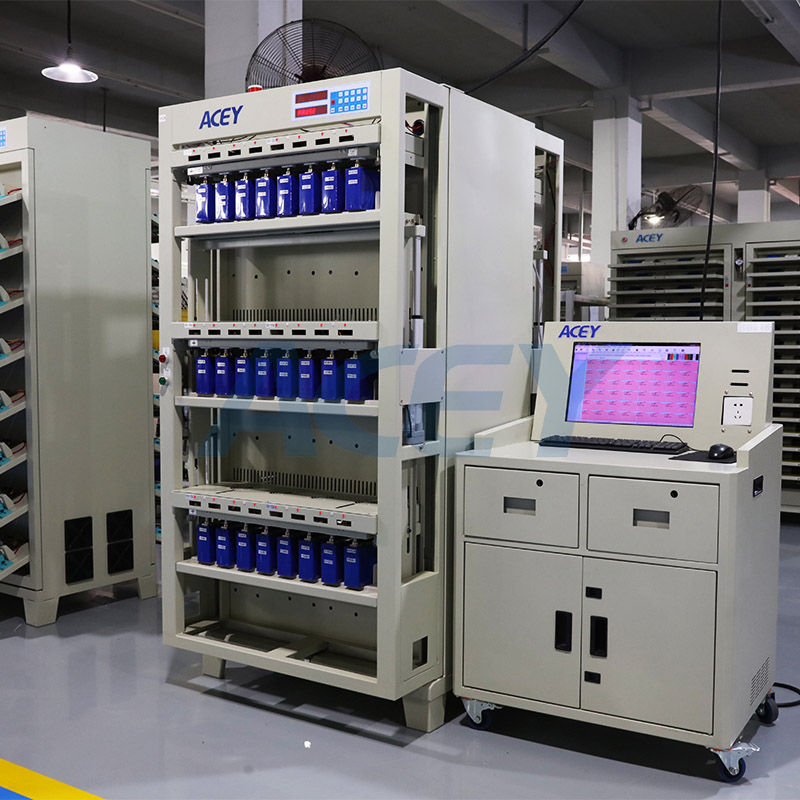

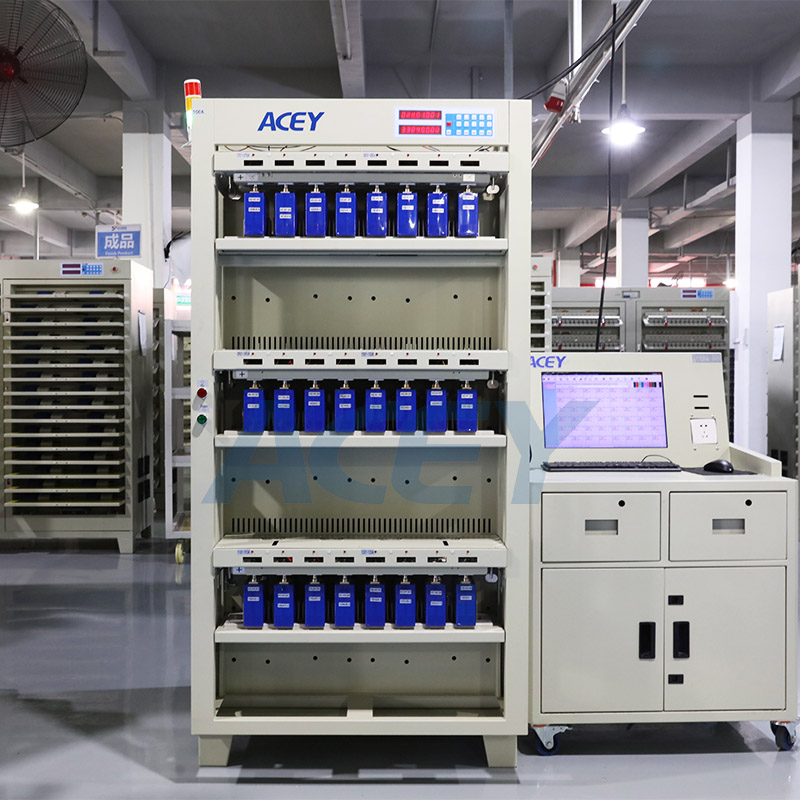

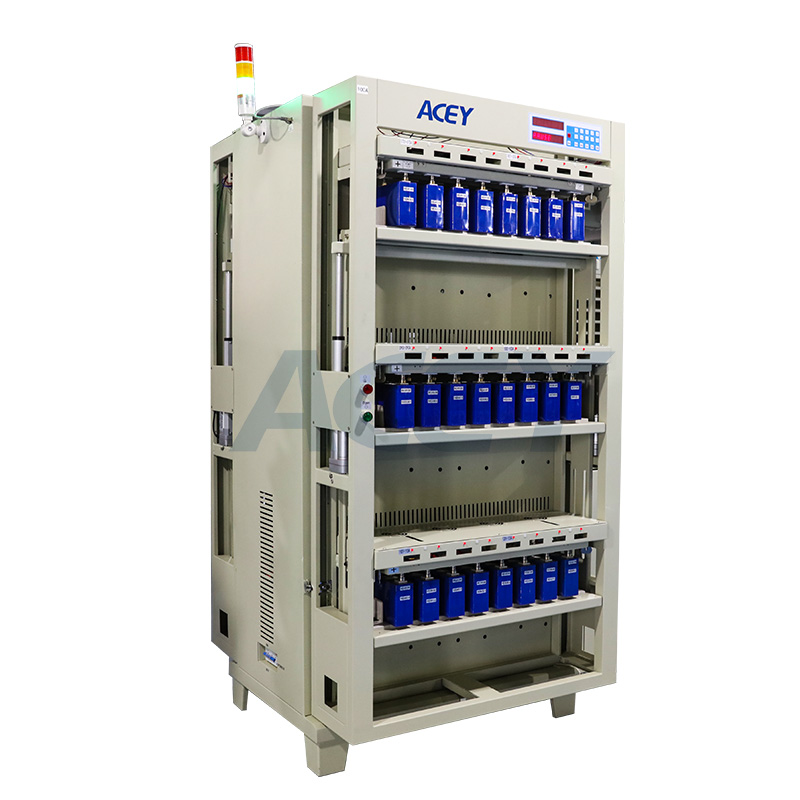

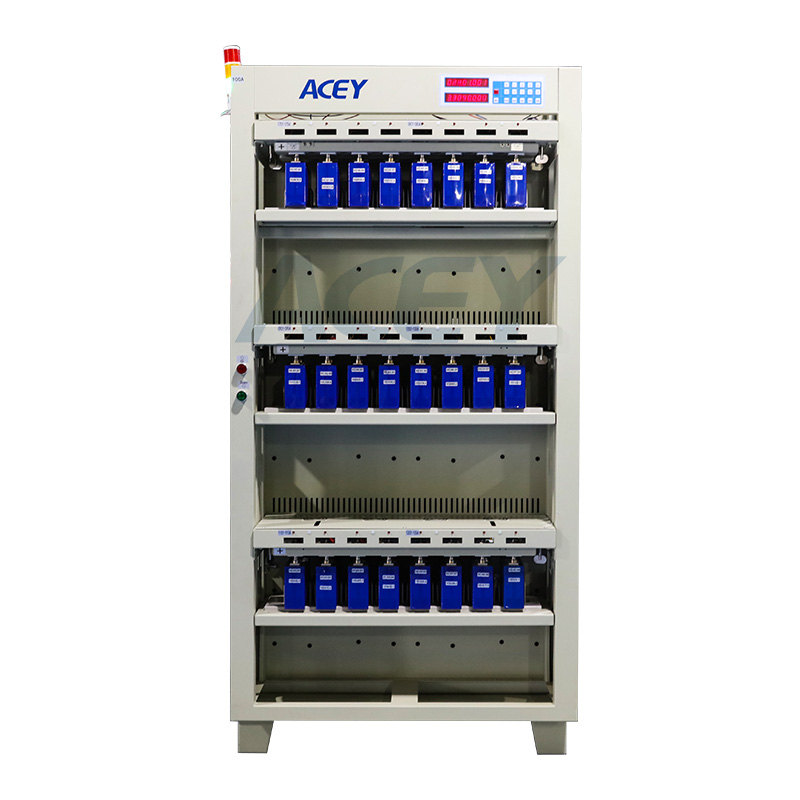

ACEY-BCT5100-48P lithium battery charge discharge machine is mainly used to test the voltage, capacity and other parameters of prismatic lithium-ion batteries. According to the test results, the cells are classified and grouped according to capacity to ensure that the capacity difference of cells in the same group is controlled within a very small range.
Brand:
ACEYItem No.:
ACEY-BCT5100-48PCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 SetPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days5V 100A 48-Channel Regenerative Prismatic Lithium Battery Charge Discharge Machine
Product Description
Battery capacity grading is one of the core steps in battery pack assembly. The capacity of each battery cell is measured through cyclic charge and discharge tests, and then the batteries are classified and grouped according to capacity to ensure the consistency of the batteries in the same group, avoiding overcharging and over-discharging of the battery pack due to mismatched battery capacity in subsequent use.
System Features

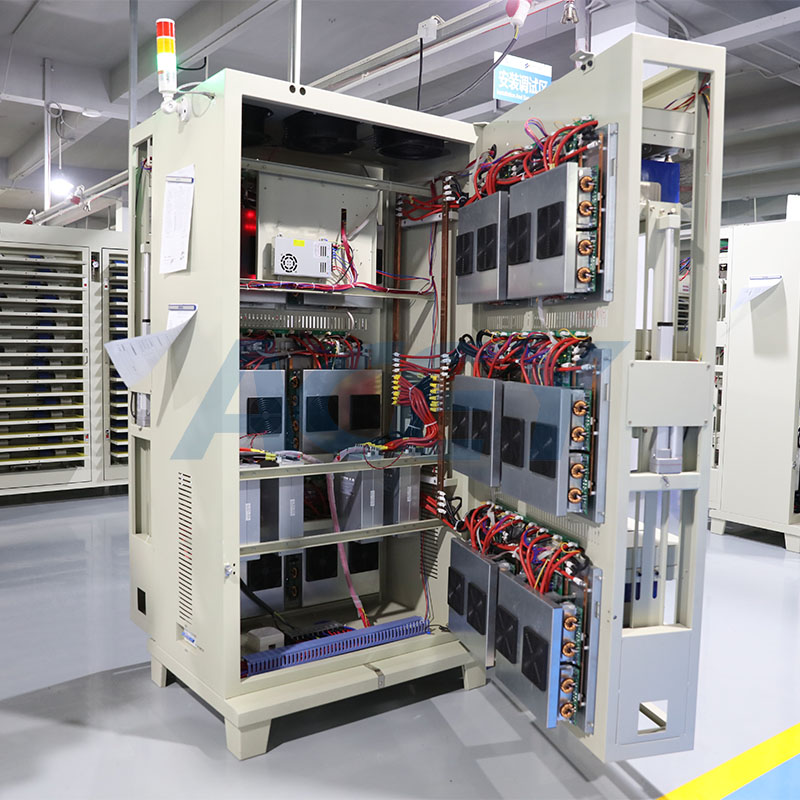

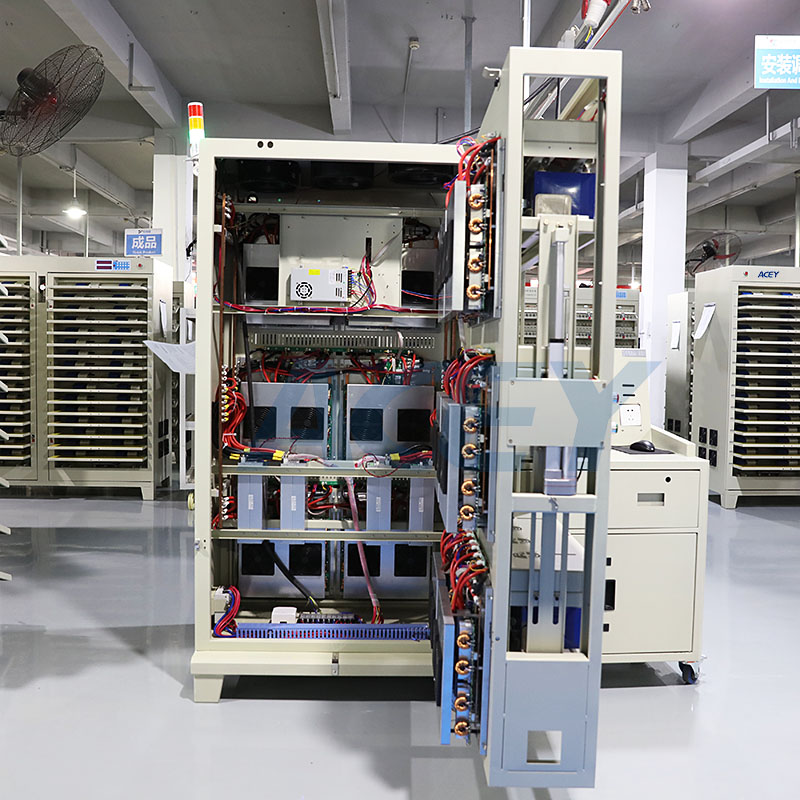

Equipment Structure
Specification
|
Equipment structure |
|
|
Number of Device Channels |
The whole machine has 48 channels |
|
Exterior dimension |
Width 1009mm × Length 800mm × Height 1843mm |
|
Chassis Color |
Standard gray black (customizable)) |
|
Fixture form |
Power battery flat head clamp |
|
Clamp spacing |
81mm |
|
Support battery specifications |
Battery compatible Length 90-220mm; Thickness 15-70mm; Height 80-230mm; Battery |
|
Ear 60-150mm |
|
|
Channel Control Mode |
Each battery has a completely independent constant current constant voltage source, stable and no impact. Realizable start |
|
move, stop, pause, continue and protect |
|
|
Each channel has an independent constant voltage, constant current hardware control circuit |
|
|
Each channel charging current, discharge current accuracy can be automatically calibrated by software |
|
|
Working power supply |
Three-phase 5 wire system AC380V ± 10%,50HZ |
|
power factor |
≥ 0.99 |
|
AC current distortion rate |
≤ 2% |
|
Power Department Efficiency Index |
Charging ≥ 80%, discharging ≥ 75% |
|
Working power consumption |
≤ 29KW |
|
equipment failure rate |
<1% |
|
Working environment |
Temperature -10~40, relative humidity 80% |
|
Heat dissipation mode |
Natural air intake, upward exhaust |
|
smoke alarm |
Optional |
|
Power component protection function |
1. Grid voltage overrun protection |
|
2. Power grid frequency overrun protection |
|
|
Channel Parameters |
|
|
Voltage measurement range |
DC 0~5V |
|
Battery voltage range |
Charge DC 0~4.5V; Discharge DC 4.5~1.5V |
|
Constant voltage range |
DC 2~4.5V |
|
Voltage accuracy |
±(0.5 reading ‰ +0.5 ‰ full) |
|
Voltage control resolution |
0.1mV |
|
Voltage sampling resolution |
0.1mV |
|
voltage stability |
≤(± 1mV) |
|
Current range |
Charging DC 200mA ~ 100A; Discharging DC 200mA ~ 100A |
|
Current accuracy |
±(0.5 reading ‰ +0.5 ‰ full) |
|
Current control resolution |
1mA |
|
Current Sampling Resolution |
0.1mA |
|
Current stability |
≤(± 1mA) |
|
Current rise time (90% load) |
≤ 50MS |
|
Channel startup time (90% load) |
≤ 50MS |
|
Software function |
|
|
Control mode |
Computer-controlled equipment work, full cabinet control, with scanning system |
|
Communication mode |
485 serial port communication (baud rate 57600 )/ TCP communication |
|
Process Settings |
Up to 32 steps and 256 cycles can be set |
|
Charging mode |
Constant current, constant voltage, constant current and constant voltage |
|
Charging end conditions |
Voltage, current, time, capacity,-△V |
|
Discharge mode |
Constant current, constant power, constant resistance |
