XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
Planetary Vacuum Mixing Machine is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab.
Payment:
L/C,T/T,Western Union, PaypalBrand:
ACEYItem No.:
ACEY-PVM-250MLCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1Product Origin:
ChinaLead Time:
7days250ML Multi-stage Speed Planetary Vacuum Mixing Machine
Description

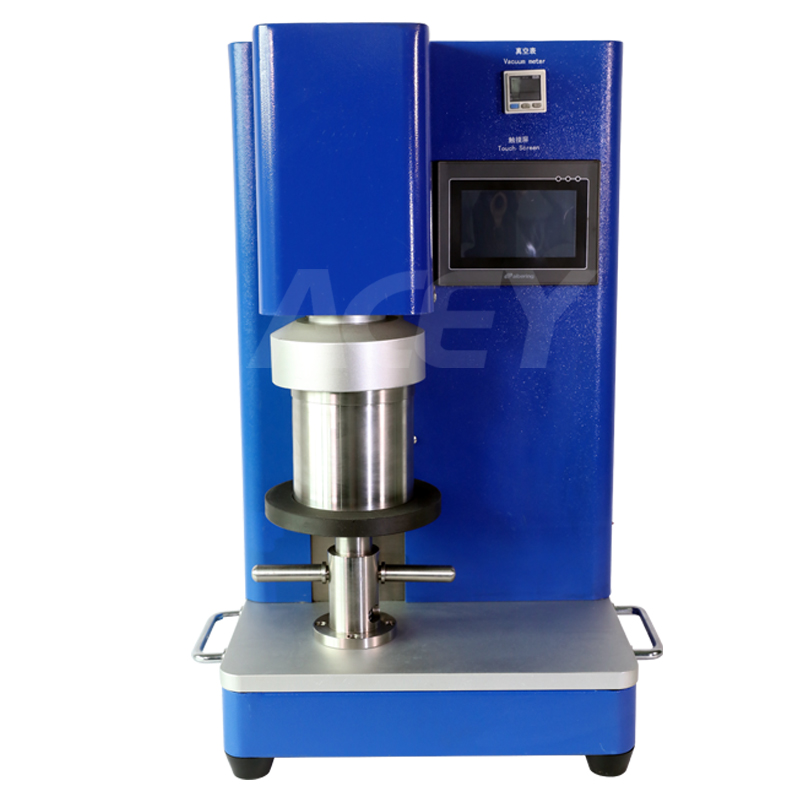

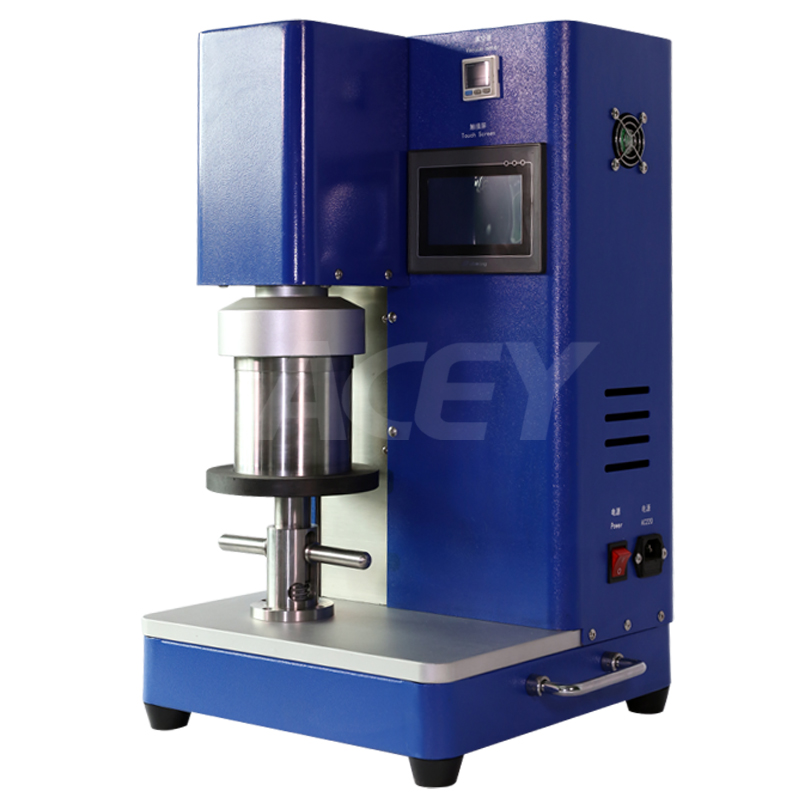

ACEY-PVM-250ML is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing.
Features*Vacuum environment, effectively eliminate the bubbles generated during the mixing process
*The equipment is preferentially equipped with dual-shaft planetary stirring paddles and optional single-shaft blade stirring paddles.
*The design of forward and reverse stirring function can realize high-speed stirring of higher viscosity slurry, and the stirring uniformity is good.
*Multi-stage speed operation can be carried out, and the stirring speed and time of each stage can be set;
* Bracket design to ensure safety during the vacuum mixing process;
*Built-in vacuum pump, vacuum degree -0.08Mpa, maintain 2H without obvious pressure drop.

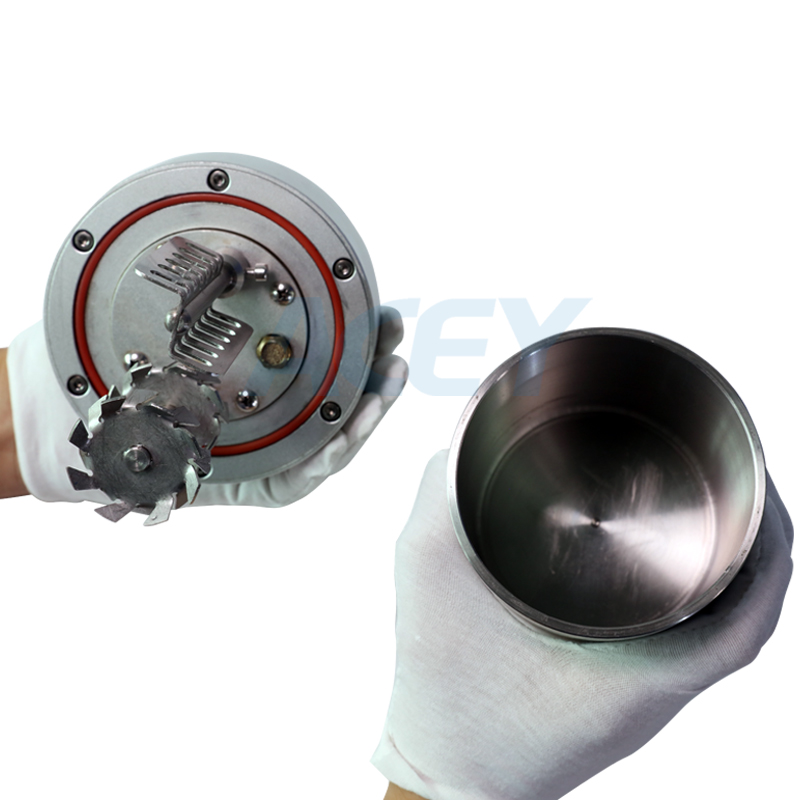

*Standard twin-shaft screw agitator, others are designed according to the tank.
Specification
|
Power supply voltage |
AC220V |
|
Rated power |
200W |
|
Stirring speed |
MAX600 rpm; |
|
Multi-stage function: |
three-stage speed can be set; |
|
Accessories volume: |
150ml～500ml vacuum stirring tank; |
|
Mixing time: |
0~600min can be set |
|
Dimension |
about 335m×325mm×575mm (length×width×height); |
|
Weight |
about 35kg. |

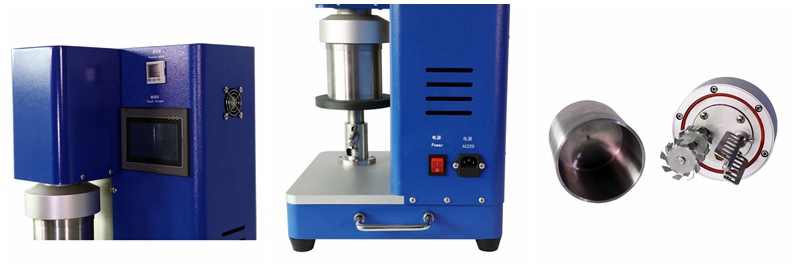

Details
Packing

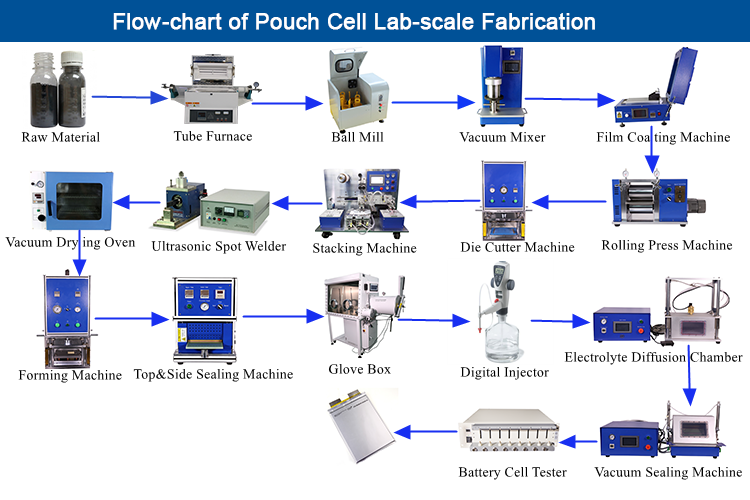

One-stop Solution
500ML Battery Electrode Slurry Filter System
ACEY-SF-1-500ML battery electrode slurry filter system aims to optimize the slurry conditions before the coating process, which can improve the quality and stability of the battery slurry.
150ML Vacuum Mixing Machine For Battery Material Mixing
The cup type vacuum mixer is a high-efficiency equipment integrating vacuum mixing and dispersion.
1L Battery Slurry Mixing Machine Electric Vacuum Mixer With Tank
This instrument is suitable for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum.
5L Lab Vacuum Stirrer Mixing Machine Dual-shaft Vacuum Mixer
This mixing machine is suitable for dry and wet stirring. It is made of SUS304 stainless steel and is resistant to acid, alkali and organic solvents.
32140 33140 Cylindrical Lithium Ion Battery Pack Assembly Line
32140&33140 Battery packs are commonly employed in high-demand applications such as aerospace, defense, medical devices, portable electronics, emergency lighting, industrial equipment, and transportation due to their compact size, high energy density, and reliable performance.
2000W Portable Handheld Galvanometer 3 In 1 Fiber Metal Laser Welder
ACEY-HLW2000 handheld metal fiber laser welding machine integrates laser welding, laser cutting, and laser cleaning. It is specifically designed for welding various materials such as aluminum, nickel, and copper on lithium battery electrodes. Suitable for large new energy vehicle maintenance, lithium battery dealers, and battery pack manufacturers.
Salt Water Spray Fog Cyclic Corrosion Test Chamber
ACEY-120A Salt Spray Test Chamber is used to evaluate the corrosion resistance of various materials and their protective coatings. It is widely applied in metal electroplating, surface coating, electronics, electrical appliances, automotive parts, and new energy industries, making it an essential equipment for quality control of material corrosion resistance.
21S 3.7V 100A 200A NMC Smart BMS Manufacturers With UART
【ACEY-AP21S001】6s-21s 100A~200A NMC Smart BMS with UART.
