Xiamen Acey New Energy Technology Co.,Ltd
![$this->product_detail['product_name']](/uploadfile/category/74bf9a88787562fffe07221918c9bf86.jpg)
This vacuum mixer is suitable for battery electrode paste and various ceramic materials mixing, due to complete the process in vacuum station, fully implemented without air bubbles,improve the filling material and density.
Brand:
ACEYItem No.:
ACEY-VM-150MLCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setProduct Origin:
ChinaLead Time:

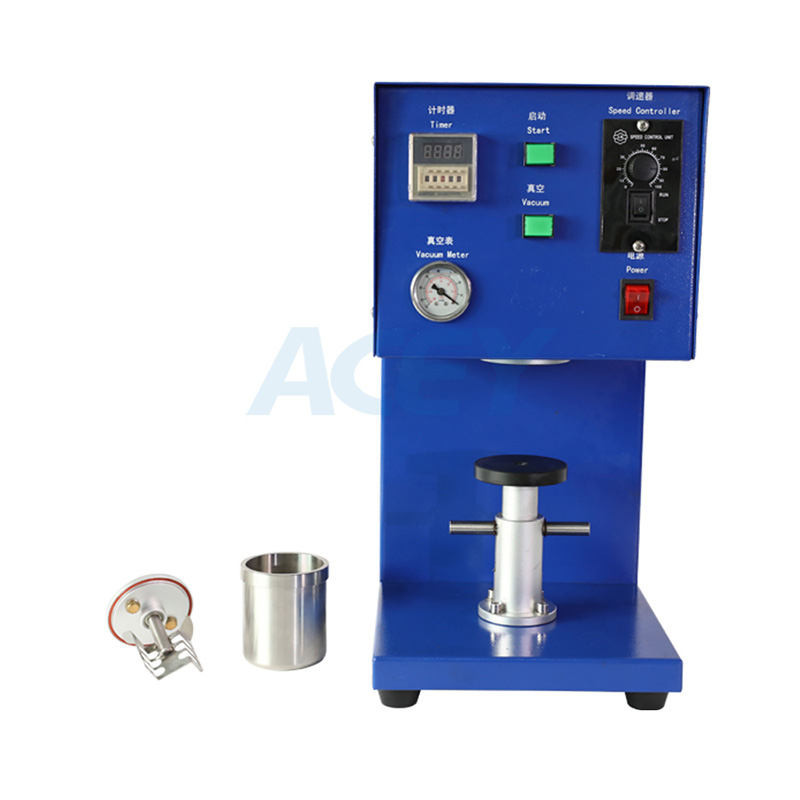

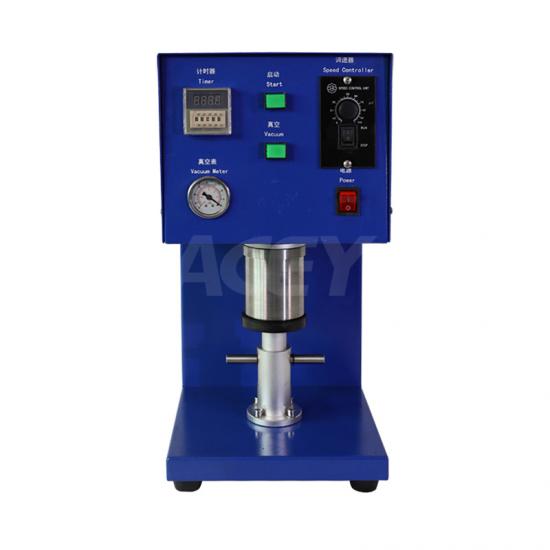

7daysLaboratory Desk-Top 150ML Compact Vacuum Slurry Mixing Machine
Description
This vacuum mixer is suitable for battery electrode paste and various ceramic materials mixing, due to complete the process in vacuum station, fully implemented without air bubbles,improve the filling material and density.
Features
1. Adopt industry-leading soft sealing technology, good sealing effect.
2. The stirring motor adopts gearbox frequency conversion adjustment, and different speed and torque can be selected according to different processes and different viscosities.
3. Small size, can save space.
4. Exquisite appearance, using three-dimensional geometric design, simple and beautiful.
Specification
|
Model
No. |
ACEY-VM-150ML |
|
Power supply voltage |
AC220V |
|
Rated power |
150W |
|
Stirring speed |
0～320 rpm; speed regulation by frequency converter |
|
Vacuum |
≤-80Kpa or more |
|
Accessory volume |
150ml ~ 250ml
stainless steel vacuum stirring tank, can be made according to customer
requirements |
|
Mixing time |
0～9999 minutes (can be set) |
|
Oscillation mode |
Stepless speed
regulation |
|
The size of the whole
machine |
About
335m×315mm×515mm (length×width×height) |
|
Weight of the whole machine |
About 20kg |
Product Details
Laboratory Coin Cell Assembly Equipment Battery Pilot Line
Coin cell lab equipment mainly include the vacuum mixer, manual film coating machine, electrode roller press machine,electrode cutter and crimping machine for coin cell sealing. All the equipment suitable for all kinds of coin cells, such as CR2016, CR2025, CR2032, CR2430 and so on. Coin cell research is the most convenient way for powder materials analysis.
Small 0.5L Magnetic De-ironing Filtration System for Battery Electrode Slurry
This filter device is mainly applied to a special filter designed for laboratory samples to filter out various hard particles with a particle size of not less than 124 microns in the slurry. The whole machine has beautiful design and is flexible and convenient to use.
Low Noise 150ML 250ML Vacuum Mixer For Lab Research
This battery slurry vacuum filter is mainly used for Nano grade slurry for laboratory, with portable design, flexible and convenience use.
Adjustable Lab Vacuum Coating Machine For 18650 Battery Electrode Coating
ACEY-FC250 with vacuum chuck designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators
100mm Width Adjustable Laboratory Battery Coating Device Film Applicator
Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.
80mm Width Lab Four Side Wet Film Applicator(80µm,85µm,90µm,95µm)
Widely used in various coating researches, such as battery material film, ceramic film, crystal film, special nano film
Manual Rolling Press Machine For Lithium Battery Electrode Sheet Calendering
It is mainly suitable for manual rolling of battery materials in the laboratory.
Lab Vertical Electric Roll Press Machine For 18650 Battery Electrode Calendering
This lab roll press machine can adjusting thickness of the Li-Ion batteries electrode after coating and drying.
