The semi-automatic cylindrical winding machine is an equipment that can be applied to the winding process of cylindrical lithium-ion battery pole pieces.
Brand:
ACEYItem No.:
ACEY-SWM-CCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:
7daysSemi-Automatic Battery Positive and Negetive Winding Machine
Description

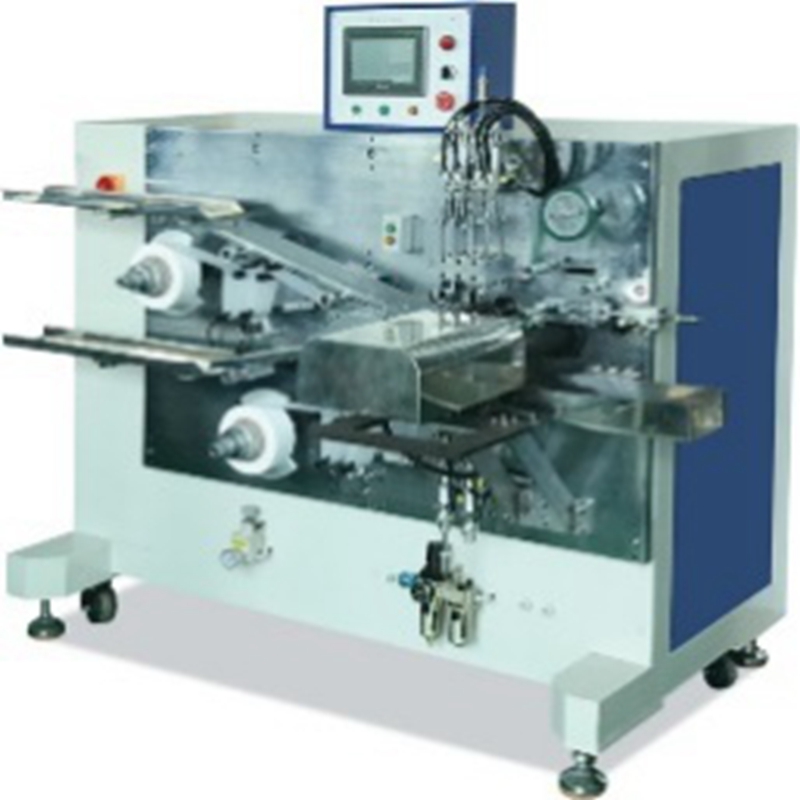

ACEY-SWM-C is mainly used for precision winding of 18650 batteries. The working process is: the positive and negative plates are manually introduced into the winding part, stacked with the separator, wound according to the process requirements, the termination tape is automatically attached, and the battery core is automatically unloaded.
Features
*Suitable for semi-automatic dedicated production of cylindrical lithium-ion batteries
* Automatic diaphragm release, automatic winding, automatic tape termination and automatic unloading;
*Diaphragm is supplied with constant tension, and the cell tension is consistent;
*The pole piece guide plate can easily adjust the width, adapt to a large range of pole pieces;
*Using man-machine interface to control the machine, the operation is simple and intuitive;
*Automatically alarm and display the fault location when abnormality occurs, which is convenient for processing;
* The operation is easy and simple to learn, and productivity can be formed as soon as possible.
Specification
Needle diameter:
Ф3mm, Ф4mm, Ф5mm (can be customized according to customer requirements)
The length of the
positive and negative plates:
90mm~650 mm
The width of the
positive and negative plates:
28mm~58mm
Diaphragm width:
30mm~60mm
Tape width:
8mm~16mm
Winding accuracy:
≤±0.3mm (alignment error between diaphragm and positive and negative plates)
Speed:
5~7 Pcs/min
Air source:
0.5~0.7 Mpa
Power source:
AC220V 50HZ power: 1.0KW
Equipment size:
1600mmx1300mmx1500mm
Weight:
about 600KG

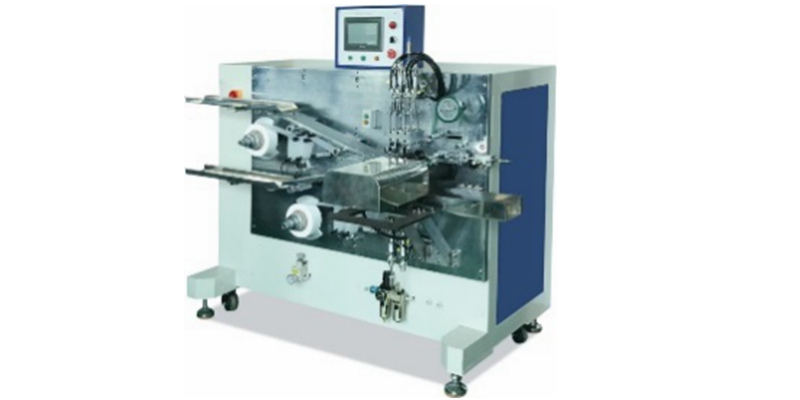

Product Display
