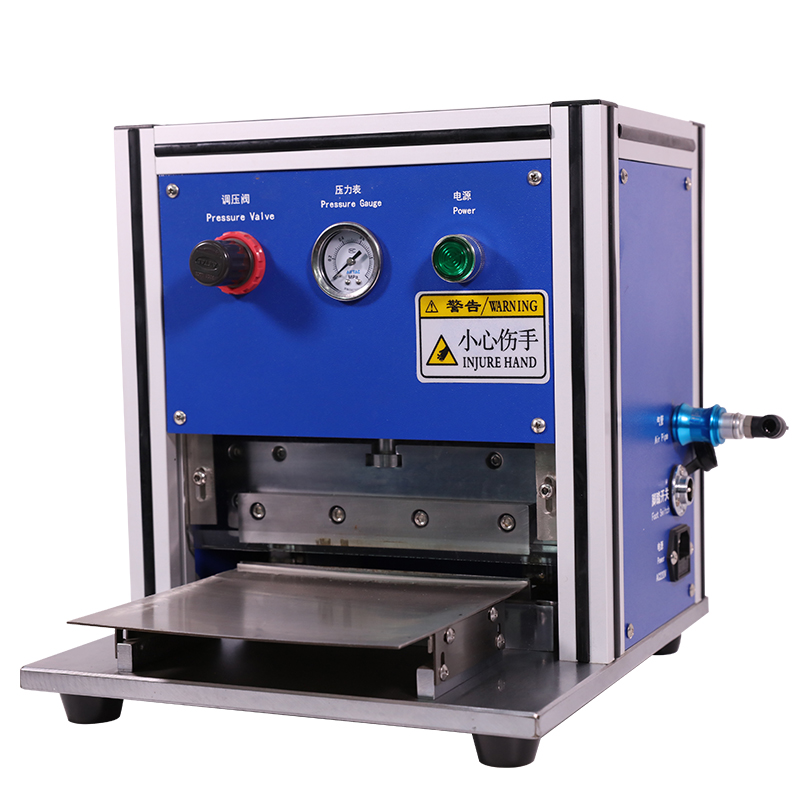

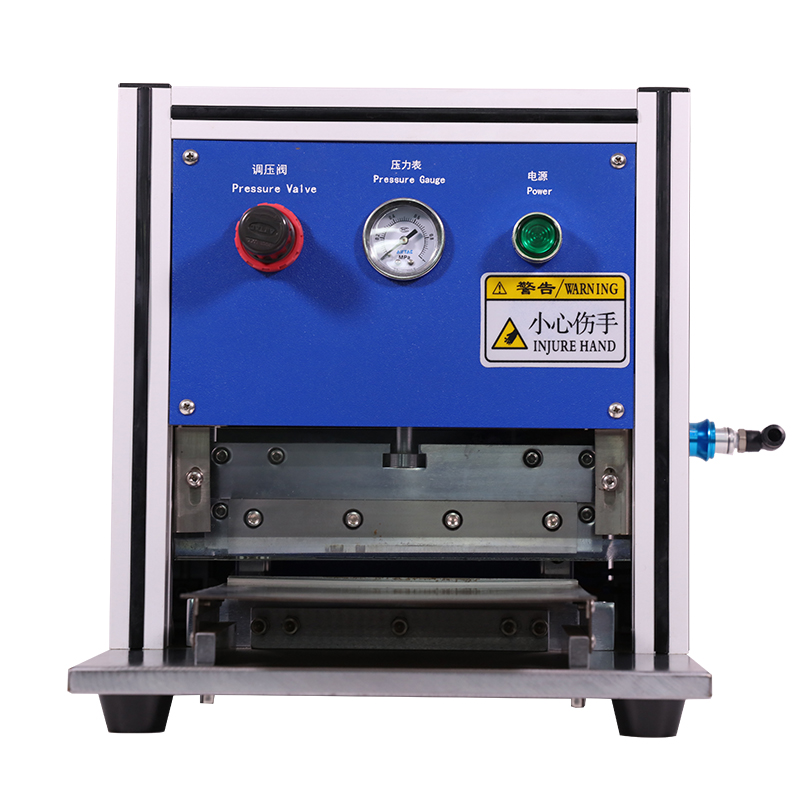

Portable Pneumatic Battery Cutting Machine For Pouch Cell Case Trimming

It is mainly suitable for trimming and forming of aluminum-plastic film of soft packaging lithium batteries.

  • Brand:

    ACEY
  • Item No.:

    ACEY-PCM200
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Portable Pneumatic Battery Cutting Machine For Pouch Cell Case Trimming

Description

It is mainly suitable for trimming and forming of aluminum-plastic film of soft packaging lithium batteries , and also for cutting other soft materials.

Features

1. Shangyin linear slide rail group is used for guiding, with high guiding precision to ensure zero clearance between upper and lower cutters and long service life.

2. The upper and lower cutters are made of high-speed steel, with sharp blades.

3. Built-in pressure gauge, can observe and accurately control the size of trimming pressure.

4. The cylinder controls the cutter to trim the battery edge, which is easy to be automated, and the trimming width can be adjusted.

5. The trimming air pressure and speed can be set and adjusted.

6. Set the product positioning tray to facilitate the positioning and placement of the battery.

7. Adopt foot pedal operation switch, which is reliable, convenient and fast.

8. The frame is assembled with profiles and baking varnish sealing plates, the equipment structure is simple, compact, and the appearance is exquisite and beautiful.

Specification

Model No.

ACEY-PTM200

Cutter length

300mm

Cutting width
2~10mm margin can be adjusted
Cutter life
10 million times/grinding
Speed
Air pressure 600 times/hour
Power
AC220V/50Hz   100W
Air compressed air source
0.5Mpa~0.7Mpa
Dimensions

L325x W200x H350mm

Equipment weight
45Kg
Product Details

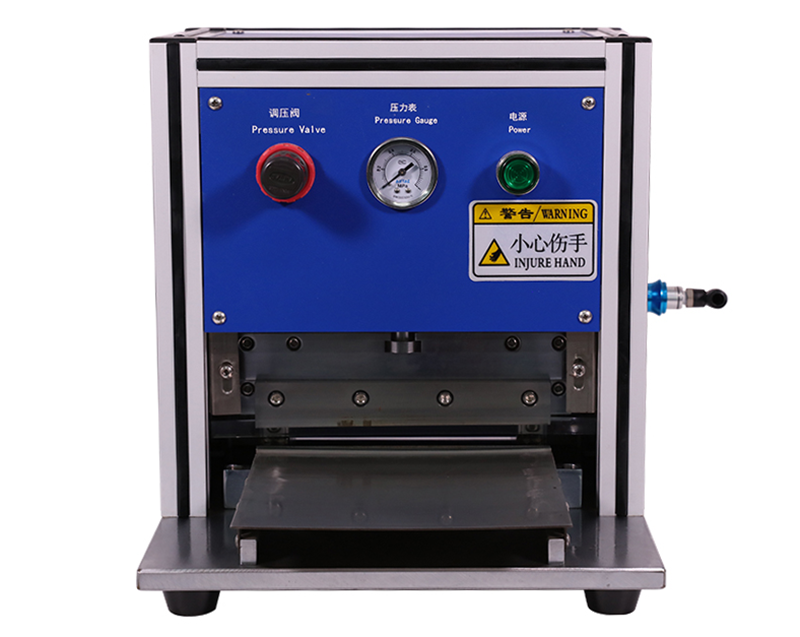

Portable Pneumatic Battery Cutting Machine For Pouch Cell Case Trimming

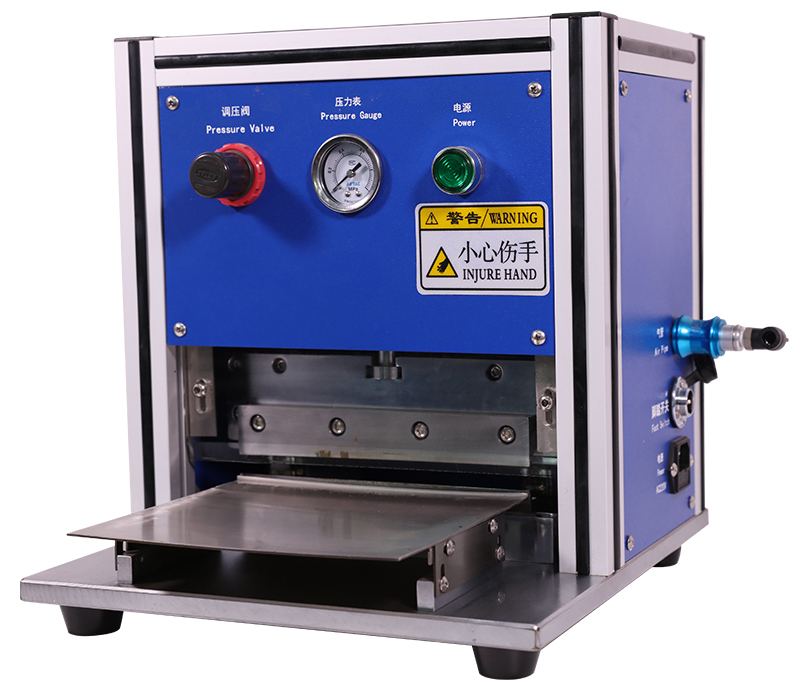

Lithium Battery Trimming Machine
