Pouch Battery Electrode Cutting Pneumatic Pole Piece Die Cut Machine

This product is suitable for die-cutting and forming of battery positive and negative plates.

  • Brand:

    ACEY
  • Item No.:

    ACEY-PDC-1
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Pouch Battery Electrode Cutting Pneumatic Pole Piece Die Cut Machine

Description

This product is suitable for die-cutting and forming of battery positive and negative plates. The single-piece die-cutting of the plate-type pole piece is pneumatically used, and it can be placed in a glove box for use.

Features

1. Slice-type pole piece feeding, the knife template realizes die cutting, can be used in the glove box.

2. It is convenient and quick to change the knife mold.

3. Long tool life, normal use ≥ 30,000 times.

4. There are no quality defects such as burrs, powder falling, and indentation.

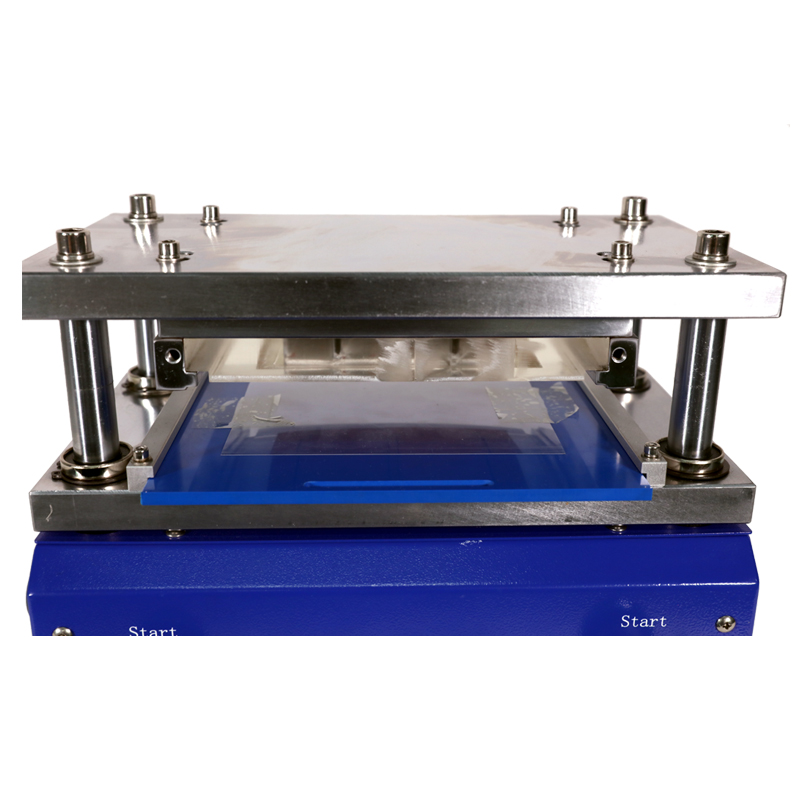

5. Using four guide pillar structure, sliding up and down smoothly and high precision.

6. Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.

7. Easy to operate, safe and reliable, small size.

Specification

Model No.

ACEY-PDC-1

Vertical burr≤12μm, horizontal burr≤20μm
 Long tool life, normal use ≥ 30,000 times
Punching size
L85mmxW65mm (can be customized according to customer requirements)
Punching accuracy
±0.1 mm
Punching pressure

Max. 1T (0.5MPa compressed air), the recommended pressure for punching battery pole pieces is 500Kg

Die cutting stroke
35mm
Compressed air
0.5MPa compressed air, if put in the glove box, the gas used is the same as the glove box
Dimensions
L350mm*W230mm*H300mm
Equipment weight
 32kg

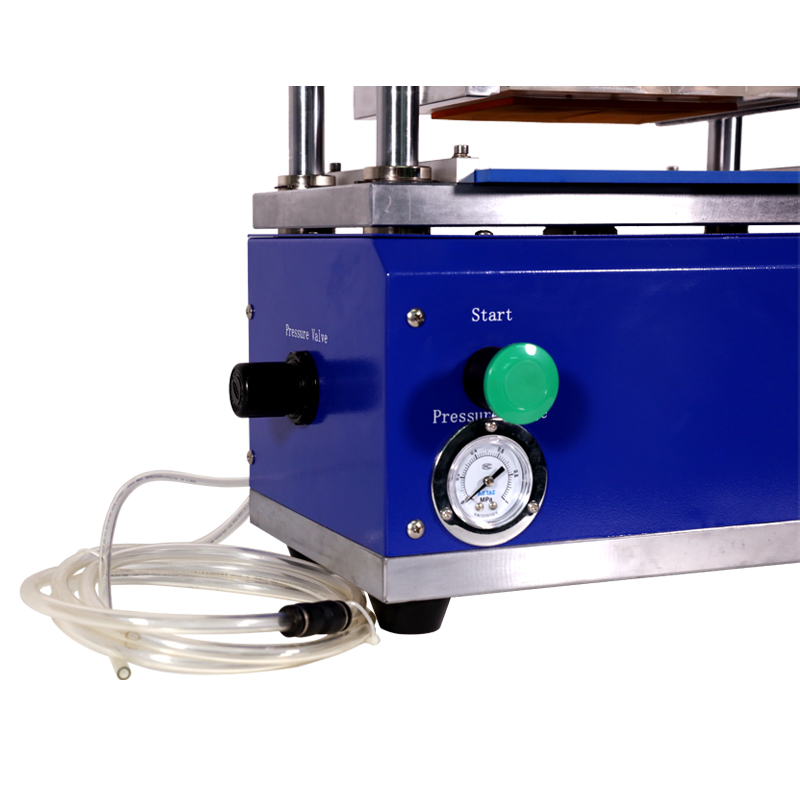

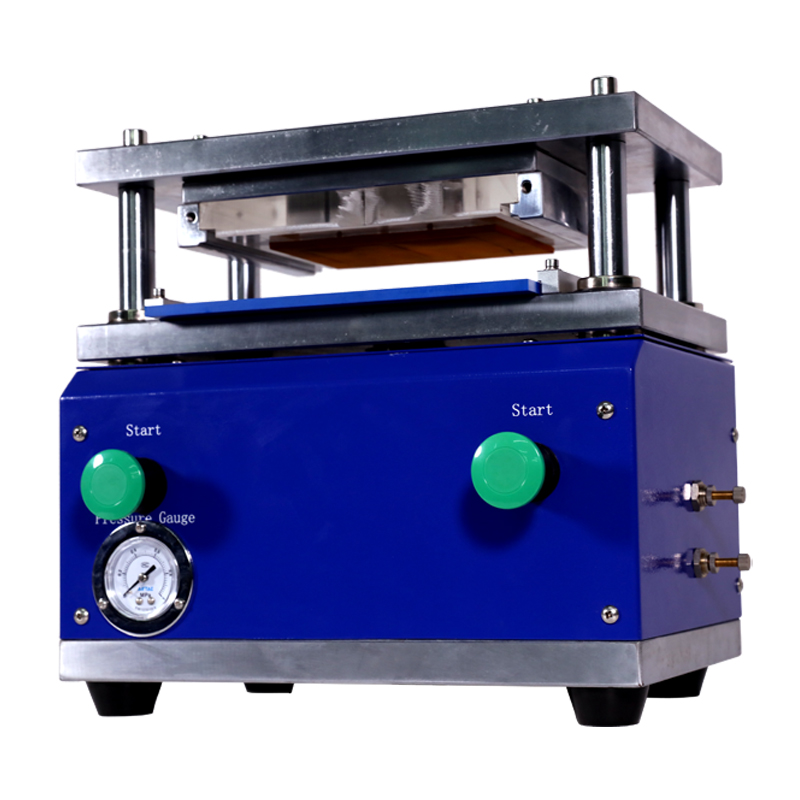

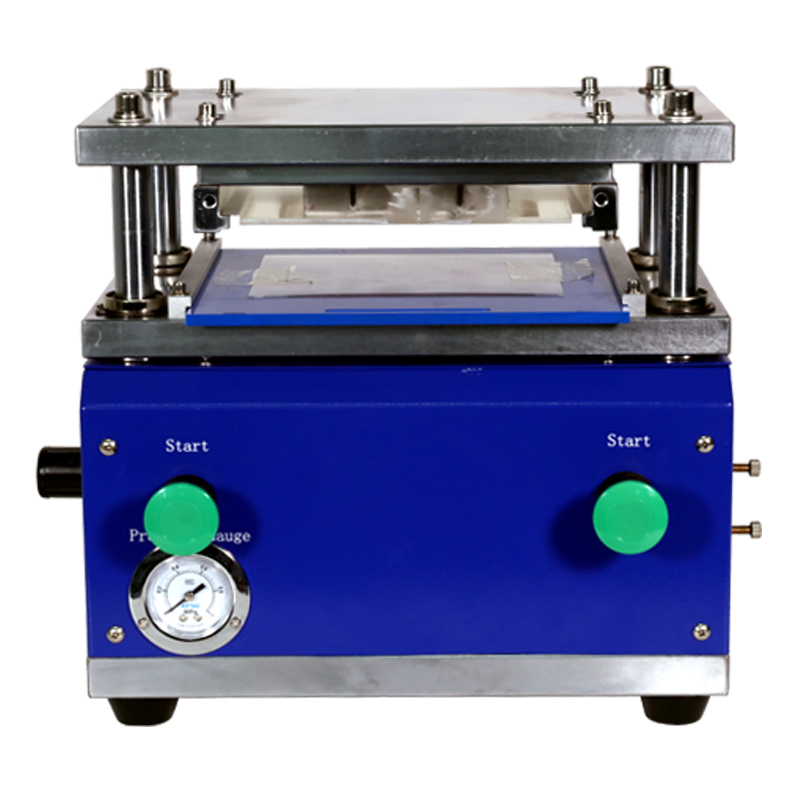

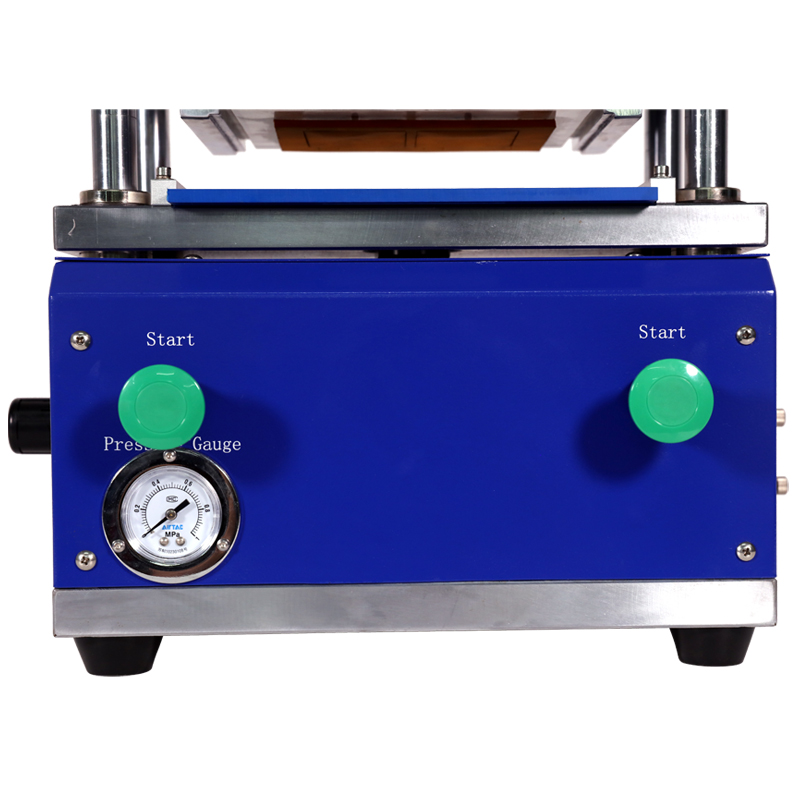

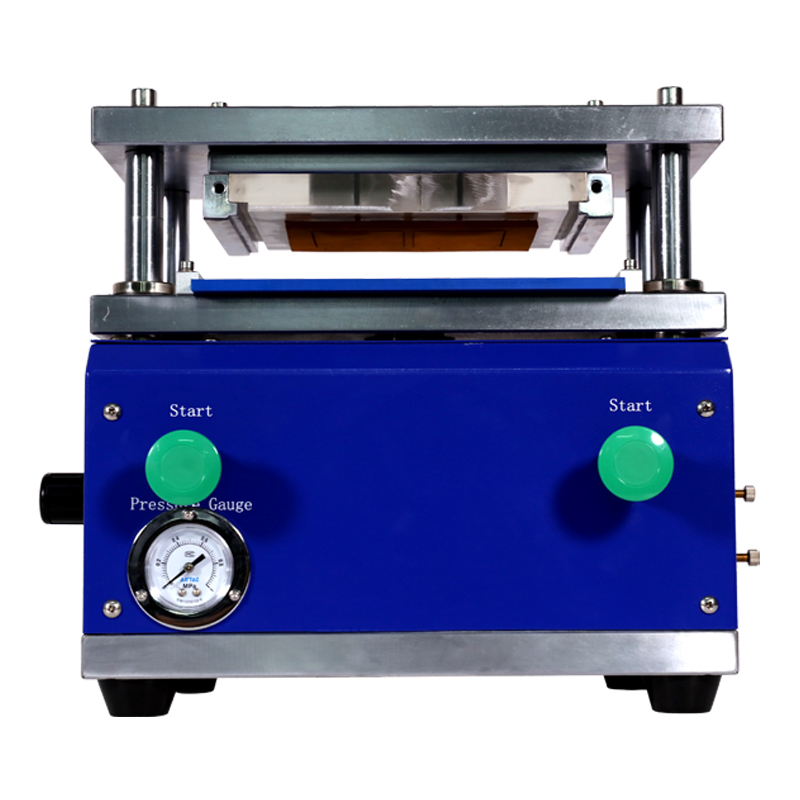

Product Details

Pneumatic Electrode Cutting Machine

Battery Electrode Cutting Machine

Die Cutting Machine For Pouch Cell
