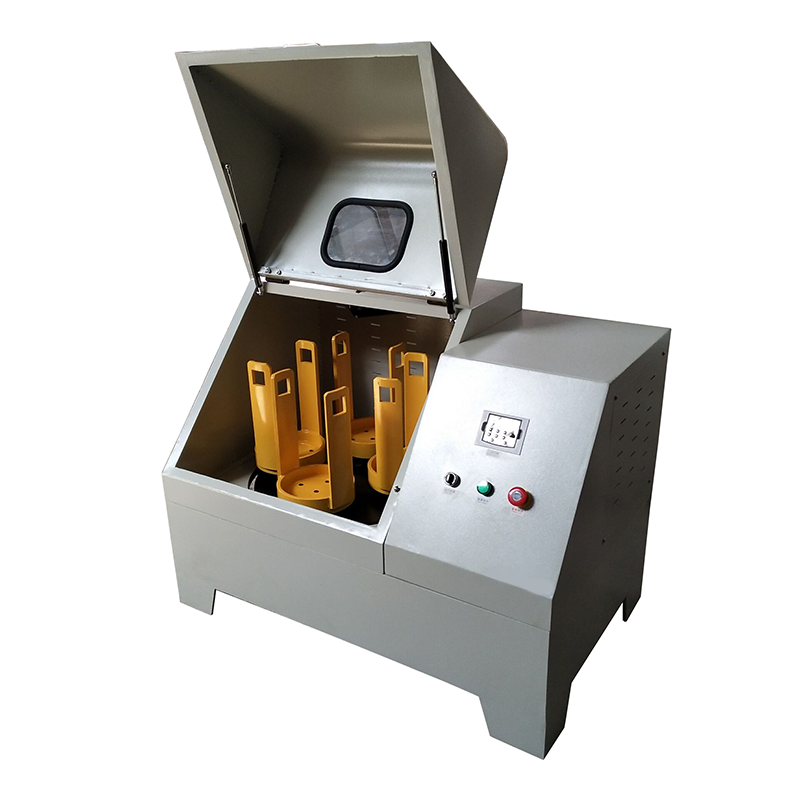

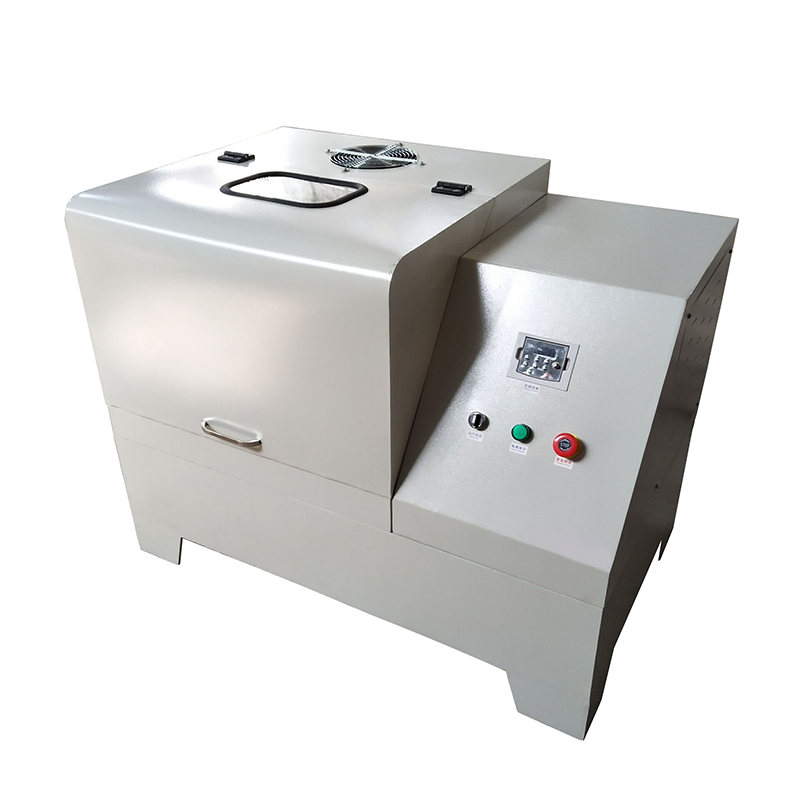

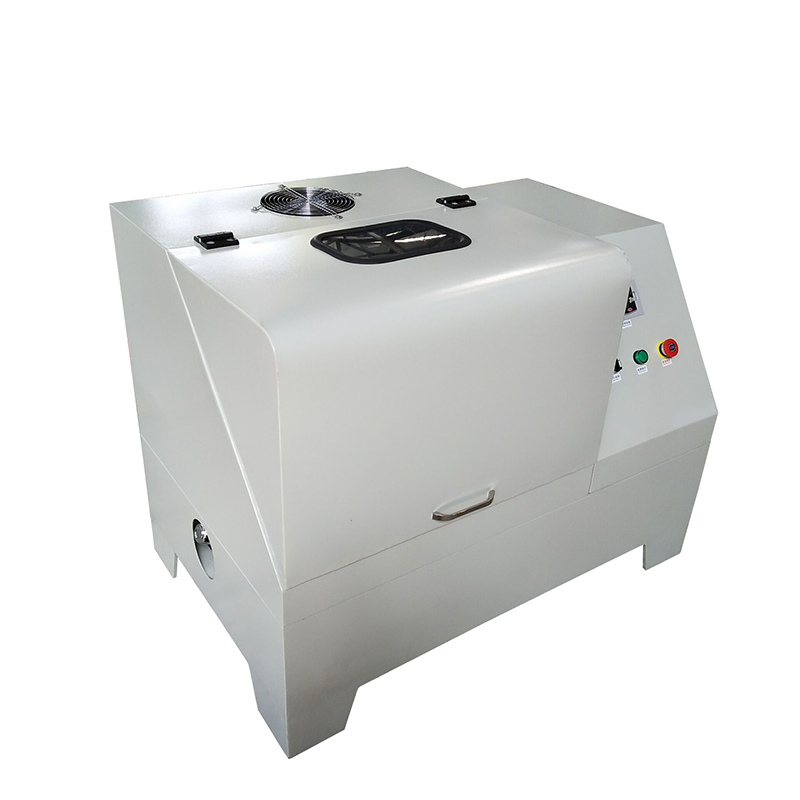

Full Directional Planetary Ball Mill Machine With Four Alumina Jar

ACEY-PBM-V-20L Planetary Ball Mill Has Four Ball Grinding Jar Holders Installed On One Planetary Disk.

  • Brand:

    ACEY
  • Item No.:

    ACEY-PBM-V-20L
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Full Directional Planetary Ball Mill Machine With Four Alumina Jar



Description

Vertical square planetary ball mill is a necessary device for mixing, fine grinding, small sample preparation, new product development and small batch production of high-tech materials.


Working Principle of  Industrial Planetary Ball Mill

Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.


Application

Vertical square planetary ball mill is widely used in geology, mineral industry, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobaltic acid, lithium manganate, catalyst, fluorescent powder, long afterglow phosphor, rare earth polishing powder, electronic glass powder, fuel cell, zinc oxide varistor, piezoelectric ceramics, etc Ceramics, nano materials, wafer ceramic capacitors, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, Ni Zn ferrite, Mn Zn ferrite and other products.


Specification

Working Principle

impact and friction force

Item No.

ACEY-PBM-V-20L

Compatible Grinding Jars

(3L~5L) *4

Max Feeding Capacity

2/3 capacity of the grinding jar

Operation Mode

2 or 4 grinding jars working simultaneously

Feeding Granularity*

20mm

Discharging Granularity

down to 0.1μm

Sample Type

hard, medium-hard, soft, fibrous, brittle, moist

Rotational Speed of Grinding Jar

430rpm

Rotational Speed Ratio

1 : 2

Drive Mode

gear drive and belt drive

Speed Control

stepless speed regulation

Electrical Details

380 V/3~, 50/60 Hz, 4KW

Max Continuous Grinding Time

72hours (full-load)

Weight (Net/Gross)

320KG/365KG

Dimension (L*W*H)

L1250mm*W750mm*H950mm

Package Details

L1330mm*W860mm*H1000mm


Product Details
