This Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.
Brand:
ACEYItem No.:
ACEY-HPM-400MLCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setProduct Origin:
ChinaLead Time:

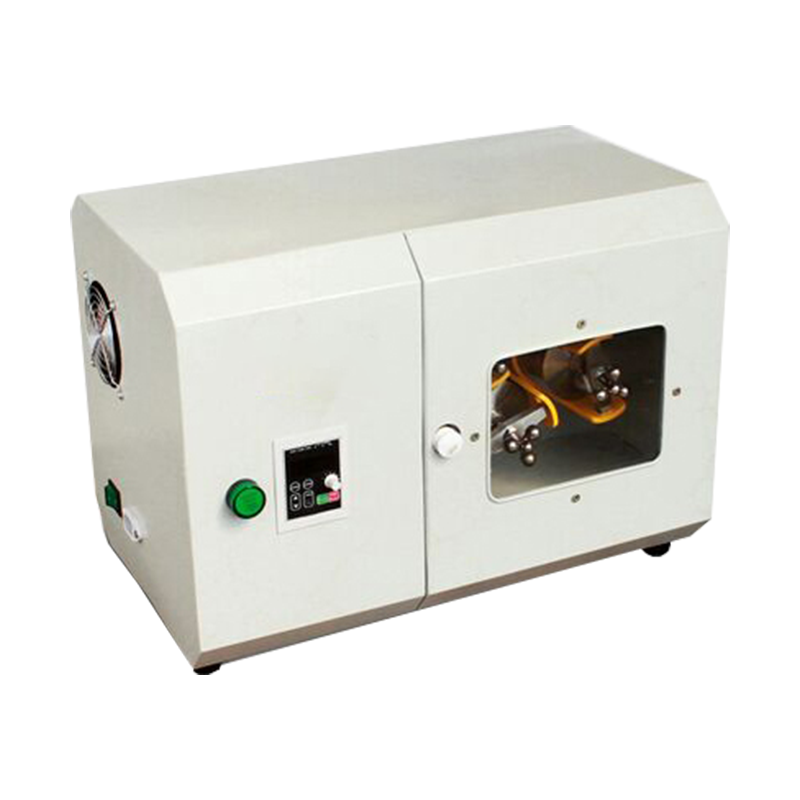

7days0.4L Horizontal Planetary Ball Mill For Battery Raw Material Grinding
Description:
The Planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment).
Features:
1. Elegant design, easy to operate.
2. Ideal for wet or dry grinding application.

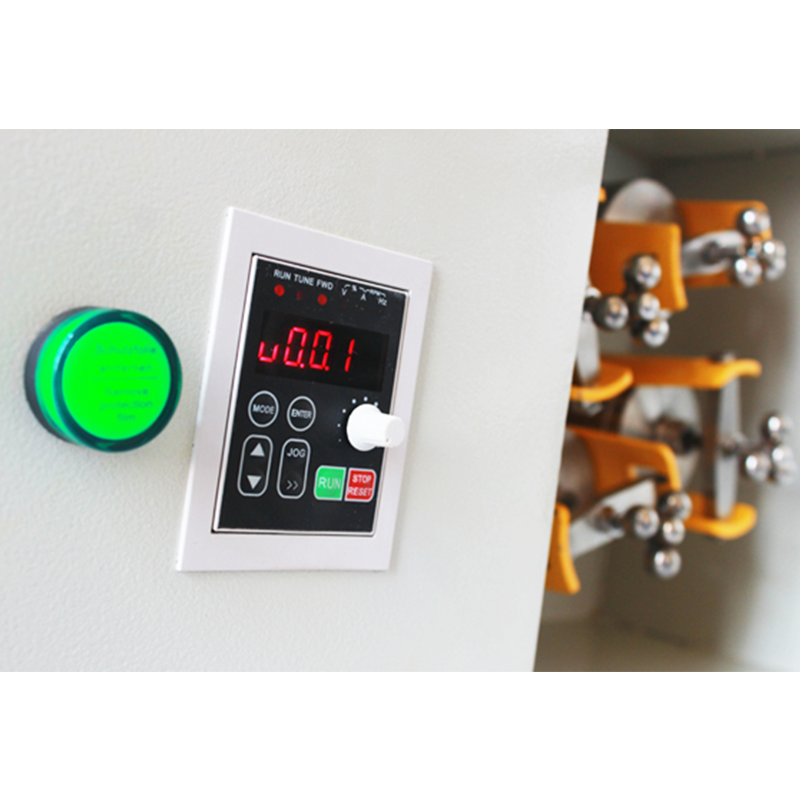

3. Automatic and programmable control with LED display.
4. High Uniformity and excellent repeatability.
5. Fast rotational speed, high efficiency and fine granularity.
Specifications:
|
Working Principle |
impact and friction force |
|
Item No. |
ACEY-HPM-400ML |
|
Compatible Grinding Jars |
(50ml~100ml) * 4 |
|
Max Feeding Capacity |
2/3 capacity of the grinding jar |
|
Operation Mode |
2 or 4 grinding jars working simultaneously |
|
Feeding Granularity* |
Soil materials < 10mm, others materials < 3mm |
|
Discharging Granularity |
down to 0.1μm |
|
Sample Type |
hard, medium-hard, soft, fibrous, brittle, moist |
|
Rotational Speed of Grinding Jar |
1100rpm |
|
Rotational Speed Ratio |
1 : -2 |
|
Drive Mode |
gear drive and belt drive |
|
Speed Control |
stepless speed regulation |
|
Electrical Details |
220VAC, 50Hz, 0.25KW |
|
Max Continuous Grinding Time |
72hours (full-load) |
|
Weight (Net /Gross) |
30KG /40KG |
|
Dimension (L*W*H) |
500*300*350mm |
|
Package (L*W*H) |
570*370*370mm |
* If the sample feed is larger than these then it must first undergo preliminary size reduction.
Product Details:
Applications:
Planetary ball mill are extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Working Principle:
Acey-HPM series of variable frequency planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.
