Easy Operated 2L Planetary Ball Milling Machine For Lab Battery Research

ACEY-VPM-2L Planetary ball mill can be performed dry, in suspension or in inert gas. In addition to comminution, It can also be used to the mills for mixing and homogenizing of emulsions and pastes or for mechanical alloying and activation in material research.


  • Brand:

    ACEY
  • Item No.:

    ACEY-VPM-2L
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Easy Operated 2L Planetary Ball Milling Machine For Lab Battery Research

Description

1. the Planetary ball mill is small, full-featured, high efficiency and low noise which is the ideal equipment for scientific research units, institutions of higher learning, corporate laboratories to obtain micro particle research samples. (Four samples for each experiment)

2. It can set the speed, forward and reverse rotation time, and the total grinding time according to process requirement.

Features

1. Elegant design, easy to operate.

2.  Ideal for wet or dry grinding application.

3.  Automatic and programmable control with LED display.

4. High Uniformity and excellent repeatability.

5. Fast rotational speed, high efficiency and fine granularity.

6.  Four samples with different sizes and materials in one experiment.

7. Programmable interval and pause times.

8.  Stepless speed regulation, reversing function.

9.  Large range of materials available for grinding tools.

10.  Gear-drive offers an effective solution to problems caused by belt driving.

11.  Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution and 12. Cooling of the grinding chamber with a built-in fan for long grinding times.

Specifications

Working Principle

impact and friction force

Item No.

ACEY-VPM-2L

Compatible Grinding Jars

(250ml~500ml) * 4

Max Feeding Capacity

2/3 capacity of the grinding jar

Operation Mode

2 or 4 grinding jars working simultaneously

Max Feeding Granularity

15mm

Mini Discharging Granularity

down to 0.1μm

Sample Type

hard, medium-hard, soft, fibrous, brittle, moist

Rotational Speed of Grinding Jar

800rpm

Rotational Speed Ratio

1 : 2

Drive Mode

gear drive and belt drive

Speed Control

stepless speed regulation

Electrical Details

110V/220VAC, 50/60 Hz, 0.75KW

Max Continuous Grinding Time

72hours (full-load)

Weight (Net /Gross)

75KG /110KG

Dimension (L*W*H)

720*468*535mm

Size of Planetary Disk

Dia340mm*T6mm

Product Details

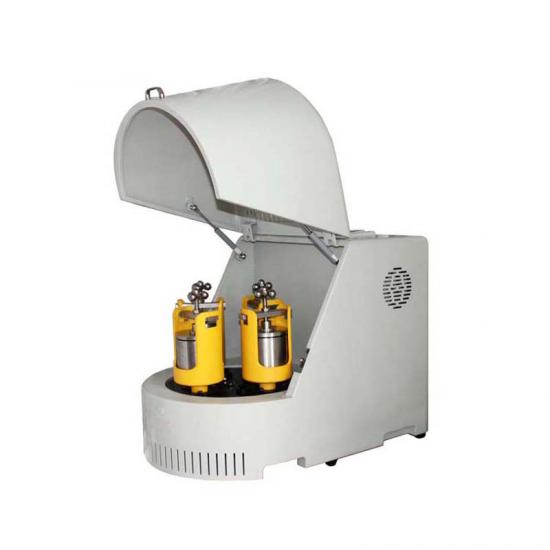

2L Ball Mill Machine

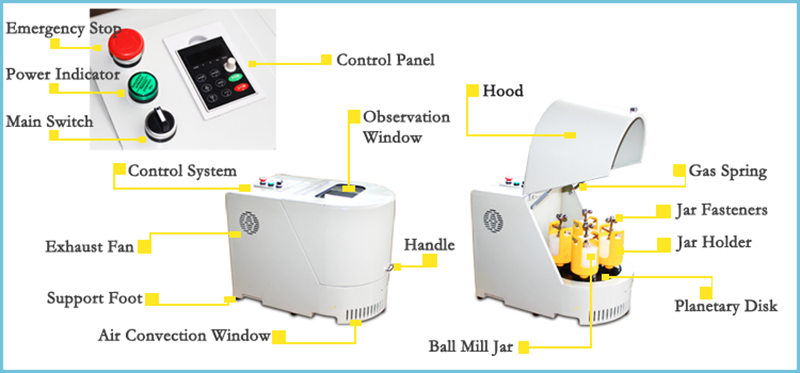

Details Images of 2L Planetary Ball Mill Machine


Accessories

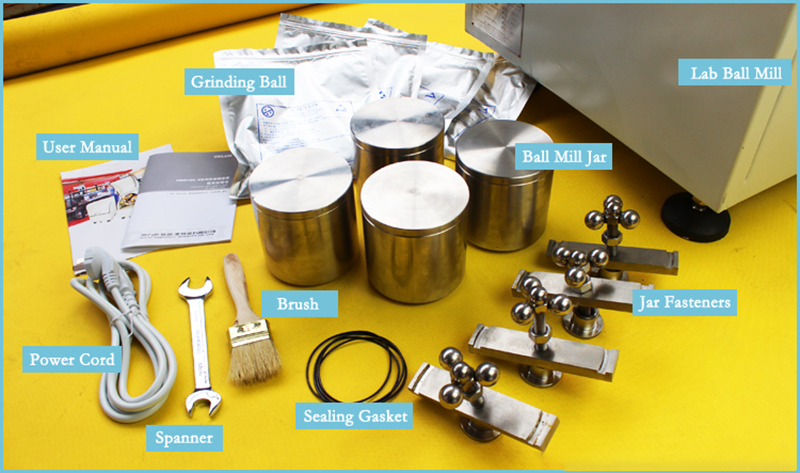

 Planetary Ball Mill Machine's Accessories


Working Principle

ACEY-VPM-2L Planetary ball mill has four ball grinding jar holders installed on one planetary disk. When the planetary disk rotates, the jar axis makes planetary movements and the balls in the jars grinds and mixes samples in high speed movement. The instrument can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron.

Working Principle of Lab Planetary Ball Mill
