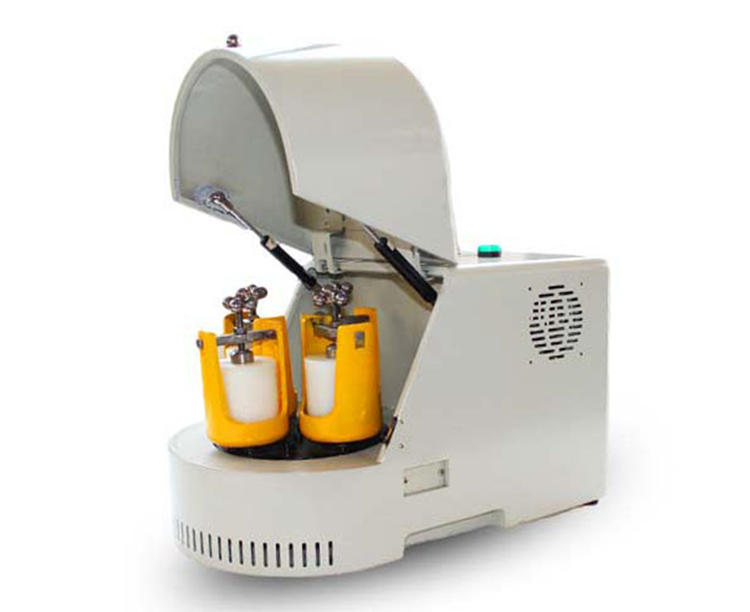

ACEY-MPM-2L Planetary ball mill can be performed dry, in suspension or in inert gas. In addition to comminution, you can also use the mills for mixing and homogenizing of emulsions and pastes or for mechanical alloying and activation in material research.
Brand:
ACEYItem No.:
ACEY-MPM-2LCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setProduct Origin:
ChinaLead Time:
7days2L High Energy Laboratory Planetary Ball Mill Machine For Sale
Description
1. Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.
2. It can be equipped with vacuum ball mill; the sample can be ground under vacuum. It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.
Features
1. Elegant design, easy to operate.
2. Ideal for wet or dry grinding application.
3. Automatic and programmable control with LED display.
4. High Uniformity and excellent repeatability.
5. Fast rotational speed, high efficiency and fine granularity.
6. Four samples with different sizes and materials in one experiment.
7. Programmable interval and pause times.
8. Stepless speed regulation, reversing function.
9. Large range of materials available for grinding tools.
Specifications
|
Working Principle |
impact and friction force |
|
Compatible Grinding Jars |
(250ml~500ml) * 4 |
|
Max Feeding Capacity |
2/3 capacity of the grinding jar |
|
Operation Mode |
2 or 4 grinding jars working simultaneously |
|
Max Feeding Granularity |
15mm |
|
Mini Discharging Granularity |
down to 0.1μm |
|
Sample Type |
hard, medium-hard, soft, fibrous, brittle, moist |
|
Rotational Speed of Grinding Jar |
800rpm |
|
Rotational Speed Ratio |
1 : 2 |
|
Drive Mode |
gear drive and belt drive |
|
Speed Control |
stepless speed regulation |
|
Electrical Details |
110V /220VAC, 50/60Hz, single phase,0.75KW |
|
Max Continuous Grinding Time |
72hours (full-load) |
|
Weight |
85KG |
|
Dimension (L*W*H) |
730*470*550mm |
|
Effective Diameter of Planetary Disk |
~340mm |
* If the sample feed is larger than these then it must first undergo preliminary size reduction.
Product Details
Other kinds of ball mill machine recommend
1. 400ML Laboratory Planetary Ball Mill Machine

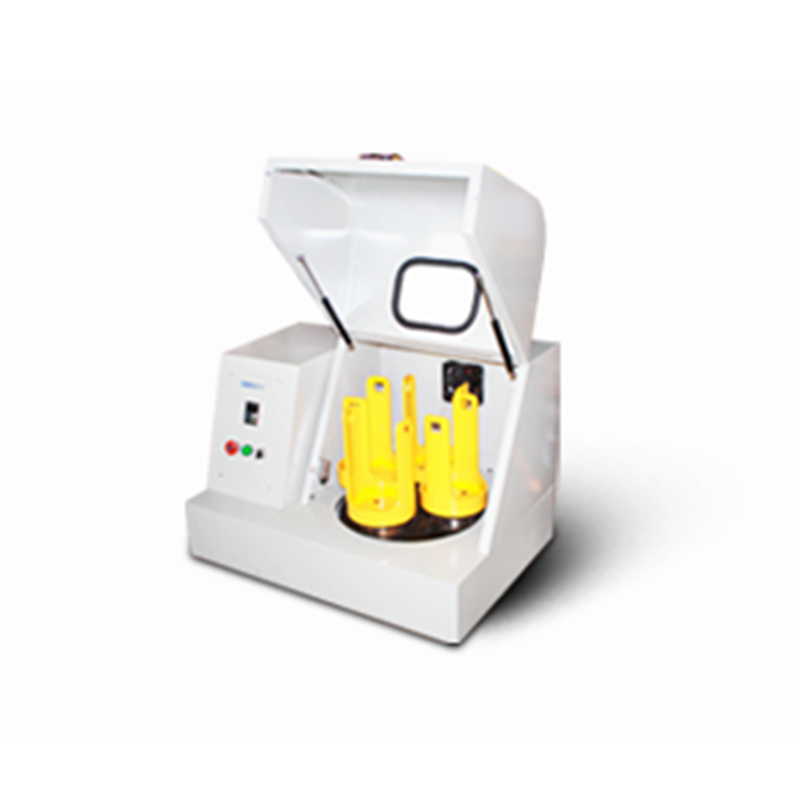

Easy Operated 2L Planetary Ball Milling Machine For Lab Battery Research
ACEY-VPM-2L Planetary ball mill can be performed dry, in suspension or in inert gas. In addition to comminution, It can also be used to the mills for mixing and homogenizing of emulsions and pastes or for mechanical alloying and activation in material research.
400ML Laboratory Planetary Ball Mill Machine With Multiple Grinding Modes
ACEY-VPM-400ML vertical planetary high-energy ball mill is suitable for rapid, efficient and accurate sample development, mixing and homogenization in the laboratory. It is a small grinding equipment with small volume, low noise, strong controllability, comprehensive functions, fine grinding and fast grinding.

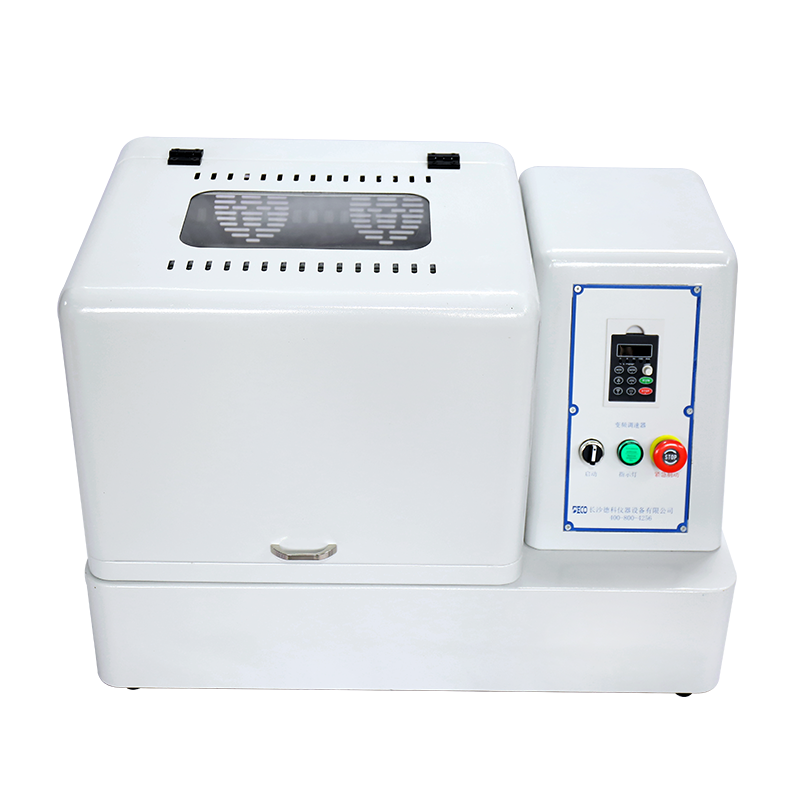

0.4L Horizontal Planetary Ball Mill For Battery Raw Material Grinding
This Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.

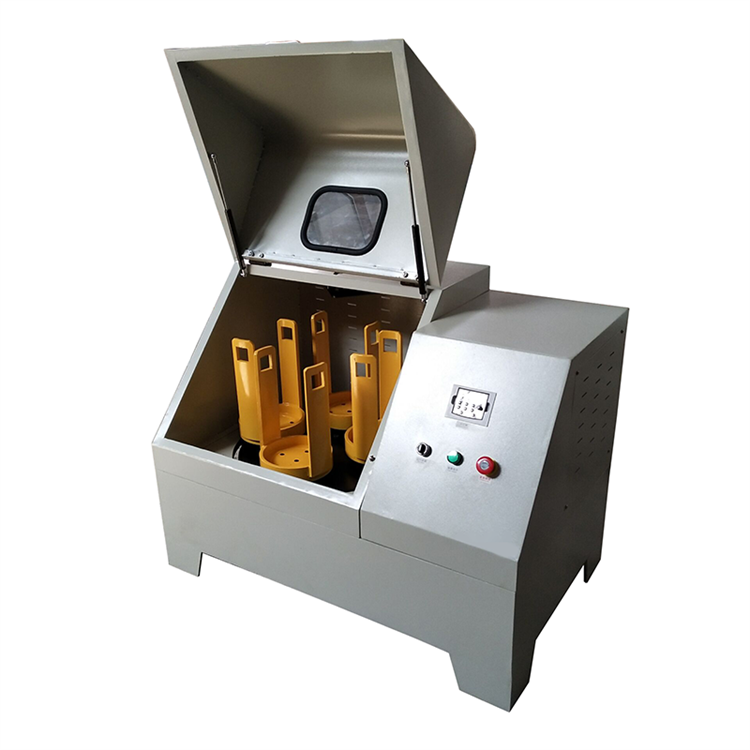

Full Directional Planetary Ball Mill Machine With Four Alumina Jar
