Automatic Pouch Cell Voltage & Internal Resistance Sorting Machine

ACEY-PCSM6 automatic pouch cell sorting machine is designed for voltage and internal resistance testing, grading, and matching of large lithium pouch cells.

  • Brand:

    ACEY
  • Item No.:

    ACEY-PCSM6
  • Compliance:

    CE Certified
  • Warranty:

    One-year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    T/T
  • Product Origin:

    China
  • Lead Time:

    7-35 days
  • Product Detail

Automatic Pouch Cell Voltage & Internal Resistance Sorting Machine



Product Description

ACEY-PCSM6 Automatic pouch cell sorting machine is designed for the voltage and internal resistance testing, grading, and matching of large-format lithium pouch cells. Integrating high-precision testing modules with an automated conveying and sorting mechanism, the system automatically classifies various polymer and lithium pouch batteries according to preset voltage and IR parameters.

Suitable for EV battery, energy storage battery, and pouch cell manufacturing lines, the machine features high sorting accuracy, flexible parameter settings, and stable performance for continuous production. ACEY-PCSM6 ensures precise cell matching quality while effectively reducing labor costs and meeting the requirements of industrial mass production.


Product  Features

  • All-in-One Automation: Integrates manual loading, testing, barcode scanning, and automatic sorting into a single process to minimize human intervention.
  • MES & SPC Integration: Equipped with a standard MES system interface to record battery QR code data and test results in real time, automatically generating SPC (Statistical Process Control) analysis reports.
  • High-Efficiency Output: Delivers a sorting speed of up to 1,000 PCS/hour, increasing efficiency by more than 3 times compared to manual sorting.
  • PLC Controlled System: Utilizes PLC programmable logic control for stable continuous operation and precise mechanism coordination.


Technical Specifications

Product Model ACEY-PCSM6
Applicable Battery Type Lithium polymer pouch cells
Compatible Cell Dimensions Length: 50–200 mm
Width: 20–100 mm
Thickness/Height: 4–20 mm
(Customizable)
Control System PLC Control
Throughput / Speed ≤ 1,000 PCS / Hour
Total Power Supply ≤ 1.5 KW
Equipment Dimensions L 1800 mm × W 1570 mm × H 1750 mm (Subject to final technical drawing)
Net Weight Approx. 493 Kg
Equipment Color Computer White (Customizable upon request)


Installation & Environmental Requirements

Requirement Item Standard Conditions
Power Voltage 220V, 50Hz / 60Hz
Compressed Air Supply 0.5 – 0.6 MPa
Ambient Temperature 5°C – 35°C
Relative Humidity 20% – 90% RH
Floor Load-Bearing Capacity ≤ 200 kg / m²
Grounding Type Direct grounding
Equipment Noise Level ≤ 80 dB
Site Requirements Flat, level ground free from vibration, mechanical shock, pollution, and strong electromagnetic interference.


Product Display

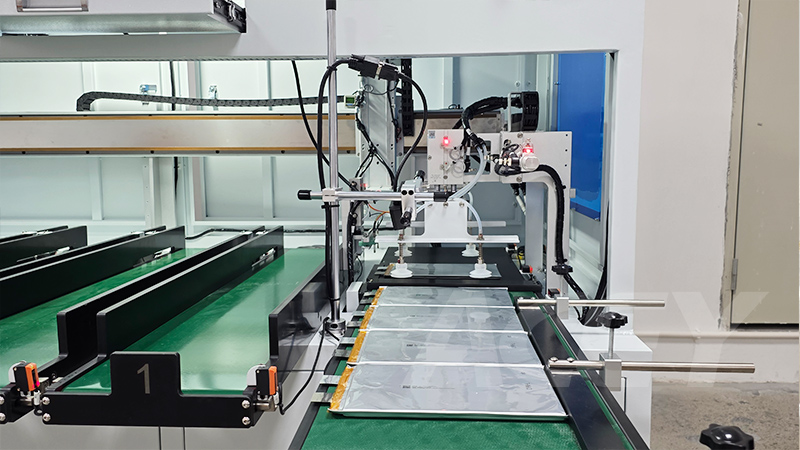

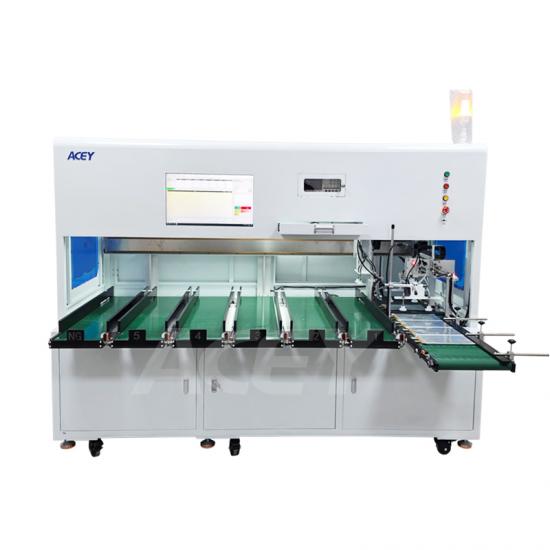

Pouch cell sorting machine

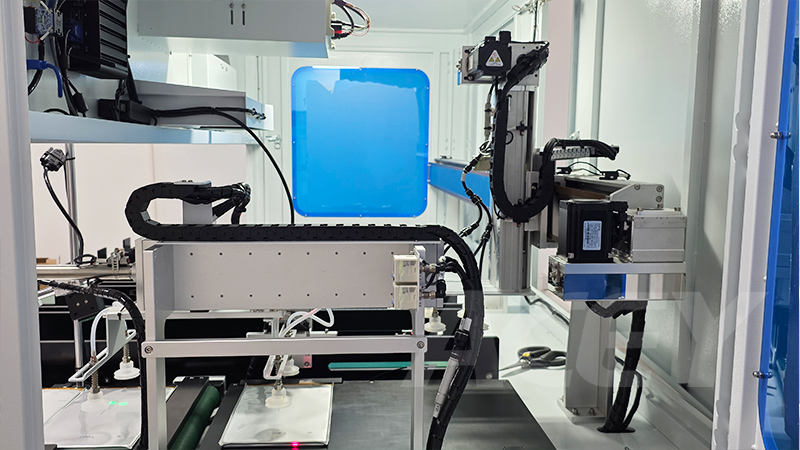

Automatic battery sorting machine

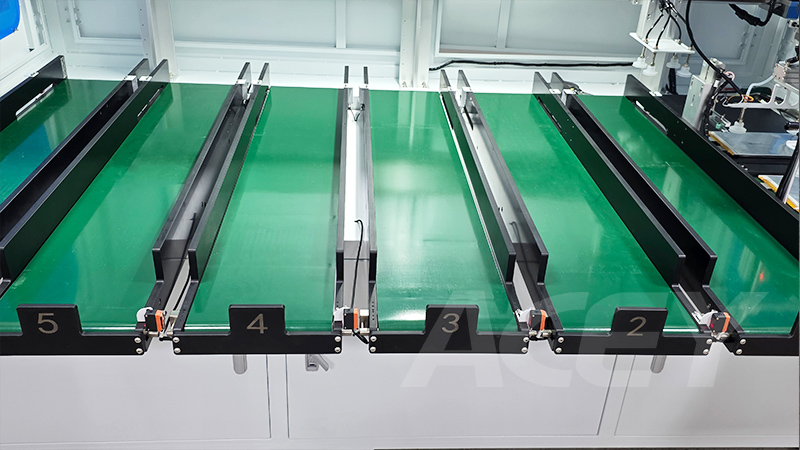

Large pouch cell sorting machine

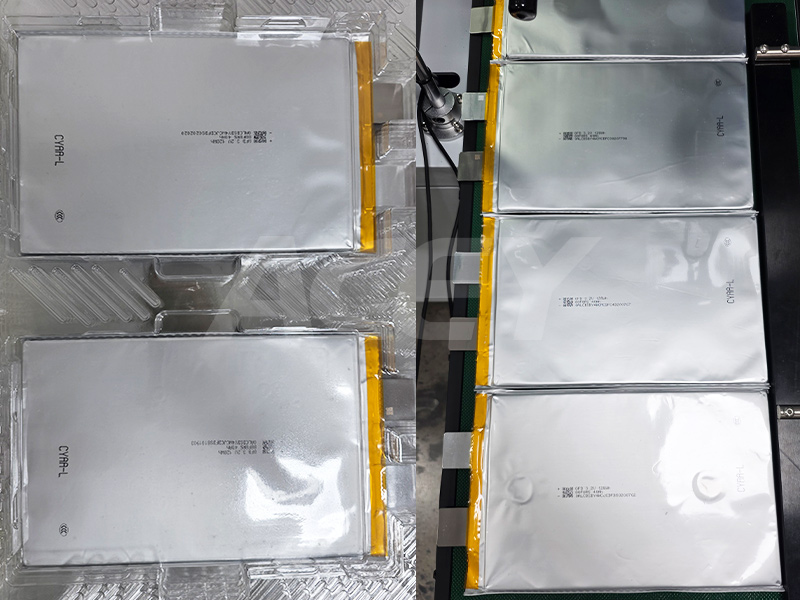

Large lithium pouch cells
