Ultra Low Viscosity Adapter For Low Viscosity Fluid Measurement

Ultra Low Viscosity Adapter For  Low Viscosity Fluid Measurement

Description

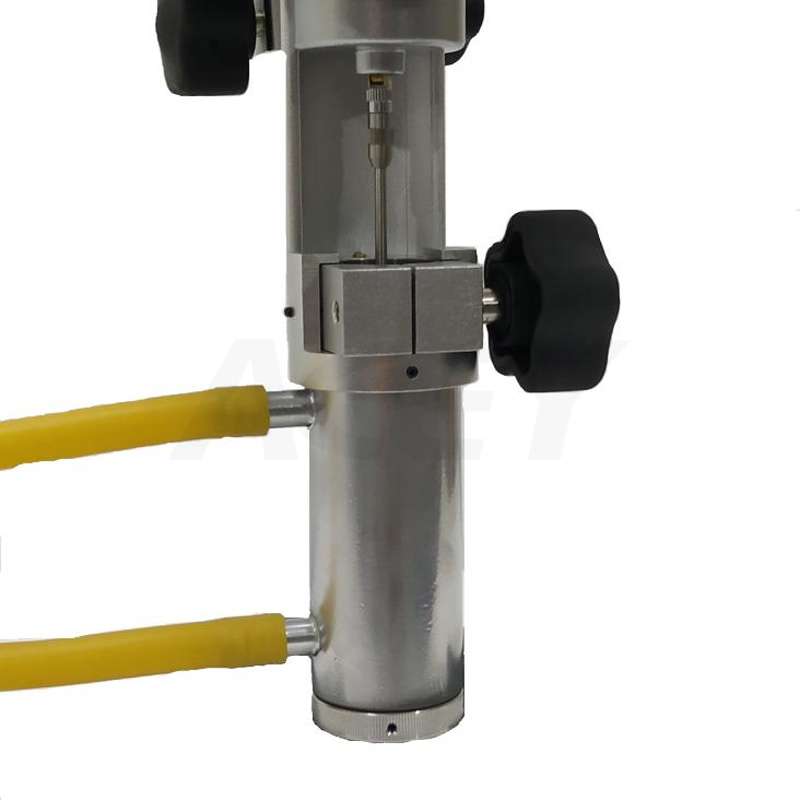

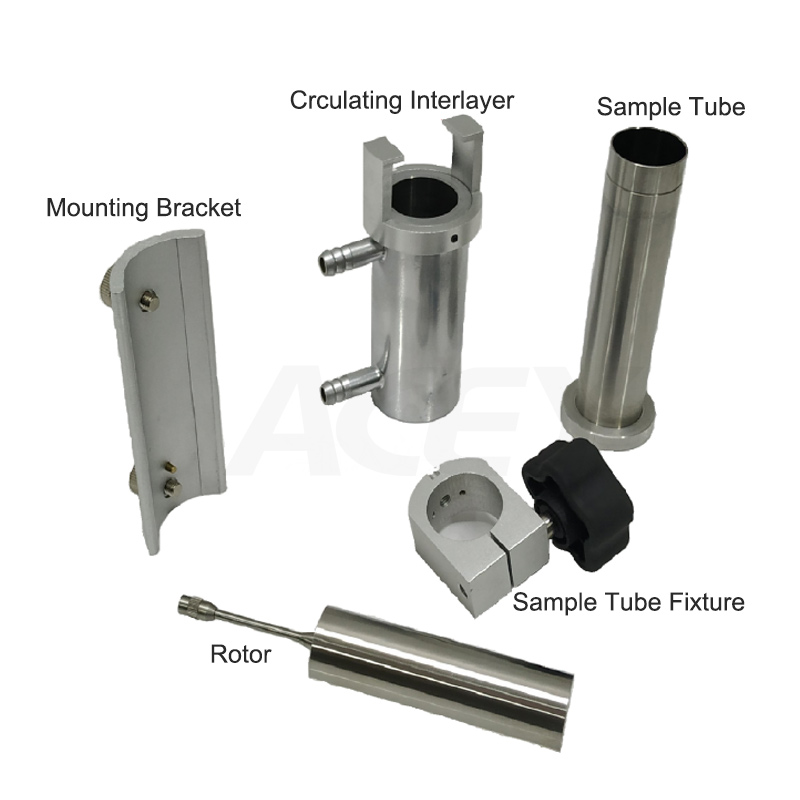

The Ultra Low Viscosity Adapter Rotor (ULR for short) is used with our Viscometer to provide accurate and repeatable measurements on low viscosity objects. Both Newtonian and non-Newtonian fluids are suitable. The ULR consists of a precision cylindrical rotor and a precision tubular sleeve (sample cartridge). The rheology-adapted cylindrical design allows for precise viscosity measurement and shear rate measurement.

Features

1. Designed for low viscosity fluid measurement

2. There are two specifications of jacket type and non-jacket type to choose from

3. The lowest detection limit is 1cP, this range depends on the viscometer model used

4. It can be accurately measured under the specified shear rate, which is convenient for detailed analysis of the product

5. The stainless steel material is easy to clean and clean, and can withstand the working temperature range of -40℃-200℃

6. The amount of sample is 18-20mL

Installation Design

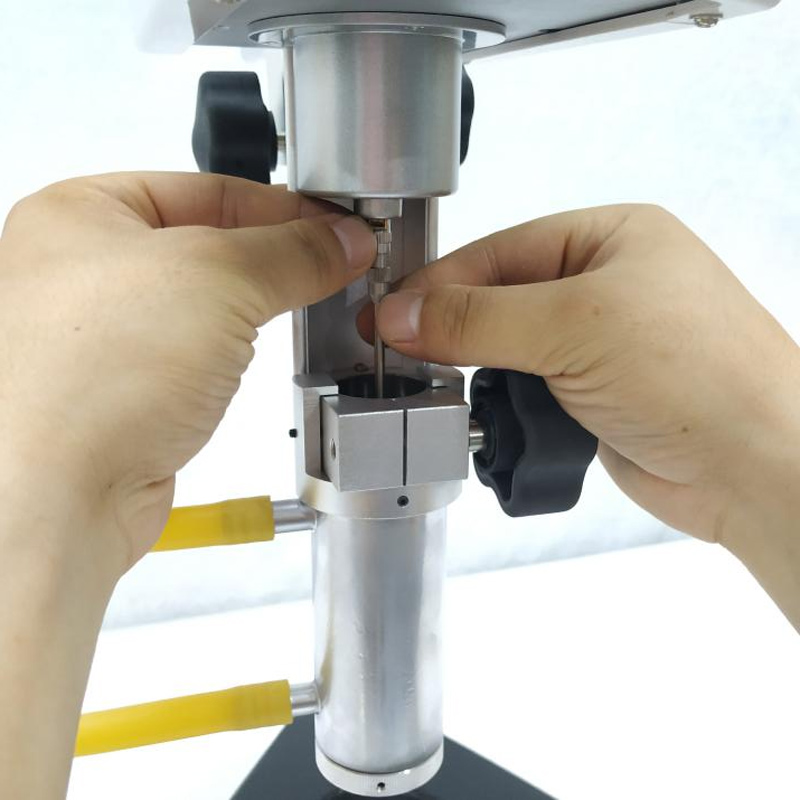

1. Rotor installation is quick and easy.

The mounting brackets that connect the ULR and viscometer have been redesigned to give you more room to work when installing the rotor.

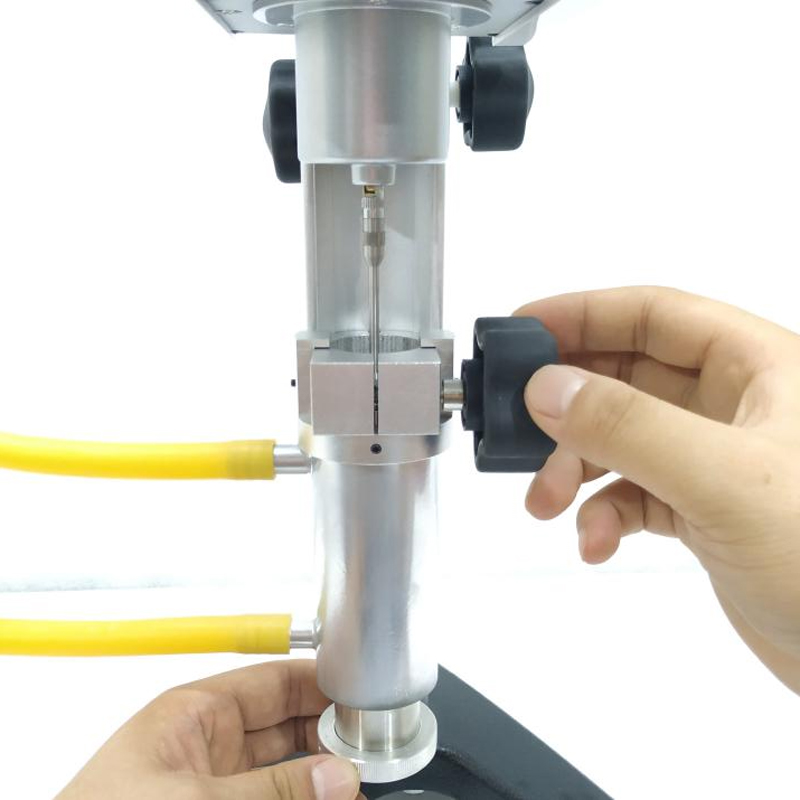

2. Simply release the knob and the sample cup can slide out.

More advantages

• The sturdy clamp ring design can be tightly connected to the mounting bracket attached to the viscometer.
• The sample cylinder is firmly fixed by the fixture, ensuring that the rotor and sample cylinder rotate coaxially and vertically.
• The circulation jacket is tightly clamped by the fixture, and through worker calibration, it can be ensured that the circulation jacket and fixture are coaxial. The sample cylinder containing the sample can be directly inserted and installed.

Adapter related accessories：temperature control

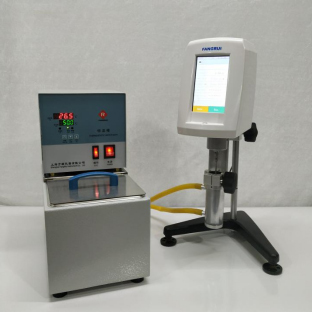

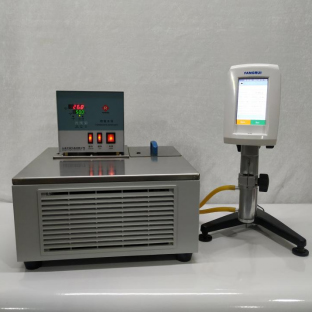

1. Thermostat circulating bath with cooling and heating functions.

• Compact, small form factor, small footprint, can be placed on the bench or under the stage.
• 6L water bath capacity
• Designed for instruments that use a circulating interlayer
• Can accommodate 600mL beakers

2. Contains only heated functional thermostatic circulating baths (Not included cooling)

• Compact, small form factor, small footprint, can be placed on the bench or under the stage.
• Designed for instruments that use a circulating jacket
• 6L water bath capacity, can accommodate 600mL beaker
• Economical cost performance is very high

Ultra-low viscosity adapter with different types of viscometer test range (mPa.S or cP)
