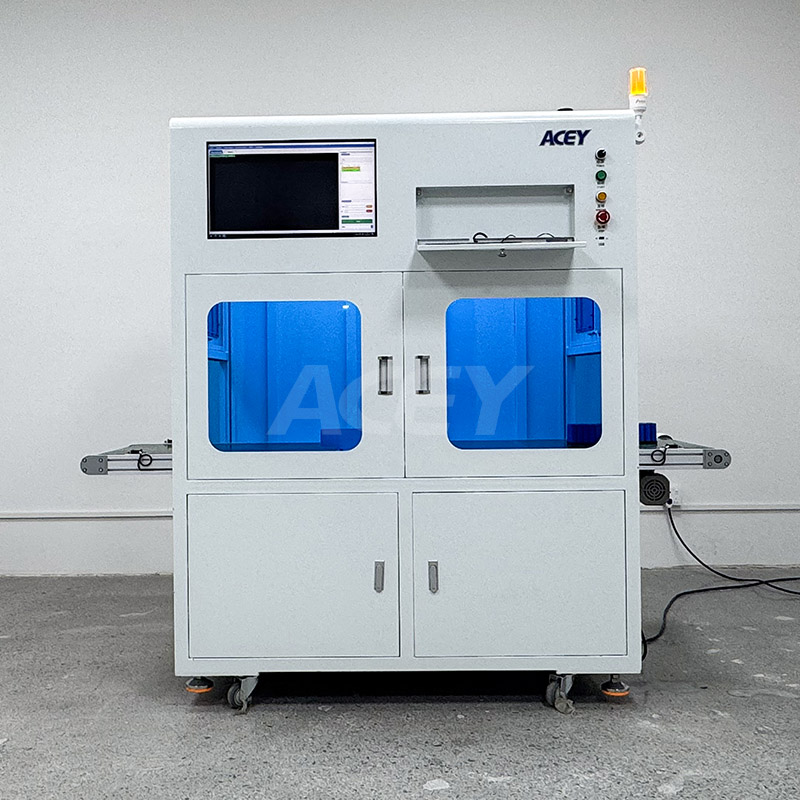

ACEY-CCD01C is an advanced Industry 4.0 visual inspection system designed to replace manual labor with high-definition imaging for precise polarity detection in lithium battery packs.
Brand:
ACEYItem No.:
ACEY-CCD01CCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 SETPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysAuto Visual Inspection Machine For Cylindrical Battery Polarity Detection
Product Description
ACEY-CCD01C visual inspection machine is a high-end industrial visual inspection station engineered for the modern smart factory. By leveraging high-definition industrial cameras and advanced template-matching algorithms, it eliminates the risks of human fatigue and error in battery assembly. This system ensures every battery cell is correctly oriented before moving down the line, safeguarding your production quality and streamlining the assembly process through seamless PLC integration.
Technical Parameters
Environmental & Physical Specifications
| Ambient Temperature | 5°C – 35°C |
| Humidity Range | 20% – 90% RH (Non-condensing) |
| Air Source Pressure | 0.5 – 0.6 MPa |
| Power Supply | AC 220V (50Hz / 60Hz) |
| Total Power Consumption | ≤ 1.5 kW |
| Floor Loading Capacity | ≤ 200 kg/m² |
| Grounding Type | Direct Grounding |
| Site Requirements | Clean environment; No pollution or strong electromagnetic interference |
| Installation Surface | Level floor; Free from vibration and mechanical shock |
| Noise Level | ≤ 80 dB |
| Dimensions (LWH) | Approx. 1946mm * 900mm * 1750mm (Subject to final design) |
| Net Weight | Approx. 380 kg |
| Equipment Color | Computer White (Customizable upon request) |

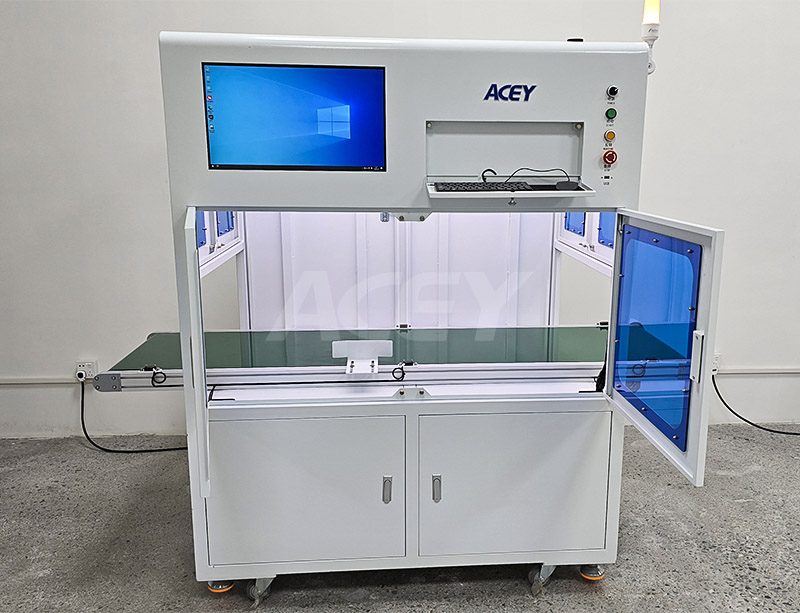

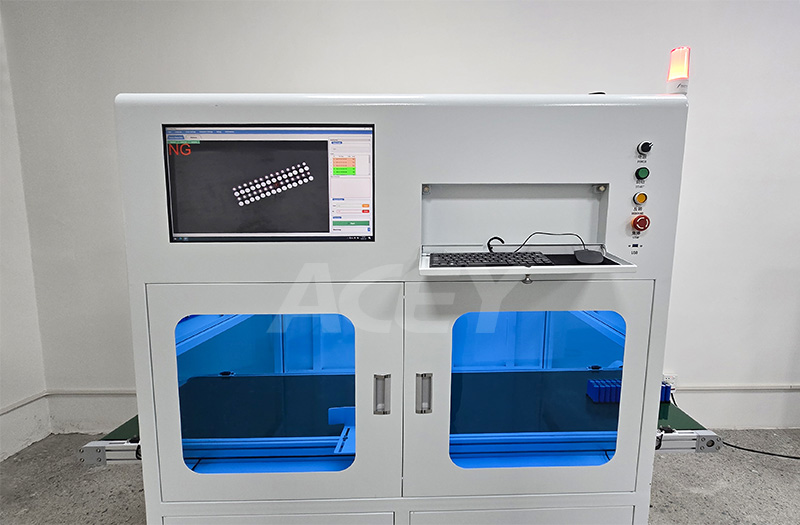

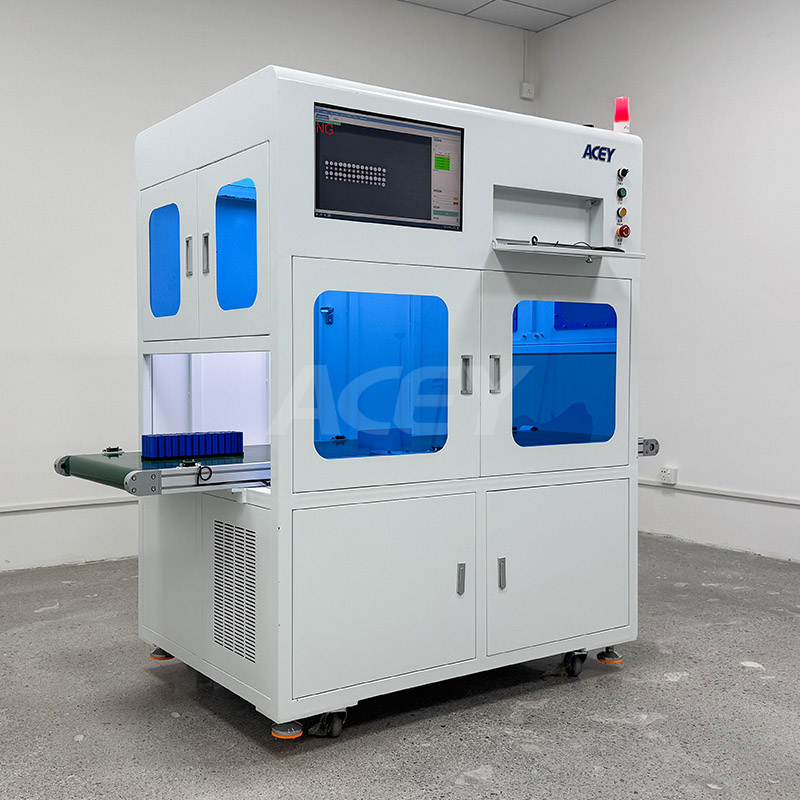

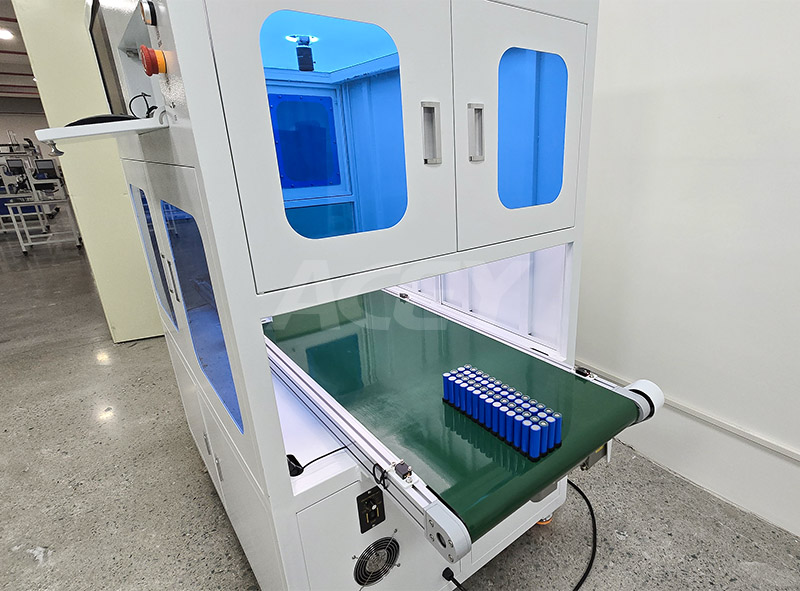

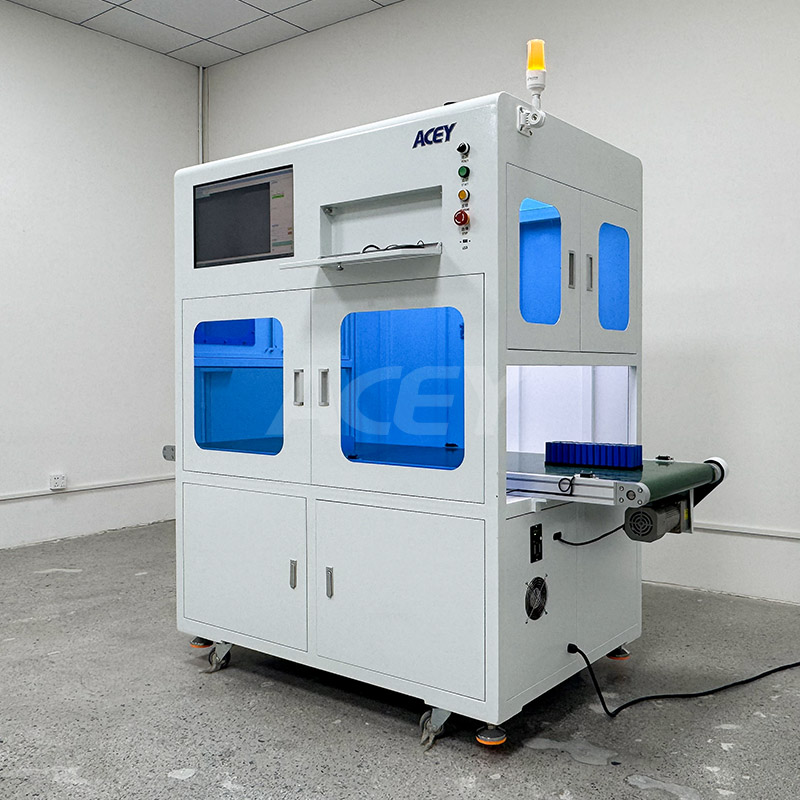

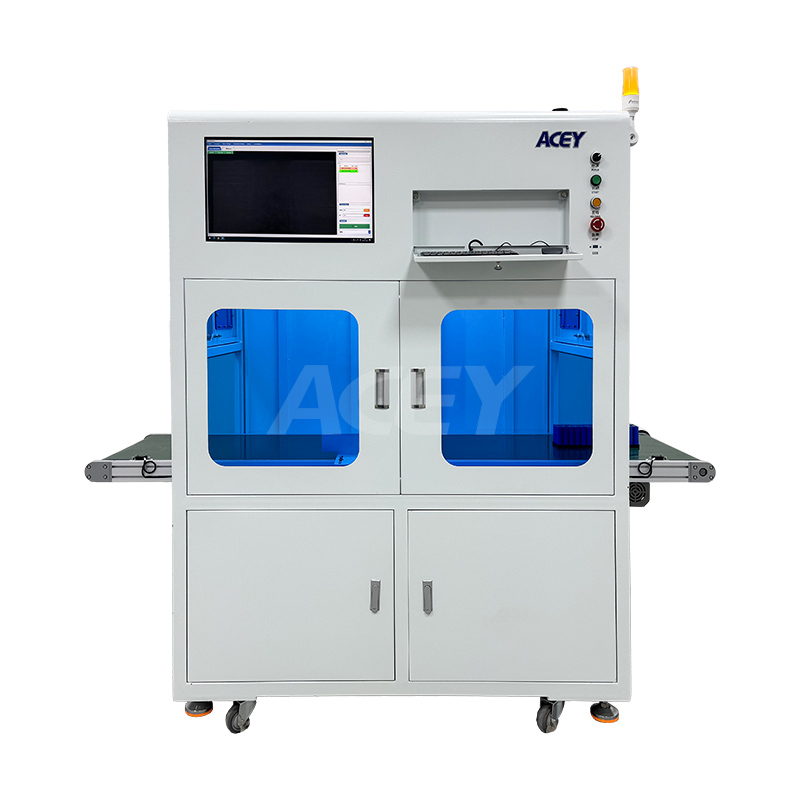

Product Display
Cylindrical Battery Cell Positive and Negative CCD Tester
CCD camera tester positive and negative testing Cylindrical Battery before welding testing equipment
Cylindrical Cell CCD Visual Inspection Equipment
CCD Visual Inspection Equipment can replace the human eye to do measurement and judgment, is used in production, assembly or packaging of valuable equipment. It has higher efficiency and accuracy in detecting whether the batteries are correctly placed in series-parallel positive and negative electrodes and in detecting products with defects in spot welding.
Cylindrical Battery Positive And Negative Visual Inspection Machine
ACEY-CCD01 cylindrical battery positive and negative visual inspection machine is used in manufacturing to ensure the quality and correct orientation of cylindrical batteries (like those used in electronics, electric vehicles, etc.). The machine performs visual inspections of both the positive and negative ends of the battery, verifying that the components are assembled correctly, and checks for any defects like misalignment, damage, or contamination.
Automatic Battery CCD Visual Inspection Machine For Cylindrical Cell Polarity Inspection
ACEY-CCD01C visual inspection machine is an automatic equipment for lithium battery processing, which has the function of automatically detecting the positive and negative electrodes of lithium battery cylindrical cells.
