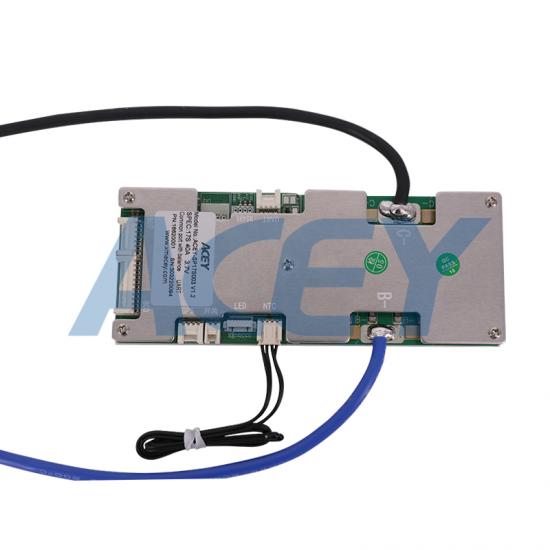

10-17s 30A 80A Lipo Battery Management System NMC Bms


ACEY-SP17S003-NMC 10S 11S 12S 13S 15S 16S 17S Smart BMS 36V 48V 60V Lithium Battery 40A 60A 80A bt/UART/RS485 Balance 3 NTC Multifunction



  • Brand:

    ACEY
  • Item No.:

    ACEY-SP17S003-NMC
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Payment:

    T/T
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

10-17s 30A 80A Lipo Battery Management System NMC Bms


Product Introduction

ACEY-SP17S003 is a Hardware protection board scheme specially designed for 10~17 strings of lithium battery packs. The protection parameters are fixed by the component parameters.


Configuration

Function Configuration Function Configuration
Number of strings supported 10 to 17 S optional Switch function Optional
Continuous current 30 ~ 80 A optional Charge discharge temperature protection Standard option
Number of NTCs 1 built-in, 2 external GPS module Optional
Balance Function Standard option Secondary protection /
Open-Wire Detection Supported Heating function OptionalHeating module required
Charging overcurrent protection function Standard option LED indicator interface Optional
Low voltage charging prohibition function NO The bluetooth module Optional
Battery packs in parallel Not supported Battery packs in series Not supported

Basic Parameters

Cell specifications 10~17 strings of Lithium Iron Battery
Interface type Charge and discharge are both at the same port
Charging voltage 4.20V*Number of strings
Cell voltage range 2.8~4.25V
Continuous charging current 30A~80A optional
Continuous discharging current 30A~80A optional
Consumption ≤200uA
Circuit resistance ≤10mR
Operating temperature -30~75
Structure size of PCB
Size 160±0.5mm * 65±0.5mm * 18±1mm
(Length*Width*Height)

Main parameter


Overvoltage and undervoltage protection Project Specification Unit
MIN TYP MAX
Overvoltage 4.22 4.25 4.28 V
Overvoltage delay 1000 2000 3000 mS
Overvoltage release 4.1 4.15 4.2 V
Undervoltage 2.7 2.8 2.9 V
Undervoltage delay 1000 2000 3000 mS
Undervoltage release 2.9 3.0 3.1 V
Undervoltage release conditions Voltage self recovery or charging recovery within 60s
Overcurrent Charge Overcurrent Charge protection value See the configuration table of overcurrent protection value below
Overcurrent Charge delay 7 10 13 S
Charge over current release conditions Automatic recover after a delay of 32S
Overcurrent Discharge 1th Overcurrent Discharge See the configuration table of overcurrent protection value below
1th Overcurrent Discharge delay 7 10 13 S
2th Overcurrent Discharge  See the configuration table of overcurrent protection value below
2th Overcurrent Discharge delay 200 500 800 mS
Overcurrent Discharge release Automatic recover after a delay of 32S
Short Circuit Discharge Short circuit protection current See the configuration table of overcurrent protection value below
Short circuit protection delay time -- 400 800 uS
Short circuit protection recovery Recover after 5S delay after disconnecting the load
(Short-circuit description: The short-circuit current is less than the minimum value or higher than the maximum value, which may cause the short-circuit protection to fail, and the short-circuit current exceeds 2000A, short-circuit protection is not guaranteed, and short-circuit protection testing is not recommended.)
Overtemperature Charge Temperature protection value 60 65 70
Temperature protection release value 50 55 60
Undertemperature Charge Temperature protection value -15 -10 -5
Temperature protection release value -10 -5 0
Overtemperature Discharge Temperature protection value 70 75 80
Temperature protection release value 60 65 70
Undertemperature Discharge Temperature protection value -25 -20 -15
Temperature protection release value -15 -10 -5
High temperature protection of FET(Built-in) Temperature protection value 85 90 95
Temperature protection release value 65 70 75
Balance Function Equalization turn-on voltage 3.45 3.5 3.55 V
Balance current 100 120 140 mA
Balance model Time-sharing/pulse equalization
Balance type Pulsed model

Product Display

Smart Bms

Smart Bms

Smart Bms

Smart Bms

Smart Bms

Smart Bms
