Cylindrical Battery Positive And Negative Visual Inspection Machine

Cylindrical Battery Positive And Negative Visual Inspection Machine

Description

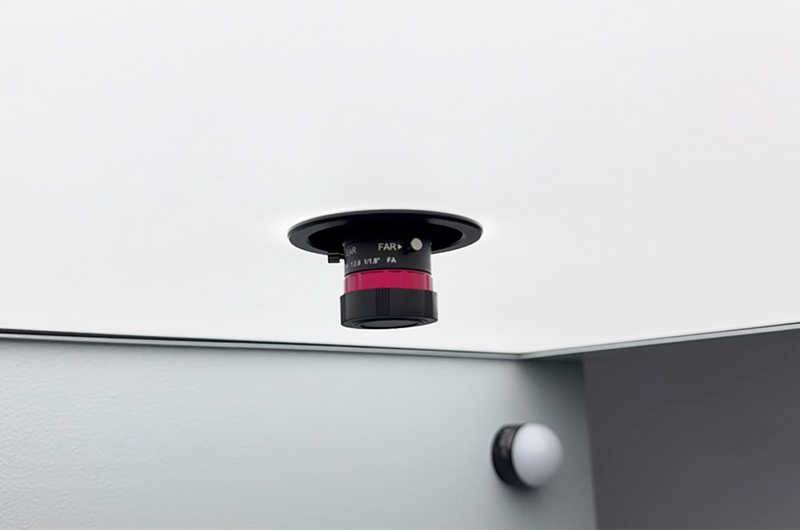

ACEY-CCD01 CCD tester is designed for cylindrical battery cells and uses a camera to collect positive and negative electrode data. It compares the number and position information of the positive and negative electrodes with the sample, quickly analyzes the result (NG or OK), and marks the position of NG to confirm the positive and negative electrodes of the battery pack before spot welding, in order to prevent defects caused by incorrect positive and negative electrode positions.

Configuration parameters

1. Equipment power: 600W, 220V AC input, 50HZ
2. The position of NG can be used to confirm the positive and negative electrodes of the battery pack before the spot welding, and prevent the defects caused by the wrong positions of the positive and negative electrodes.
3. Adaptable cell range: cylindrical cell 14430/14500/18500/ 18650/21700/26650/32650/32700 etc.
4. 2.4 Adapt to the detection range: 400*300MM(customizable).
5. After the sample(Template) is saved, it can be rotated 360 degrees for position detection.
6. After the parameters are set, start the detection mode with one key.
7. The function setting is simple, easy to understand and easy to operate, without on-site training.
8. The industrial computer supports the function of sudden power failure, and the database works normally.
9. Local database, mainly for the positive and negative data of cylindrical cells, other categories are not compatible.
10. Detection speed: 100PCS cells/1.5S.
11. Detection accuracy: the cell is not deformed or rusted, 100%.
12. Mass storage of product parameters, direct detection by recalling parameters.

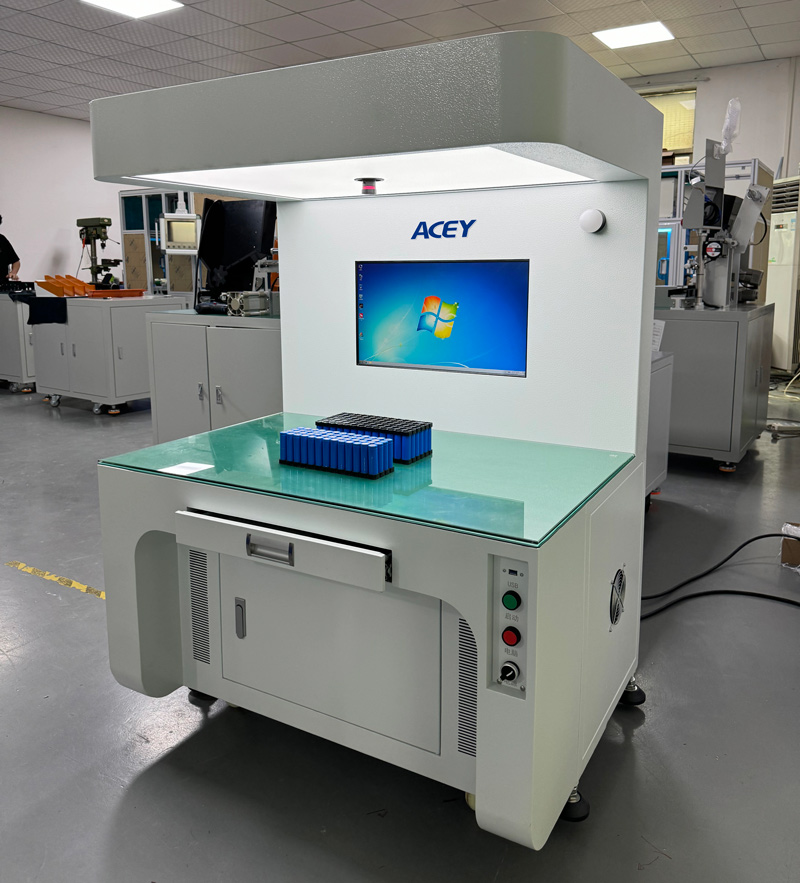

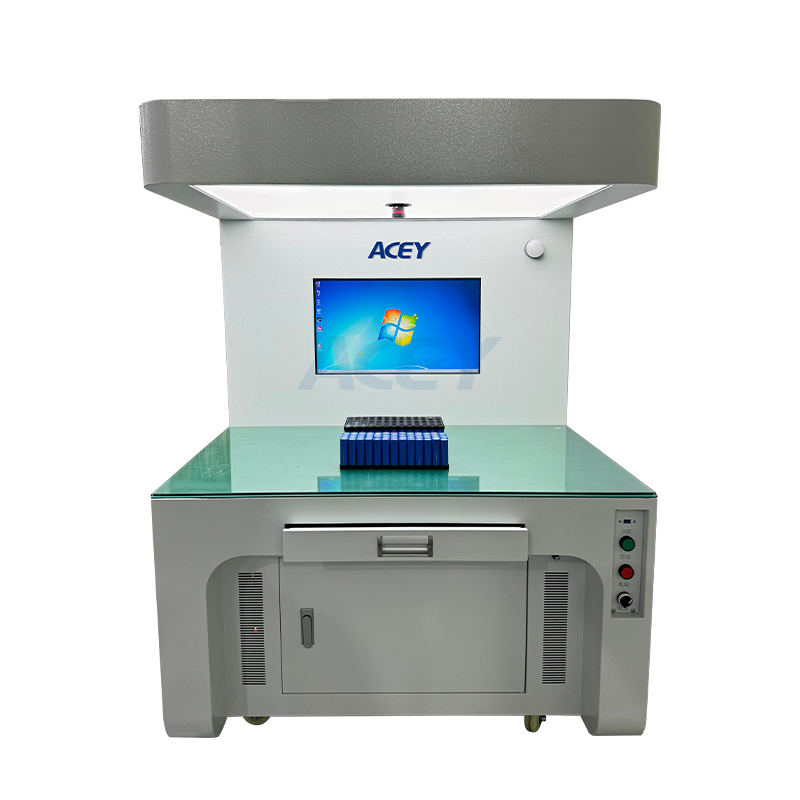

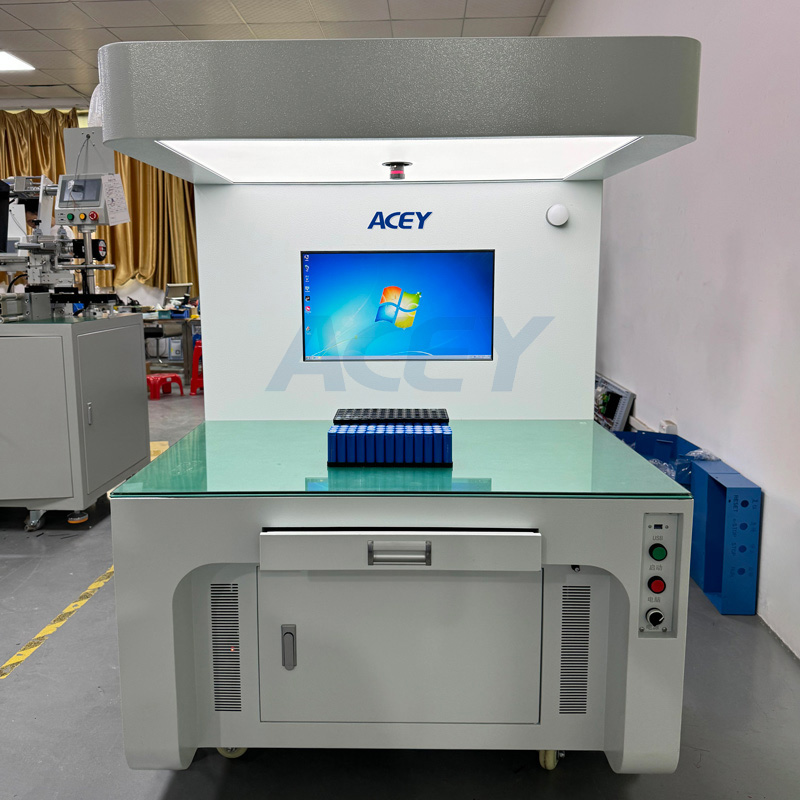

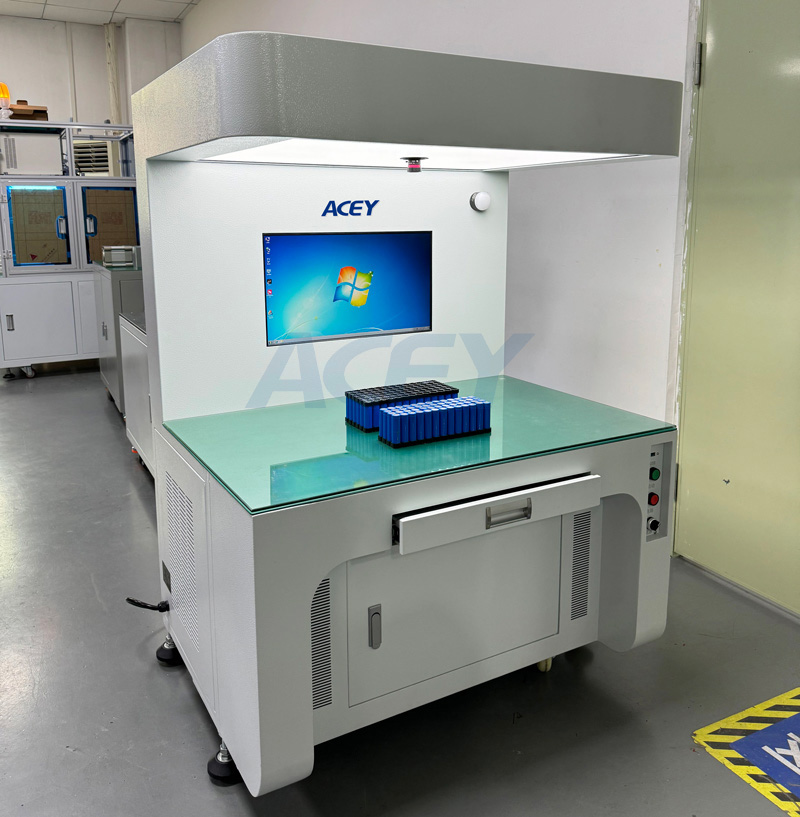

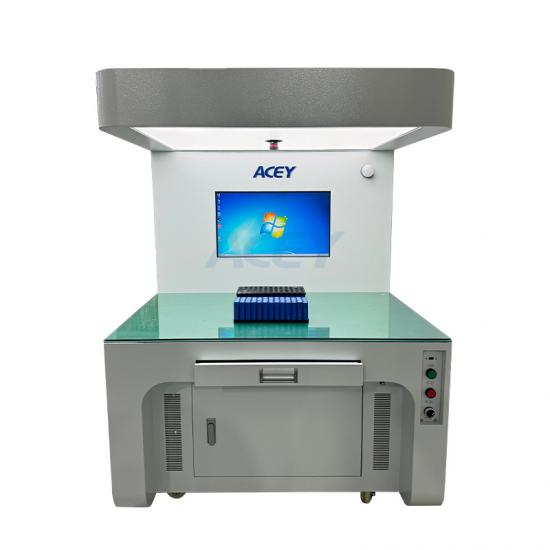

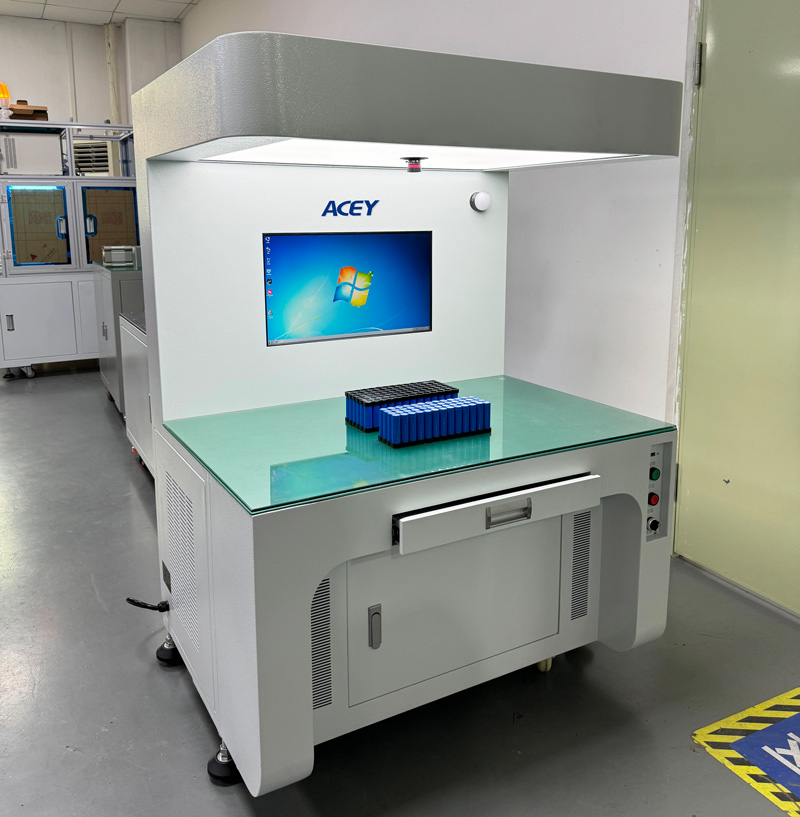

Product Display
