6000W Automatic Prismatic Battery Pack CNC Fiber Laser Welding Machine With Cover

6000W Automatic Prismatic Battery Pack CNC Fiber Laser Welding Machine With Cover

Product Description

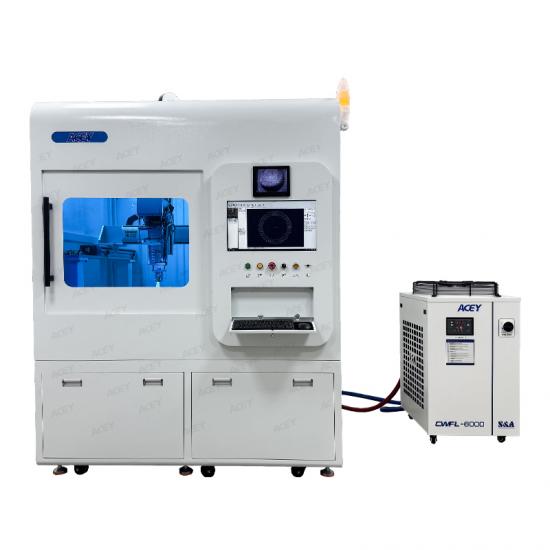

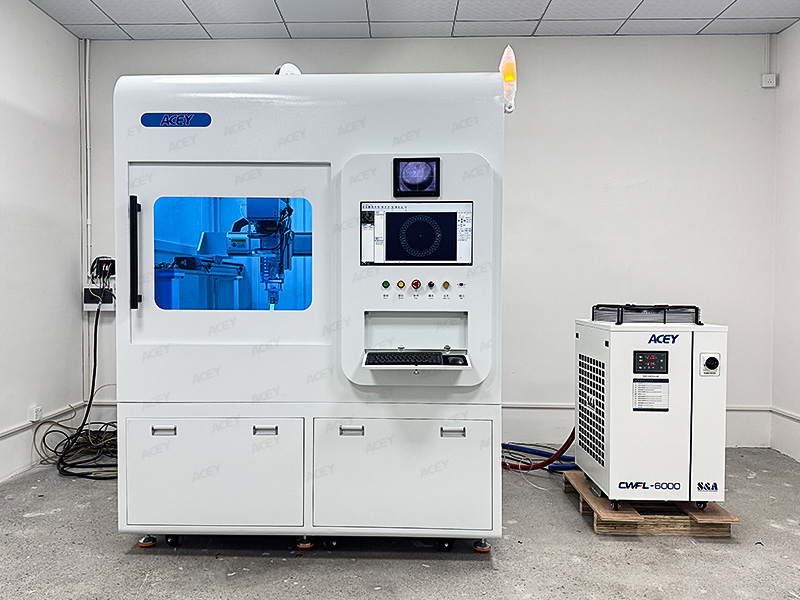

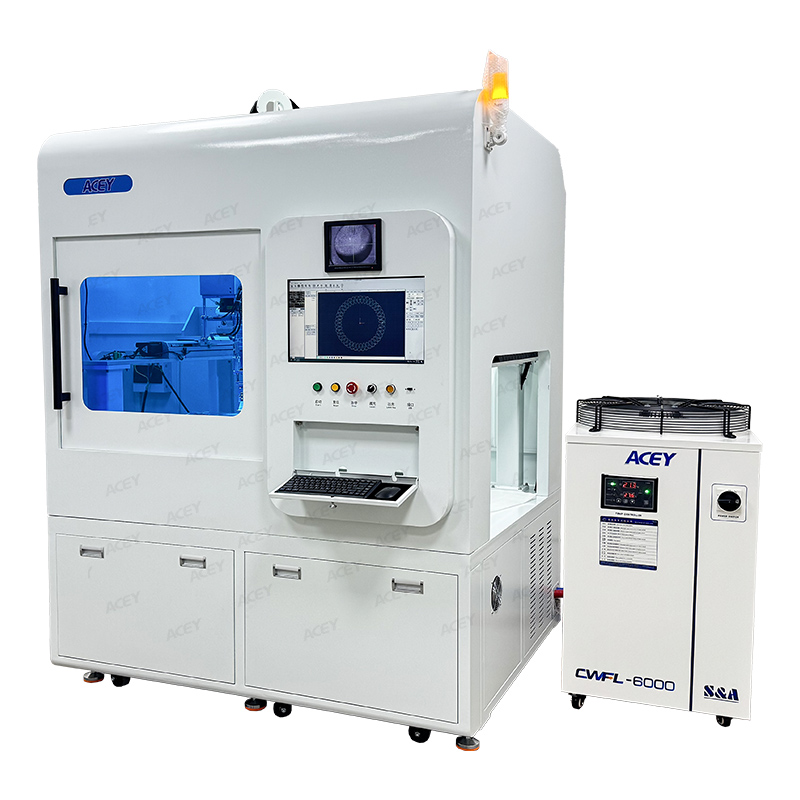

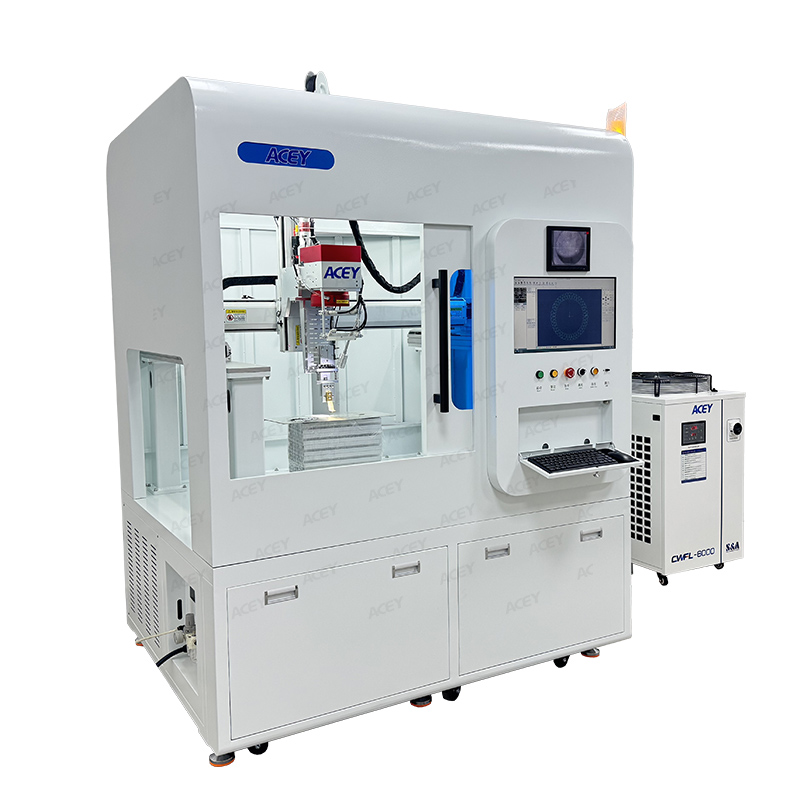

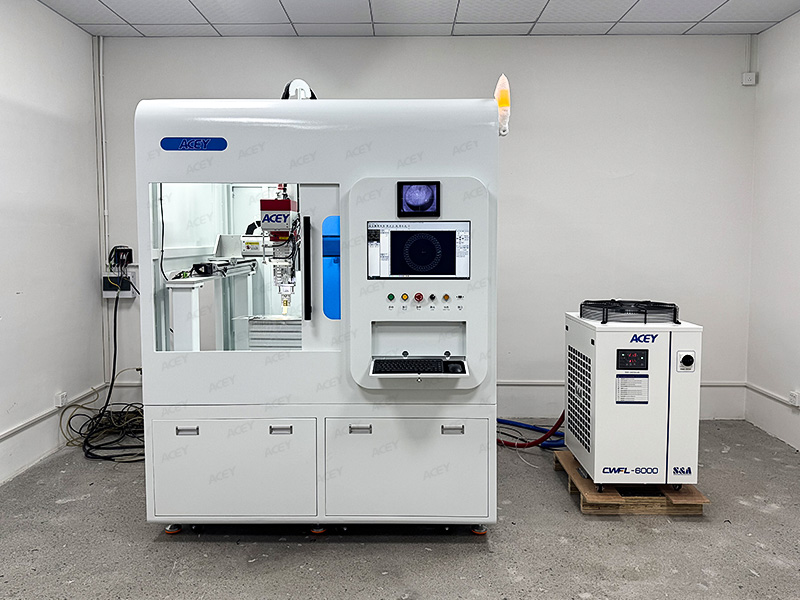

ACEY-LWM6000Z Gantry Continuous Galvo Laser Welding Machine is a professional-grade industrial solution engineered for high-precision metal joining. By combining world-class fiber laser technology with a self-developed high-rigidity gantry structure, this system delivers exceptional mechanical stability and processing efficiency. Specifically optimized for the lithium battery industry, the ACEY-LWM6000Z excels in welding aluminum/copper busbars and nickel connectors for prismatic cell PACK assembly, ensuring consistent, expert-grade results for complex industrial applications.

Product Highlights

• Advanced Fiber Laser Technology: Equipped with high-power continuous fiber lasers (1.5kW/2kW/3kW/4kW/6kW) for deep penetration and high-speed, stable welding quality.
• High-Precision Gantry Structure: Features a high-rigidity machine bed with precision guide rails and high-response servo motors for a repetitive positioning accuracy of ±0.02mm.

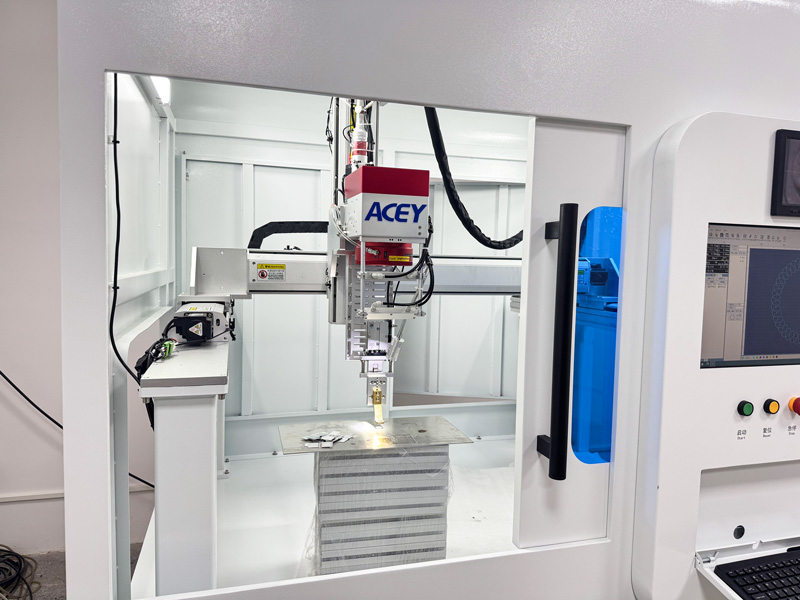

• Dynamic Galvo Integration: The high-power galvanometer welding head works seamlessly with the XY gantry platform to execute complex graphic trajectories.
• Smart 6-Axis Motion Control: Supports up to 6-axis motion control to meet diverse automation needs, whether integrated into a production line or used as a standalone unit.

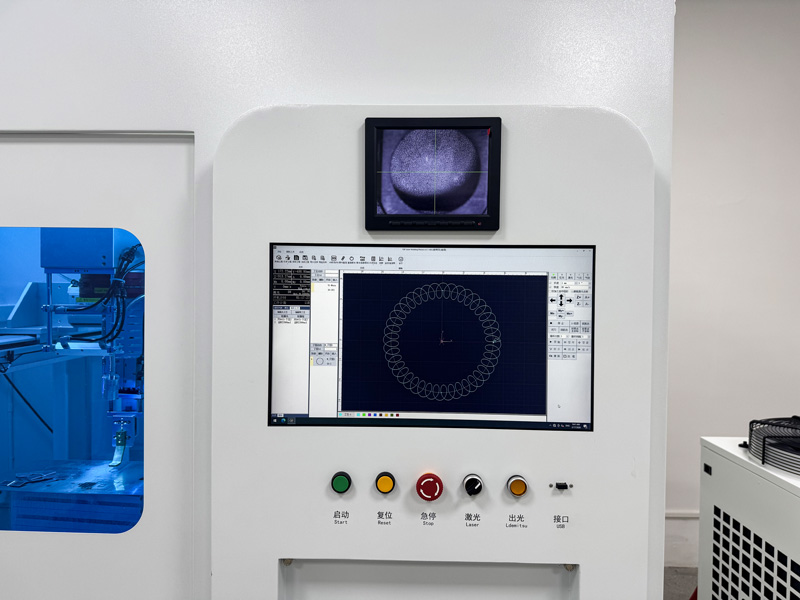

• Real-time CCD Monitoring: Includes a 1.3MP anti-glare CCD system for easy debugging and real-time visual inspection of weld quality.
• Expert Welding Software: Features specialized control software with powerful graphic editing, drawing, and comprehensive data storage/recall functions.
• Robust Thermal Management: A powerful water-cooling circulation system maintains constant temperatures to extend machine lifespan and ensure consistent performance.


Technical Parameters

Applications & Material Compatibility
The ACEY-LWM6000Z is designed for versatile metal welding, with a primary focus on the clean energy sector:

• Materials: Specifically compatible with Copper, Aluminum, Iron, Nickel, and their respective alloys.
• Key Processes: Optimized for prismatic battery PACK busbar welding (Aluminum/Copper) and nickel-to-aluminum transitions.
• Other Uses: Ideal for high-end hardware connectors and various automated metal joining tasks.

• Global Component Sourcing: Features top-tier components including Raycus lasers, TBI/HIWIN guide rails, and Omron sensors.
• Safety & Alignment: Dual red-light positioning system for fast focal length adjustment and accurate product alignment.
• Long Service Life: Designed for a robust service life of over 5 years under professional operating conditions.

Products Display
