4000W Automatic Fibre Laser Welder Machine For Prismatic Battery Pack

4000W Automatic Fibre Laser Welder Machine For Prismatic Battery Pack

Product Description

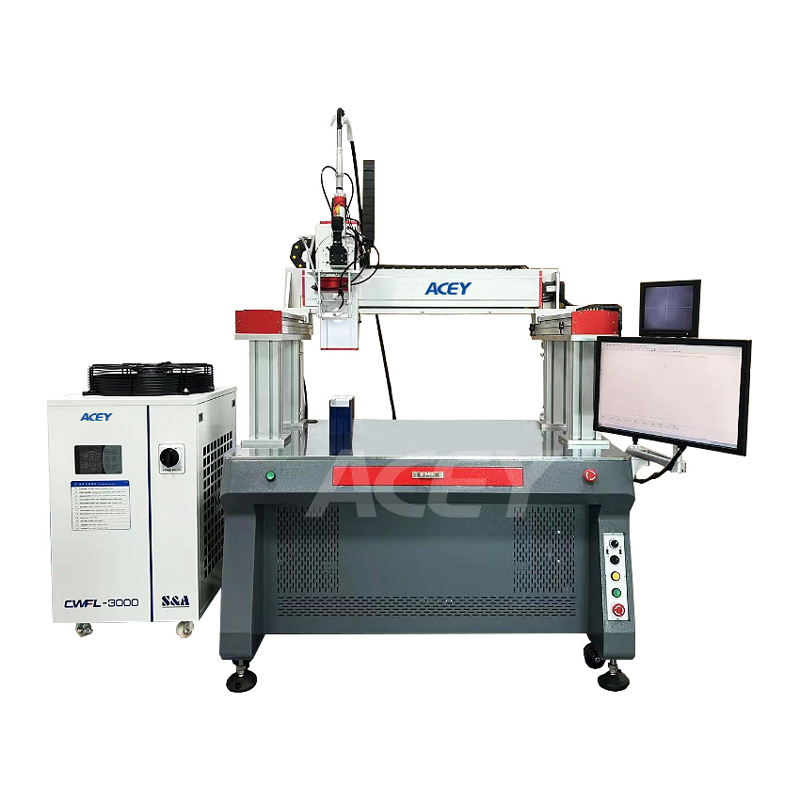

ACEY-LWM4000Z Laser Welding Machine is specially designed for welding aluminum and copper busbar connectors in prismatic lithium battery PACK assemblies, as well as various metal connectors.

Equipped with a high-power continuous fiber laser, it delivers strong output, fast welding speed, high precision, and consistent weld quality. The built-in CCD monitoring system allows convenient setup and real-time observation of the welding process to ensure stable and reliable results.

Key Features

• Equipped with a high-power continuous fiber laser, providing strong output, fast welding speed, high precision, and stable weld quality.
• Supports up to 6-axis motion control, meeting diverse automation requirements; can operate standalone or integrate with automated production lines.

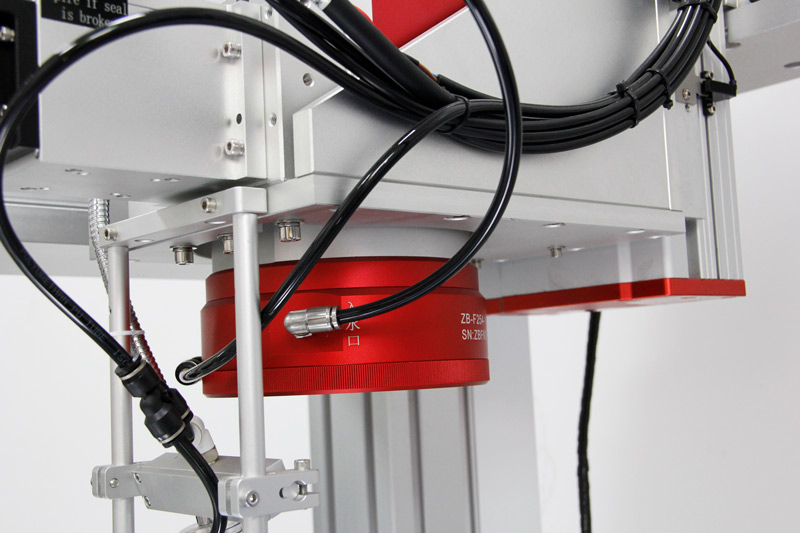

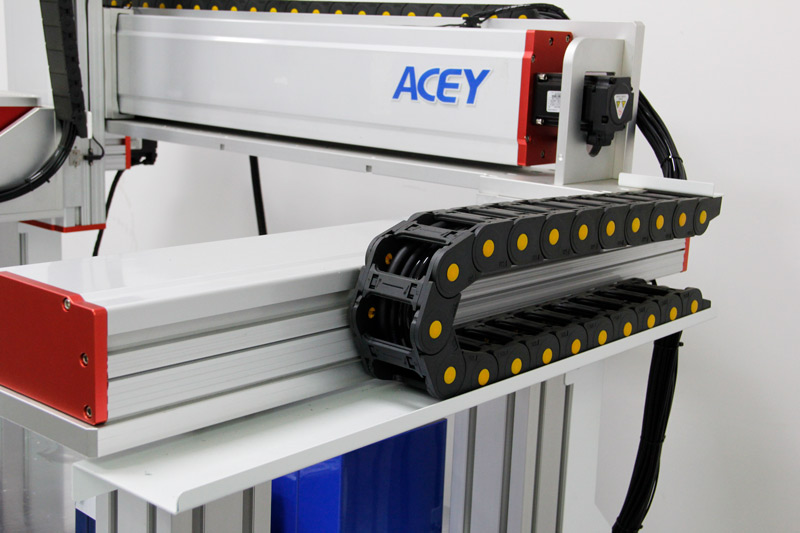

• High-power galvo welding head combined with XY gantry platform allows welding of complex trajectories with ease.
• Dedicated welding control software with expert welding process guidance, complete data storage and recall, and powerful graphic drawing and editing capabilities.

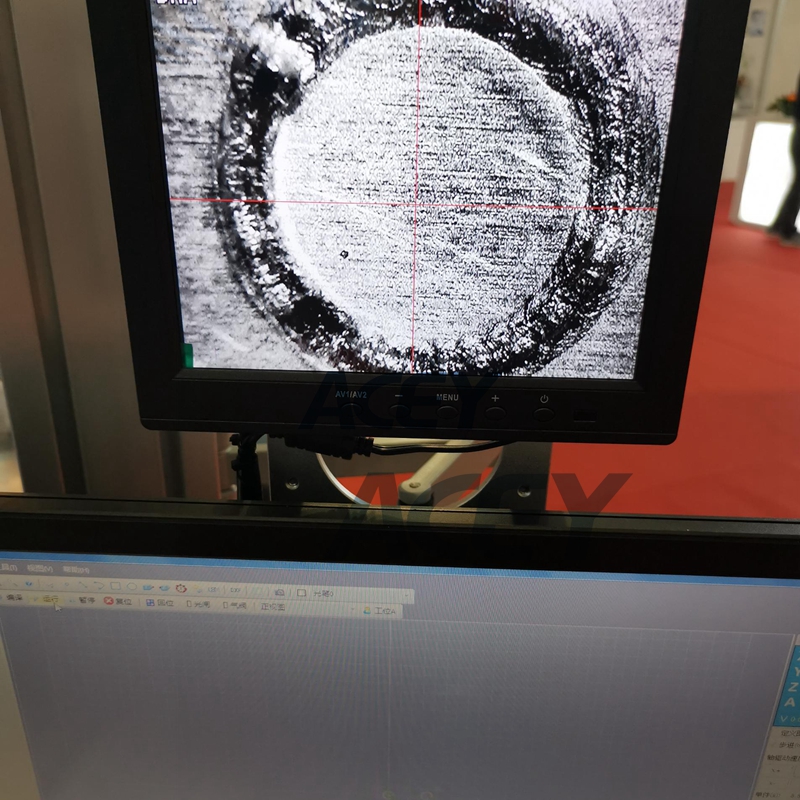

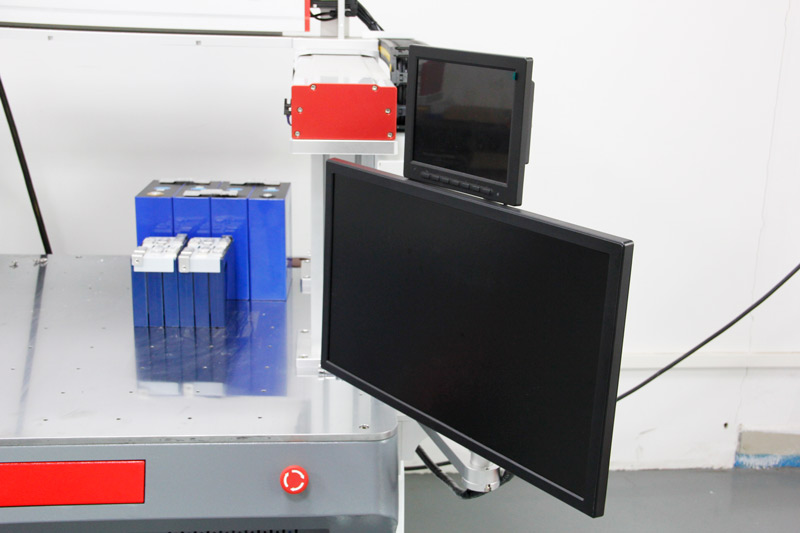

• Built-in CCD monitoring system for easy setup and real-time weld quality observation.
• Red-light positioning system for quick product alignment and focus adjustment, simple and user-friendly.

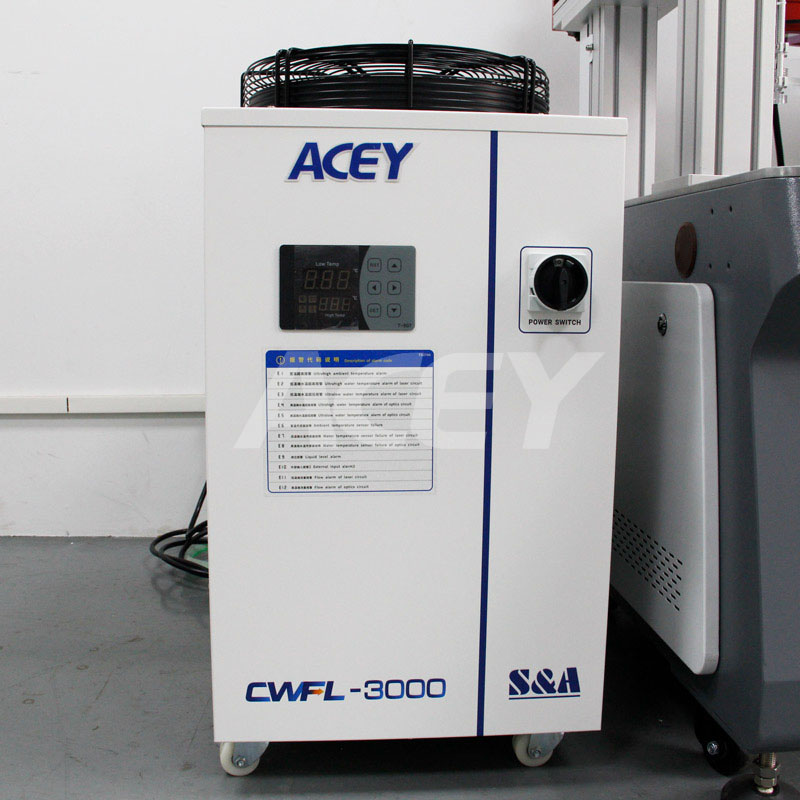

• Advanced water-cooling system maintains a stable temperature, ensuring consistent welding quality and extending machine lifespan.

Workflow

1. Operator places the product into the positioning module.
2. Set and edit welding parameters and trajectory.
3. Perform welding.
4. Remove the product after welding is completed.

Technical Parameters

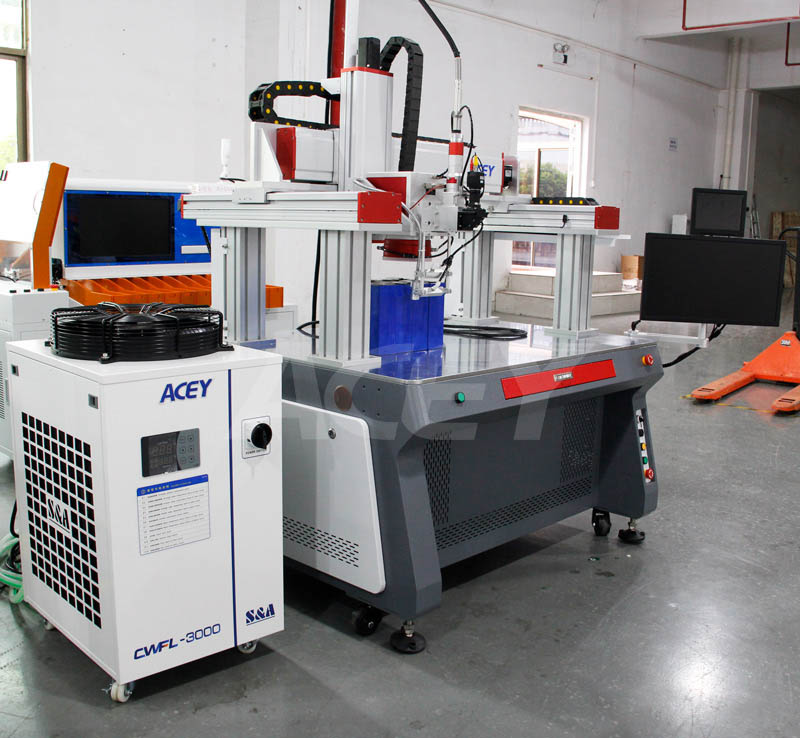

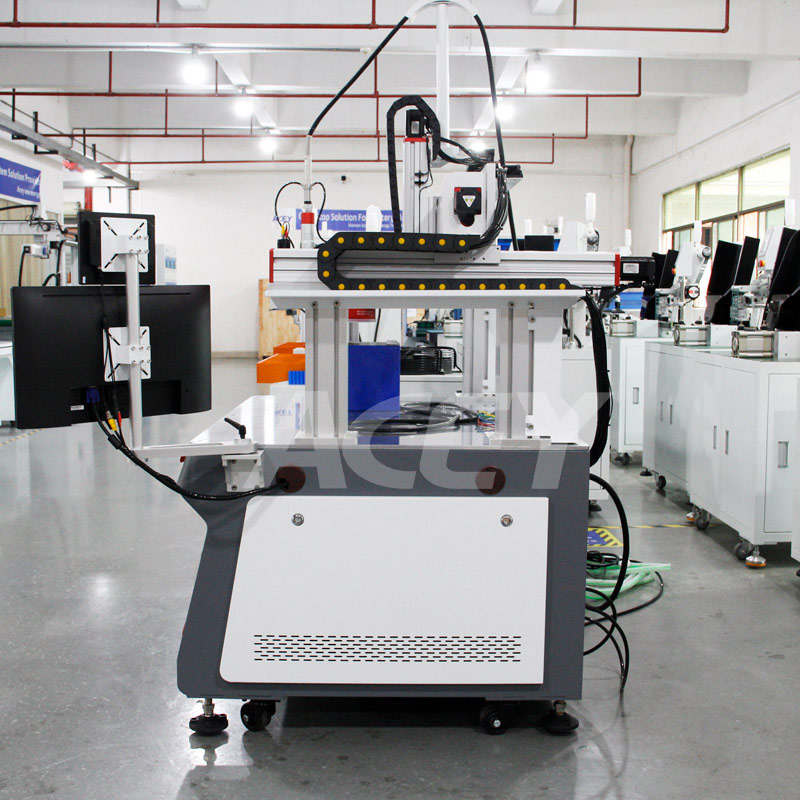

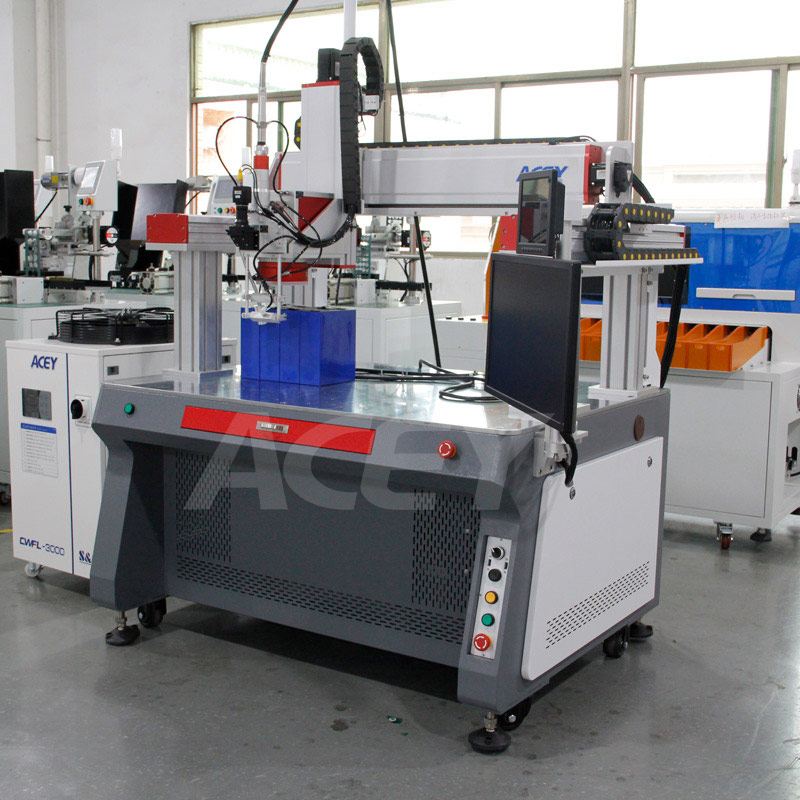

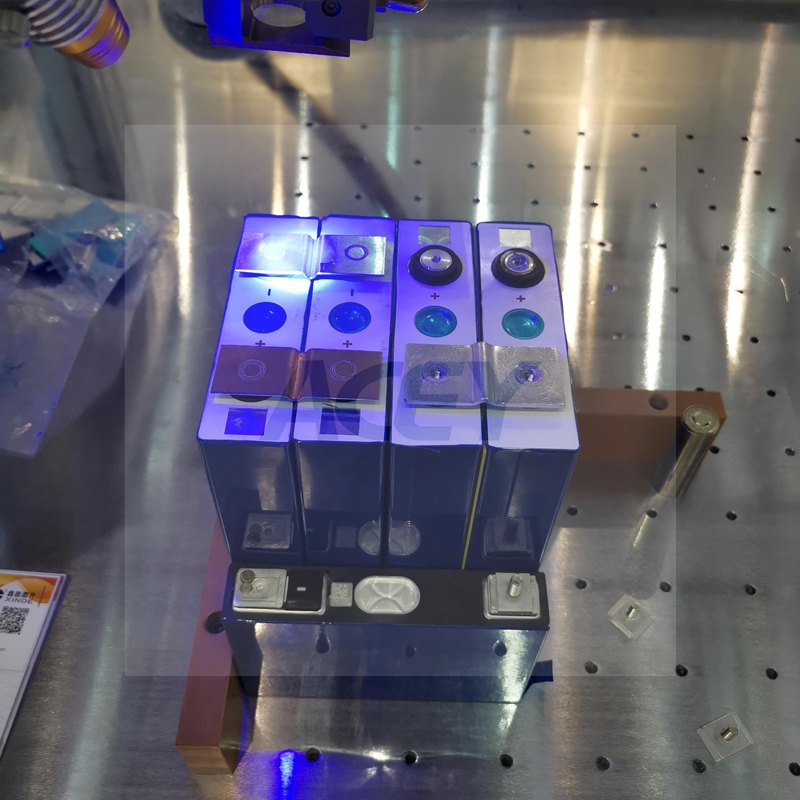

Product Display
