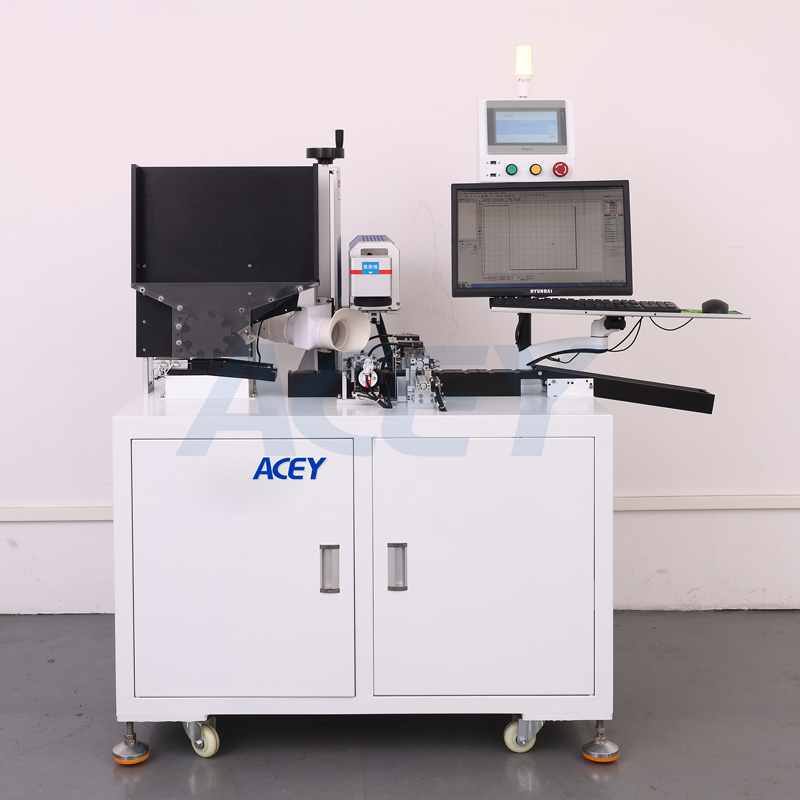

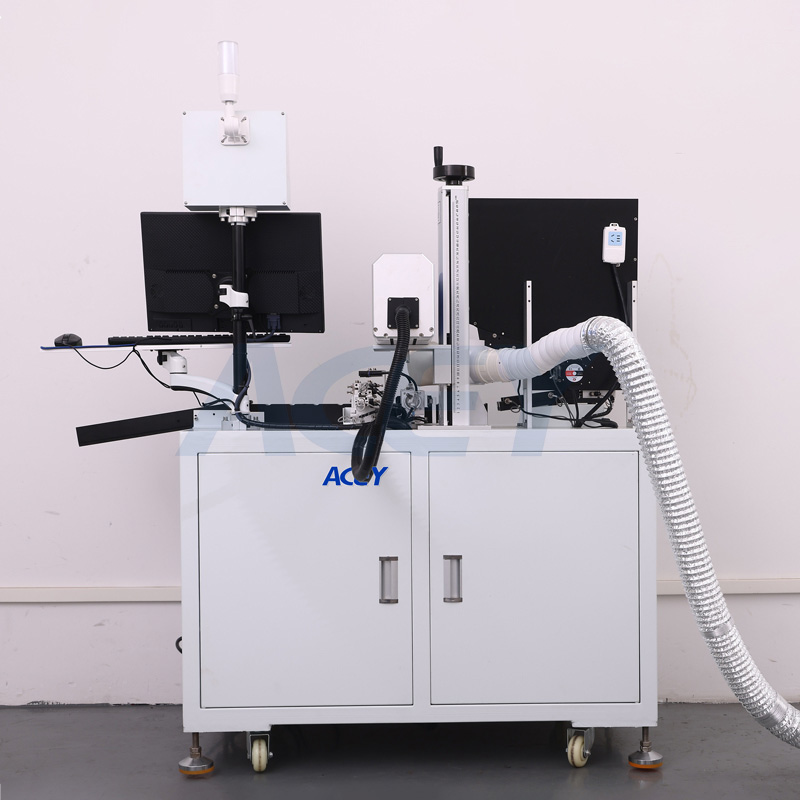

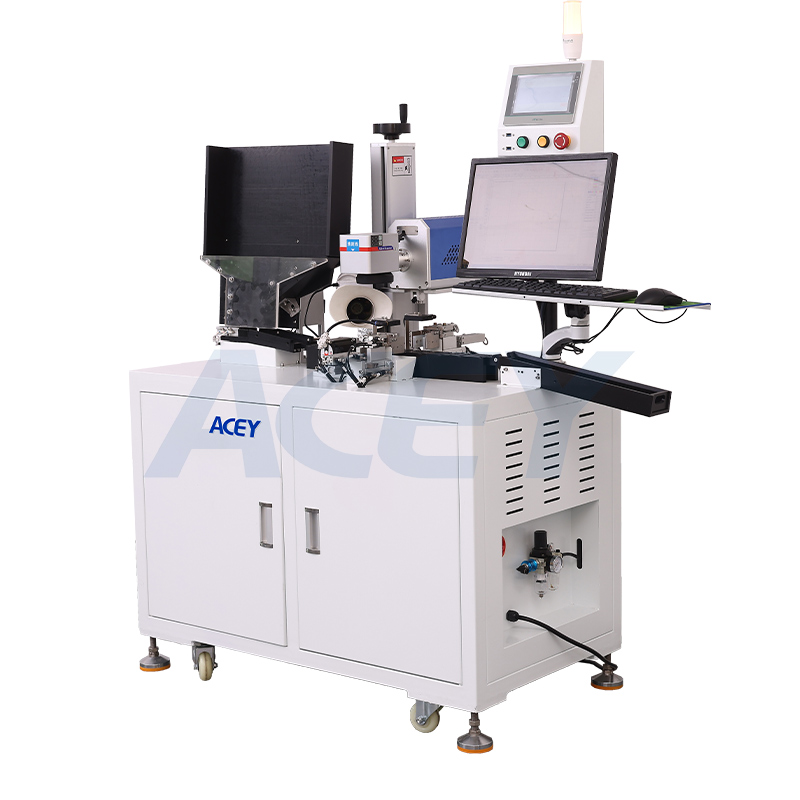

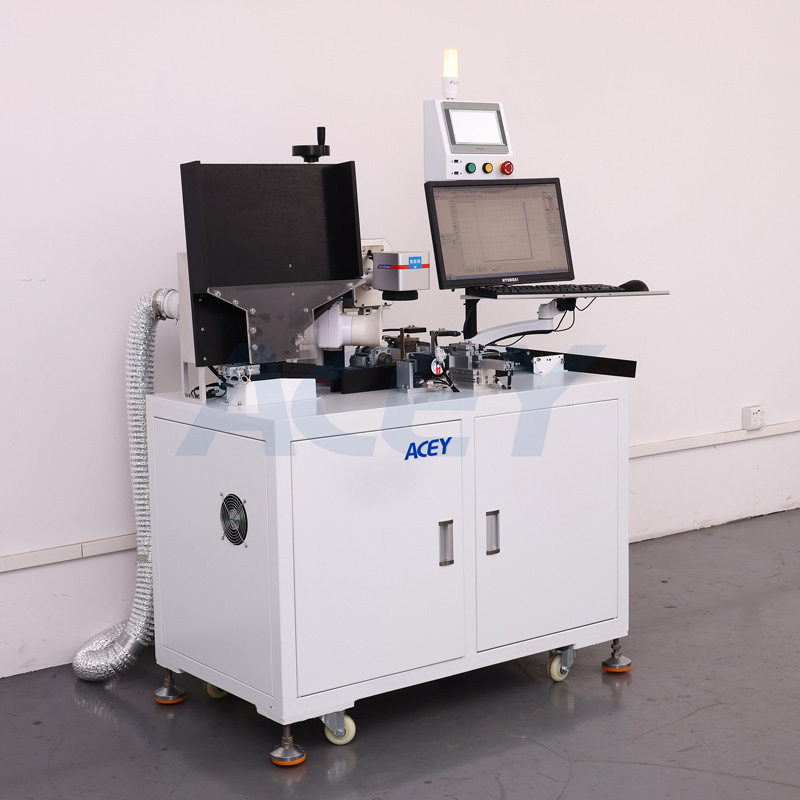

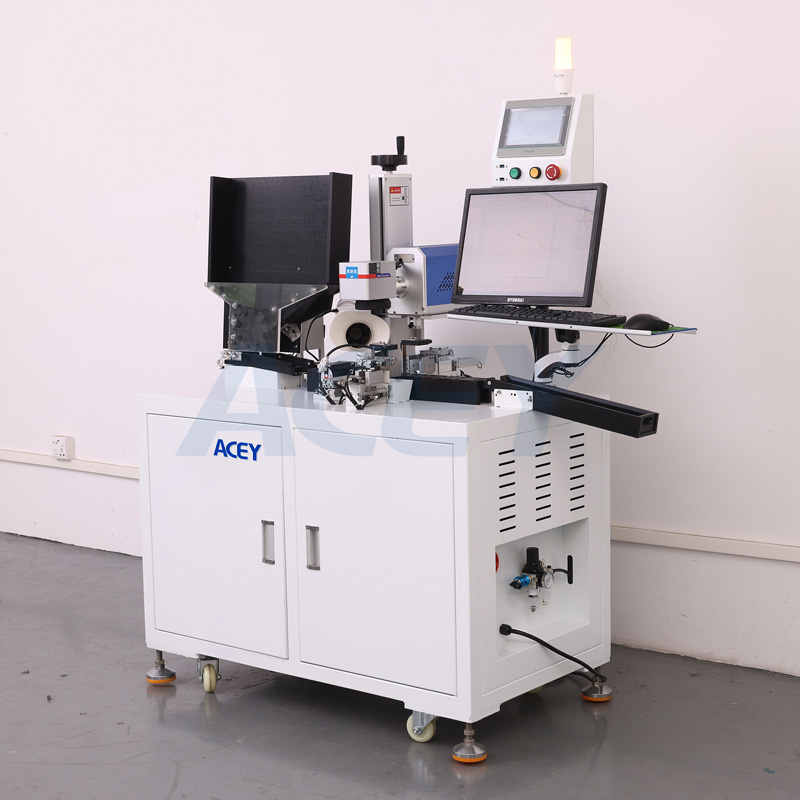

21700 Cylindrical Battery PVC Film Stripping Machine Automatic Laser Cutting And Removal Machine
Description
ACEY-ASM21700 cylindrical cell PVC film automatic removal machine uses thermal cutting technology to heat and cut the battery film through laser, softening it at a specific temperature, and then uses a gentle peeling device to separate the film from the battery.And it adopts rotary hopper feeding mode to pull belt automatic output mode, which includes: hopper automatic feeding, automatic film peeling, automatic waste discharge, automatic feeding, manual packing.
Features
Specification
Applicable cell size
21700
Heating wire temperature
200 ℃
peeling rate
≥ 95%
Stripping speed
30PPM
Hopper loading capacity
300PCS(21700)
Power consumption of the whole machine
1500W
Input power
AC220V,50HZ
Input Barometric Pressure
≥ 0.6MPa

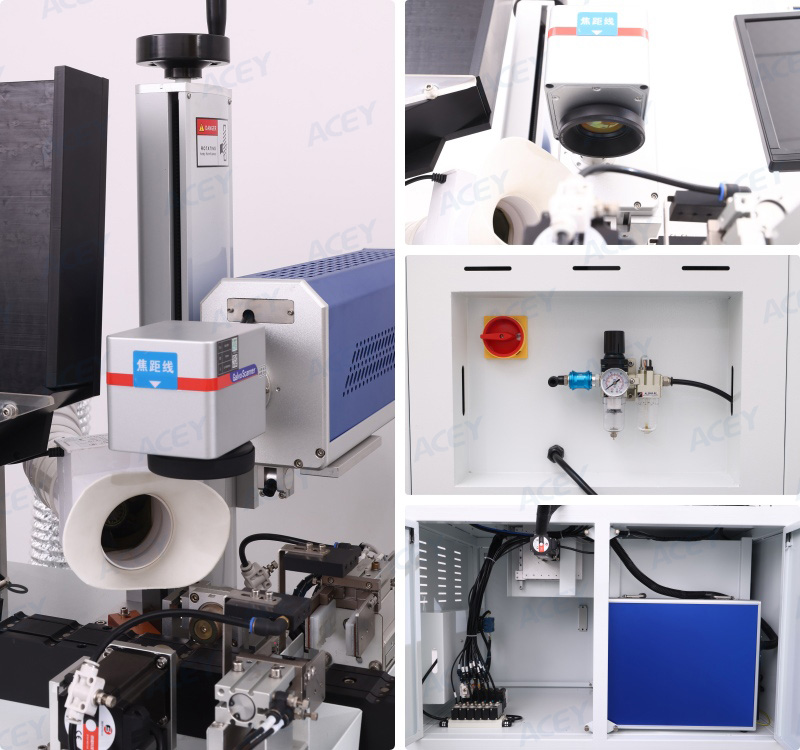

Product Details
Lithium Ion Battery Manufacturing Machines Cylindrical Battery Pack Line
Acey New Energy can offers the whole cylindrical battery pack assemble equipments for battery laboratory research and manufacturing.
Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell
ACEY-BS01 is an automatic equipment for pasting barley paper on cylindrical batteries.
Automatic 5 Channel Cylinder Batteries Sorting Machine For 18650 Battery Pack Line
ACEY-AS5S can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting.
11 Channel 18650-32700 Lithium Battery Cell Sorting Machine For Cylindrical Cell
ACEY-AS11S Battery sorter can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting.
11 Channel Battery Sorting Machine For Battery Internal Resistance and VoltageTesting
This 18650 battery automatic sorting machine is used for cylindrical battery pack assembly line.
Multifunction 2 In 1 Insulation Paper Sticker And Sorting Machines For Battery Pack Assembly
The cylindrical 18650 battery automatic sticker sorting machine is a test sorting device for checking the internal resistance and voltage of the cylindrical battery after the surface mat, and comes with a high-precision internal resistance and voltage automatic test system.
Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding
ACEY-S200B is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
Automatic Single Side Rotary 18650 Lithium Battery Pack Spot Welding Machine
ACEY-S200C with welding head rotation function, is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
