Brand:
ACEYItem No.:
ACEY-220SCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:

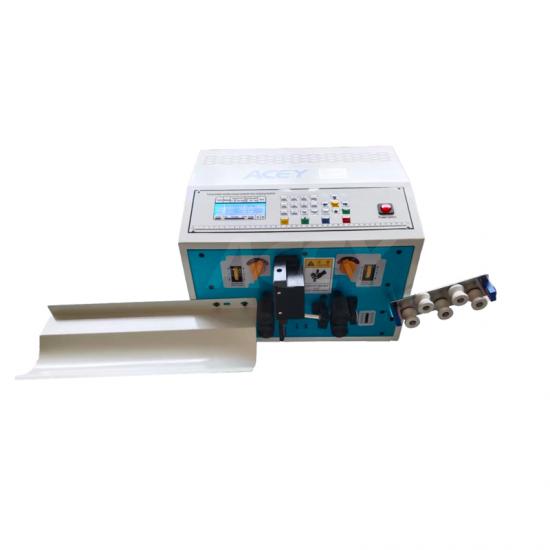

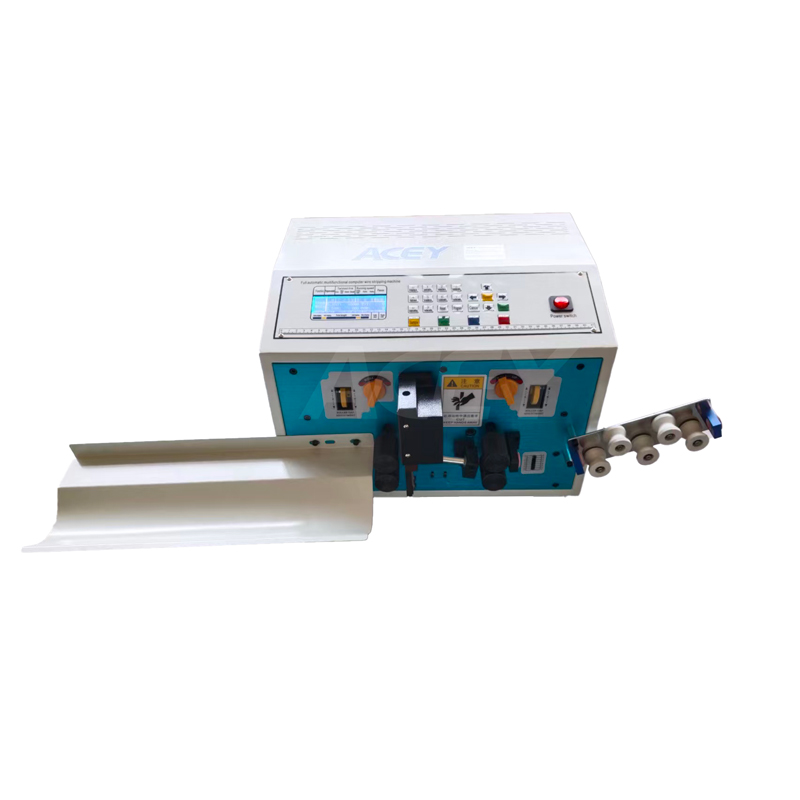

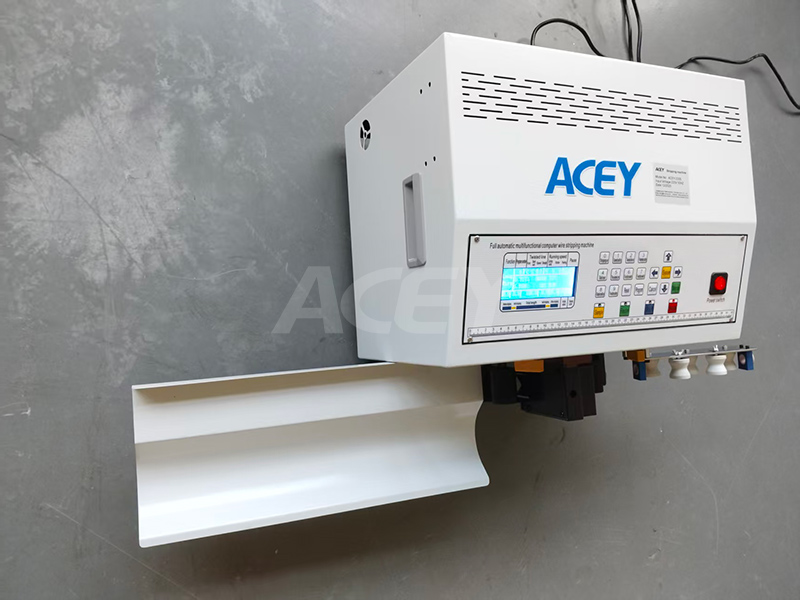

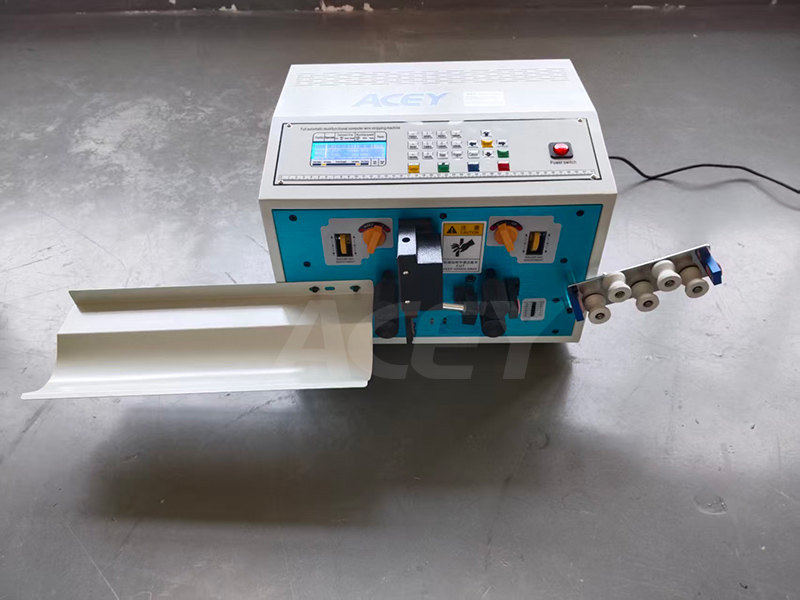

7-35 days0.1-10mm² BVR Fully Automatic Wire Cutter And Stripping Machine
Product Description

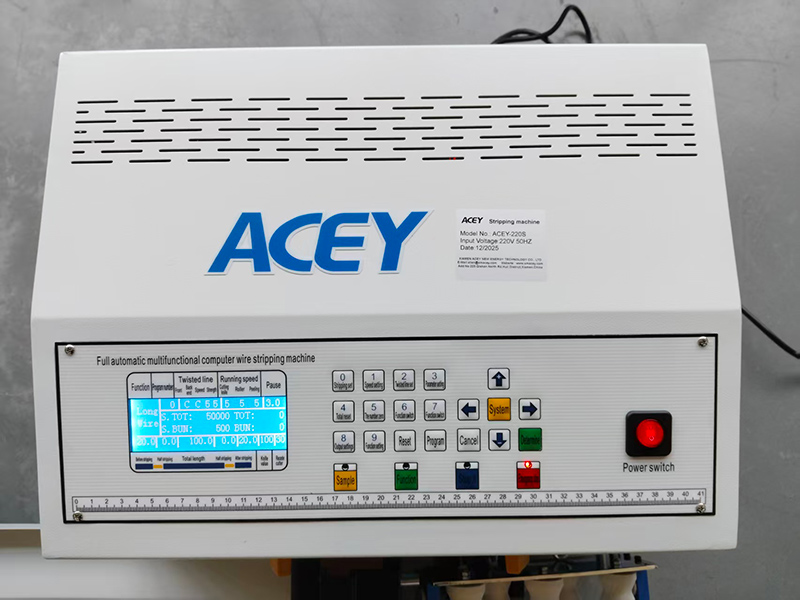

ACEY-220S Fully Automatic Wire Stripping Machine adopts a 32-bit intelligent control system with an LCD display supporting both Chinese and English interfaces. With simple button operation and programmable memory storage of up to 100 sets of processing data, users can quickly recall settings at any time. This significantly reduces manual operation time, improves production efficiency, and ensures stable processing quality.
It is widely used for processing electronic wires, silicone wires, Teflon wires, fiberglass wires, insulated wires, and sheathed cables, and supports multiple functions including cutting, full stripping, partial stripping, multi-segment stripping, and twisting in a single operation.
Product Features
Technical Specifications
Item
ACEY-210
ACEY-220
ACEY-220S
ACEY-230
Applicable Wire Range
≤4 mm²
≤6 mm²
≤10 mm²
≤16 mm²
Simultaneous Wires
1
2
1
1
Cutting Length
0.1–9999.9 mm
0.1–9999.9 mm
0.1–9999.9 mm
0.1–9999.9 mm
Front Stripping Length
0–35 mm
0–35 mm
0–250 mm
0–250 mm
Rear Stripping Length
0–60 mm
0–60 mm
0–80 mm
0–80 mm
Stripping Speed
2000–3500 pcs/h
4000–7000 pcs/h
2000–3000 pcs/h
2000–3000 pcs/h
Cutting Accuracy
0.002 × L
0.002 × L
0.002 × L
0.002 × L
Mid-Section Stripping
Up to 15 sections
Up to 15 sections
Up to 15 sections
Up to 15 sections
