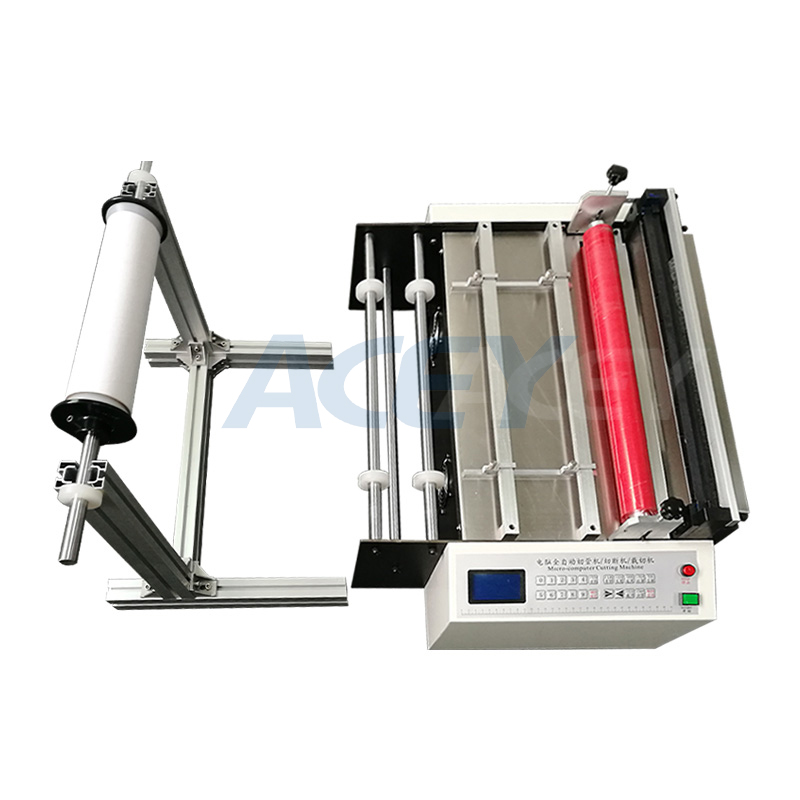

7-35 days400mm Automatic PVC Shrink Film Cutting Machine
Product Description
ACEY-PFC400 is a fully automatic cutting machine designed for processing roll and strip materials. Equipped with a microcomputer control system and digital display, it enables precise length and quantity setting, ensuring efficient and accurate cutting performance.
With its advanced feeding mechanism and user-friendly design, the machine is widely used for cutting various tubular, strip, and wire-type materials in industrial production.
Product Features
Technical Specifications
| Item | Specification |
| Product Name | Fully Automatic Cutting Machine |
| Model | ACEY-PFC400 |
| Power Supply | 220V, 50/60Hz |
| Cutting Speed | 34 m/min |
| Cutting Width | 0.1 – 410 mm (Effective: 400 mm) |
| Cutting Length | 0.1 – 9999.9 mm |
| Machine Weight | 55 kg |
| Dimensions | 590 × 680 × 390 mm |
| Blade Material | SKD-11 |
| Bearing | Imported SOO6Z |
| Panel Material | Stainless Steel |
| Roller Material | Polyurethane (Hardness: 60) |
| Display | LCD Screen (128 × 64) |
| Cutting Motor | 120W |
| Feeding Motor | Stepper Motor (86 × 96) |
Applications

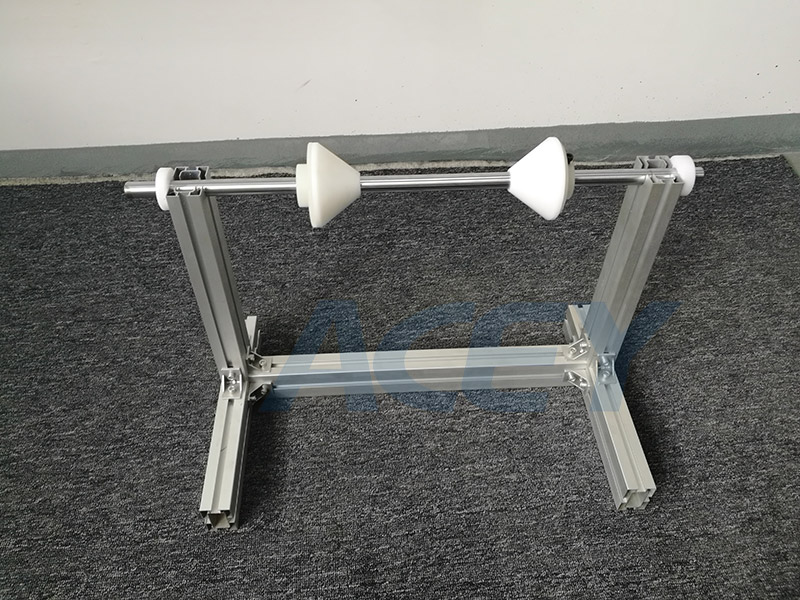

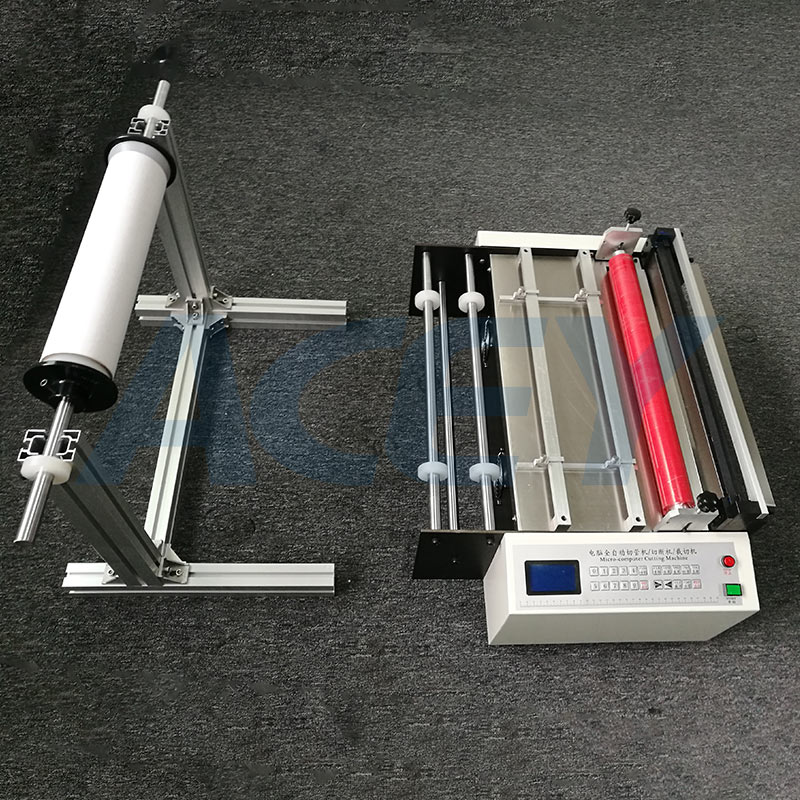

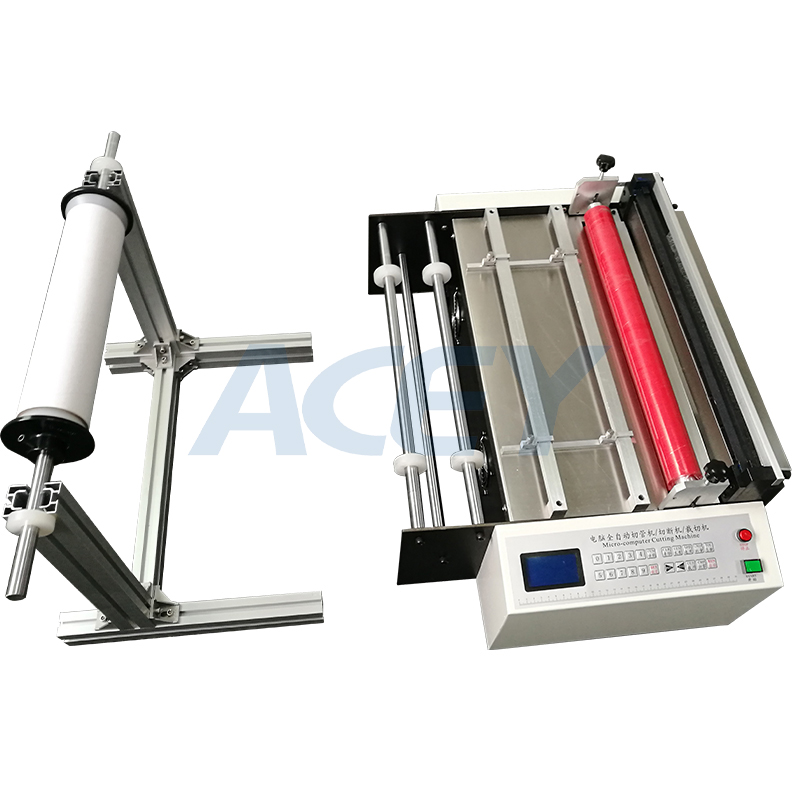

Product Display
