XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/99773fe8081282b4baf3e9daad072524.jpg)
Brand:
ACEYItem No.:
ACEY-ASM18650Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days

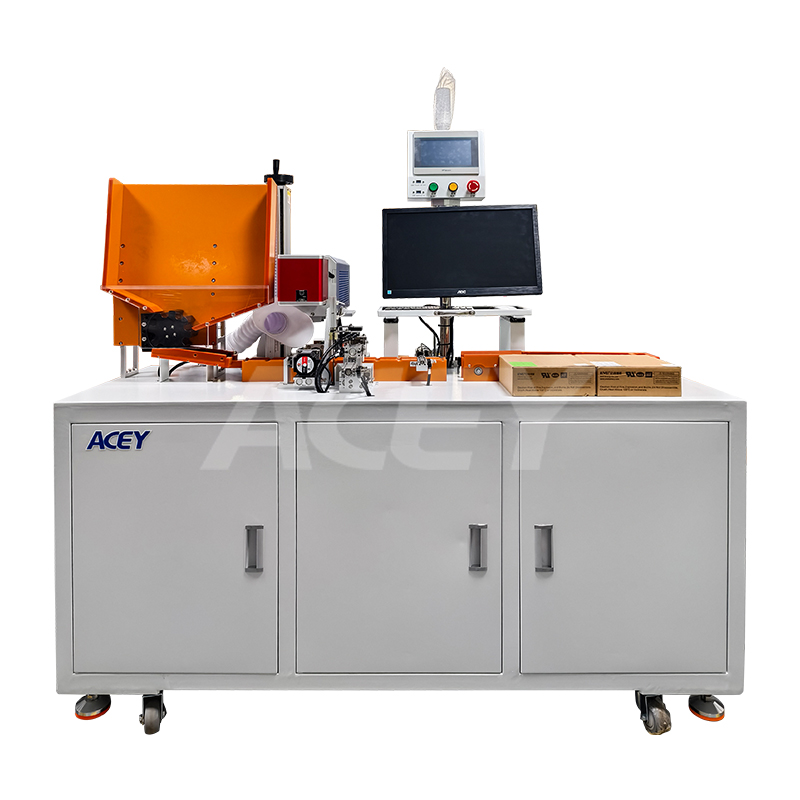

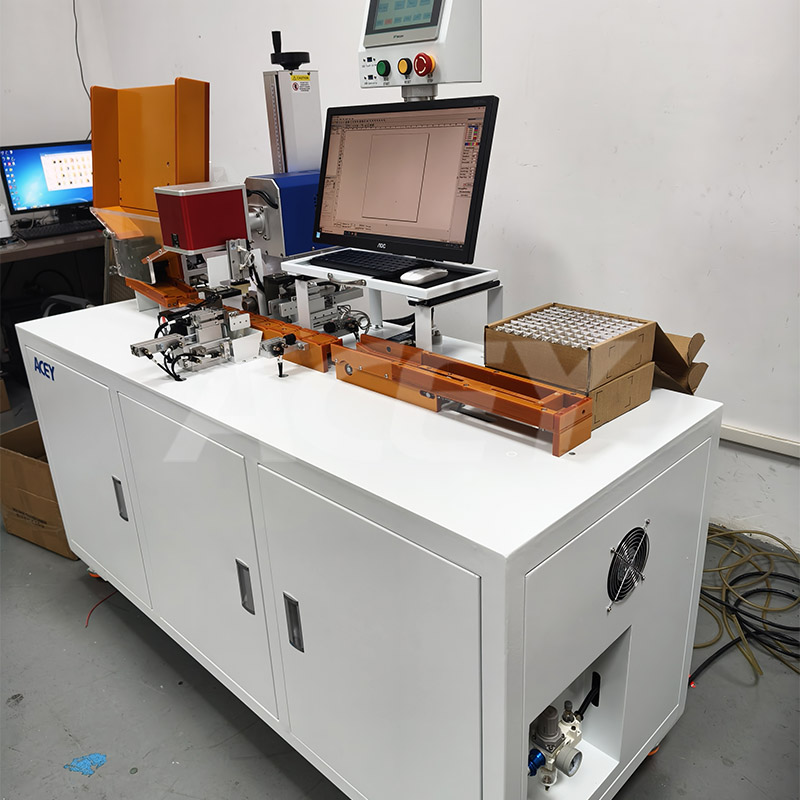

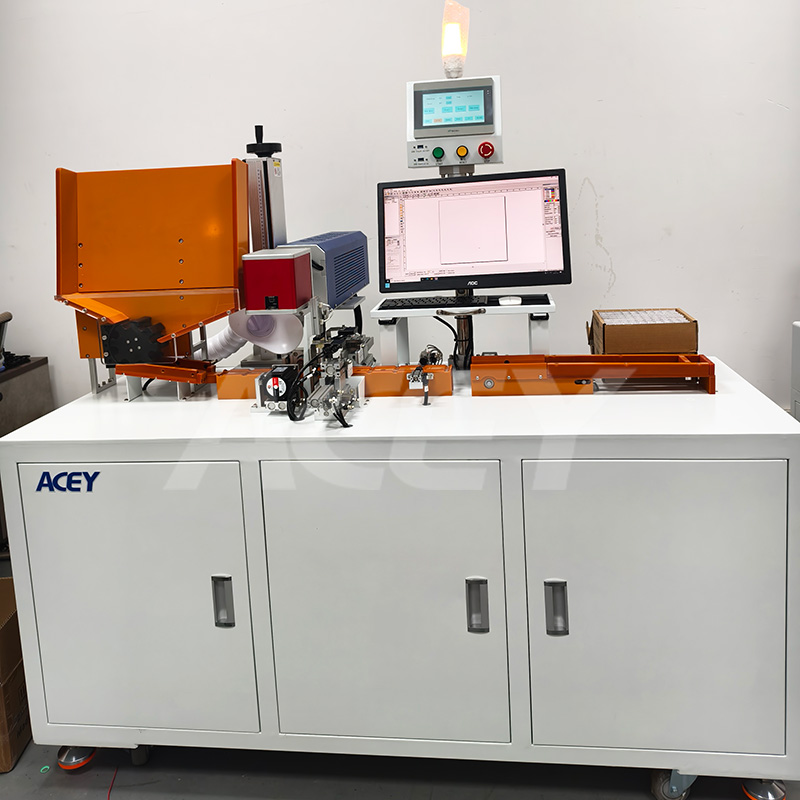

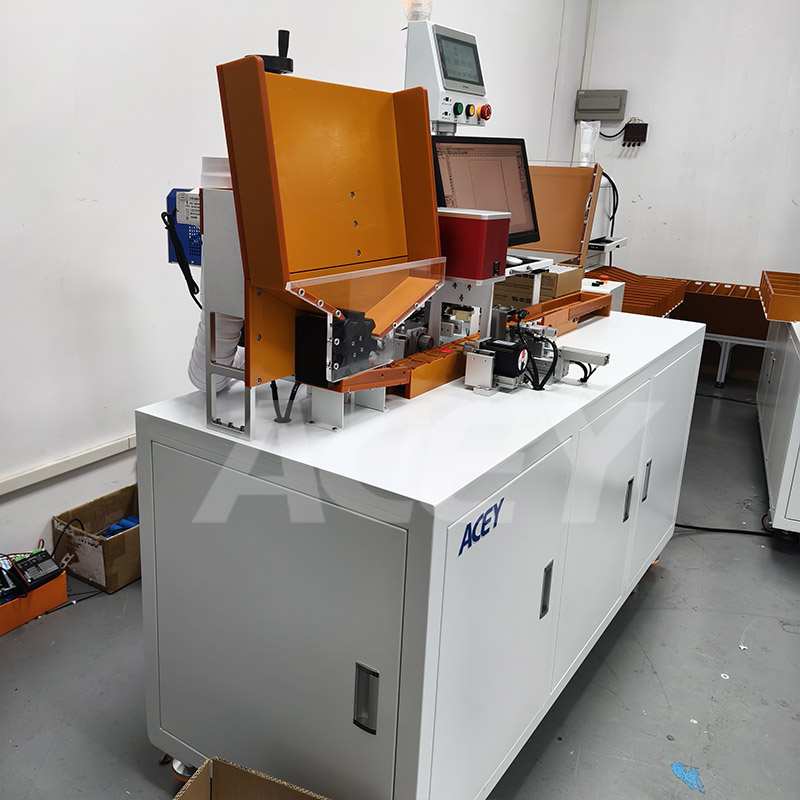

Automatic 18650 Battery PVC PE Shrink Wrap Stripping Removing Machine
Product Description
This automatic sleeve film stripping machine is specifically designed for removing the PE/PVC film from 18650 batteries. It utilizes a rotating hopper for automatic feeding and conveyor belt discharge. The fully automated process includes hopper unloading, cell positioning, film stripping, waste removal, and unloading, with manual placement in the box. The core of the machine utilizes a servo motor to precisely control cell rotation and positioning. Heat radiation is used to heat and peel the film. Finger cylinders collect waste at both ends for unified processing in a dedicated, environmentally friendly recycling system. Discharge is automatically completed by a conveyor belt.
Working Process
Automatic feeding → Automatic sleeve film stripping→ Automatic waste discharge → Automatic discharging
Specification
Applicable cell size
18650
Heating wire temperature
200 ℃
peeling rate
≥ 95%
Stripping speed
30PPM
Hopper loading capacity
400PCS(18650)
Power consumption of the whole machine
1500W
Input power
AC220V, 50HZ
Input Barometric Pressure
≥ 0.6MPa
Product Details
Lithium Ion Battery Manufacturing Machines Cylindrical Battery Pack Line
Acey New Energy can offers the whole cylindrical battery pack assemble equipments for battery laboratory research and manufacturing.
Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell
ACEY-BS01 is an automatic equipment for pasting barley paper on cylindrical batteries.
Automatic 5 Channel Cylinder Batteries Sorting Machine For 18650 Battery Pack Line
ACEY-AS5S can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting.
11 Channel 18650-32700 Lithium Battery Cell Sorting Machine For Cylindrical Cell
ACEY-AS11S Battery sorter can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting.
11 Channel Battery Sorting Machine For Battery Internal Resistance and VoltageTesting
This 18650 battery automatic sorting machine is used for cylindrical battery pack assembly line.
Multifunction 2 In 1 Insulation Paper Sticker And Sorting Machines For Battery Pack Assembly
The cylindrical 18650 battery automatic sticker sorting machine is a test sorting device for checking the internal resistance and voltage of the cylindrical battery after the surface mat, and comes with a high-precision internal resistance and voltage automatic test system.
Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding
ACEY-S200B is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
Automatic Single Side Rotary 18650 Lithium Battery Pack Spot Welding Machine
ACEY-S200C with welding head rotation function, is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
