【ACEY-SP04S028A】4S 150A 12V battery management system smart bms for lifepo4 battery with UART and RS485.
Brand:
ACEYItem No.:
ACEY-SP04S028ACompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
Payment:
T/TProduct Origin:
ChinaLead Time:

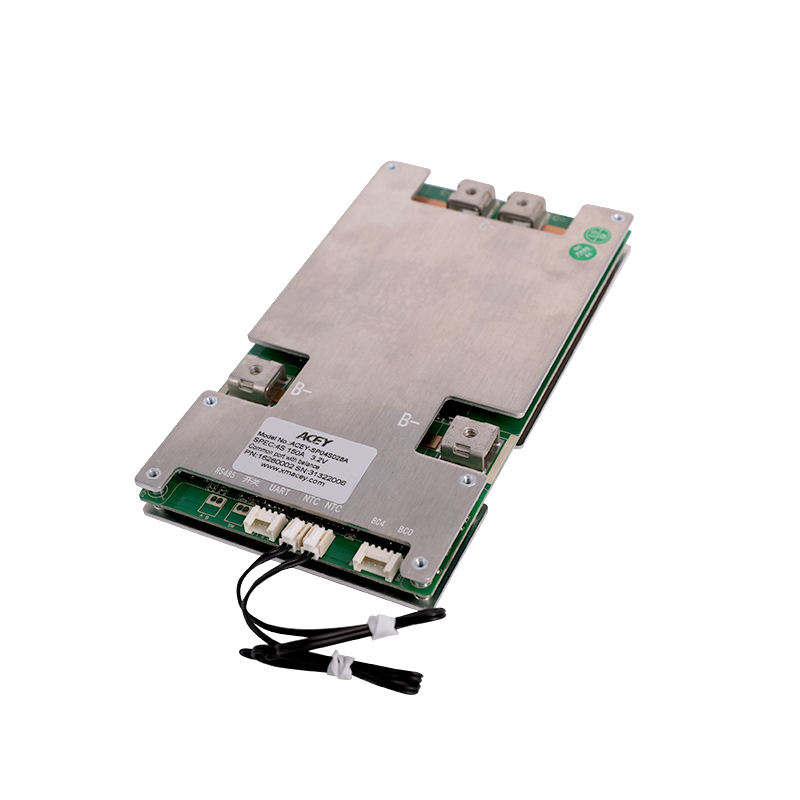

7days150a 12v 4s Protection Circuit Board With UART and RS485 for Lifepo4 Battery
Product Introduction
ACEY-SP04S028A It is specifically for small energy storage batteries, street lights, 12V Lead-acid for lithium battery and other products.The software protection board solution designed by stringing battery packs can be applied to lithium batteries with different chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc.
The whole system adopts TI( The front-end acquisition chip of Texas Instruments+ MCU , Some parameters can be flexibly adjusted through the host computer according to customer needs.
Features
3-4Series cell protection in series.
The cells are intelligently balanced, and the balanced turn-on voltage and differential pressure can be flexibly adjusted through the host computer. Optional charge equalization or static equalization.
Integrated hardware protection functions such as overvoltage, undervoltage, overcurrent, and short circuit.
A variety of working modes, the protection board can disguise and go to sleep when it is static to achieve the purpose of reducing power consumption.
Comes with two communication ports, which can read voltage, current,SOC, temperature, protection status and other data.
UART (TTLlevel) can be externally connected to Bluetooth, computers and non-battery powered devices, isolatedRS485Can communicate with controllers, chargers, etc. device communication.
There are two temperature detection probes by default, there are two temperature detection probes, one for detecting the internal temperature of the protection board, and one for detecting the temperature according to customer requirements.
Basic parameters
Cell Specifications | 4 strings LiFePO4 battery pack |
Interface Type | Charge and discharge at the same port |
Recommended charging voltage | 14.4V |
Operating voltage range | 10V~14.6V |
Continuous charge current | ≤150A |
Continuous discharge current | ≤150A |
Running power consumption | ≤20mA |
Sleep power consumption | ≤200uA |
Protection board internal resistance | When the charge and discharge MOS in the board are turned on, the internal resistance from B- solder joint to output solder joint is less than or equal to 10mR |
Operating temperature | - 30℃~75℃ |
Protective plate size | 185±0.5mm * 102±0.5mm * 18±1mm(length Width Height) |
Electrical Characteristics (The test needs to be carried out in a room with a temperature of 25 ± 2 C and a relative humidity of 65 +/- 20 %)

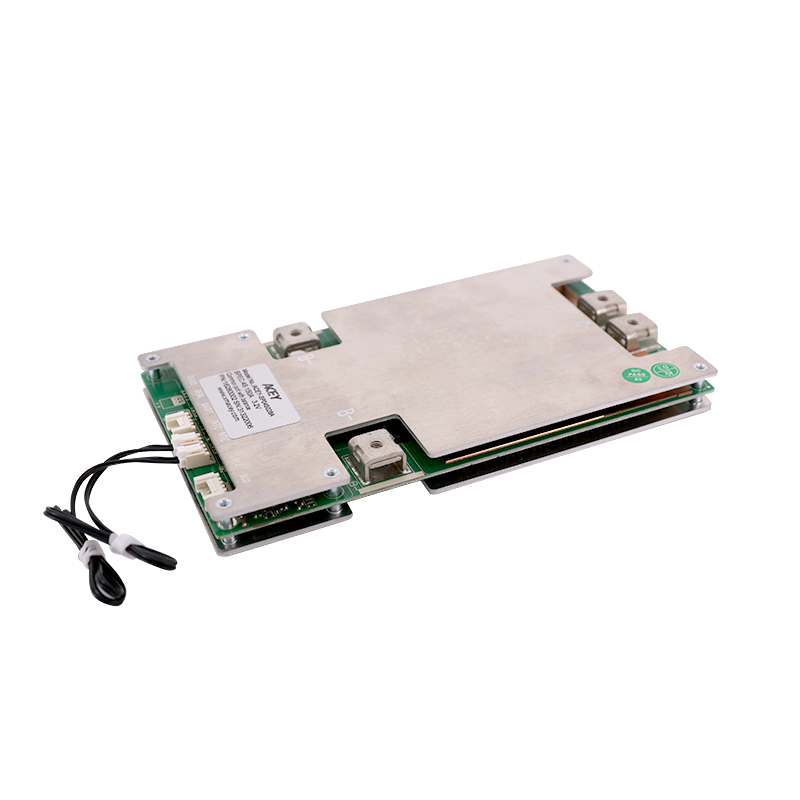

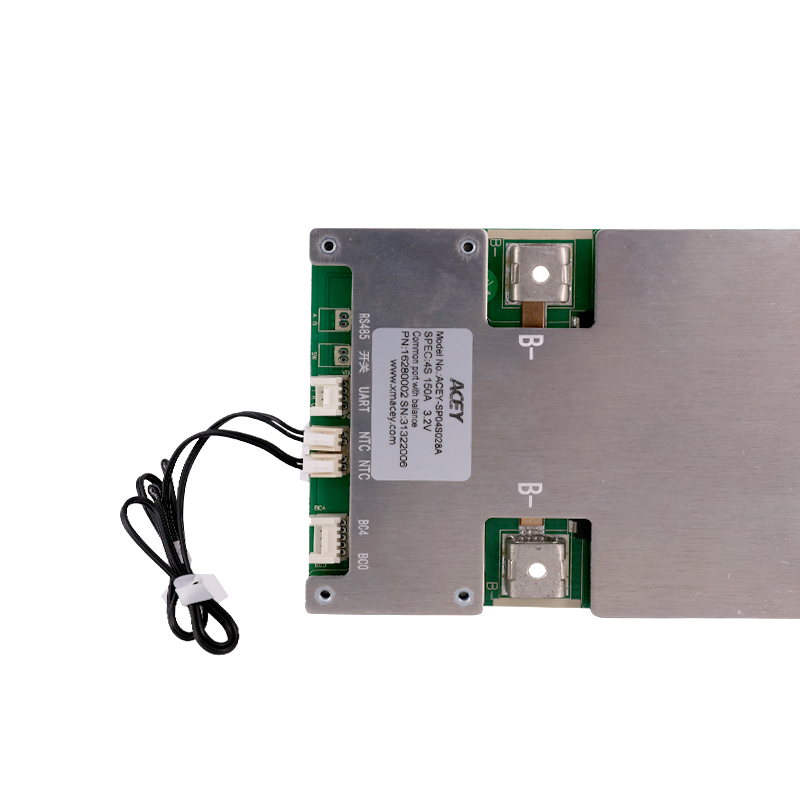

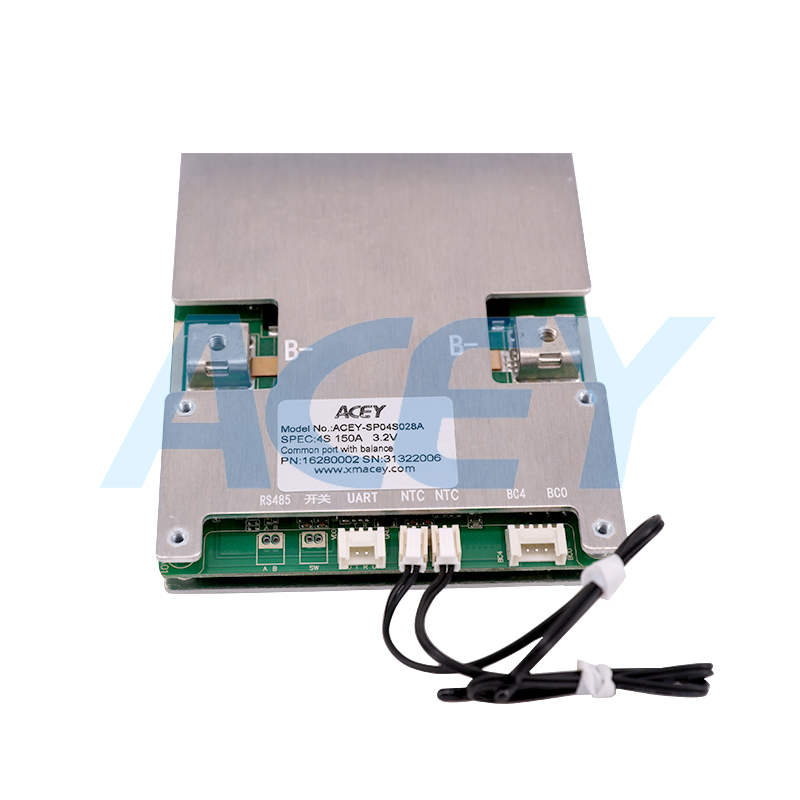

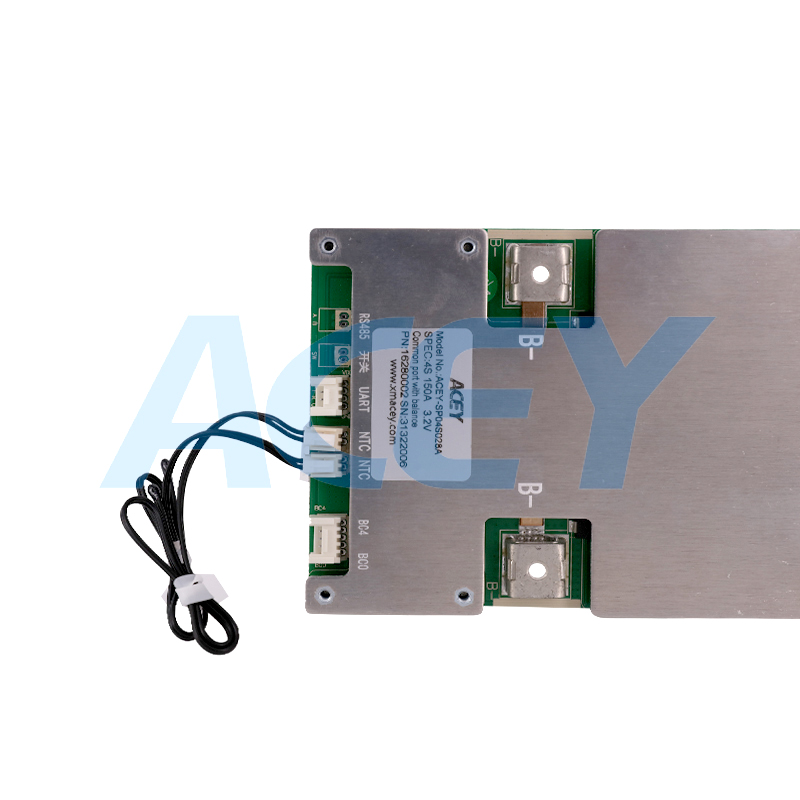

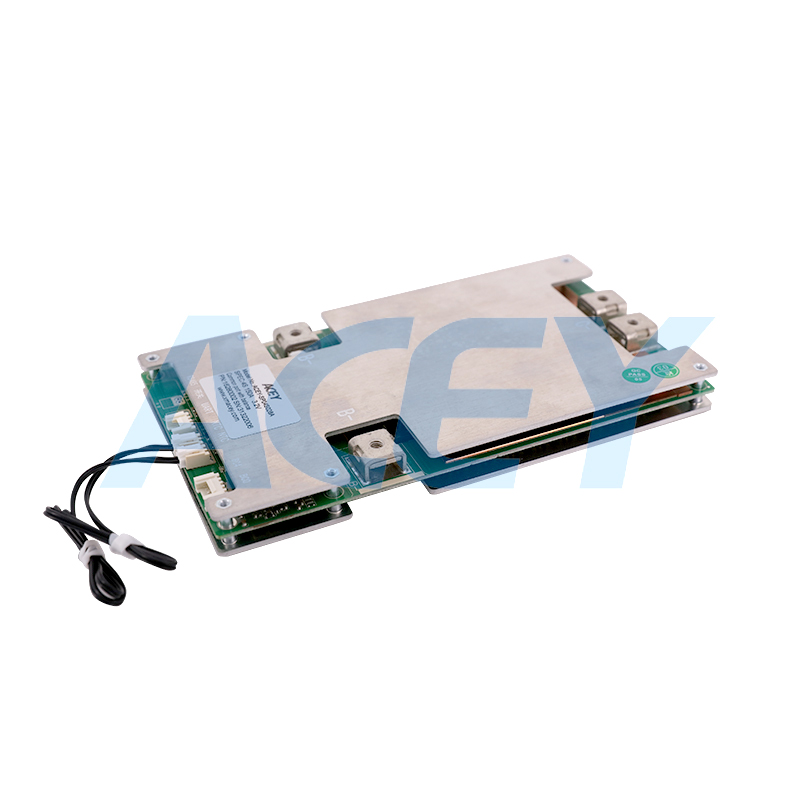

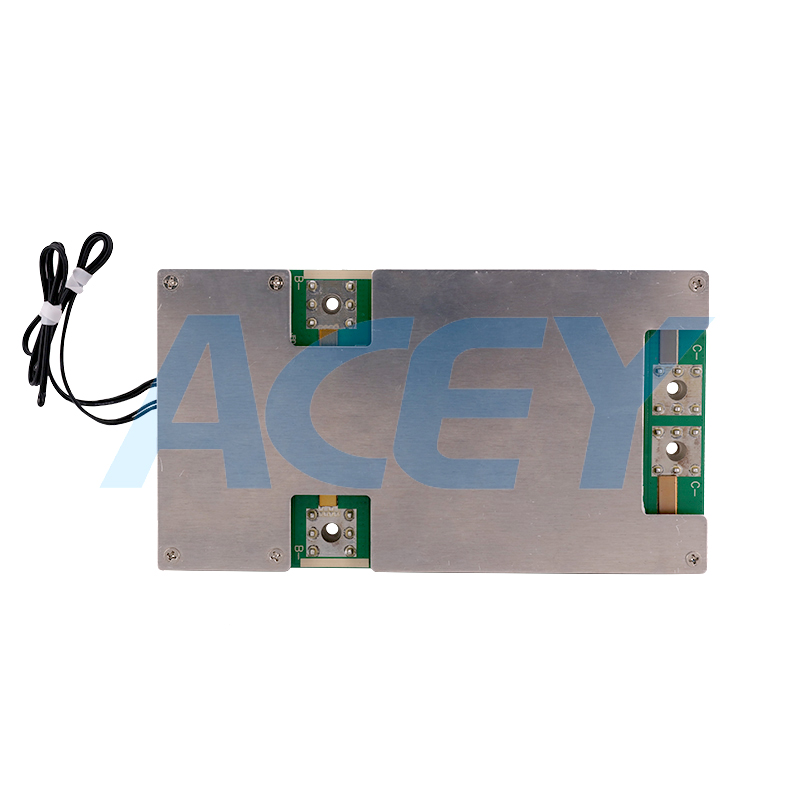

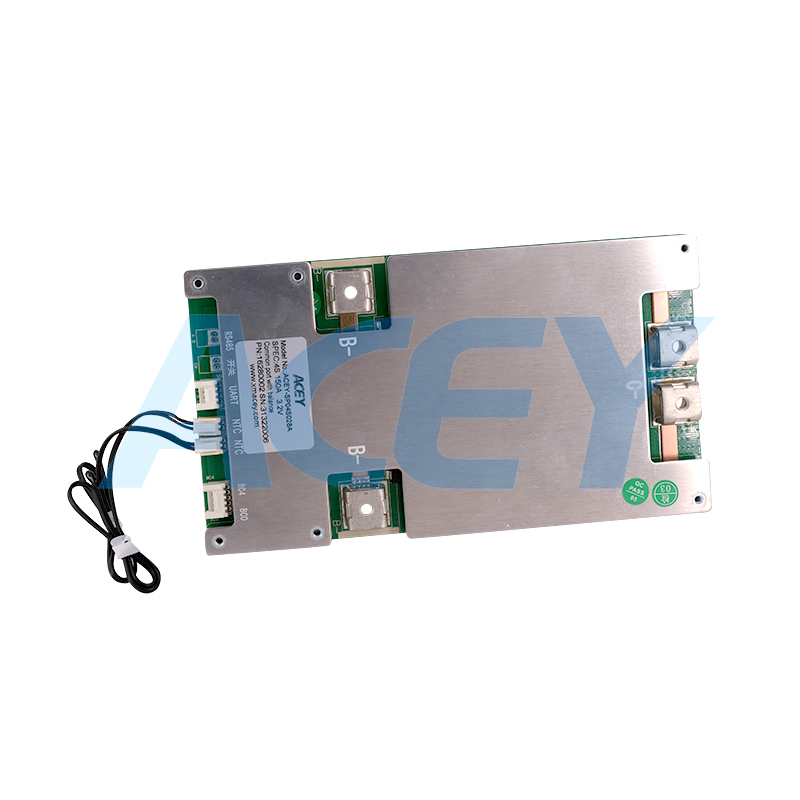

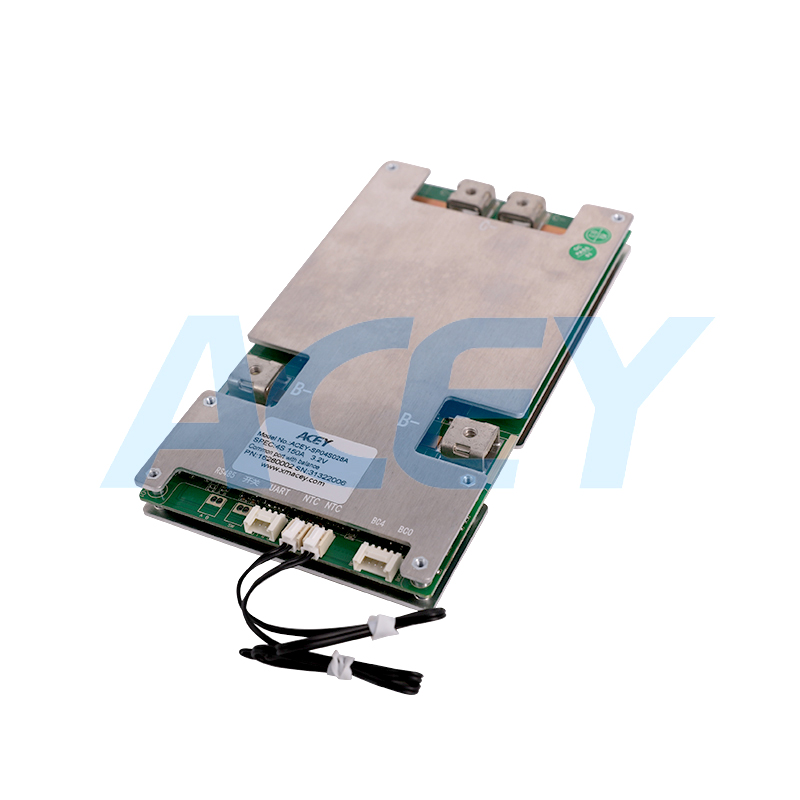

Product Display
Features
Specification
unit
project
minimum
Typical value
maximum value
Single Overvoltage Protection
Overvoltage Protection Voltage
3.6
3.65
3.7
V
Overcharge protection delay time
1000
2000
3000
mS
Overcharge protection recovery voltage
3.45
3.5
3.55
V
Monomer overdischarge protection
Over discharge protection voltage
2.4
2.5
2.6
V
Over-discharge protection delay time
1000
2000
3000
mS
Over-discharge protection recovery voltage
2.9
3.0
3.1
V
Over-discharge protection recovery conditions
60SInternal voltage self-recovery or charge recovery
Charge overcurrent protection
Charge overcurrent protection value
152
160
168
A
Charge overcurrent delay
7
10
13
S
Charge Overcurrent Release Condition
delay32Sautomatic recovery after
Discharge overcurrent protection
Primary discharge overcurrent protection current
152
160
168
A
Primary discharge overcurrent1protection delay
7
10
13
S
Secondary discharge overcurrent protection current value
520
620
720
A
Secondary discharge overcurrent2protection delay
150
320
500
mS
Discharge overcurrent protection recovery condition
delay32Sautomatic recovery after
Short circuit protection
Short circuit protection circuit
1100
1200
3000
A
Short circuit protection delay time
-
400
800
uS
Short circuit protection recovery
Delay after disconnection of load 5S recover.
Short circuit description
Short circuit description: The short circuit current is less than the minimum value or high above the maximum value may cause the short-circuit protection to fail, short-circuit current exceeds2000A, short-circuit protection is not guaranteed, nor short circuit protection testing is not recommended.
Discharge high temperature protectio(external)
n temperature protection value
65
70
75
°C
Temperature protection release value
55
60
65
°C
Discharge low temperature protection(external)
temperature protection value
-15
-10
-5
°C
Temperature protection release value
-5
0
5
°C
Charging high temperature protection(external)
temperature protection value
60
65
70
°C
Temperature protection release value
50
55
60
°C
Charging low temperature protection(external)
temperature protection value
-6
-1
4
°C
Temperature protection release value
0
5
10
°C
FETDischarge high temperature protection(built-in curing)
temperature protection value
85
90
95
°C
Temperature protection release value
65
70
75
°C
Equalization function
Turn-on voltage
3.35
3.4
3.45
V
Open differential pressure
15
mV
Balance current
40
70
mA
Balanced way
Charge equalization
Balance type
Time-sharing equalization/pulse equalization
