XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.

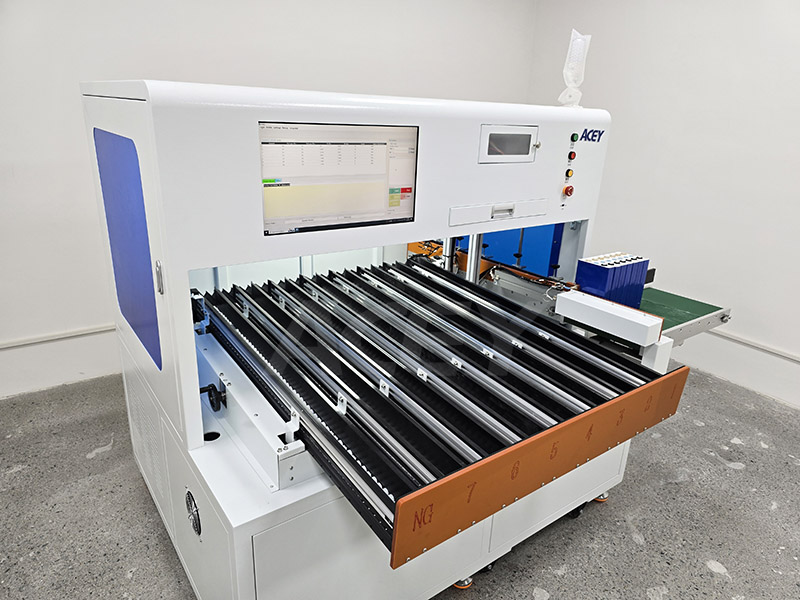

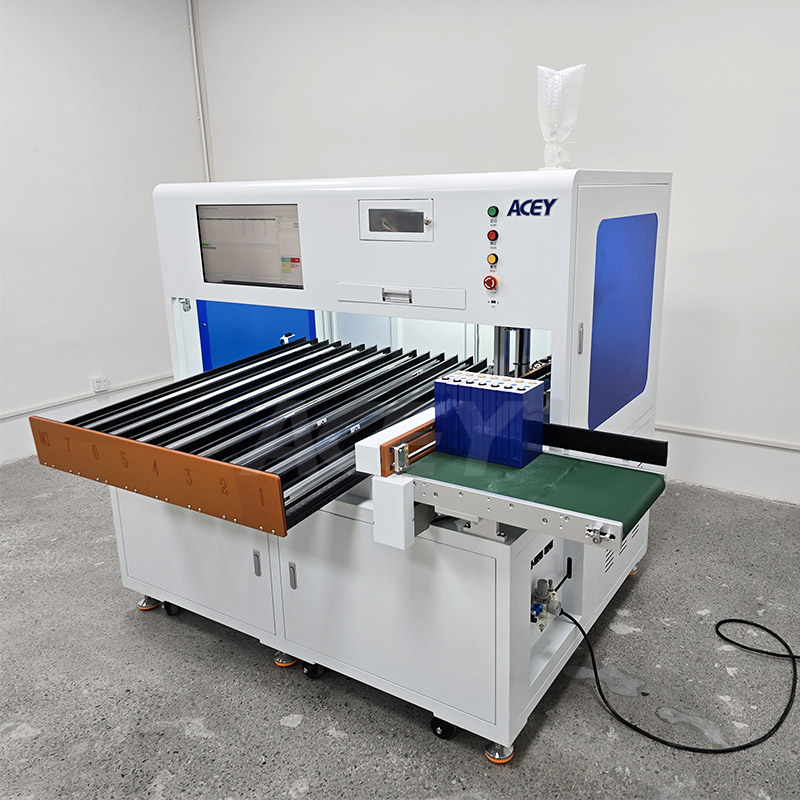

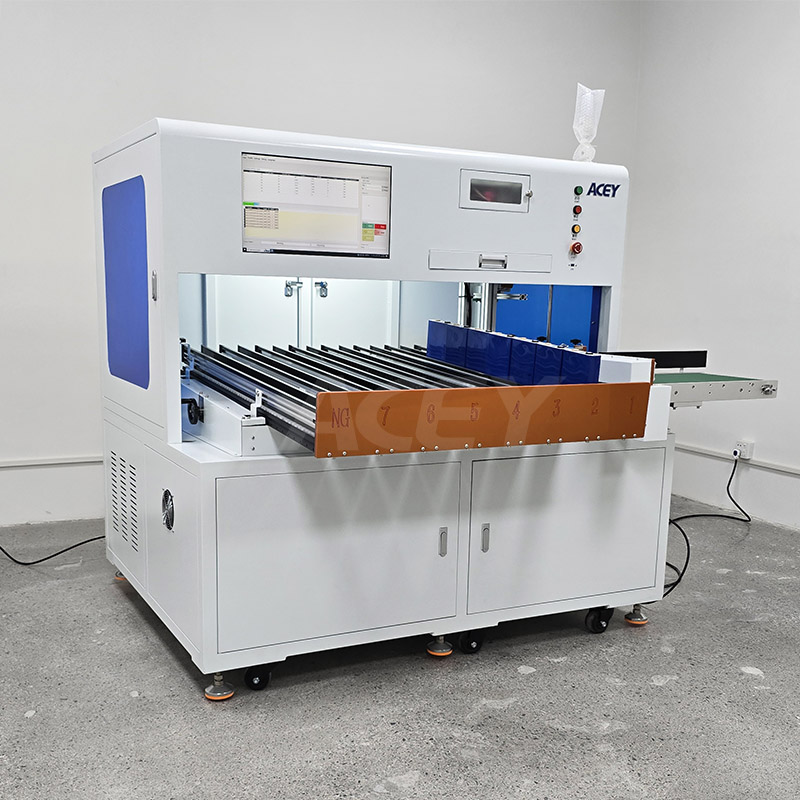

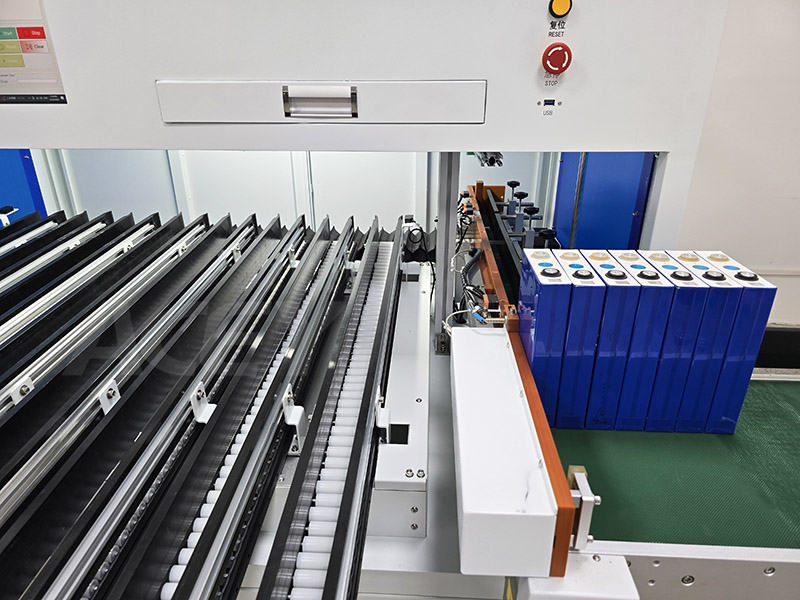

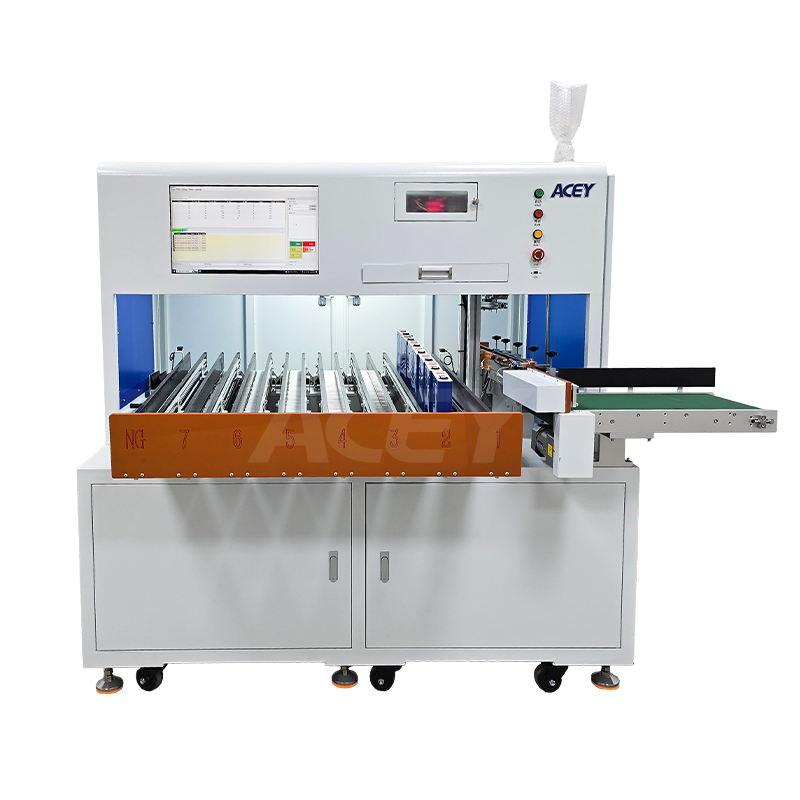

ACEY-PS8 Prismatic battery cell sorting machine is a high-efficiency automated solution specifically designed for the back-end production of lithium-ion batteries, including EV power batteries, light electric vehicles and energy storage systems. It specializes in the automated grading and sorting of cells based on Voltage and Internal Resistance (IR).
Brand:
ACEYItem No.:
ACEY-PS8Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days
Automatic LiFePO4 Prismatic Battery Cell Sorting Machine For IR & OCV Testing
Description
ACEY-PS8 prismatic battery sorting machine is a highly efficient automated solution specifically designed for the internal resistance (IR) and open-circuit voltage (OCV) testing stages within the back-end production of lithium-ion batteries.
Core Technology & Control System
The system integrates an advanced control architecture combining Industrial PCs (IPC), high-precision servo motors, and professional-grade internal resistance testers. This synergy ensures:
Specifically designed to meet the rigorous demands of the modern battery industry, this equipment is the ideal choice for:
Key Benefits
Product Parameters
Item
Specification
Applicable Battery Type
Prismatic battery
Compatible Size Range
Length: 100–300 mm; Width: 20–85 mm; Height: 100–300 mm
Sorting Channels
7 grades + NG (No Good)
Control System
PC control
Loading & Detection
Manual loading + automatic testing (internal resistance tester brand optional)
Automation Level
Fully automated sorting process with minimal manual intervention
MES Interface
Available; supports data upload and SPC analysis report generation
Sorting Speed
Up to 1000 pcs/hour (over 3× more efficient than manual sorting)
Ambient Temperature
-30°C to 50°C
Humidity
≤ 90%
Air Pressure
0.5–0.6 MPa
Power Supply
220V, 50Hz/60Hz
Floor Load Requirement
≤ 200 kg/m²
Grounding Type
Direct grounding
Site Requirements
No pollution and no strong electromagnetic interference
Installation Environment
Flat surface, no vibration or impact
Noise Level
≤ 80 dB
Machine Dimensions (L×W×H)
Approx. 1955 × 1624 × 1596 mm
Machine Weight
Approx. 477 kg
Equipment Color
Computer white (customizable)
