XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/8db870c0c4ee0293fe3972b636d0fa97.jpg)
Brand:
ACEYItem No.:
ACEY-CLW1500WCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:

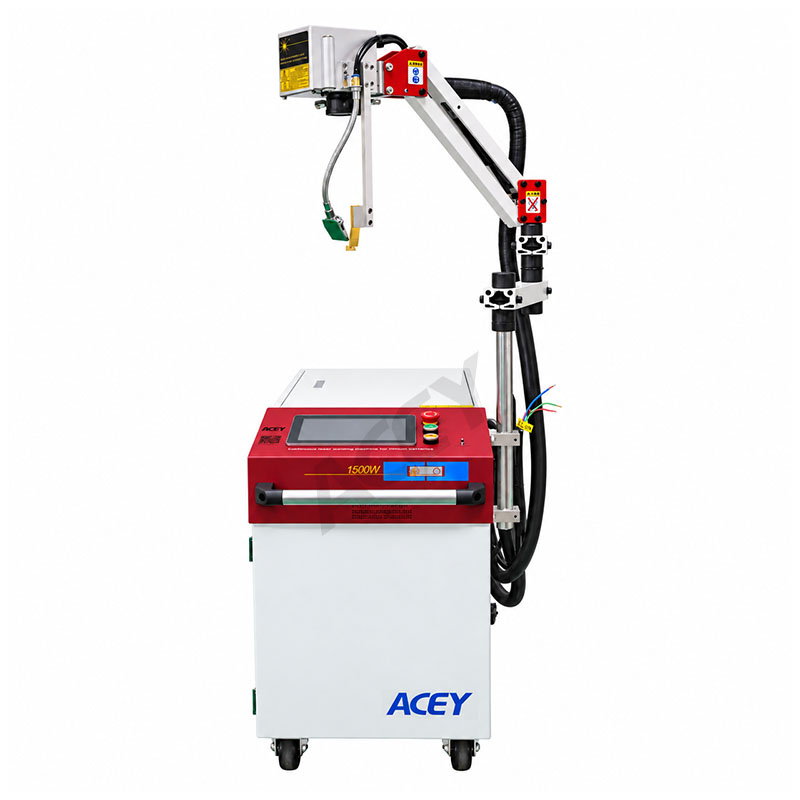

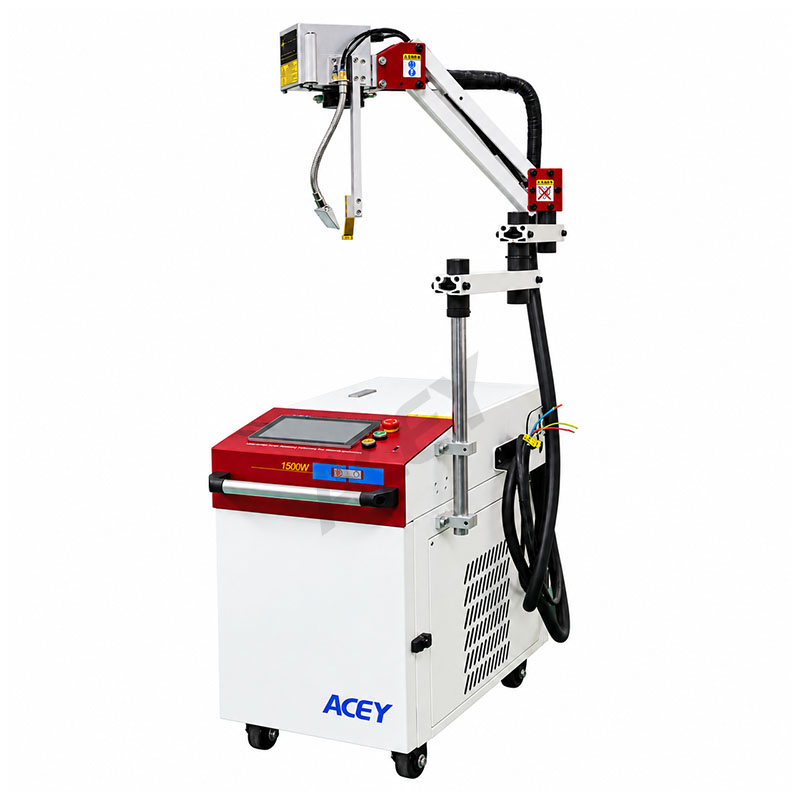

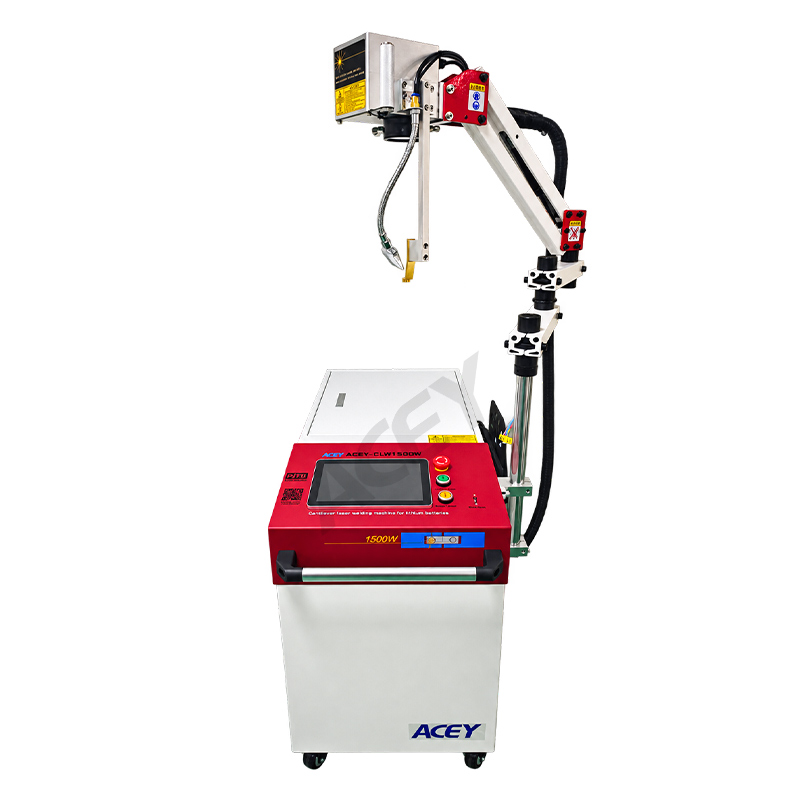

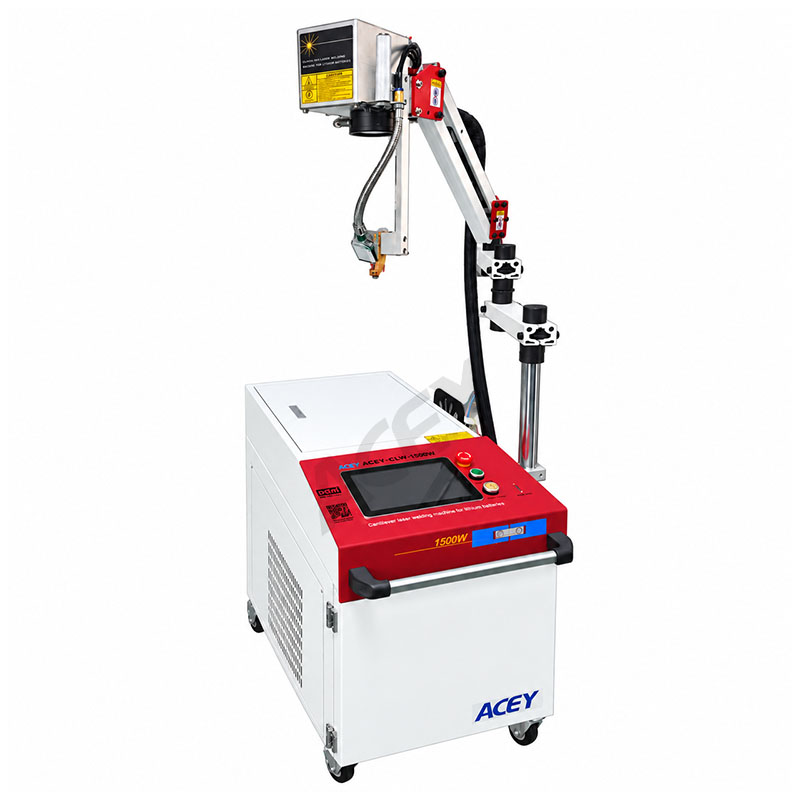

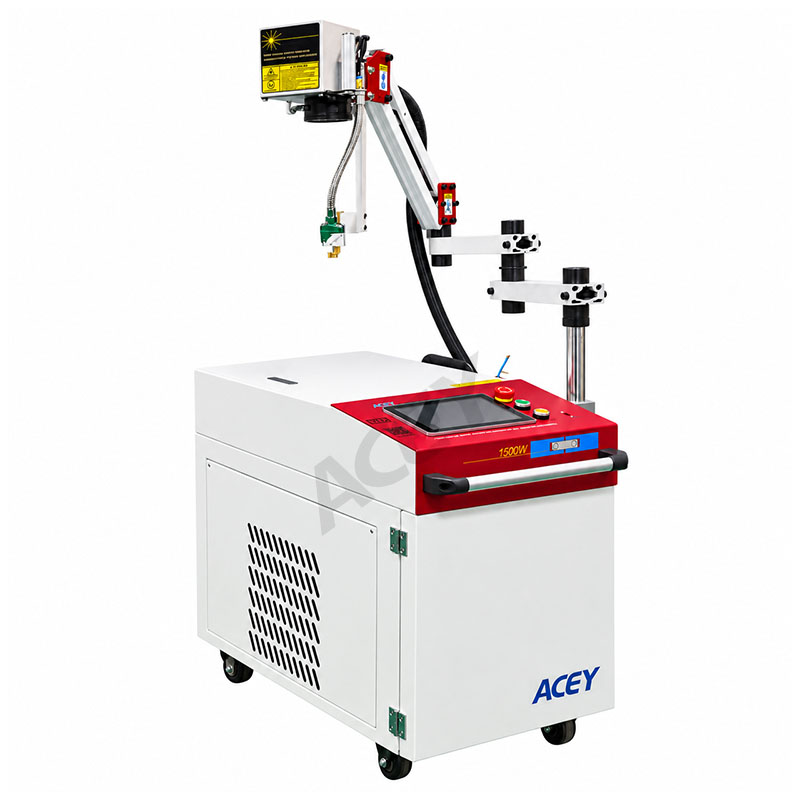

7-35 days1500W Cantilever Laser Welding Machine for Lithium Battery Packs
Product Overview
Battery connection welding requires access to the joint, a suitable weld pattern and controlled energy delivery. ACEY-CLW1500W Cantilever Laser Welding Machine brings these functions together in a cabinet-mounted system with a flexible cantilever arm.
The operator positions the welding head over the connection area, while the galvanometer directs the beam along the programmed pattern. Graphics-processing software supports pattern preparation, and the output energy waveform can be adjusted according to the material and joint requirements.
The machine uses water cooling and operates on AC 220V ±10%. Its reinforced cabinet provides a rigid work surface, combining welding equipment and workspace in one installation.
Main Features
Welding Materials
ACEY-CLW1500W Cantilever Laser Welding Machine supports aluminum, nickel, copper and copper–aluminum composite materials for lithium battery connections. Typical joints include aluminum to aluminum, copper–aluminum composite sheet to aluminum, and copper to copper. Welding settings depend on the material thickness and joint design.
| Aluminum to Aluminum / Copper–Aluminum Composite Sheet to Aluminum | |||
| Reference Thickness (mm) | Power Setting (%) | Welding Speed (mm/s) | Frequency Setting (Hz) |
| 1 | 40 | 100 | 1000 |
| 1.5 | 55 | 100 | 1000 |
| 2 | 75 | 100 | 1000 |
| 2.5 | 90 | 100 | 1000 |
| Copper to Copper | |||
| Reference Thickness (mm) | Power Setting (%) | Welding Speed (mm/s) | Frequency Setting (Hz) |
| 1 | 55 | 100 | 2000 |
| 1.5 | 85 | 100 | 2000 |
| Note: Copper is highly reflective at near-infrared laser wavelengths and requires careful parameter adjustment. Welding spatter and deposits can damage the protective window and shorten its service life. Regular inspection, cleaning and timely replacement are recommended. | |||
Technical Specifications
| Parameter | Specification |
| Product Name | Cantilever Galvo Laser Welding Machine |
| Model | ACEY-CLW1500W |
| Laser Output Power | 1500 W |
| Supply Voltage | AC 220V ±10% |
| Power Consumption | ≤6 kW |
| Laser Wavelength | 1070 ±10 nm |
| Cooling Method | Water Cooling |
| Cantilever Swing Range | 90 cm |
| Machine Dimensions | 970 × 540 × 1570 mm |
| Machine Weight | 140 kg |
Applications

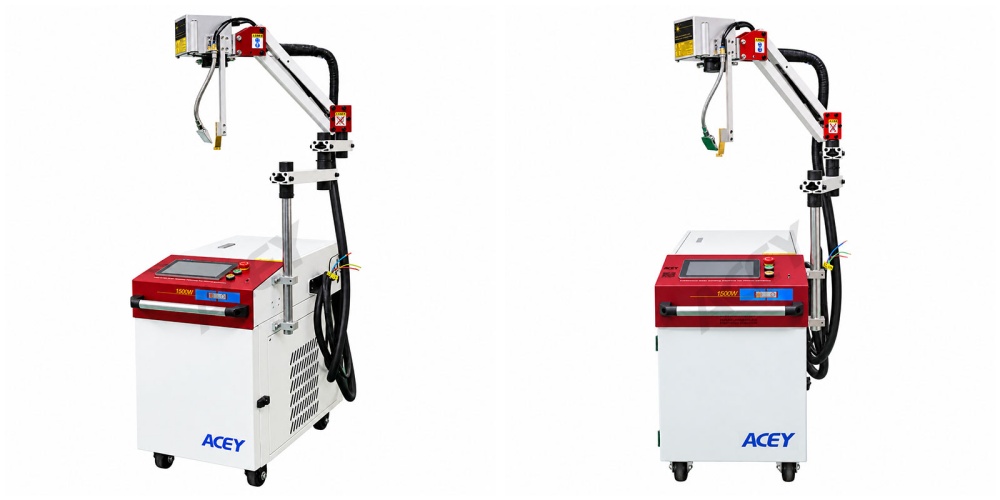

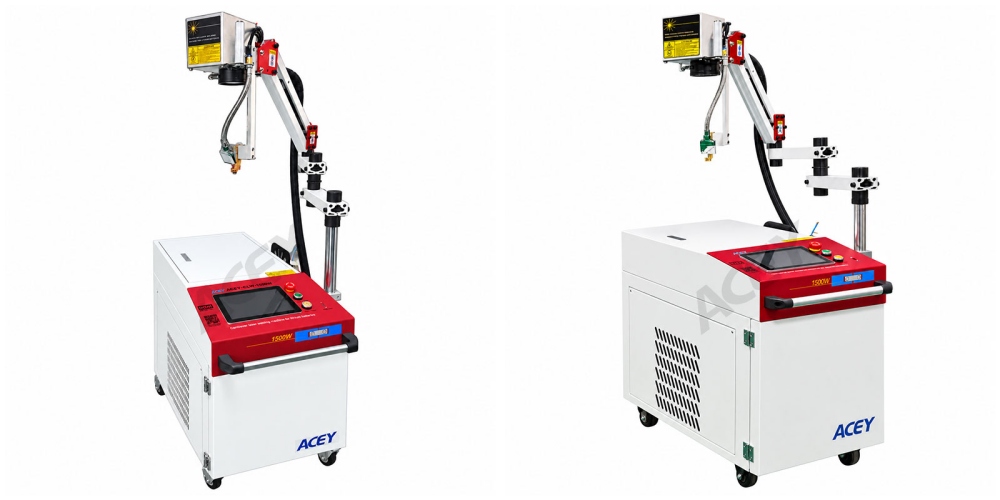

Product Display
Frequently Asked Questions
*How is the welding head positioned over the battery pack?
ACEY-CLW1500W Cantilever Laser Welding Machine uses a three-axis linkage cantilever to position the welding head. Once positioned, the galvanometer controls the programmed weld pattern within the working area.
*What does the 90 cm cantilever specification mean?
It describes the cantilever swing range. It should not be interpreted as a 900 × 900 mm scanning field or an automatic axis travel specification. Provide your pack dimensions and connection layout so that welding access can be assessed.
*Can this machine weld copper battery connections?
Yes. The supplied process references include copper-to-copper joints at nominal material thicknesses of 1.0 mm and 1.5 mm. Actual suitability depends on the thickness of each layer, joint design and surface condition. Copper applications also require particular attention to protective window maintenance.
