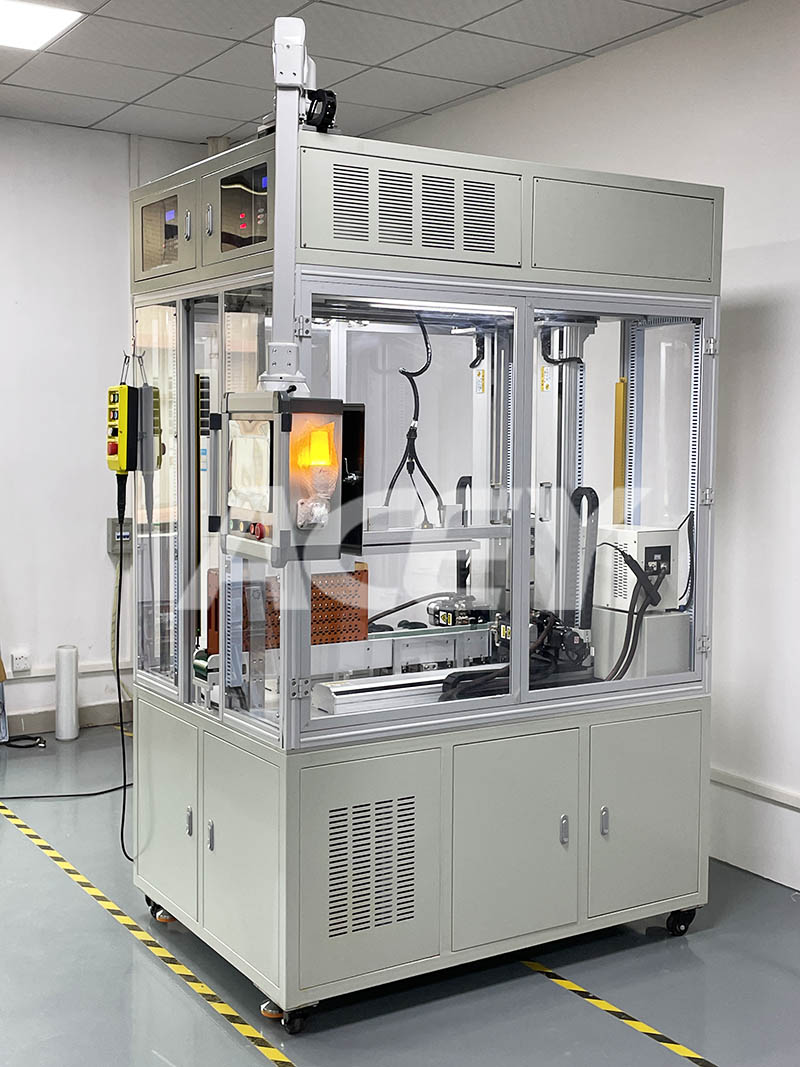

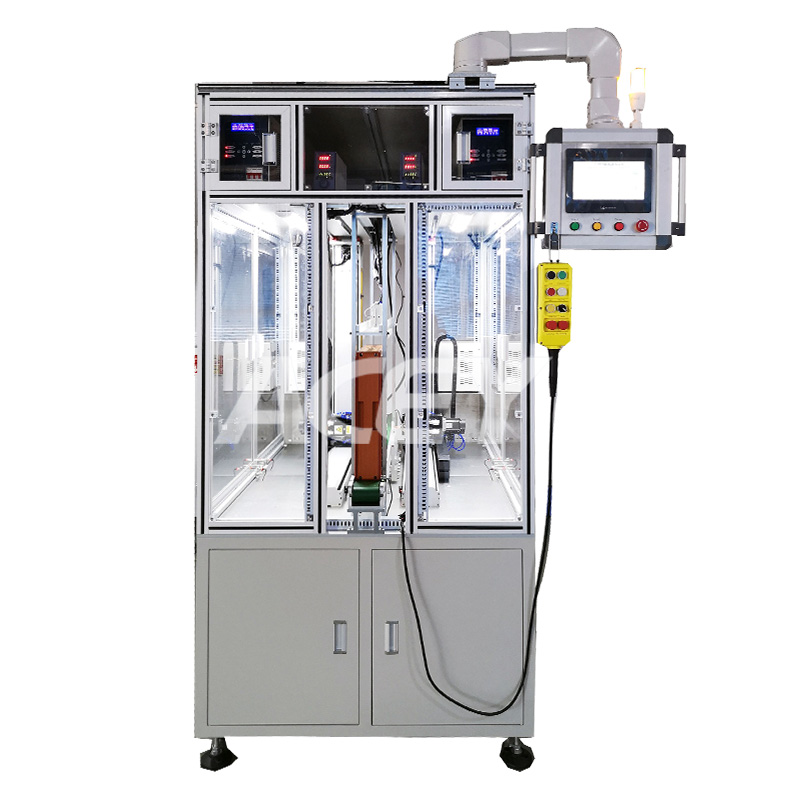

10000A Automatic Double-Sided 18650 Battery Pack Spot Welding Machine With Conveyor

10000A Automatic Double-Sided 18650 Battery Pack Spot Welding Machine With Conveyor

Description

ACEY-D300BS Automatic In-line Double-Sided Battery Spot Welding Machine is designed for series and parallel spot welding of single cells before PACK assembly. It is suitable for integration into battery pack production lines, helping improve welding consistency and throughput.

The electrical control system adopts a modular design with high integration and strong versatility, making maintenance and servicing more convenient. The main actuating mechanisms are driven by servo motors, ensuring high positioning accuracy and stable operation. The electrical circuits use standard control components compliant with both domestic and international specifications, allowing easy replacement and long-term reliability.

The machine supports three programming methods: AutoCAD data import, array mode, and manual mode. These flexible operation options significantly enhance welding efficiency while ensuring standardized and reliable spot welding performance on PACK assembly lines.

Features

• Simple operation with weld spot tracking and alarm for false, missing, or defective welds.
• Welding needle life monitoring with replacement reminder and reset function.
• Supports CAD import, array, and manual programming modes, with multiple program storage.
• In-line conveyor design for easy integration with production lines.
• Lightweight Miyachi-type welding head to reduce battery deformation.
• Independent pressure adjustment for dual welding needles.
• Air or water cooling system to reduce electrode wear and improve weld quality.
• Home return and breakpoint resume function for interrupted welding.
• Supports single, dual, and triple-point welding with adjustable spacing and flexible parameter settings.

Technical Parameter

Product Parameter

Equipment power supply: two-phase ~220V±10%/50Hz±10%
Whole machine power: 4000W
Equipment air pressure: 0.3~0.6Mpa
Equipment weight: 400 KG.
External dimensions: L1200mm * W1200mm * H1980mm.

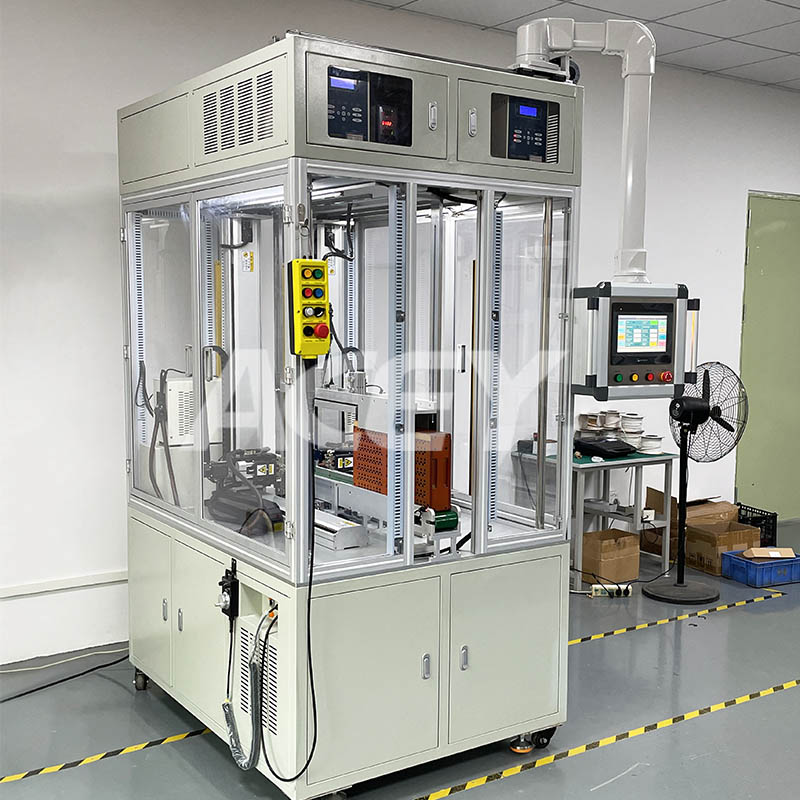

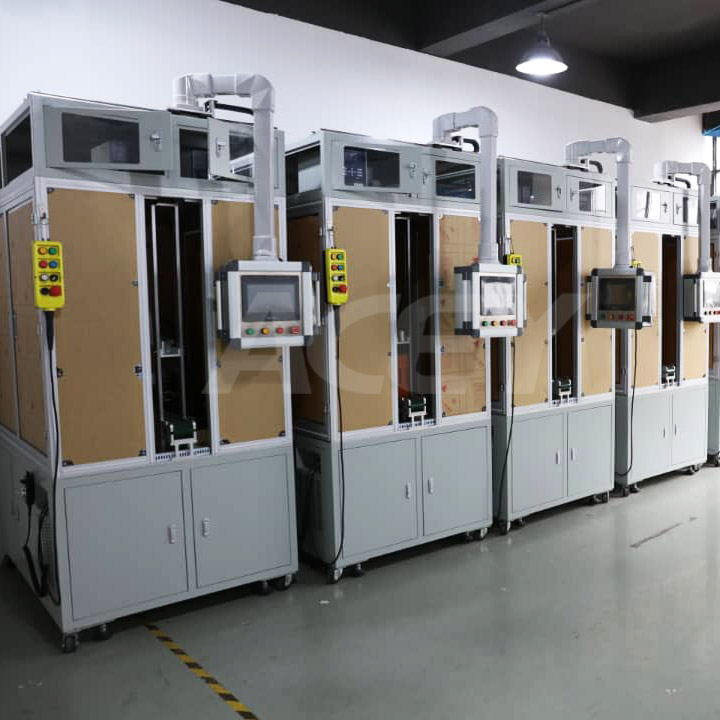

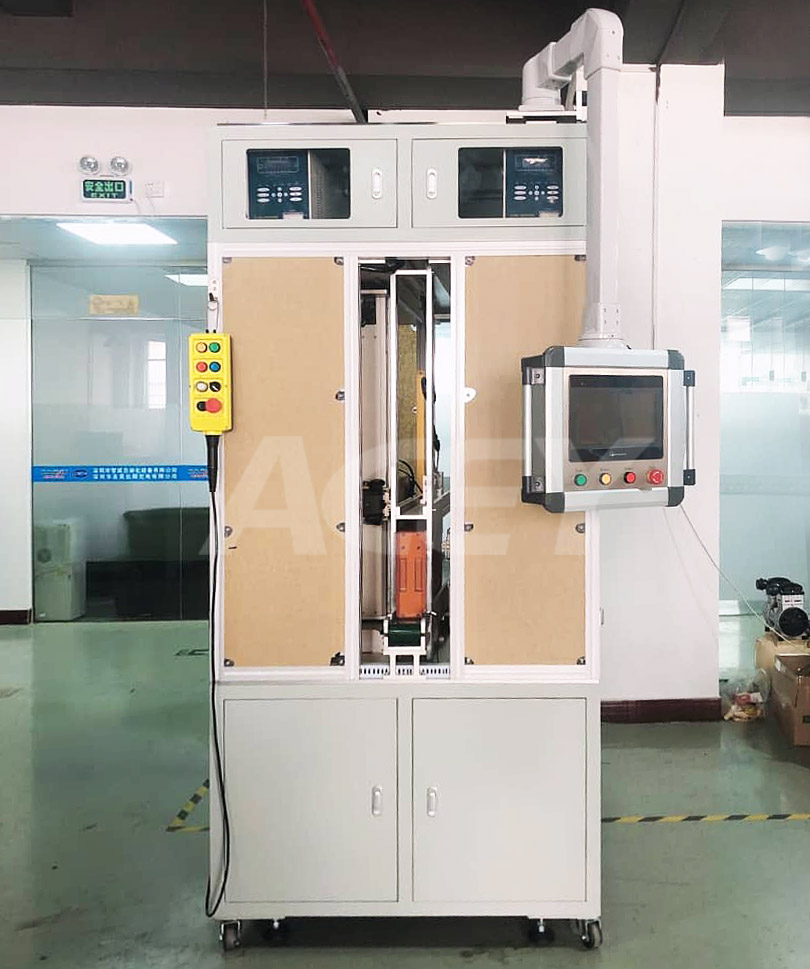

Product Details
