This product is suitable for die-cutting and forming of battery positive and negative plates, as well as for die-cutting of lithium plates.
Brand:
ACEYItem No.:
ACEY-HDC-1Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:

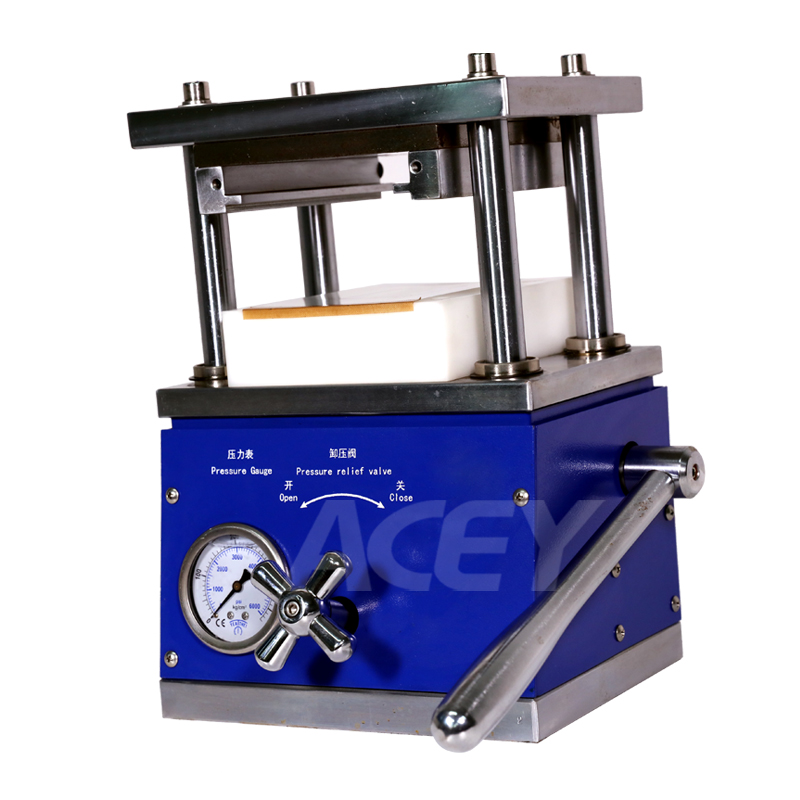

7daysSmall Pouch Cell Electrode Hydraulic Die Cutting Machine
Description
ACEY-HDC-1 adopt Hydraulic cutter method, mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. Simple operation, small volume and weight, can be used in glove box.This model has max die dimension with 120*100mm, it is mainly suitable for battery research in lab.
Features
*Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper pressure limit can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.
*Built-in pressure gauge can observe and accurately control the size of the sealing pressure.
*Using hydraulic drive, the pressure can reach 8T, die cutting without vibration, no leakage.
*It is convenient and quick to change the knife mold;
* Long tool life, normal use ≥ 30,000 times;
* There are no quality defects such as burrs, powder falling, and indentation;
*Using four guide pillar structure, sliding up and down smoothly and high precision
Specification
Punching size
120x100mm (can be customized according to customer requirements
Punching accuracy
±0.1 mm
Pressure
8T
Die cutting stroke
35mm
Structural material
high-strength chromium steel, the surface will never rust after environmental protection plating and spraying.
Dimensions
223mm X 170mm X 325mm
Weight
25KG

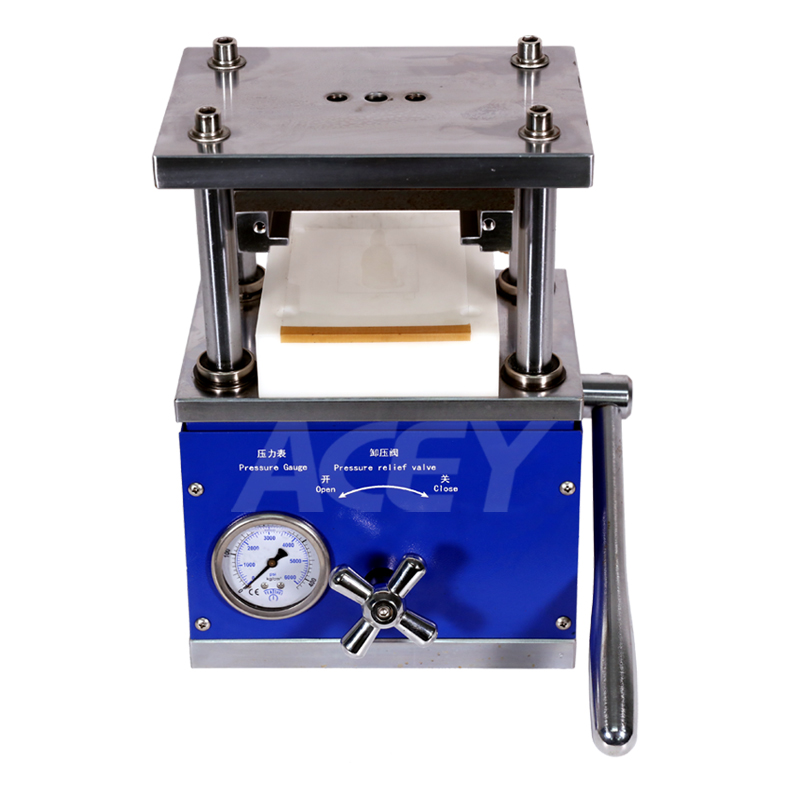

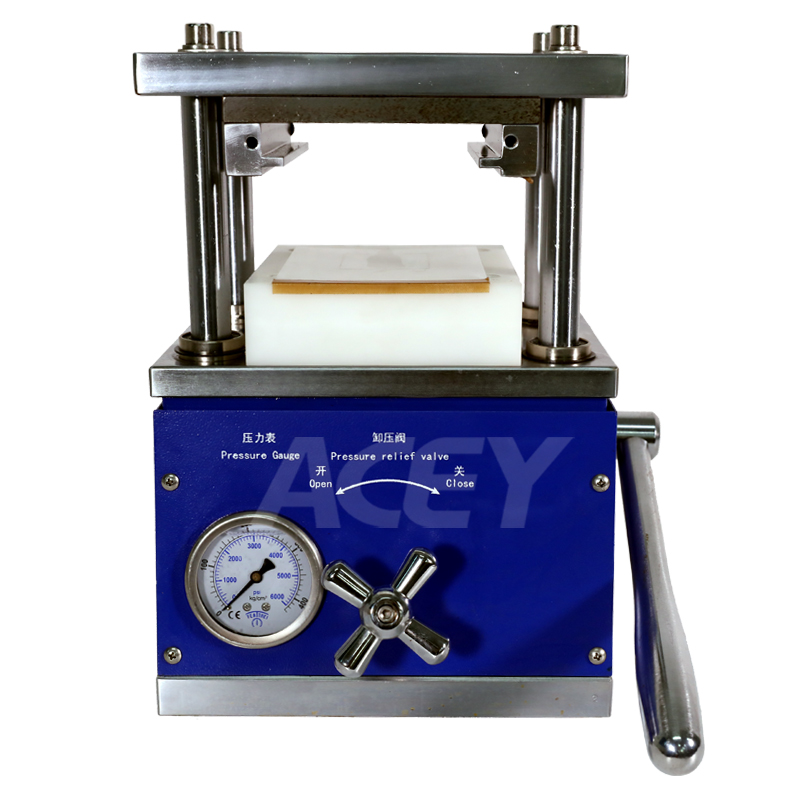

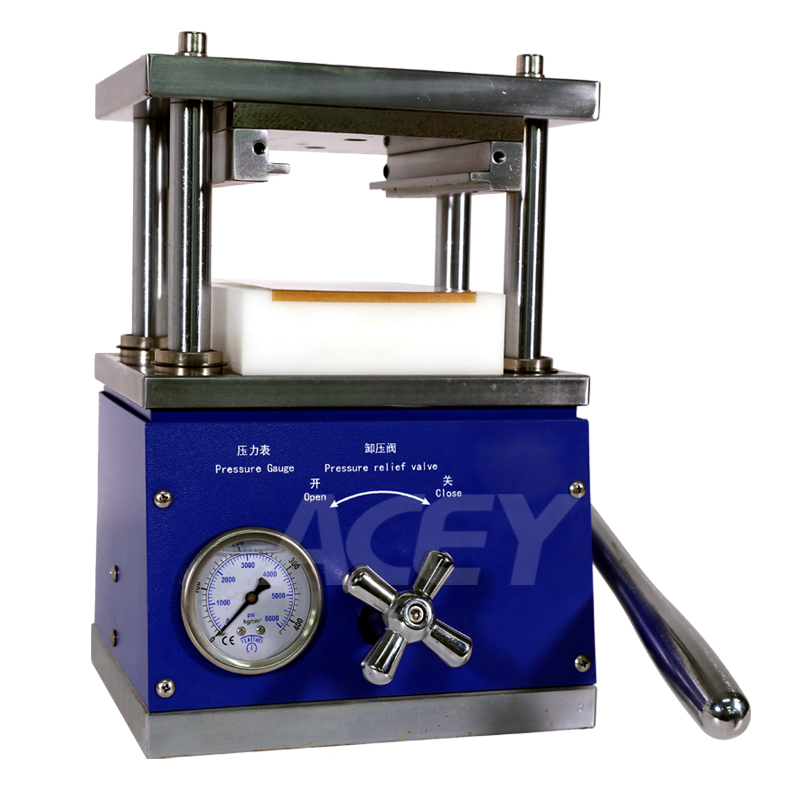

Product Display
Packing

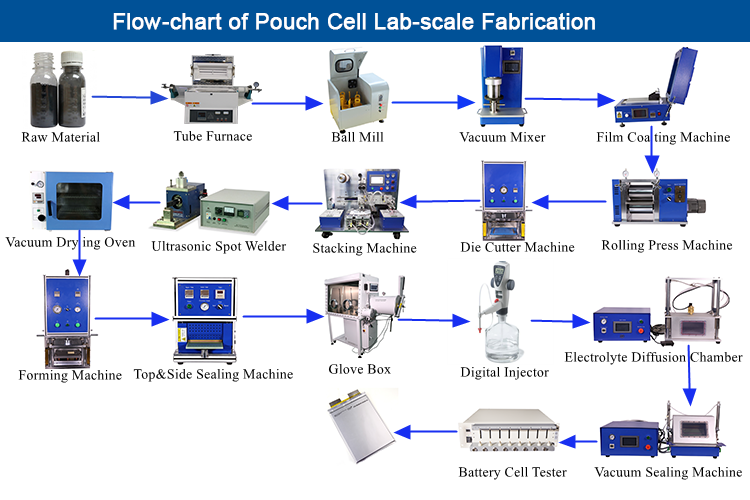

One-stop Solution
