Semi-automatic Tab Cutting Machine For Polymer Lithium Batteries

ACEY-PTC560 Tab Cutting Machine is used to trim the lengths of the positive and negative electrode tabs of polymer pouch cells prior to the welding of the protection board.
  • Brand:

    ACEY
  • Item No.:

    ACEY-PTC560
  • Compliance:

    CE Certified
  • Warranty:

    One-year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    T/T
  • Product Origin:

    China
  • Lead Time:

    7-35 days
  • Product Detail

Semi-automatic Tab Cutting Machine For Polymer Lithium Batteries


Product Description
ACEY-PTC560 is a semi-automatic tab cutting machine designed for polymer lithium batteries. It is mainly used for trimming the positive and negative tabs before welding the protection board (PCM/BMS).

The machine uses manual loading and unloading. After the battery is placed, the machine automatically completes positioning, clamping, tab cutting, and scrap collection.

Compared with traditional manual cutting, ACEY-PTC560 tab cutter can cut both positive and negative tabs at the same time while avoiding short-circuit risks during operation. The machine has a compact structure, simple operation, stable performance, and low maintenance requirements, making it suitable for battery pack production lines, laboratories, and small-batch manufacturing.

Product Features

  • Suitable for polymer lithium battery tab cutting
  • Positive and negative tabs can be cut simultaneously
  • Helps reduce short-circuit risk during cutting
  • Automatic positioning and clamping
  • Built-in scrap collection
  • Compact desktop design, easy to place and move
  • Simple operation and stable performance
  • Low failure rate and easy maintenance

Technical Specifications
Item Parameter
Input Power AC220V±10% 50-60Hz
Maximum input power ≤500W
Match Cell type Pouch cell
Positve tab width 5-60mm
Negative tab width 5-60mm
Center distance of the tab 12-150mm
Machine size L450*W310*H210mm
Weight 14KG

Applications
  • Polymer lithium battery production
  • Battery pack assembly
  • PCM/BMS welding preparation
  • Battery laboratory and R&D work
  • Small-scale production and pilot line use

Product Display

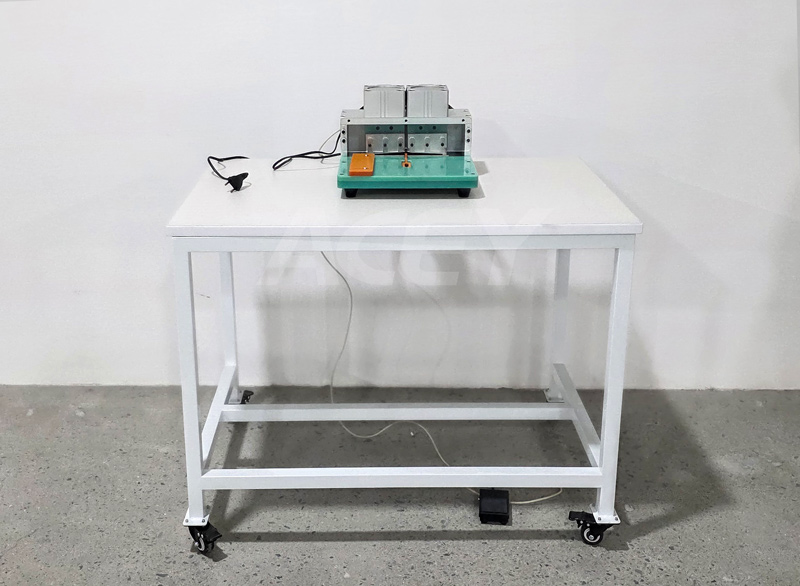

Tab cutting machine

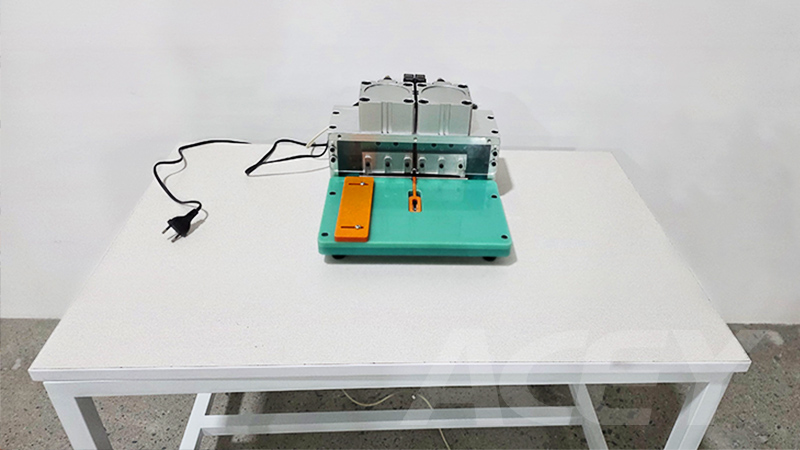

Polymer battery tab cutter

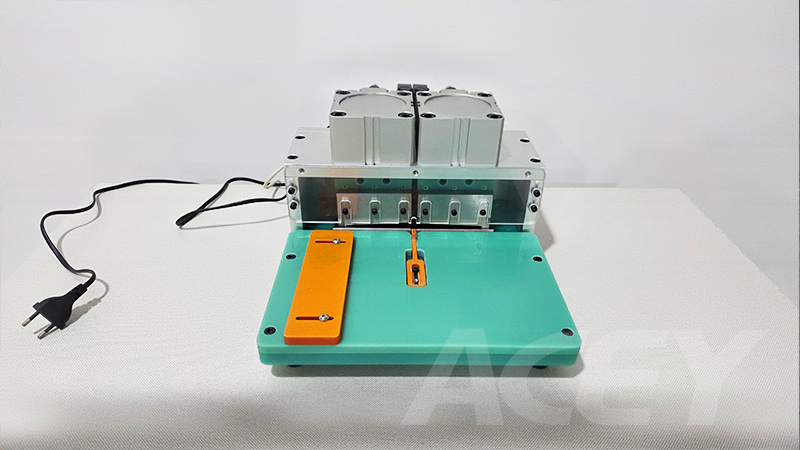

Tab Cutter
