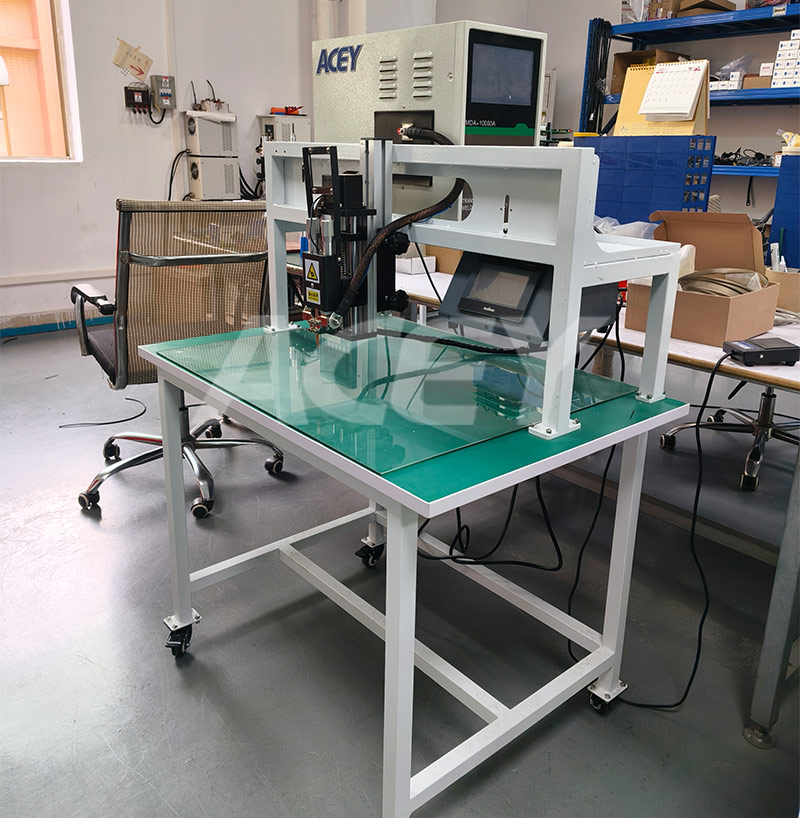

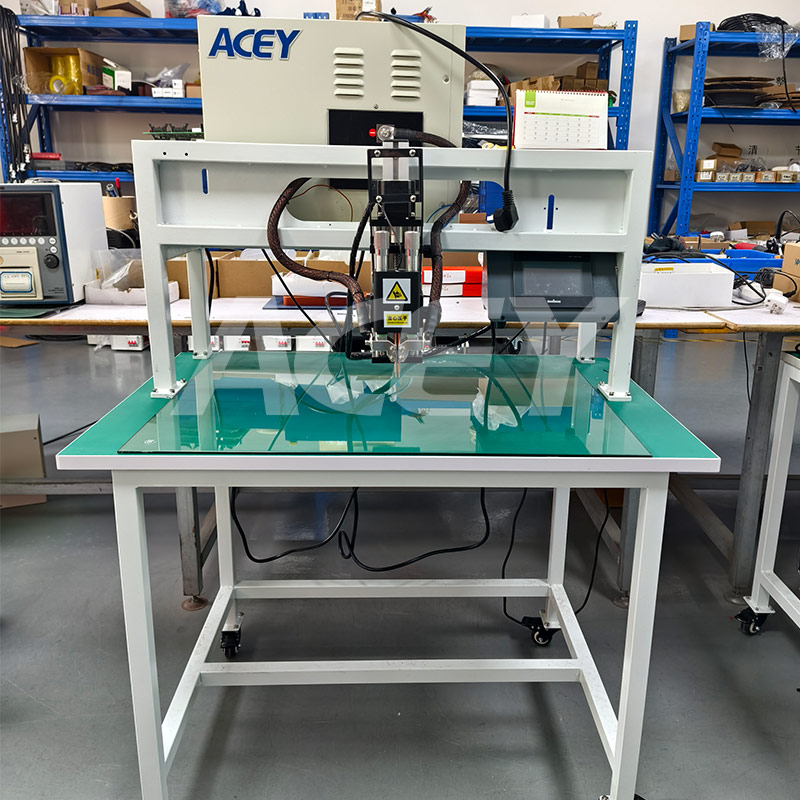

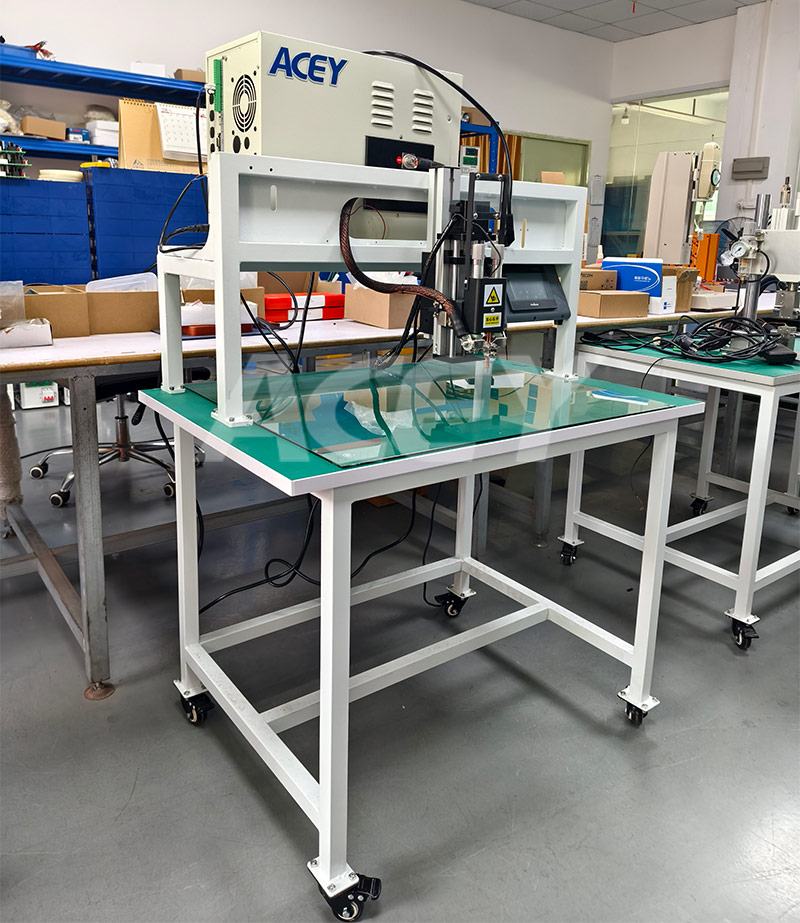

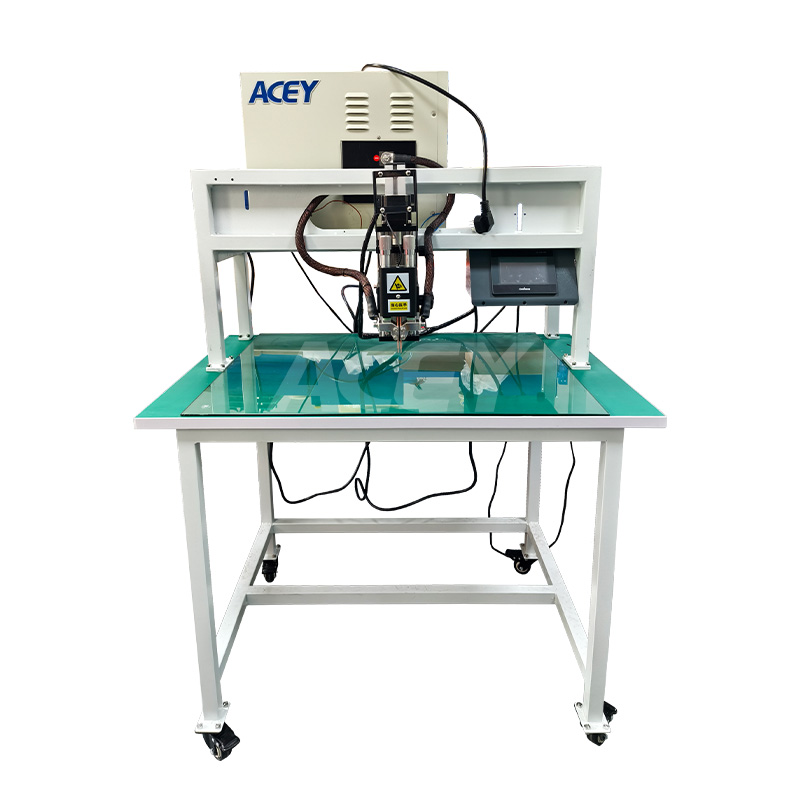

ACEY-10000T battery pack spot welding machine is a gantry welding equipment designed specifically for welding cylindrical battery packs. It is widely used in the production of battery packs for electric bicycles, electric scooters, electric vehicles, and other applications, and is especially suitable for small-batch welding operations.
Brand:
ACEYItem No.:
ACEY-10000TCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days10000A Transistor Desktop Li ion Battery Pack Terminal Nickel Strip Manual Spot Welder
Product Description

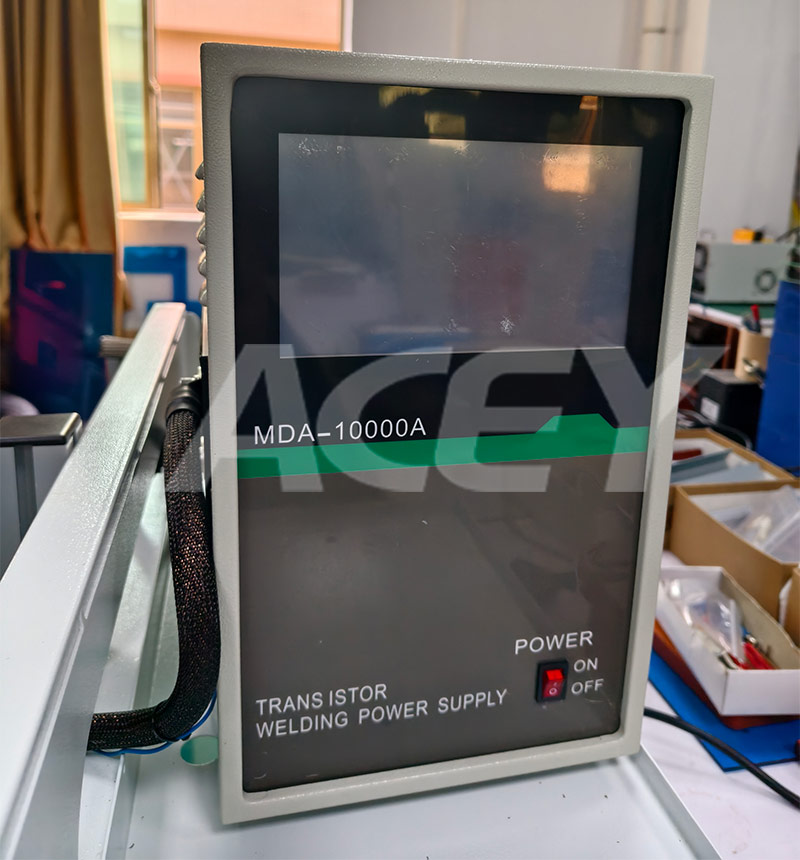

ACEY-10000T battery pack spot welder uses an advanced 10000A transistor welding power supply and is equipped with an industrial-grade modular intelligent control system. It can automatically detect and analyze problems such as sparks, cold welds, weak welds, and missed welds, and provides real-time alarms, thereby ensuring welding quality and improving production efficiency. It is an ideal choice for factory battery pack production.
Features
Specification
| Ambient Temperature | -30ºC to 50ºC |
| Humidity | Below 90% |
|
Air Source Pressure |
0.4～0.6 MPa (pneumatic type only) |
| Power Supply Voltage | 220V or 380V-50Hz/60Hz |
| Load Capacity | ≤200kg/m² |
| Grounding Type | Direct Grounding |
| Site | Free from pollution and strong electromagnetic interference |
| Installation Environment | Flat, vibration-free, and shock-free |
| Equipment Noise | ≤80db |
| Equipment Dimensions (L x W x H) | L900mm * W650mm * H1220mm |
| Equipment Weight | Approx. 60Kg |
| Equipment Color | Computer White (can be adjusted upon request) |
| Total Power | ≤1.5KW |
