XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/a4bf3192ea9596101d296d7077b29c55.jpg)
ACEY-S200A can be matched with the production line of lithium battery group, suitable for battery pack spot welding and assembly in the factory for 14500/18650/21700/26650/32650/32700 multi-parallel multi-series combination
Brand:
ACEYItem No.:
ACEY-S200ACompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysPneumatic Single Side Automatic Spot Welding Machine For Battery Pack Assembly
Description

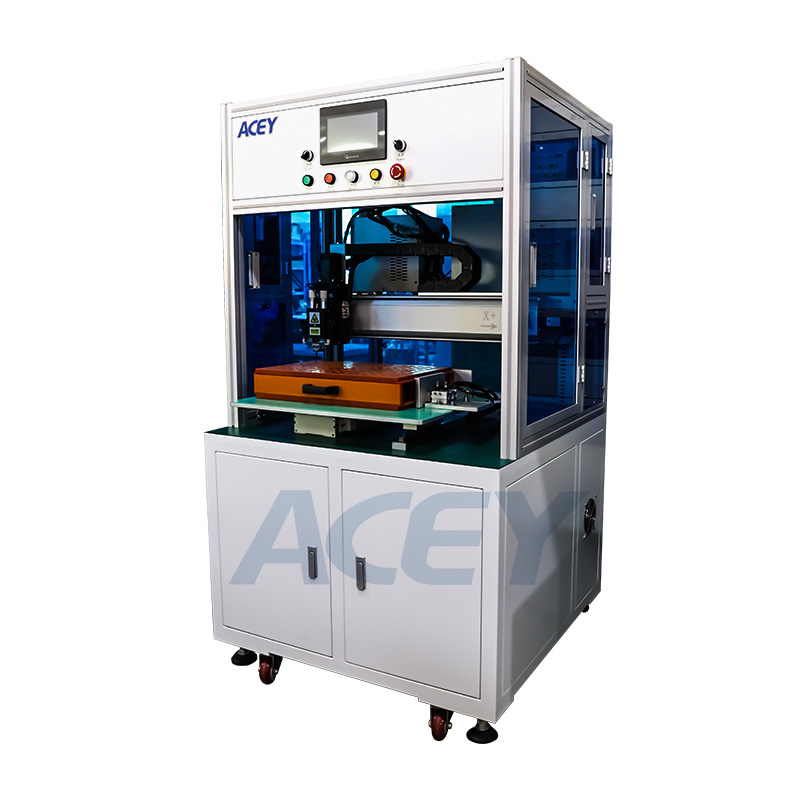

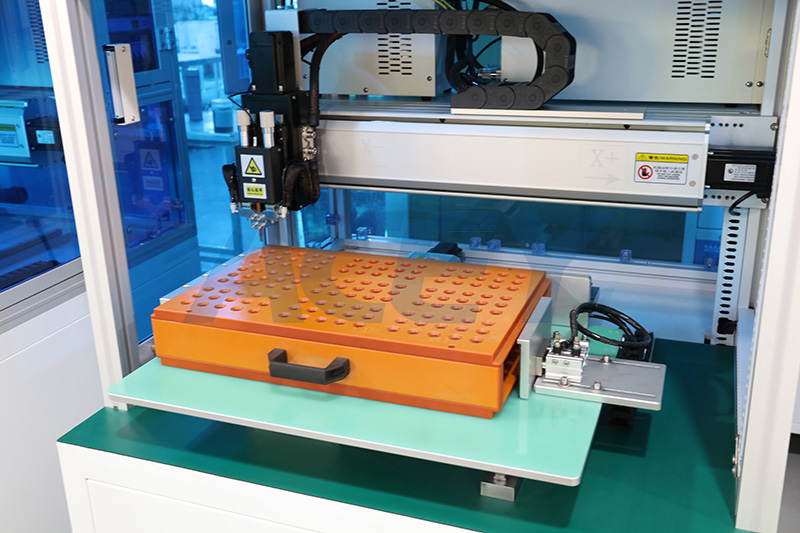

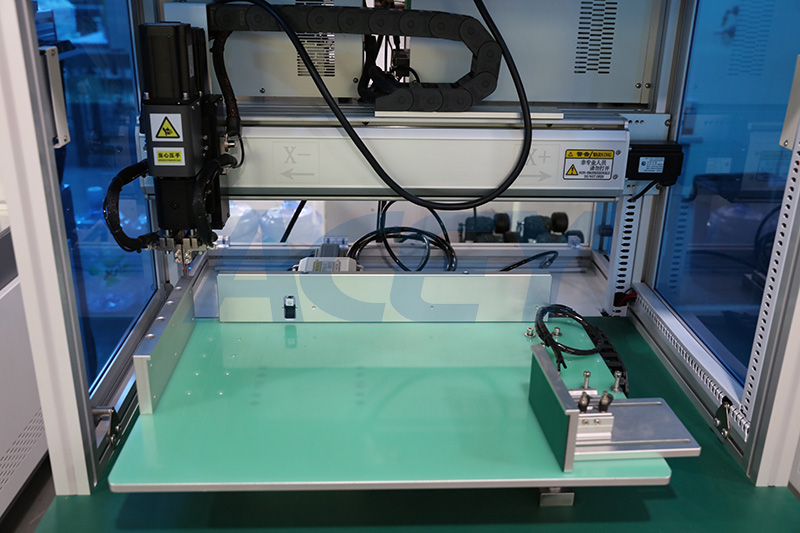

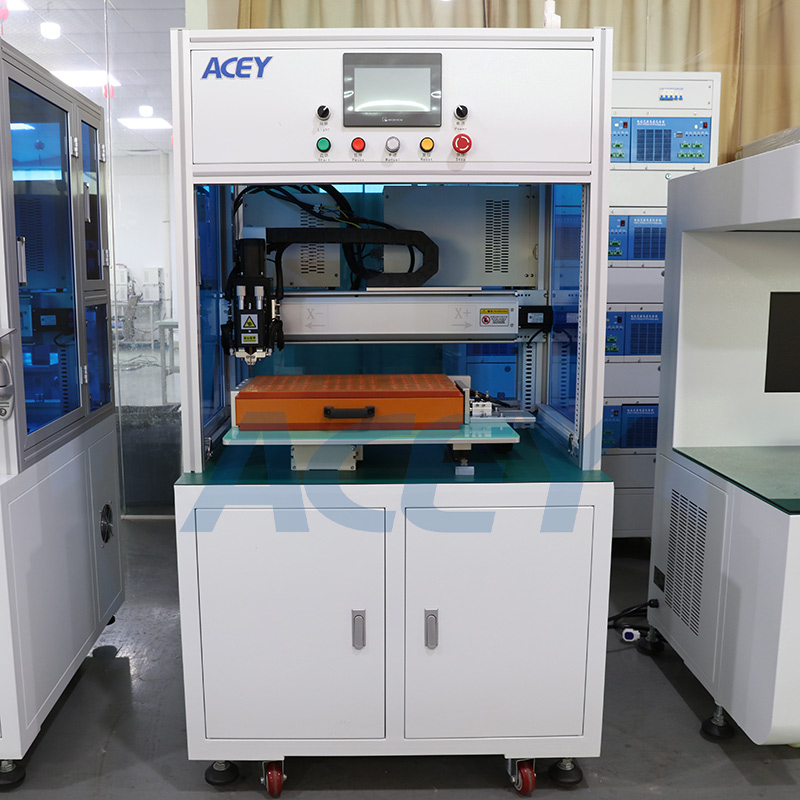

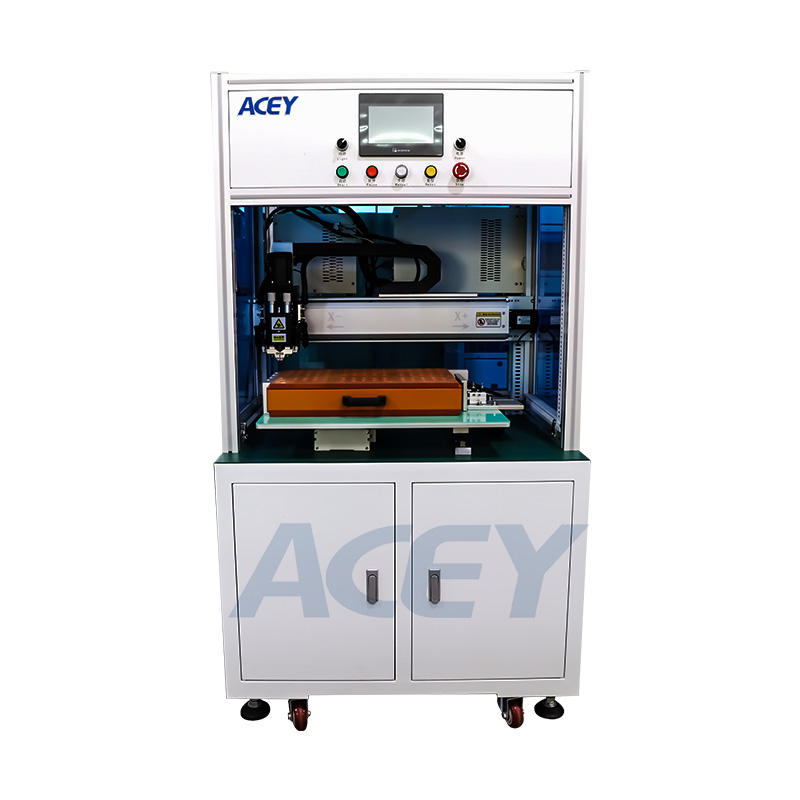

ACEY-S200A automatic single sided battery pack spot welder is designed for spot welding and assembly of cylindrical battery packs in factory production. It is compatible with 14500, 18650, 21700, 26650, 32650, and 32700 cells, supporting multi-parallel and multi-series pack configurations.
The machine delivers stable welding current and consistent weld quality, ensuring strong and reliable connections between cells and nickel strips. It features precise control, adjustable welding parameters, and efficient operation, making it suitable for battery pack manufacturing lines, pilot production, and pack assembly workshops.
Features
|
Model No. |
ACEY-S200A |
|
Y-axis travel |
500mm (customizable) |
|
X-axis travel |
400mm (customizable) |
|
Max spot welding speed |
0.5s/point (1 hour：about 1800 pcs18650 cells) |
|
Motor drive speed |
600mm/S |
|
Max load electric cores |
X direction: 26; Y direction: 26 |
|
Capable file group storage |
100 groups |
|
Operating system |
embedded system human-machine interface |
|
Transmission mode |
Taiwan precision screw with guide rail |
|
Driving mode |
stepper servo motor |
|
Repeat positioning accuracy |
±0.02mm |
|
Dimensions |
L: 900mm, W: 900mm, H: 1650mm |
|
Power |
2000W |
|
Machine weight |
150KG |
|
Max bearing weight of Y-axis |
30KG |
|
Input power supply |
single-phase AC 220V/50Hz |
|
Air Source |
0.4-0.6 Mpa |
