High Purity Raw Material PVDF Resin Powder for Lithium ion Battery Binder.
Brand:
ACEYItem No.:
A-PVDFCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1.0 KilogramsPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:
7days

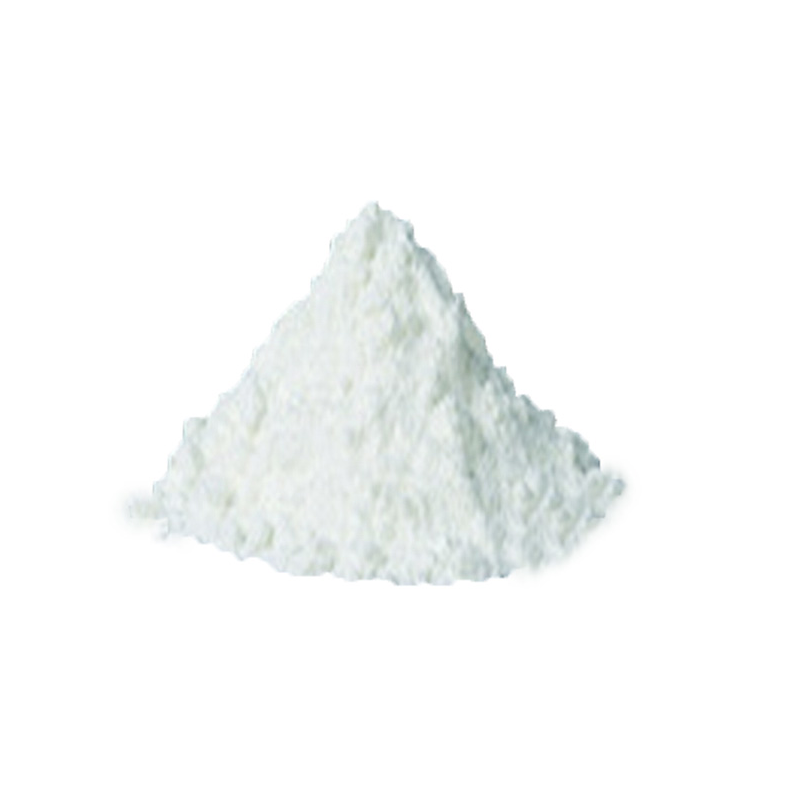

Lithium Ion Battery Binder Raw Materials PVDF Powder
Description
Polyvinylidene Difluoride resin is the homopolymer of vinylidene fluoride. It is suitable for Li-ion batteries as adhesive.
Features
1.This is a kind of powder - like polyvinyl fluoride product, which has good solubility in some solvents.
2.Compared with other brands , PVDF is more suitable as a lithium battery electrode binder material, less than similar products, thereby increasing the capacity of the battery.
3.This is a kind of polymer material with high dielectric constant, which has high viscosity and adhesion in a certain solvent.
4.The lithium battery membrane electrode material made of 761A has good chemical stability, temperature stability and good workability.
Specification
Item
Unit
Test way
Stand
Purity
%
/
More than 99.9%
Density
g/cm3
D792
1.77-1.80
Melting point
℃
D3418
165-172
molecular weight
/
/
65-75
(230℃,5kg) / Melt Flow Index
g/10min
D3835
1-2
Characteristic viscosity
dl/g
DMA,30℃
1.0-2.0
Rotary viscometer
Mpa.s
1g/10ml NMP,30℃
>2500
solubility
/
NMP/DMP,30℃,1hr
clear solution
Shao Hardness
D
D2240
76-80
shrinking percentage
%
D955
2.0-3.0
Water absorption
%
D570
0.01-0.03
Thermal decomposition
(1% Wt loos in air)
℃
TGA
370-390
