Lab Automatic Lithium Battery Electrode Coater Film Coating Machine

This film coating machine is mainly used for raw material of lithium battery electrode coating,the coating width can be adjust and built-in vacuum pump.
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Brand:

    ACEY
  • Item No.:

    ACEY-FC250
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Lab Automatic Lithium Battery Electrode Coater Film Coating Machine

Description

ACEY-FC250 is equipped with a precise adjustable film device, and the moving push rod pushes it to move at a constant speed to achieve the uniformity of the slurry coating on the substrate. This equipment is particularly suitable for making battery substrates, which can ensure the substrate the density of the positive/negative electrode material in each part of the sheet is uniform.

This model is without heating function, please select model ACEY-HFC250 if need hot function.

Film coating speed: 0100mm/sec;
Coating width: 0150mm (customizable)
Travel: 300mm;
Coating thickness accuracy: ±3um

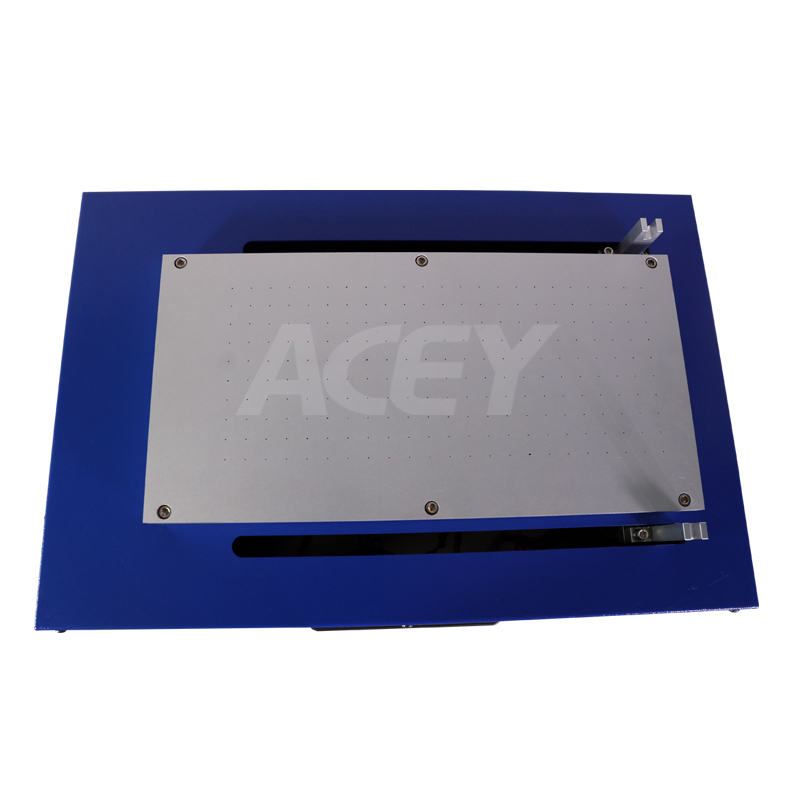

Vacuum plate: aluminum plate with vacuum (convenient for substrate adsorption)
Vacuum plate size: L410mm×W200mm×H30mm;
Scraper adjustable range: 03.5mm;
Power supply: 220V/50Hz;
Weight: 48KG;
Dimensions: L549mm×W305mm×H335mm;

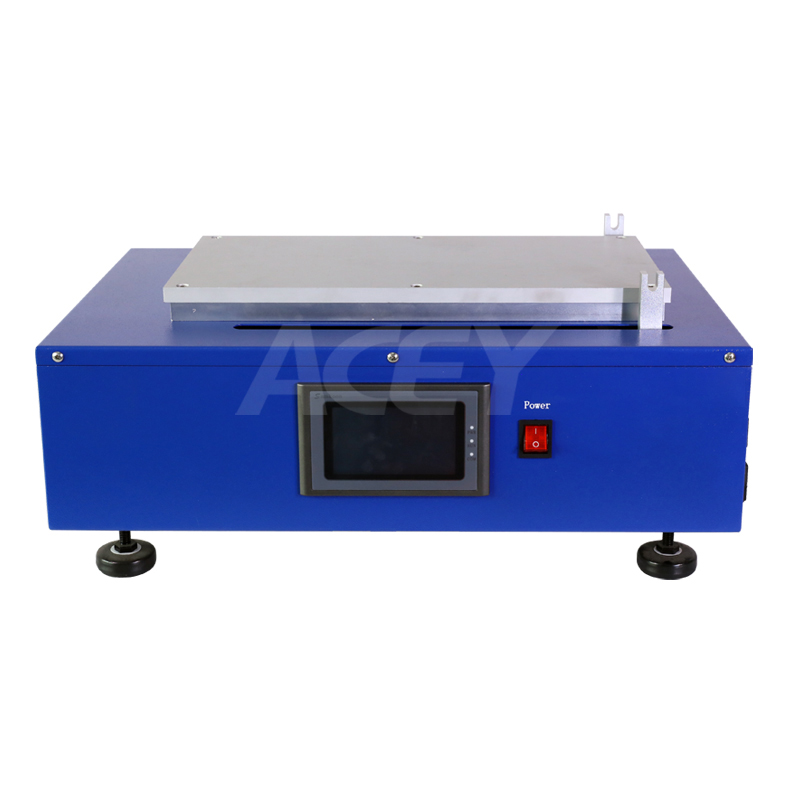

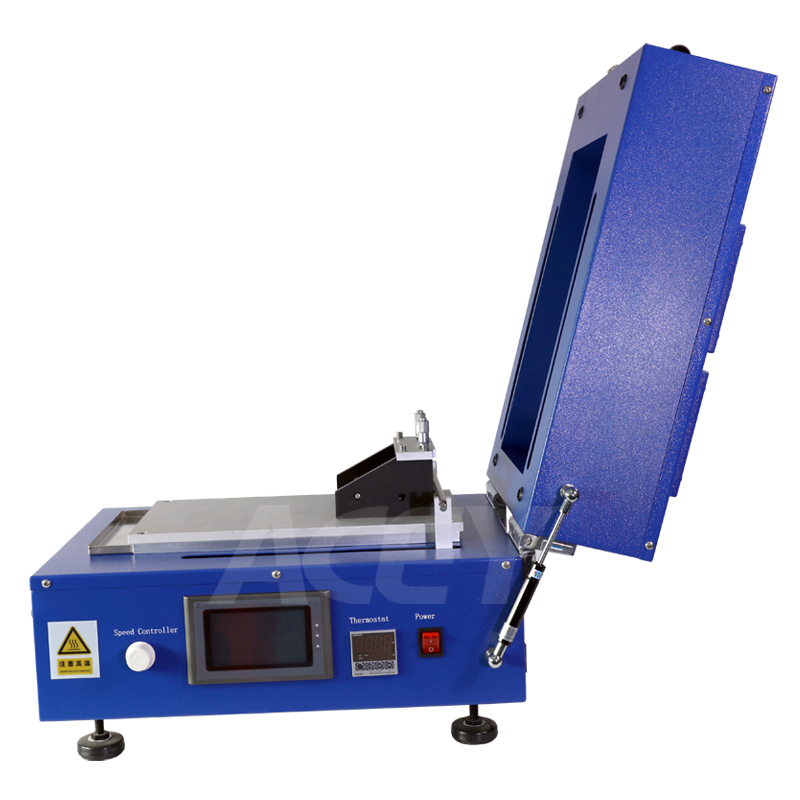

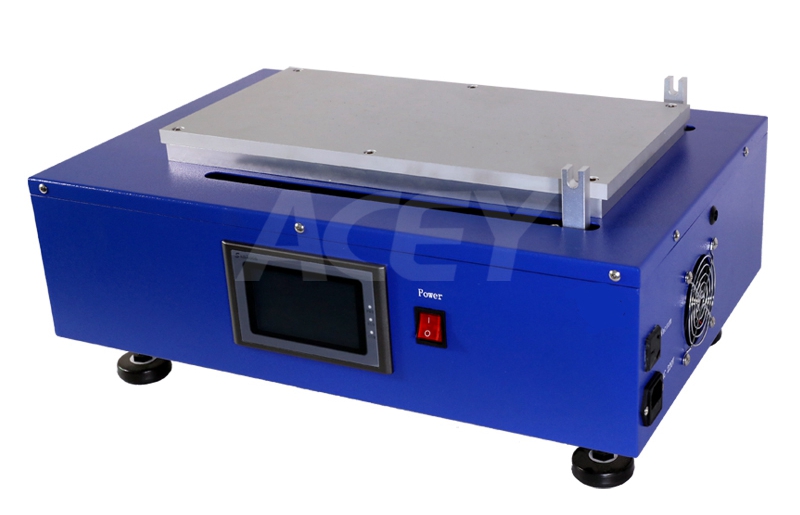

Product Display

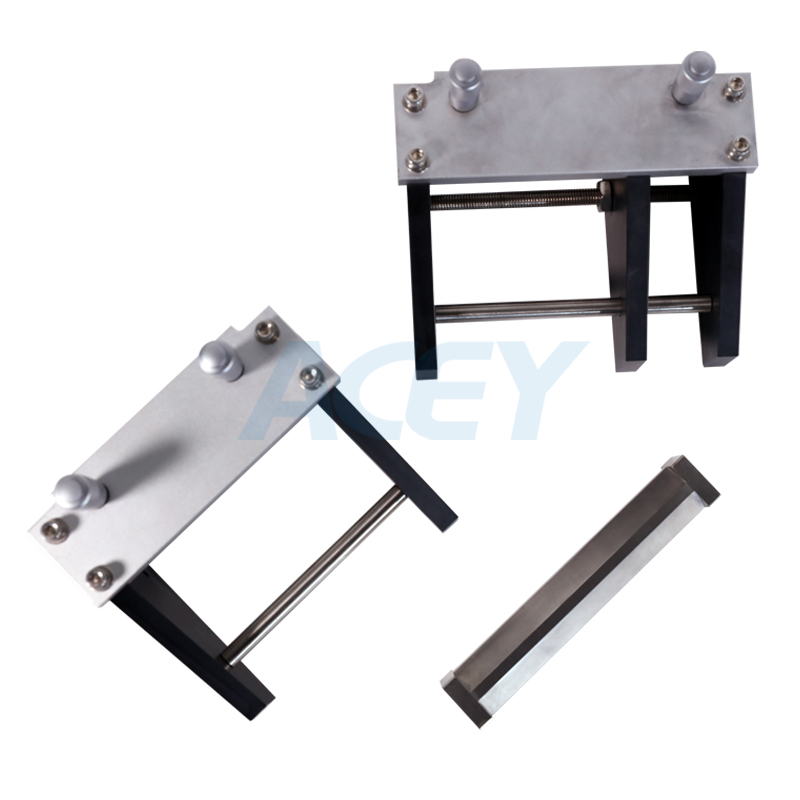

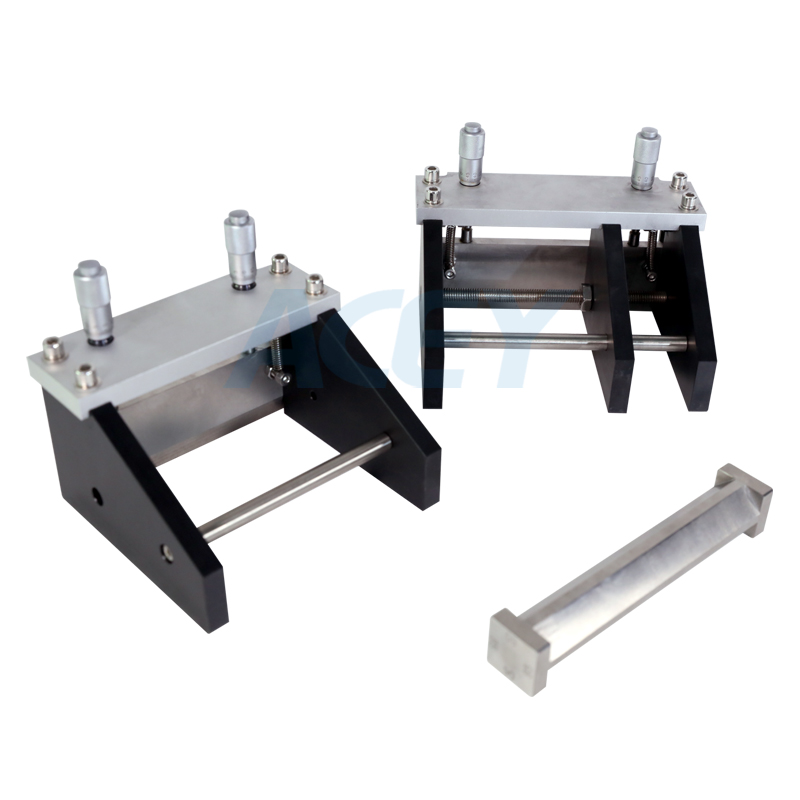

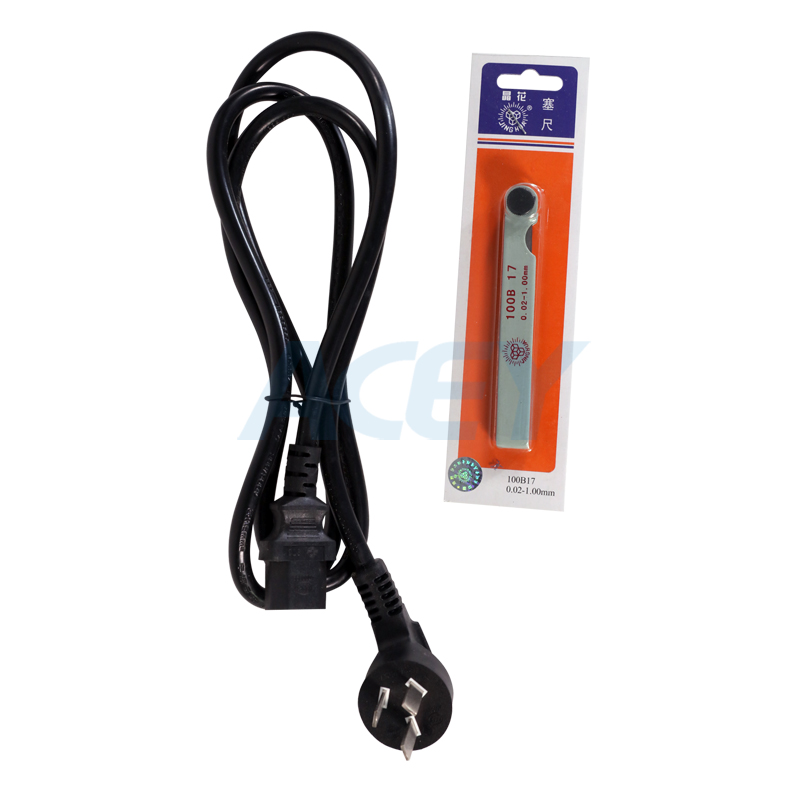

Accessories

Packing
