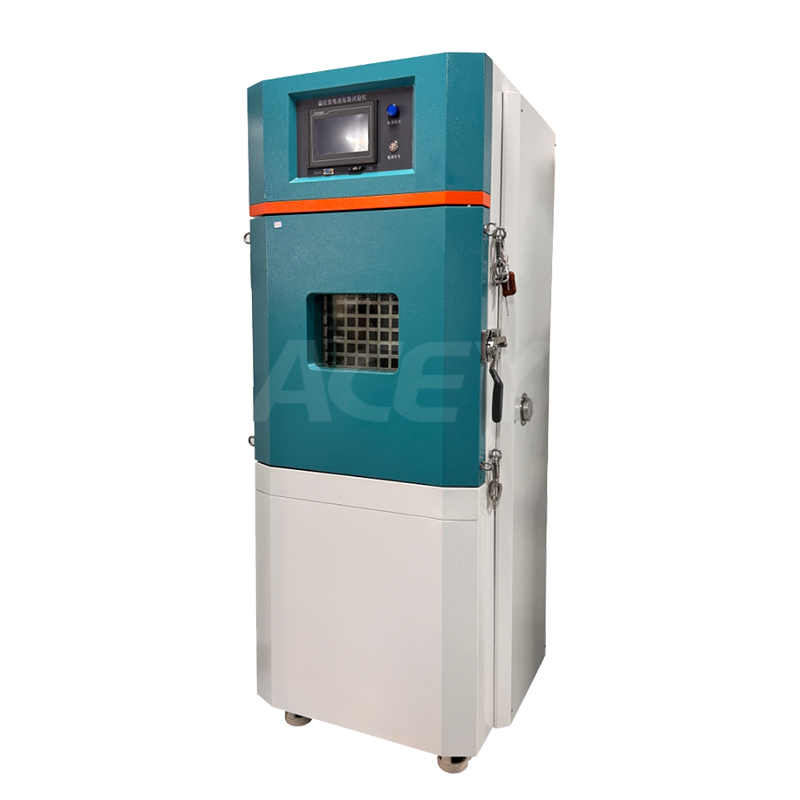

Battery Temperature Control Short Circuit Test Machine

ACEY-6003C battery temperature-controlled short-circuit test chamber is primarily used to simulate external short circuits in batteries at room or high temperatures to assess battery safety and stability. It provides external short-circuit testing conditions for a wide range of battery types, including 3C series batteries, battery packs, and energy storage batteries. Available models meet various test standards and circuit resistance values, including 1mΩ, 5mΩ, 20mΩ, 30mΩ, 80mΩ, and 100mΩ. Current ranges include 1000A, 2000A, 3000A, 5000A, 8000A, 10000A, and 15000A.

Brand:
ACEY
Item No.:
ACEY-6003C
Compliance:
CE Certified
Warranty:
One-year warranty with lifetime support
Order(Moq):
1 set
Payment:
T/T
Product Origin:
China
Lead Time:
7-35 days

INQUIRE now

Product Catalog

New Products

Product Detail

Battery Temperature Control Short Circuit Test Machine

Product Description

ACEY-6003C battery temperature control short-circuit test chamber is designed to meet the requirements of various battery external short-circuit test standards. The short-circuit device's internal resistance is adjusted according to the standard to achieve the maximum short-circuit current required by the test. The short-circuit device's circuit design must be able to withstand high current surges. We utilize industrial-grade AC electromagnetic contactors, all-copper terminals, and internal copper plates for current conduction. The thick copper plates effectively improve heat dissipation, making the high-current short-circuit device safer, effectively reducing test equipment wear and ensuring the accuracy of test data. The battery external short-circuit tester utilizes PLC automatic control to simulate a battery external short circuit and record changes in battery voltage, current, and temperature.

Technical Parameters

Item Name		Specification Indicators	Specification Indicators
Product Name		Battery Temperature Control Short Circuit Tester	Battery Temperature Control Short Circuit Tester
Model		ACEY-6003C	ACEY-6003C-D Series
Control Method		PLC Touch Screen + Remote Wireless Action Command	PLC Touch Screen + Remote Wireless Action Command
Test Battery		3C series, pouch, cylindrical, capacity below 30Ah	3C series, pouch, cylindrical, prismatic, aluminum shell, modules, capacity below 320Ah
Inner Chamber Size		W500×D500×H600mm	W800×D800×H800mm
			W1000D1000H1000mm
			(Optional, custom explosion-proof chamber size for battery capacity >320Ah)
Temperature Range		RT+10℃~85℃ (Adjustable)	RT+15℃~150℃ (Adjustable)
Temperature Fluctuation		±0.5℃
Temperature Uniformity		±2℃
Short Circuit Current		Rated operating current 400A, can withstand max instantaneous current 1000A	1000A/2000A/3000A/5000A/10000A...(Choose one, or custom make for specified short circuit current)
Resistance Material		Nickel-Chromium Alloy	Nickel-Chromium Alloy / Constantan
Contactor Drive Method		Electric - electromagnetic engagement upon coil energization	Electric - electromagnetic engagement upon coil energization
Device Internal Resistance		Standard 80mΩ±20mΩ	1mΩ, 5mΩ, 30mΩ, 80mΩ (Choose specified)
Inner Chamber Material		High-quality stainless steel plate, thickness 1.5mm	Stainless steel thickness 2.0mm/3.0mm/5.0mm (Selectable)
Outer Chamber Material		A3 cold plate, painted finish, 1.5mm
Observation Window & Lighting		Two-layer vacuum tempered glass observation window with explosion-proof mesh, equipped with LED lighting for clear viewing of test status
Safety Devices		Pressure relief door: Pressure relief device at the rear of the chamber.
		Smoke exhaust port: φ150mm smoke exhaust interface.
		Explosion-proof chains installed at the four corners of the chamber door, direct connection.
		Remote control for short circuit action.
		Test lead port: 1 port, φ50mm.
Contactor Lifespan		≤300,000 cycles	≥100,000 cycles
Voltage	Range	0~10V 1 channel (Customizable)	0~10V & 0~100V, 1 channel each (Customizable)
	Accuracy	±0.1% F.S	±0.1% F.S (0~10V), ±0.2% F.S (0~100V)
	Resolution	0.01V	0.01V (0~10V), 0.1V (0~100V)
	Sampling Rate	10Hz	10Hz
Current	Range	1 channel 0~1000A	1000A/2000A/3000A/5000A/10000A (Selectable)
	Sampling Rate	10Hz	10Hz
	Accuracy	±0.2% F.S	±0.2% F.S
	Resolution	1A	1A
Temperature (Probe)	Range	0~1000℃ 1 channel	0~1000℃ 2 channels
	Accuracy	≤±1.5℃	≤±1.5℃
	Sampling Rate	10Hz	10Hz
	Resolution	0.1℃	0.1℃
Data Export		USB interface, export via USB drive	USB interface, export via USB drive
Dimensions/Weight		W800D750H1800mm 151/195KG	Refer to specific selected specifications
Power Supply		AC220V 3.5kw
(Options)		Control System (Optional) Computer software control (ACEY-6003B series includes computer software control cabinet)
		Video Monitoring System (Optional) Video camera monitoring system, >300 pixels, portable and detachable
		Fire Extinguishing System (Optional) Manual or automatic fire extinguishing function device
		Acquisition System (Optional) Number of channels, sampling rate, and infrared temperature acquisition system can be customized
		Device Internal Resistance (Optional) 1mΩ, 5mΩ, 20mΩ, 30mΩ, 50mΩ, 80mΩ, 100mΩ multi-circuit resistance value arbitrary combination, manual terminal connection line switching or controller automatic switching
		Remote Operation (Optional) Mobile APP operation + controller delayed action command
