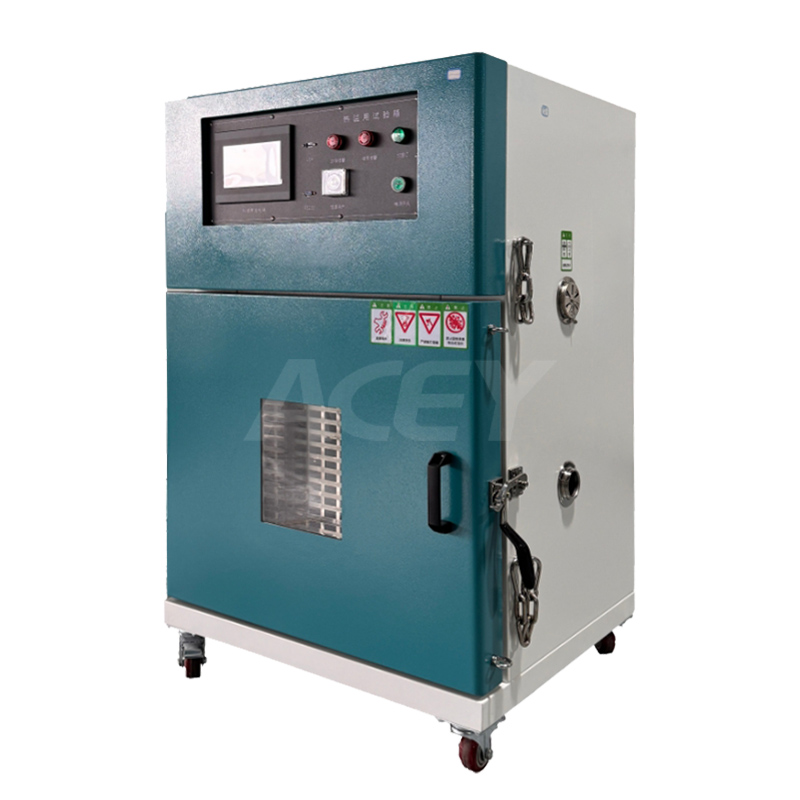

ACEY-6009C battery thermal shock test chamber is used to evaluate the safety and stability of batteries under abnormal temperature rise or overheating environment.
Brand:
ACEYItem No.:
ACEY-6009CCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysBattery Thermal Abuse Test Chamber Thermal Temperature Shock Test Machine
Product Description
ACEY-6009C series battery thermal shock test chamber is suitable for various high temperature shock tests, baking, aging experiments, and can detect the performance indicators and quality of new energy batteries, electronic instruments and meters, materials, electrical engineering, vehicles, metals, electronic products, and various electronic components in high temperature environments.
Technical Parameters
| Item Name | Specification Indicators | |
| Product Name | Battery Thermal Abuse Test Chamber | Battery Thermal Abuse Test Chamber |
| Model | ACEY-6009C | ACEY-6009C-800/1000 |
| Control Method | PLC touch screen control. Can choose to use set value or program operation control temperature. Auto-tuning, PV/SV simultaneous display, touch setting. | |
| Test Battery | 3C series, pouch, cylindrical cells, capacity below 30Ah | 3C series, pouch, cylindrical, prismatic cells, modules, capacity below 320Ah |
| Inner Chamber Size | W500*D500*H500mm | W800*D800*H800mm |
| W1000*D1000*H1000mm (Optional/Customizable) | ||
| Inner Chamber Material | SUS304 stainless steel mirror panel, thickness 1.0mm | SUS304 stainless steel mirror panel, thickness 2.0mm + steel structure reinforcement |
| Outer Chamber Material | Cold-rolled steel plate, thickness 1.0mm | |
| Temperature Range | Ambient +20~200℃ adjustable | |
| Heating Rate | 5℃/min, using program time control for heating rate | |
| Control Accuracy | ±0.5℃ | |
| Display Resolution | 0.1℃ | |
| Temperature Deviation | ±2.0℃ (at 130℃/150℃) (Tested empty) | |
| Shelves | Two adjustable layers inside. First layer 100mm from bottom, the rest divided equally above. Includes two mesh plates. | |
| Insulation Material | High-temperature resistant rock wool, good insulation effect | |
| Sealing Material | High-temperature resistant foamed silicone strip | |
| Test Port | 1 test port (φ50mm) on the right side of the machine | |
| Timer Function | Built-in timer function. Timing starts when temperature is reached, stops heating when time ends, with alarm prompt. | |
| Data Port | PC connection port RS232 interface | |
| Curve | Temperature curve during operation can be viewed on the touch screen | |
| Temperature Sensor | High-temperature PT100 | |
| Control Output Signal | 3-32V | |
| Heating Controller | Solid State Relay (SSR), non-contact | |
| Heating Material | High-temperature heater | |
| Air Supply Method | Internal hot air circulation. Air outlet on left side of chamber, return air on right side. | |
| Air Vents | One air inlet on the right side, one exhaust vent on the left side. | |
| Overtemperature Protection | Automatically stops heating when the overtemperature protector setting is exceeded, protecting the product and machine safety. | |
| Electrical Protection | Grounding protection, fast-acting fuse, overload protection, circuit breaker, etc. | |
| Safety Devices | Pressure relief port at the rear of the chamber to instantly discharge shock waves if a battery explodes, protecting the machine and personnel. φ75mm exhaust vent at the upper rear to discharge smoke from the chamber. | |
| Door Protection | Explosion-proof chains installed at the four corners of the door to prevent the door from detaching and flying out in case of explosion, damaging property and endangering personnel. | |
| Dimensions/Power/Weight | Standard: W850D700H1250mm, 160KG | |
| Upgraded: W900D820H1800mm, 215KG | ||
| AC220V 3.5KW | ||
| Options | (Optional) Video monitoring system | |
| (Optional) Battery data (voltage/temperature) acquisition system | ||
