XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.

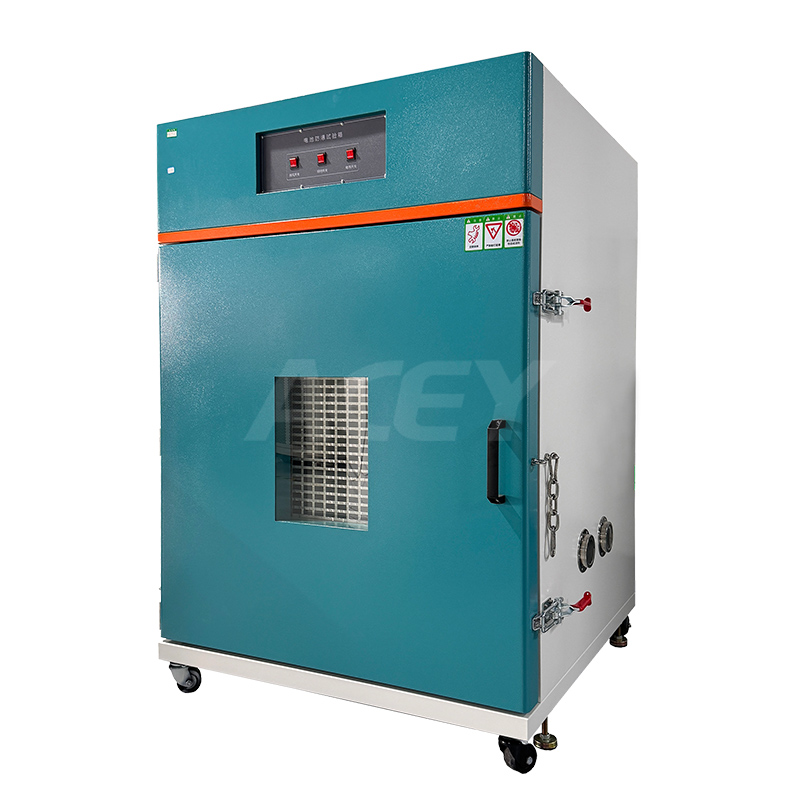

ACEY-6005 series battery explosion-proof test chambers are used for testing battery safety under extreme conditions, such as overcharging, over-discharging, short circuiting, and high temperatures, which may cause explosion or fire. These chambers provide a controlled, sealed, explosion-proof environment, ensuring the safety of personnel and surrounding laboratory objects during testing. Battery explosion-proof test chambers are available in a variety of sizes and can be customized upon request.
Brand:
ACEYItem No.:
ACEY-6005Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysBattery Explosion Proof Test Chamber Environmental Chamber Manufacturer
Product Description
ACEY-6005 series battery explosion-proof test chamber is mainly used for battery storage, or charging and discharging, overcharge and overdischarge, and short-circuit testing of batteries. The battery is placed in the explosion-proof chamber and connected to an external charge and discharge tester or short-circuit tester to protect the operator and surrounding instruments. The test chamber can be customized according to test requirements.
Technical Parameter
| Product Name | Battery Explosion-proof Test Chamber | ||
| Model Number | ACEY-6005-1 | ACEY-6005-2 | ACEY-6005-1000L |
| Control Mode | Button Control | ||
| Test Battery | 3C series pouch cells, cylindrical cells, capacity ≤30Ah | C series pouch cells, cylindrical cells, capacity ≤30Ah | 3C series soft pack, cylindrical cells, power battery modules, capacity ≤320Ah (customizable) |
| Internal Box Size | W500*D500*H500mm | W500*D500*H500mm*2 layers | W1000*D1000*H1000mm (customizable) |
| Internal Box Material | Stainless steel 1.2mm | Stainless steel 1.2mm | Stainless steel 3.0mm or 5.0mm optional |
| External Box Material | Cold-rolled steel plate, 1.5mm thick | ||
| Control Panel | On the upper part of the machine | ||
| Opening Method | Single door left or right opening, inner door stainless steel plate with explosion-proof adhesive strip, door with observation window | ||
| Viewing Window | Tempered glass observation window with explosion-proof protective net | ||
| Insulation Layer | Inner high-density rock wool board + fireproof board, good fire resistance | ||
| Test Hole | φ50mm left side 1 pc | φ50mm, one at upper layer, one at lower layer | φ80mm right side 2 pcs |
| Door Lock | Handle lock with anti-theft lock | ||
| Feet | Machine bottom equipped with movable feet, easy to move | ||
| Lighting Function | Equipped inside, manually controlled, can be turned on/off | ||
| Exhaust System | Fan + manual exhaust port | ||
| Safety Pressure Relief Device | Equipped at rear, explosion-proof plate installed, prevents impact damage | ||
| Power Supply System | Overload protection, short circuit protection | ||
| External Dimensions (W*D*H) | W750*D750*H950mm | W750*D750*H1650mm | W1270*D1350*H1700mm |
| Power Supply | AC220V 0.5KW | AC220V 1KW | AC220V 1.5KW |
| Weight (Approx.) | 100kg | 150kg | 223kg |
| Fire Extinguishing System | Optional: Manual or automatic fire extinguishing device | ||
| Video Monitoring | Optional: Video monitoring, 3MP camera, monitoring test status | ||
