XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.

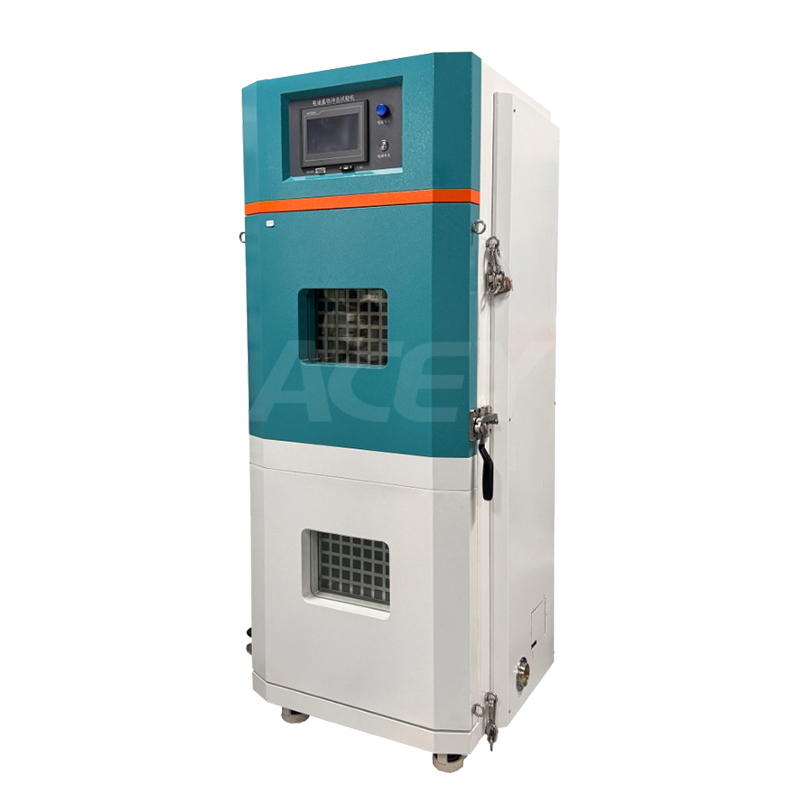

ACEY-6010C battery heavy object impact test machine is primarily used to simulate external impacts on batteries to verify their safety and structural reliability. It primarily tests the impact resistance of the battery casing, assesses the stability of the battery's internal structure, verifies the battery's safety protection design, and determines whether the battery meets safety testing standards.
Brand:
ACEYItem No.:
ACEY-6010CCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysBattery Heavy Object Impact Test Machine Manufacturer
Product Description
ACEY-6010C battery heavy object impact test machine places the test sample battery on a flat surface. A 15.8mm diameter rod is placed crosswise at the center of the sample. A 9.1kg weight is dropped onto the sample from a height of 610mm. Each sample battery is subjected to only one impact, with a different sample used for each test. The battery's safety performance is tested by using different weights at different heights and over different force areas. Tests are conducted according to regulations, and the battery should not catch fire or explode.
Technical Parameter
| Product Name | Battery Impact Test Machine | ||
| Model | ACEY-6010C | ACEY-6010C-D | |
| Control Method | PLC Touch Screen Control + Remote Wireless Action Command | ||
| Test Battery Type | 3C series, pouch, cylindrical, prismatic, capacity below 30Ah | 3C series, pouch, cylindrical, prismatic, battery packs, capacity below 320Ah | |
| Impact Height Stroke | 0 ~ 1000mm (Adjustable) | ||
| Height Error | ±5mm | ||
| Display Precision | 1mm | ||
| Impact Hammer Weight | 9.1kg±0.1kg and 10kg | ||
| Metal Bar Specification | φ15.8±0.1mm (5/8 inch) | ||
| Effective Test Space (Battery Area) | W300D400H300mm (Max. drop height below 700mm when placed) | W400D400H400mm (Max. drop height below 700mm when placed) | |
| Internal Chamber Size | W600D500H1400mm | W700D500H1500mm | |
| Internal Material | Stainless Steel Plate, thickness 1.5mm | Stainless Steel Plate, thickness 3mm + Steel Structure Reinforcement | |
| External Material | Cold-rolled plate with paint finish, thickness 1.5mm | ||
| Impact Surfaces (Top/Bottom) | High-quality Stainless Steel Plate | ||
| Lifting Method | Electric Lifting | ||
| Power Failure Protection | Hammer does not drop during abnormal power failure, ensuring operator safety. | ||
| Interior Easy-Clean Layer | Teflon tape applied on 1/3 area, resistant to high temperature, corrosion, insulated, easy to clean. | ||
| Safety Devices (Pressure Relief, Smoke Exhaust, Explosion-proof Chain) | Pressure relief device and smoke exhaust port (φ150mm) installed at the rear of the chamber. | ||
| Test Port | 1 cable port φ50mm | ||
| Viewing Window & Lighting | Double-layer tempered vacuum glass viewing window with explosion-proof mesh. LED lighting for clear observation inside. | ||
| External Dimensions (Weight, Appx.) | Standard: W770D750H1800mm 253KG | W900D800H1900mm 400KG | |
| Upgraded: W800D750H1800mm 283KG | |||
| Power Supply & Consumption | AC220V 800W | ||
| Optional Equipment | Data Acquisition System | (Optional) Voltage and temperature acquisition system (configurable to specified requirements) | |
| Video monitoring | (Optional) Camera monitoring device to observe test status inside the chamber. | ||
| Fire Extinguishing Device | (Optional) Manual or automatic smoke detection fire extinguishing function device. | ||
