Compact Battery Vacuum Heating Pre-sealing Machine For Pouch Cell

It is mainly suitable for vacuuming and hot-pressing pre-encapsulation ofsoft -packaged lithium batteries  after liquid injection and standing.

  • Brand:

    ACEY
  • Item No.:

    ACEY-VPS200
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

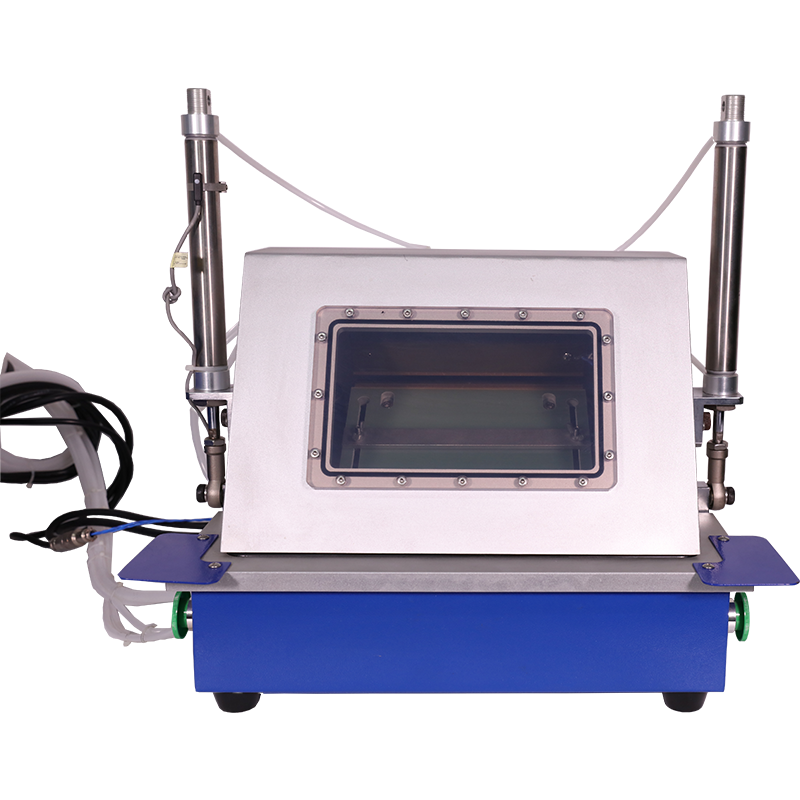

Compact Battery Vacuum Pre-sealing Machine For Pouch Cell

Description

It is mainly suitable for vacuuming and hot-pressing pre-encapsulation ofsoft -packaged lithium batteries  after liquid injection and standing; this machine accurately controls the main vacuum exhaust box and pneumatic heat sealing components to automatically complete the vacuum heat sealing of the battery aluminum-plastic shell.

Features

1. The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;

2. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;

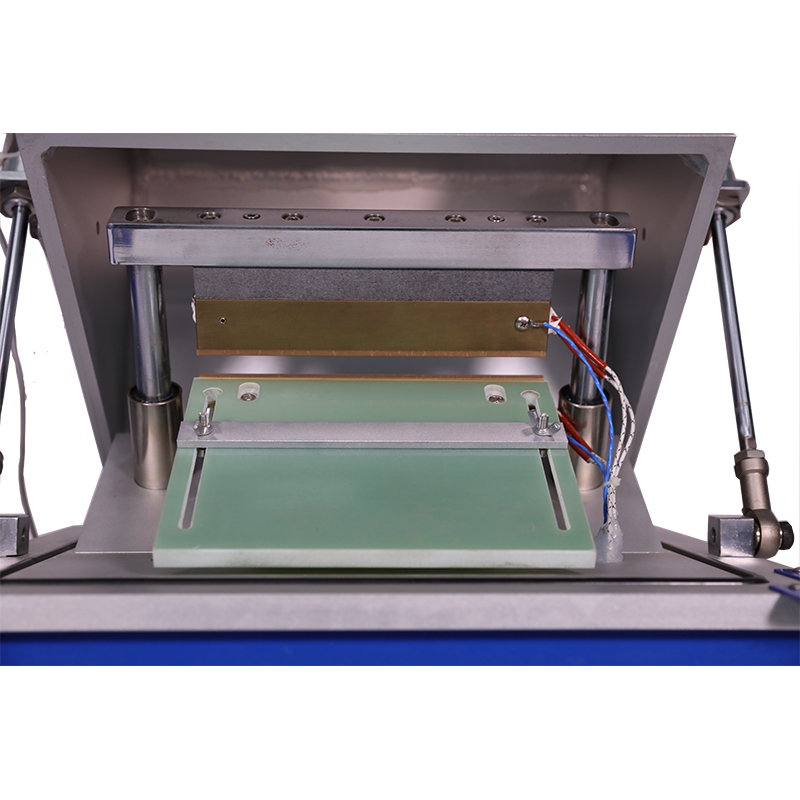

3. The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately.

Ensure the parallelism requirements of the product after edge sealing;

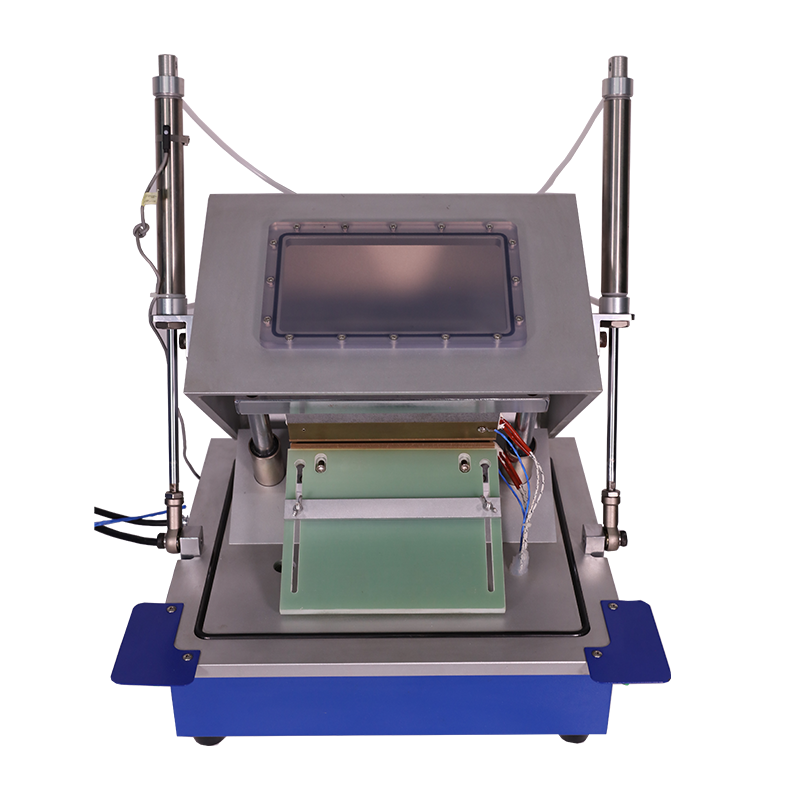

4. Through the perspective window, you can observe the changes in the cavity while working.

5. The cover cavity is driven by an air cylinder and guided by the rotating guide sleeve, which can move up and down flexibly, and the guiding is accurate to ensure the product tightness requirements.

6. It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

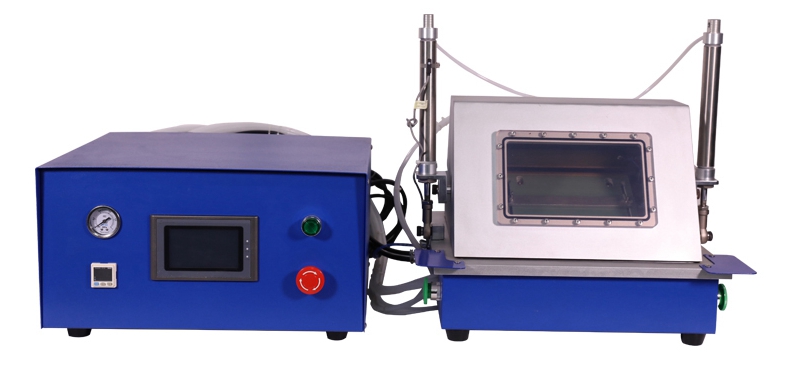

7. The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.

8. Easy operation, beautiful appearance, small size and light weight.

Specification

Model No.

ACEY-VPS200

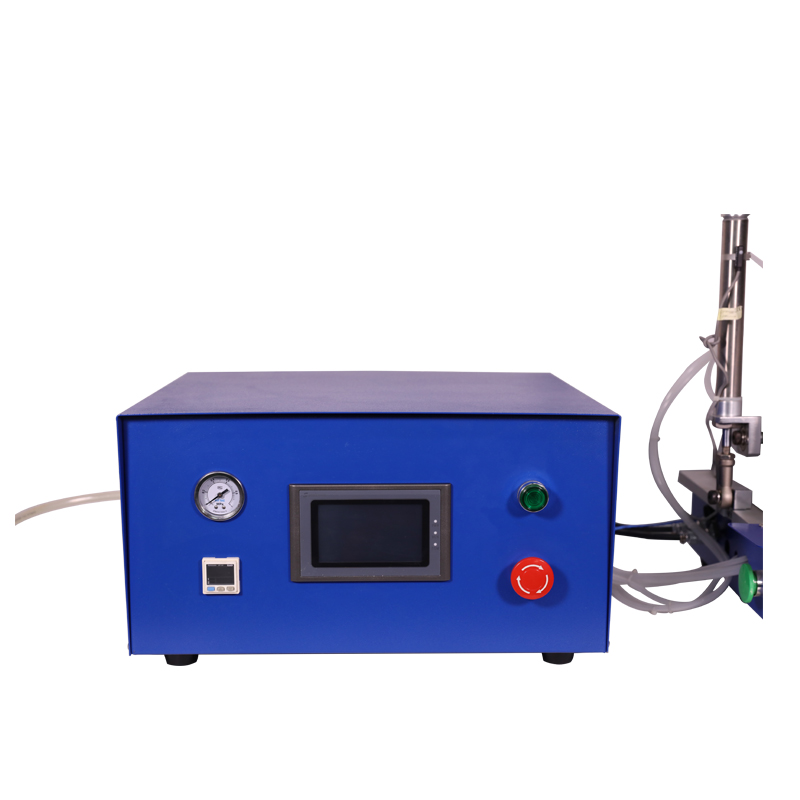

PLC touch screen automatic control.
The cavity is made of aluminum alloy, which is corrosion resistant and has a firm structure.
Vacuum degree can be adjusted up to -95Kpa (the buyer shall provide a vacuum pump).
Head temperature
 room temperature~250℃, temperature adjustable;
Temperature control accuracy
±2℃
Heat sealing pressure
0~7Kg/cm2 adjustable
Heat sealing time
0~99 seconds adjustable
Edge banding width
5±0.4mm (according to customer requirements)
Edge sealing size
200mm

The range of the battery is 200 in length and 160mm in width (including air bag position)

Seal thickness range
60~300um
Seal thickness accuracy (mm)

package thickness difference between any two points <15um

Gas consumption

about 0.2L compressed gas/each time.

Pneumatic working speed

 ≥180 times/h

Power source
220V/50Hz; power: using 300w heating tube, the power consumption is about 0.6KW when heating.
Dimensions

working part: 470mm*485mm*435mm;.

control box: 420mm*325mm*225mm.

Equipment weight

55Kg

Product Details

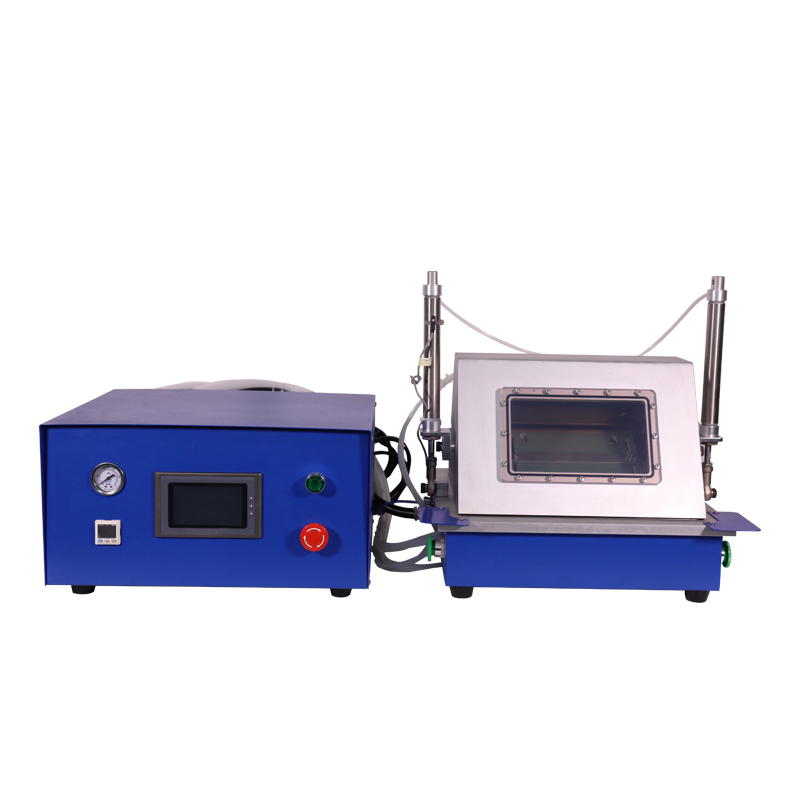

Compact Battery Vacuum Pre-sealing Machine For Pouch Cell
Battery Vacuum Pre-sealing Machine
