5V 6A Li-Ion Battery Cell Cycle Tester For 18650 21700 26650 32700

5V 6A Li-Ion Battery Cell Cycle Tester For 18650 21700 26650 32700

Product Description

ACEY-BCT506R-512H Lithium Battery Charge Discharge Machine is a high-precision, energy-saving feedback battery capacity grading system designed for the formation and capacity testing of cylindrical lithium-ion cells (such as 18650, 21700, 26650, 32700, etc.). Equipped with advanced energy feedback technology, the system can recycle the energy discharged from the batteries back into the factory grid, significantly reducing power consumption and operating costs.

Product Features

• Independent Channels: Each of the 512 channels has its own independent constant current and constant voltage (CCCV) source, ensuring stable operation without impact between channels.
• High Precision & Stability: The equipment achieves a measurement accuracy of 0.1%, providing reliable data for battery grading.
• Energy Efficiency: During discharge, the energy is fed back into the grid with a comprehensive power-saving rate of over 60% compared to traditional equipment.
• Four-Wire Measurement: Utilizes a professional four-wire test interface to eliminate lead resistance and ensure high measurement accuracy.
• Modular Design: The modular concept allows for easy maintenance and scalability.
• Power-off Protection: Features a data memory function that allows the process to continue from where it left off after power restoration.

System Composition & Safety

• Hardware: Includes independent CPU boards, dual keyboard operation for front and back sides, and 8-channel CC/CV control modules.
• Software: User-friendly interface with real-time status display (Voltage, Current, Time, Capacity) and powerful data curve analysis.
• Reliability: Uses high-stability imported AD/DA chips and high-grade power MOSFETs suitable for low-voltage discharge cells like LiFePO4.
• Protection: Real-time detection of each channel; abnormal channels will stop immediately and trigger an indicator light.

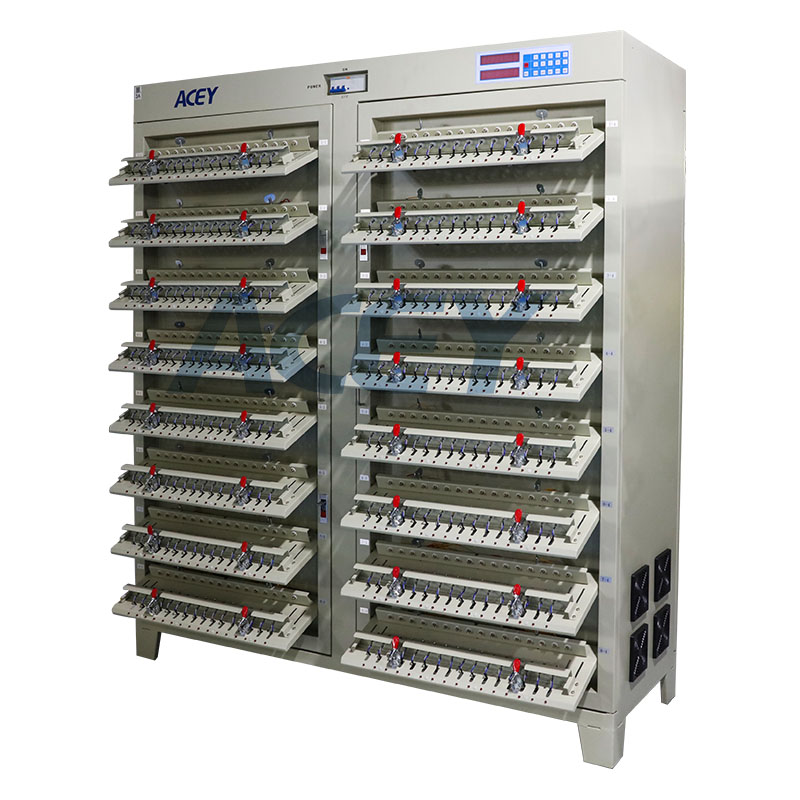

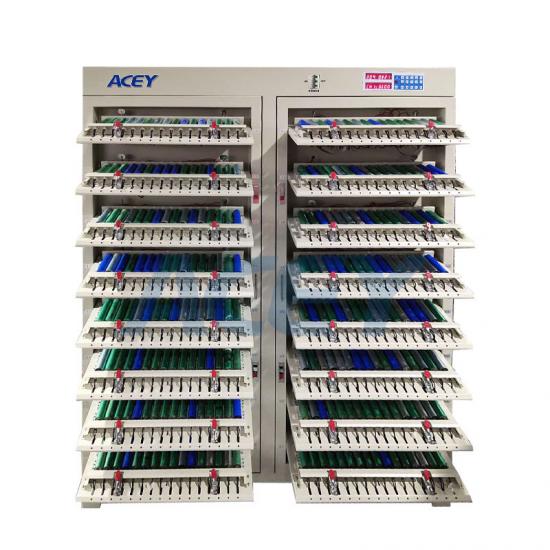

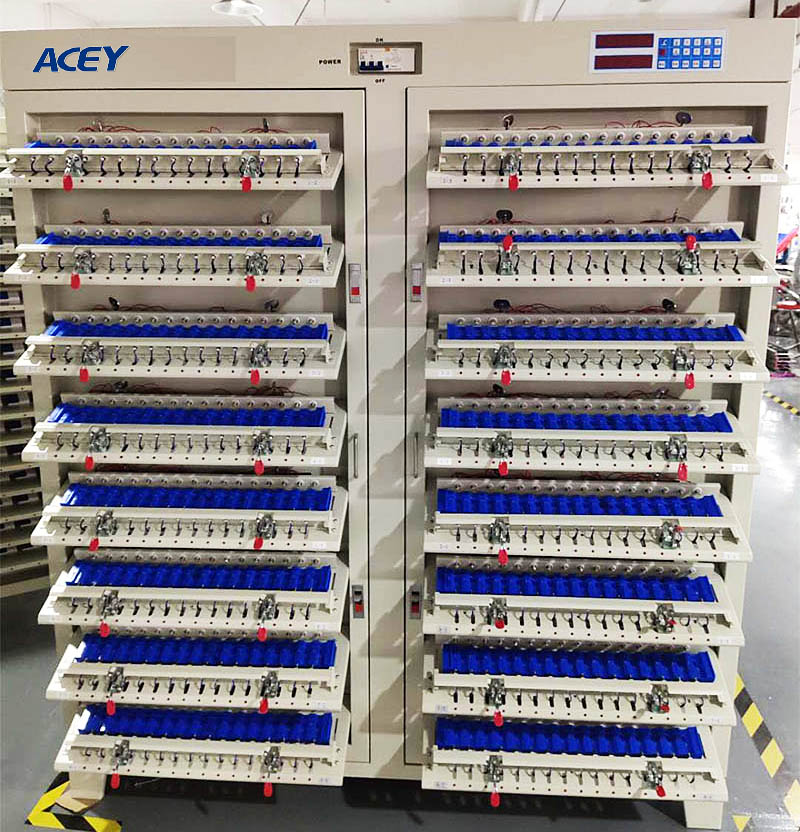

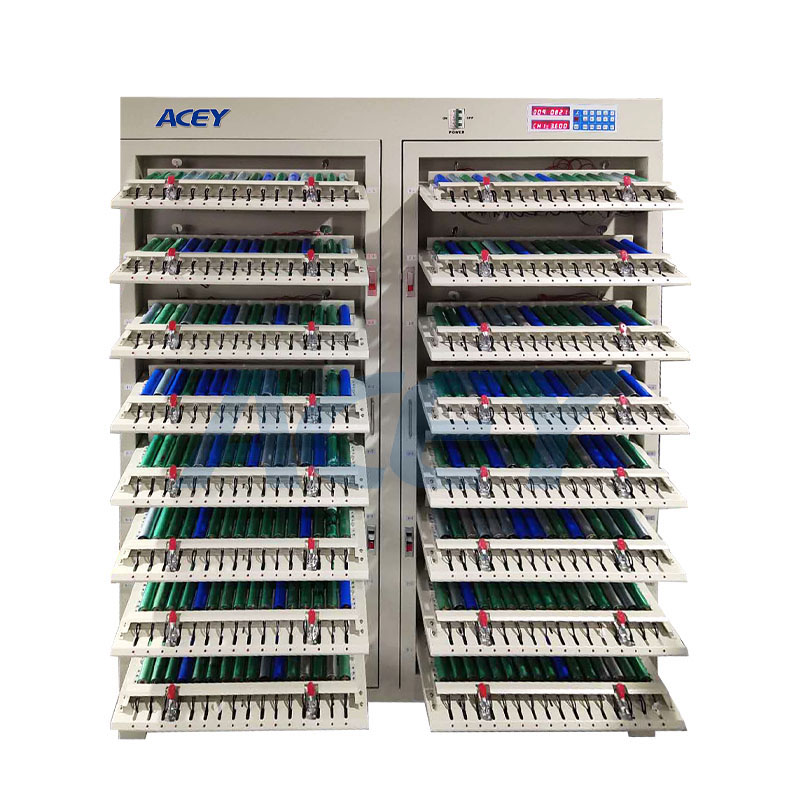

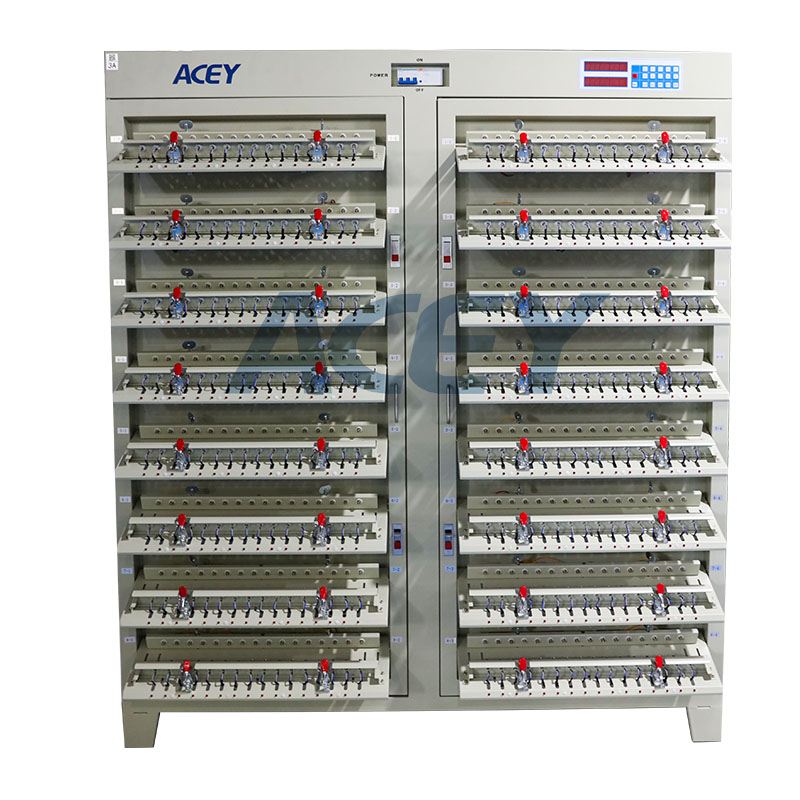

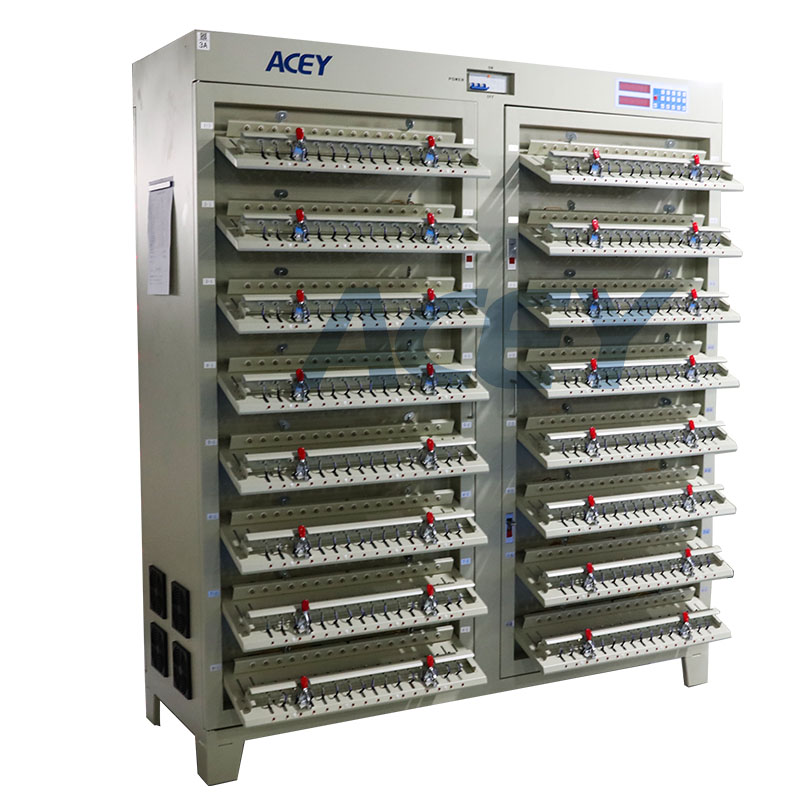

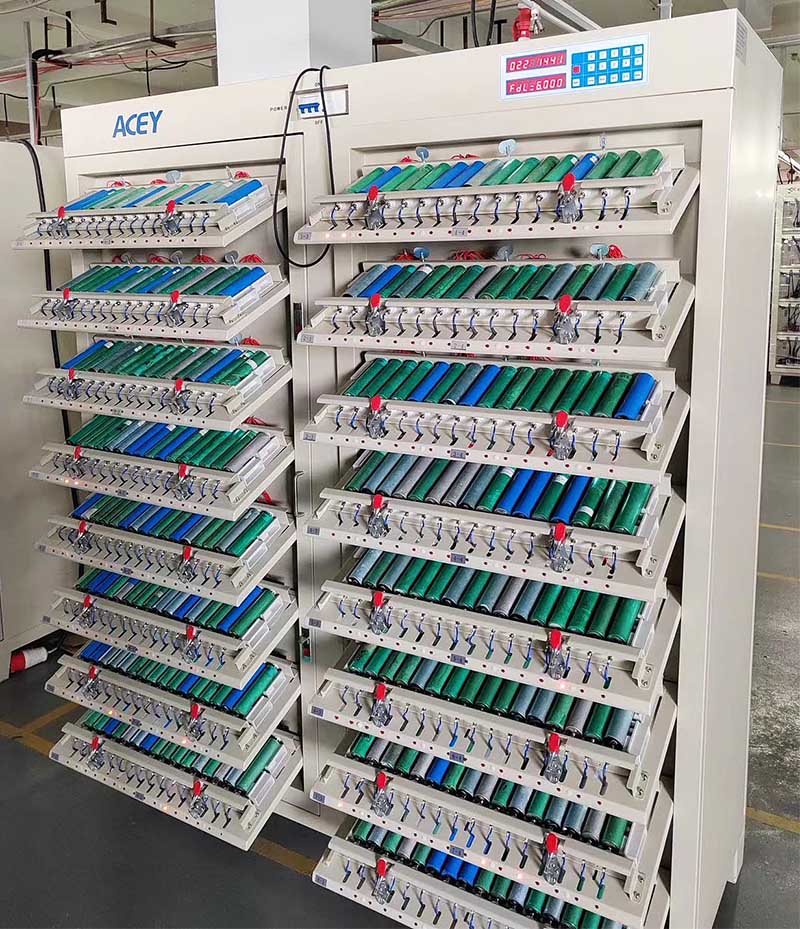

Product Display
