$this->product_detail['product_name']

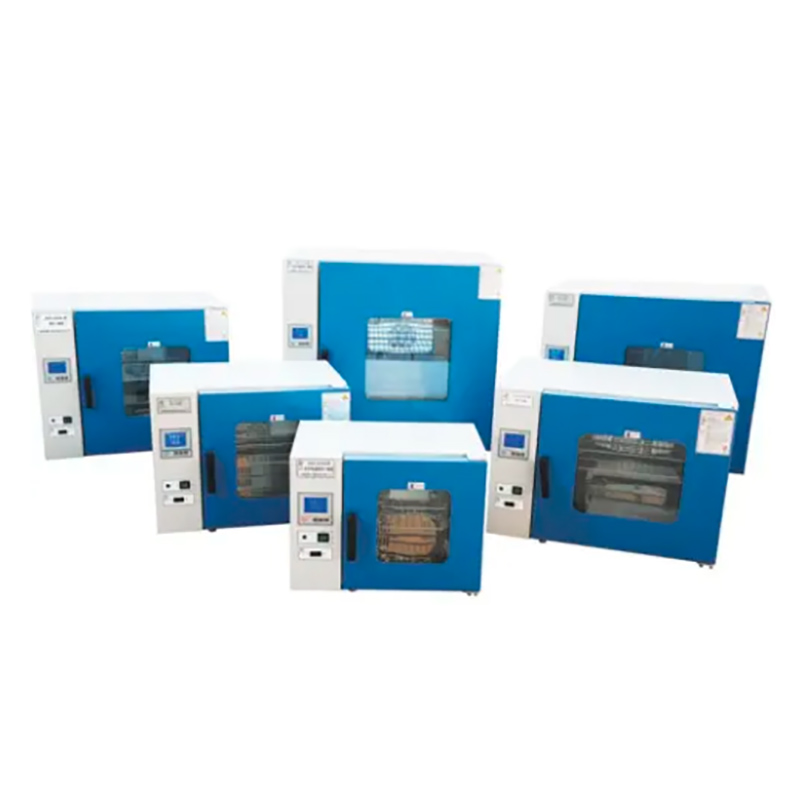

35L-960L(250C-300C) Electric Convection Blast Drying Oven With Digital Temperature Controller


ACEY-9000/ACEY-9003/ACEY-9005 series is a 300°C Max. Ovens combine forced-air circulation and programmable temperature controller to achieve dependable, uniform furnace for a variety of laboratory applications like drying, storing, annealing. It is an ideal heating equipment for material R&D laboratories.




  • Brand:

    ACEY
  • Item No.:

    ACEY-9000
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

35L-960L 250C-300C Electric Convection Blast Drying Oven With Digital Temperature Controller


Application

Mainly suitable for factories, schools, chemical, biological, pharmaceutical, food and scientific research units, for non-explosive flammable and non-volatile substances drying, baking, heat treatment, disinfection and insulation.


Features

1. Digital display microcomputer controller with temperature control protection and timing function is adopted, which is reliable in temperature control.

2. The inside of the box body is made of mirror stainless steel or wire drawing plate material argon arc welding. The outside of the box body is made of superior steel plate material, which is beautiful and novel in appearance.

3. The hot air circulation system consists of a fan capable of continuous operation at high temperature and a suitable air duct. The temperature of the studio is uniform.

4. The independent temperature limit alarm system will automatically interrupt if the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (Optional)

5. The "D" series is an intelligent ten-stage programmable LCD controller.


Optional Options

1. Intelligent LCD program temperature controller (30 segments)

2. Independent temperature limit controller

3. Intelligent program temperature controller (30 paragraphs)

4. Printer



Technical parameters:

Table electric heating constant temperature blast drying oven ACEY-9000 series
Model 9030A 9070A 9140A 9240A
9030AD 9070AD 9140AD 9240AD
Supply voltage 220V 50Hz
Temperature control range RT+10℃~250℃
Temperature resolution 0.1 ℃
Constant temperature fluctuation ± 1 ℃
Input power 870W 1570W 2070W 2470W
Working environment temperature 5 ℃ ~ 40 ℃
Liner size (mm) 340 × 325 × 325 450 × 400 × 450 550 × 450 × 550 600 × 550 × 750
Overall dimensions (mm) 625 × 510 × 490 740 × 580 × 630 830 × 650 × 730 880 × 770 × 930
Load carrier (standard) 2 pieces
Timing range 1~9999 minutes
Table electric heating constant temperature blast drying oven ACEY-9003 series
Model 9023A 9053A 9123A 9203A
9023AD 9053AD 9123AD 9203AD
Supply voltage 220V 50Hz
Temperature control range RT+10℃~250℃
Temperature resolution 0.1 ℃
Constant temperature fluctuation ± 1 ℃
Input power 870W 1120W 2070W 2470W
Working environment temperature 5 ℃ ~ 40 ℃
Liner size (mm) 340 × 325 × 300 420 × 400 × 345 550 × 450 × 550 600 × 600 × 650
Overall dimensions (mm) 620 × 540 × 490 720 × 580 × 530 830 × 650 × 730 880 × 770 × 825
Load carrier (standard) 2 pieces
Timing range 1~9999 minutes

Table electric heating constant temperature blast drying oven ACEY-9005 series
Model 903 5 A 905 5 5A 907 5 A 914 5 A 924 5 A
903 5A D 905 5A D 907 5A D 914 5A D 924 5A D
Supply voltage 220V 50Hz
Temperature control range RT+10℃~300℃
Temperature resolution 0.1 ℃
Constant temperature fluctuation ± 1 ℃
Input power 970W 1220W 1670W 2170W 2870W
Working environment temperature 5 ℃ ~ 40 ℃
Liner size (mm) 340 × 325 × 325 420 × 400 × 345 450 × 400 × 450 550 × 450 × 550 600 × 550 × 750
Overall dimensions (mm) 620 × 510 × 490 720 × 580 × 530 740 × 580 × 630 830 × 650 × 730 800 × 770 × 930
Load carrier (standard) 2 pieces
Timing range 1~9999 minutes

Product Details

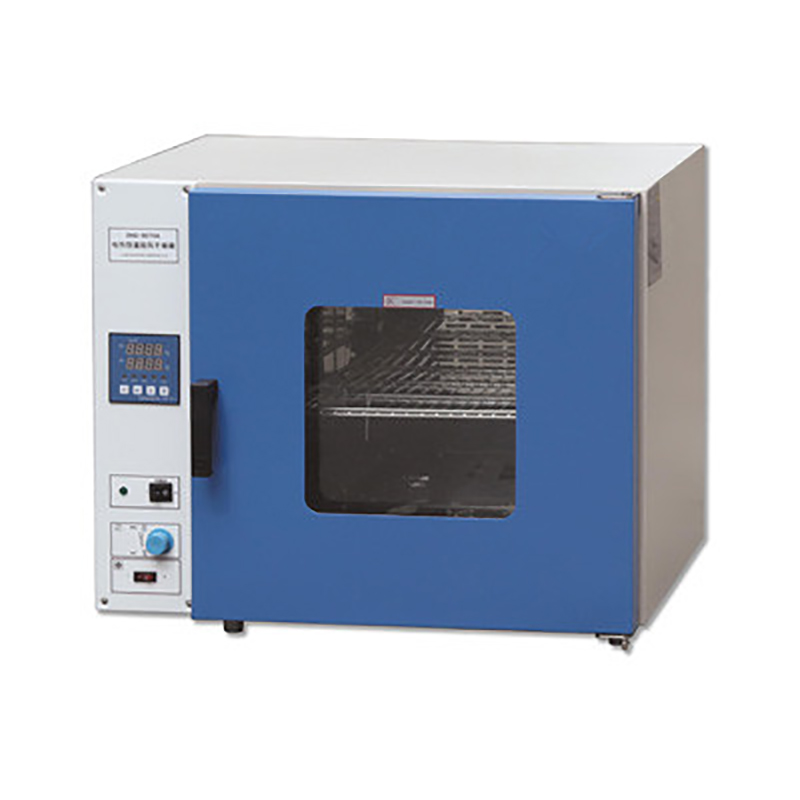

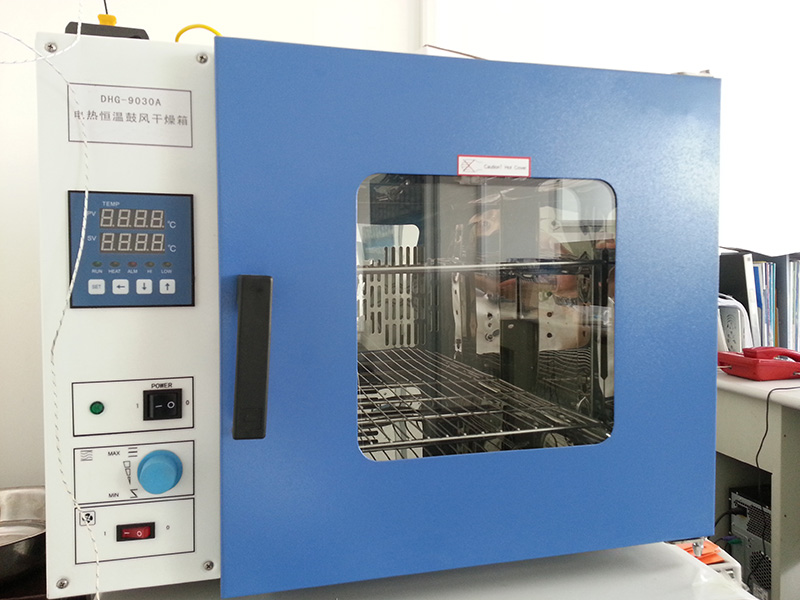

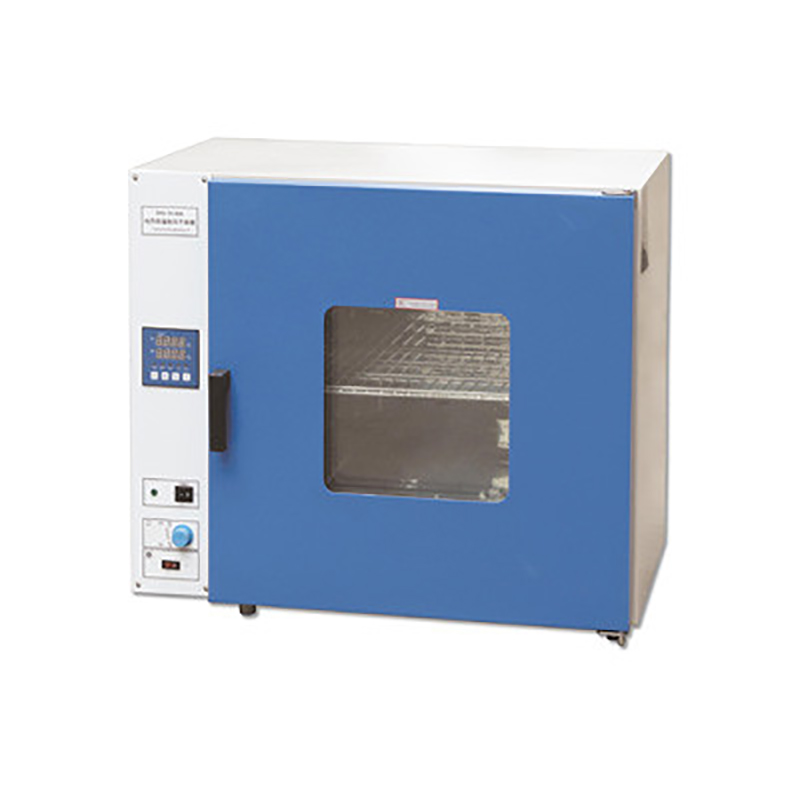

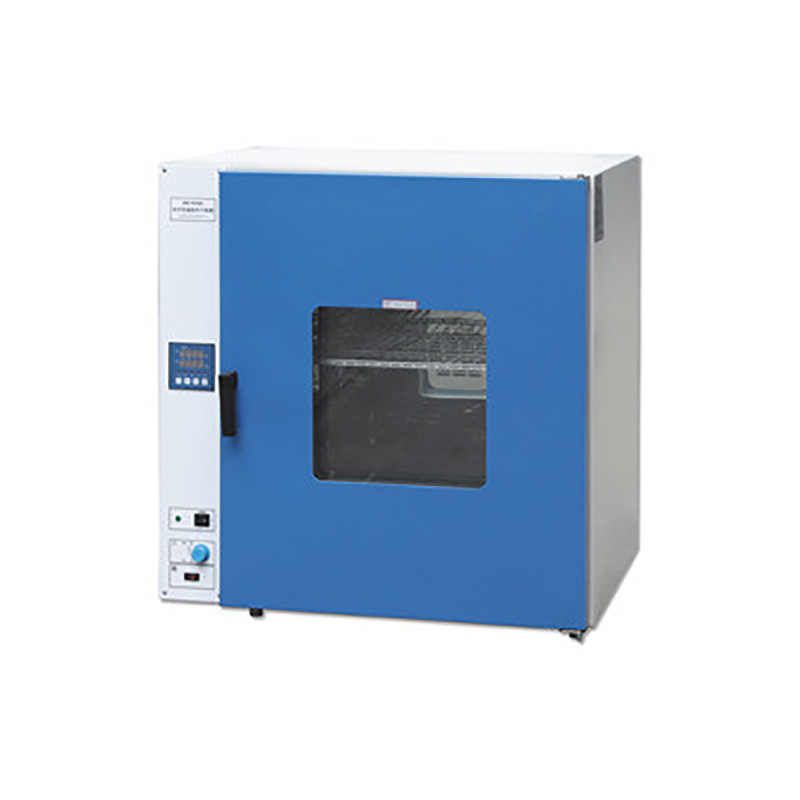

Blast Drying Oven
