ACEY-SP1200 is a PLC-controlled prismatic battery cell stacking and compression machine designed for accurate module stacking and controlled pressing of prismatic lithium battery packs with real-time force and stroke monitoring.
Brand:
ACEYItem No.:
ACEY-SP1200Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysPrismatic Battery Stacking Press Machine For Energy Storage Systems
Product Description

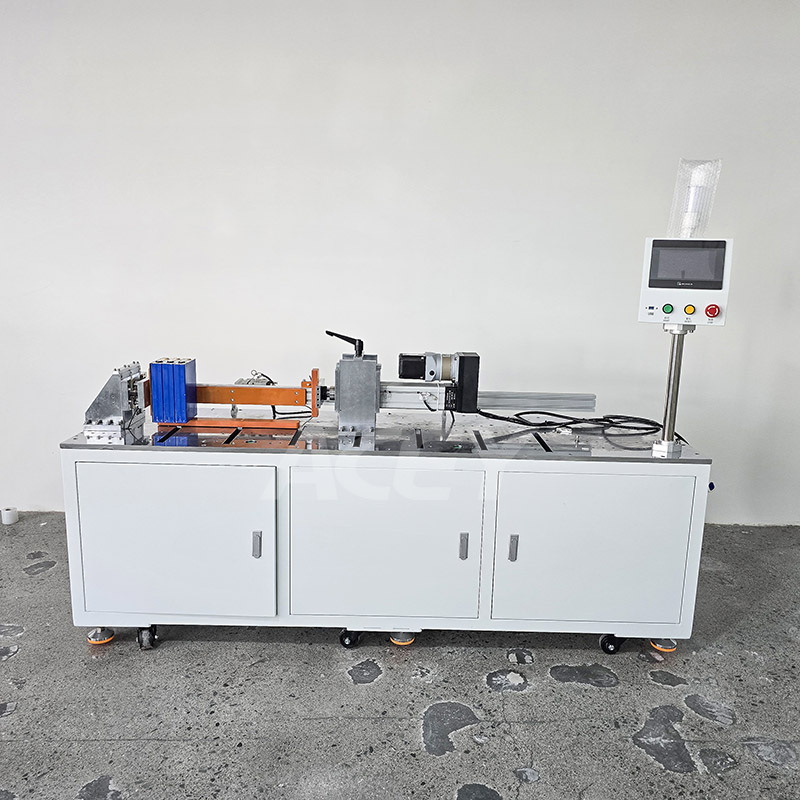

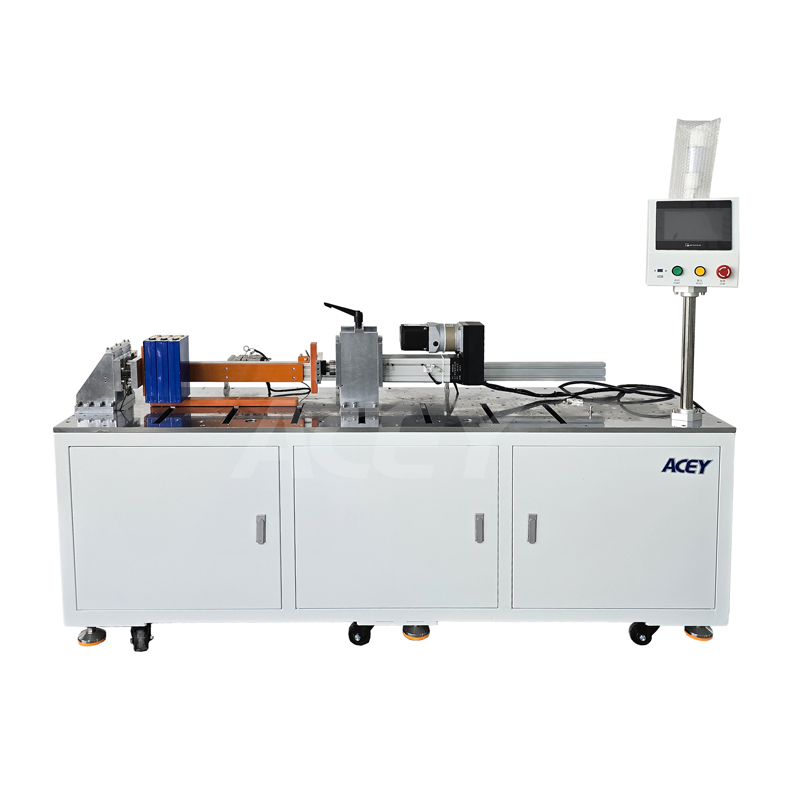

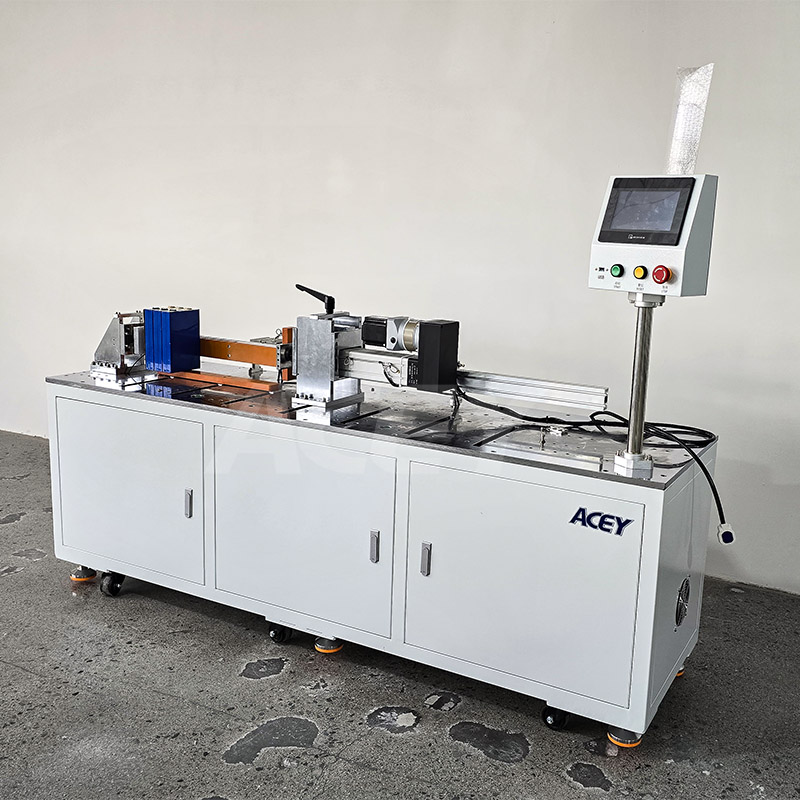

ACEY-SP1200 Prismatic Battery Cell Stacking & Compression Machine is designed for stacking, alignment, and compression of prismatic lithium battery cells during module assembly. It is widely used in energy storage and EV battery pack production lines.

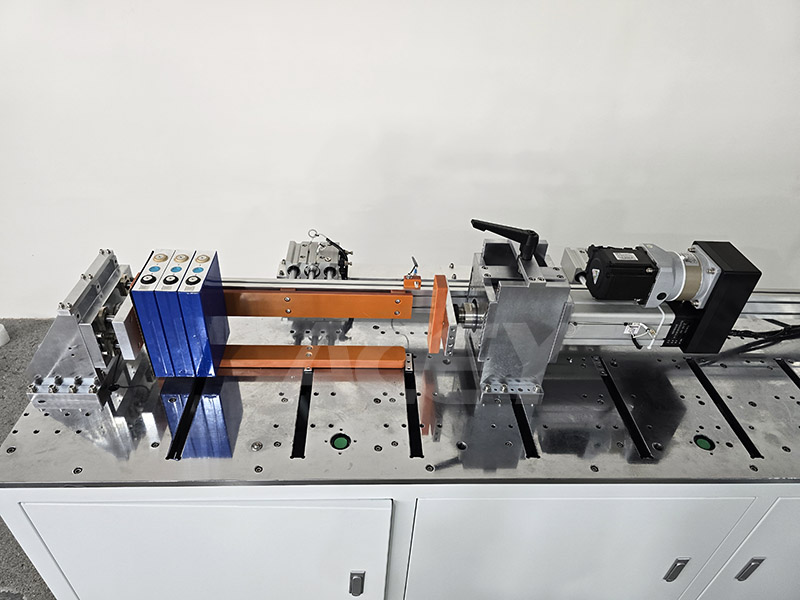

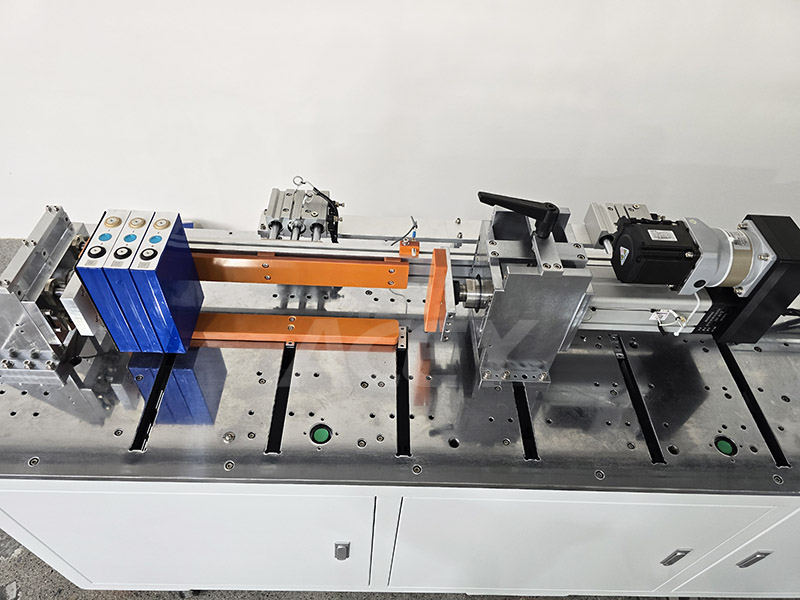

Operators manually place end plates, thermal insulation plates, and individual cells onto the stacking platform in sequence. After stacking is completed, the system is activated. A PLC-controlled servo electric cylinder performs the compression process with real-time feedback from a pressure sensor. The machine stops automatically when preset force or stroke limits are reached.
After compression, steel band strapping is carried out manually. Once fastening is completed, the cylinder returns to its standby position, finishing the stacking and compression cycle.
Product Features
Machine Structure
The machine consists of the following modules:
Technical Specification
Item
Specification
Applicable Battery Type
Prismatic lithium battery cells 100Ah–280Ah
Module Length Range
200–1200 mm
Module Width Range
100–300 mm
Module Height Range
100–300 mm
Control System
PLC programmable control system
Compression Force Range
0–500 kg
Overload Alarm
Buzzer + red light warning
Compression Stroke
200–1200 mm adjustable
Control Function
Real-time force & stroke monitoring
Control Accuracy
0.5–1 kg
Start Mode
Two-hand start safety control
Machine Size
2370 * 650 * 1256 mm
Machine Weight
Approx. 393 kg
Machine Color
Industrial white (customizable)
Total Power
≤1.5 kW
