Nickel Sheet Micro Computer Cutting Machine

Automatic microcomputer cutting machine cutting all kinds of tube, sheet, film, tape...
  • Brand:

    ACEY
  • Item No.:

    ACEY-100D
  • Compliance:

    CE Certified
  • Warranty:

    One-year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    T/T
  • Product Origin:

    China
  • Lead Time:

    7-35 days
Product Catalog
  • Product Detail

Nickel Sheet Micro Computer Cutting Machine




Product Description

This machine adopts microcomputer numerical control display device, cutting length, quantity and feeding speed can be set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise and fall, can quickly release material, with thimble type feeding mechanism, effectively prevent material scratch.


Product Features

1. The machine is provided with "emergency stop" protection (known as "emergency stop switch").

2. Adjustable speed

3. Adjustable length

4. Total setting

5. Delay in cutting

6. Blade spacing

7. Batch pause

8. Length compensation

9. Cutting speed

10. Step size setting


Technical Specification

Power supply:

220V/50Hz;

Power supply:

220V 50/60Hz Cutting speed: 34m/min

Cutting tool width

0.1-100mm Cutting length: 0.1mm-9999.9mm

Weight

30kg Specification: 380*360*390mm

Material of knife

SKD-11

Bearing

Imported SOO6Z

Panel material

stainless steel panel

Roller material

Excellent glue (hardness: 60)

Display screen

LCD 128*64

Cutting tool motor

60w

Feeding motor

Stepper motor 86*96


Product Display






Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Li Ion Battery Pack Assembly Line Unmanned Aerial Vehicle UAV 6S2P Drone Lithium Ion Battery Pack Module Assembly Line

Lithium battery packs are widely used across various sectors including consumer electronics, electric vehicles, UAV (Unmanned Aerial Vehicle), energy storage, aerospace, and medical devices due to their high energy density, lightweight nature, and rechargeable capabilities.

Lithium Ion Battery Pack Assembly Line 18650-32700 Cylindrical Lithium Ion Battery Pack Module Assembly Line

18650, 21700, 26650, 32650, and 32700 cylindrical battery packs are utilized across diverse industries including consumer electronics, electric vehicles, power tools, energy storage systems, medical devices, and aerospace and defense applications due to their high energy density, reliability, and versatility.

lithium ion battery pack assembly line 32140 33140 Cylindrical Lithium Ion Battery Pack Assembly Line

32140&33140 Battery packs are commonly employed in high-demand applications such as aerospace, defense, medical devices, portable electronics, emergency lighting, industrial equipment, and transportation due to their compact size, high energy density, and reliable performance.

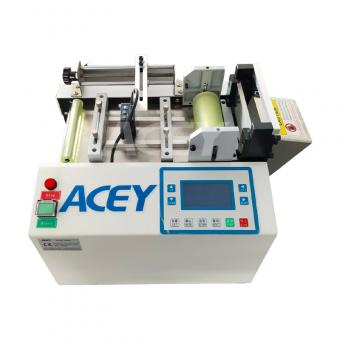

Automatic Cutting Machine Automatic Nickel Strip Cutting Machine With Waste Discharge
