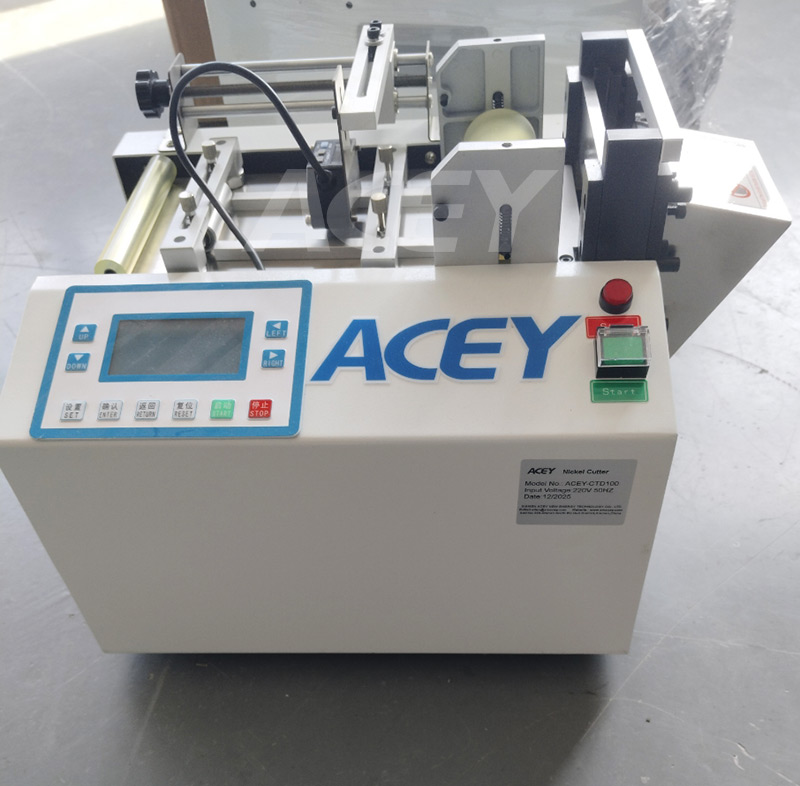

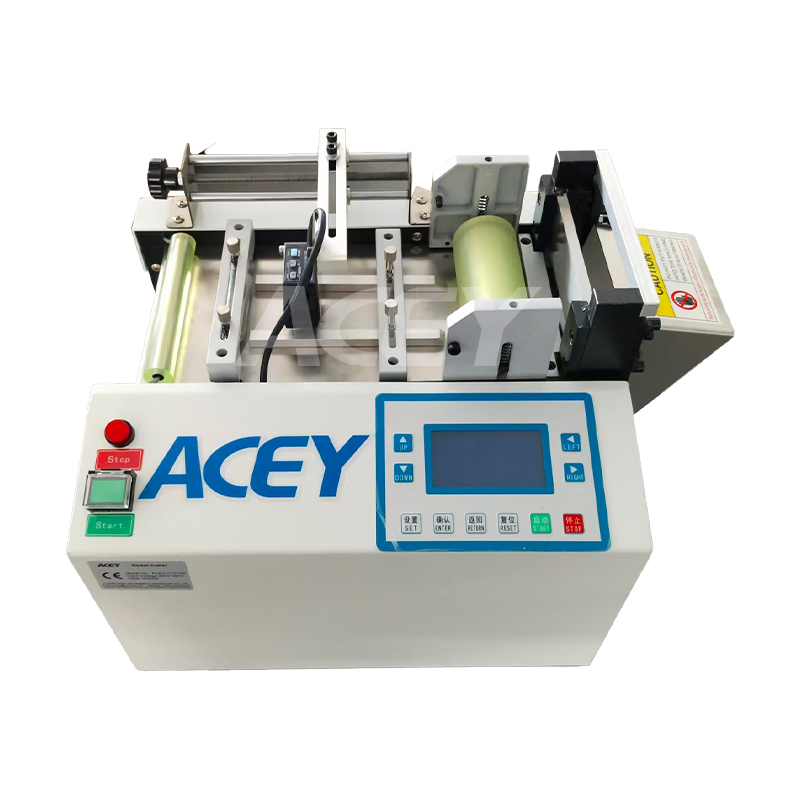

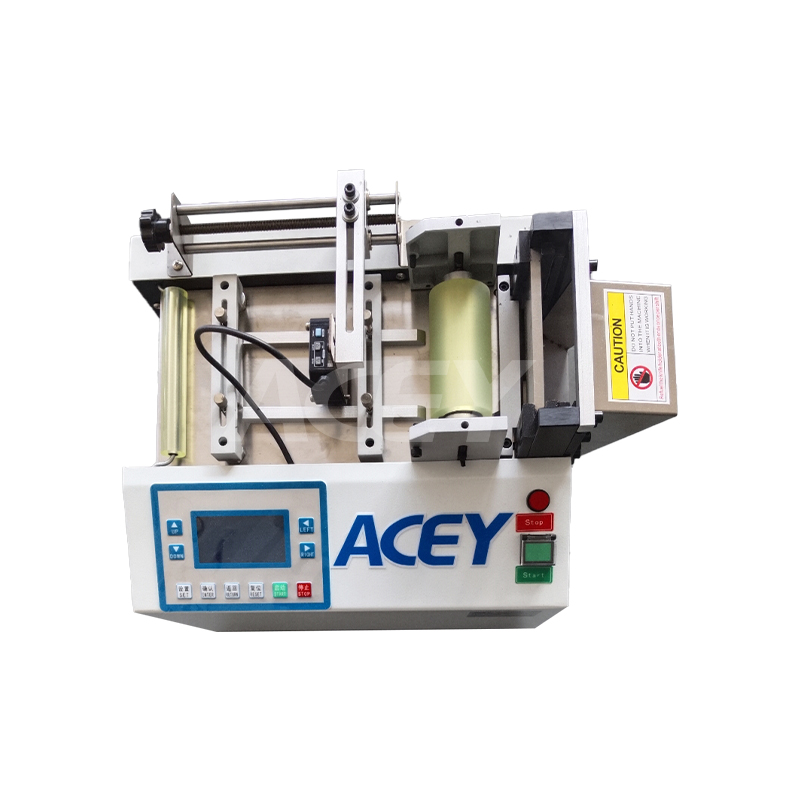

Automatic Nickel Strip Cutting Machine With Waste Discharge

ACEY-CTD100 is a high-precision, CNC-controlled automatic cutting machine that delivers efficient, low-loss, and versatile strip processing through advanced feeding mechanisms and multi-mode cutting capabilities.

  • Brand:

    ACEY

  • Item No.:

    ACEY-CTD100

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1 set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
Product Catalog
  • Product Detail
Automatic Nickel Strip Cutting Machine With Waste Discharge



Product Description
ACEY-CTD100 is a high-precision automatic cutting machine equipped with a microcomputer numerical control system. It enables accurate control of cutting length, quantity, and feeding speed, making it ideal for high-speed strip processing applications.

With its advanced roller feeding mechanism, automatic pressure adjustment, and anti-scratch thimble feeding system, this machine ensures smooth, flat, and consistent cutting performance. It supports both cold and hot cutting, as well as full and half cutting modes, delivering excellent efficiency with minimal material loss.

Product Features
  • High-precision microcomputer control system for accurate cutting length and quantity
  • Adjustable feeding speed with stable and smooth material delivery
  • Automatic roller pressure adjustment and lifting system for quick material release
  • Thimble feeding mechanism to prevent material scratching
  • Supports cold cutting / hot cutting / full cut / half cut
  • Special mechanical structure ensures flat and smooth cutting edges
  • Independently developed motion control system for stable performance
  • LCD large screen display for intuitive and easy operation
  • Adjustable cutter speed for different material requirements
  • Automatic counting, batch pause, and delay time settings
  • Automatic stop function when material runs out
  • High automation level, reducing manual intervention

Technical Specification
Parameter Specification
Model ACEY-CTD100
Power Supply 220V
Power 250W
Cutting Length 0.1 – 9999.9 mm
Cutting Width 0.1 – 80 mm
Feeding Speed Adjustable
Tool Material Imported SKD2 Blade
Motor 86 Stepper Motor + AC Motor
Weight 40 KG
Dimensions (L×W×H) 470 × 375 × 340 mm

Product Display

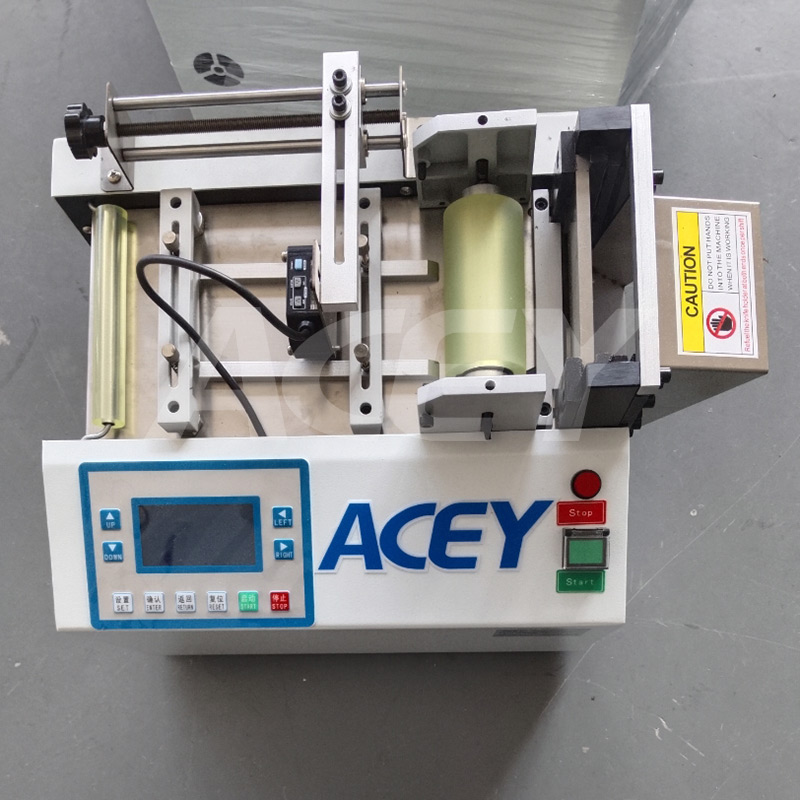

Nickel Strip Cutting Machine

Nickel Strip Cutter
