High Precision 8000A Transistor Power Supply Spot Welder For Battery Making

Transistor welding power supply is a high-precision, high-speed and high current transistor welding power supply that performs high-speed switching through the power switch tube and performs closed-loop feedback control on the voltage and current between welding electrodes collected in real time.

  • Brand:

    ACEY
  • Item No.:

    ACEY-5000D
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

 High Precision 8000A Transistor Power Supply Gantry Spot Welder For Battery Making

Description

Transistor welding power supply is a high-precision, high-speed and high current transistor welding power supply that performs high-speed switching through the power switch tube and performs closed-loop feedback control on the voltage and current between welding electrodes collected in real time.

Specification

Max output power of transformer

35 KVA

Output max short circuit current

8000A

Floating voltage

10V

Control mode

constant current control

Cooling mode

forced air cooling

Condition

8

Use

electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc

Max thickness of parallel welding

0.03mm~0.5mm

Max thickness of upper and lower butt welding

0.3mm + 1mm

Machine weight

23.5kg

External dimension

L810mm*W610mm*H1220mm

Input power

3Phase AC380V±10% 50/60Hz

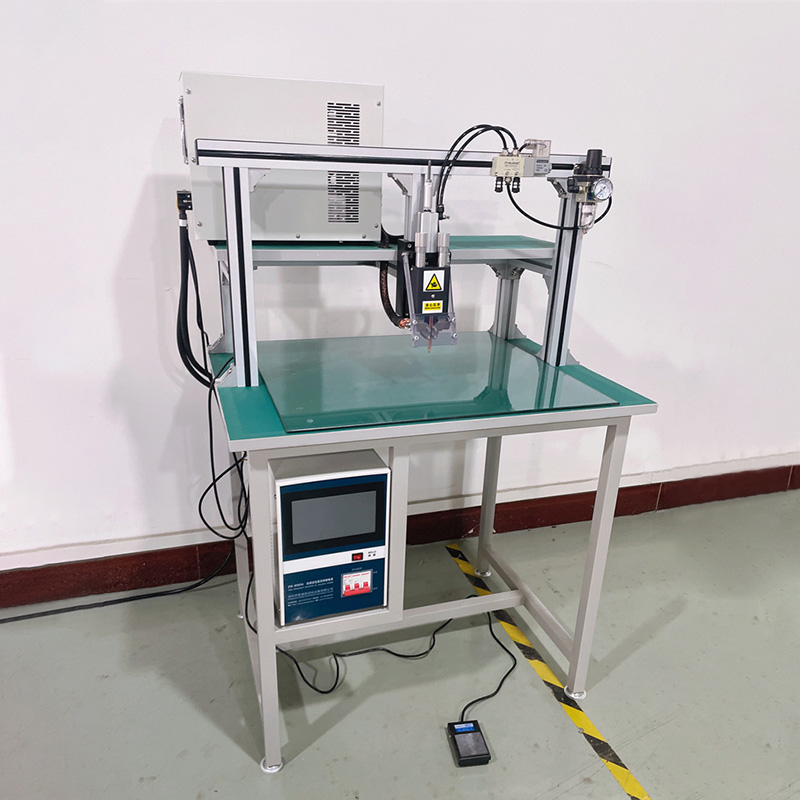

Product Display

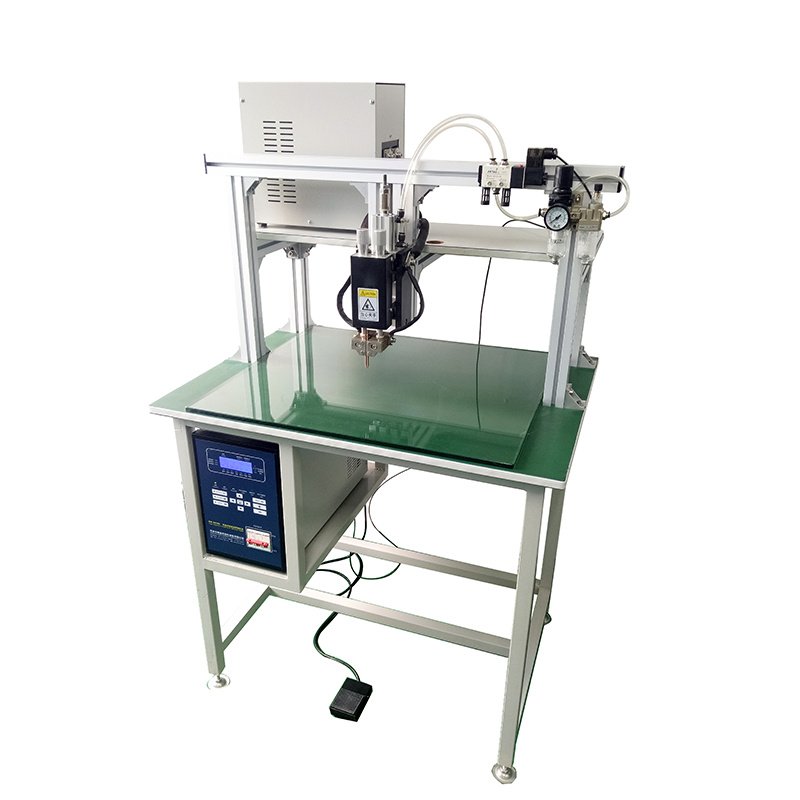

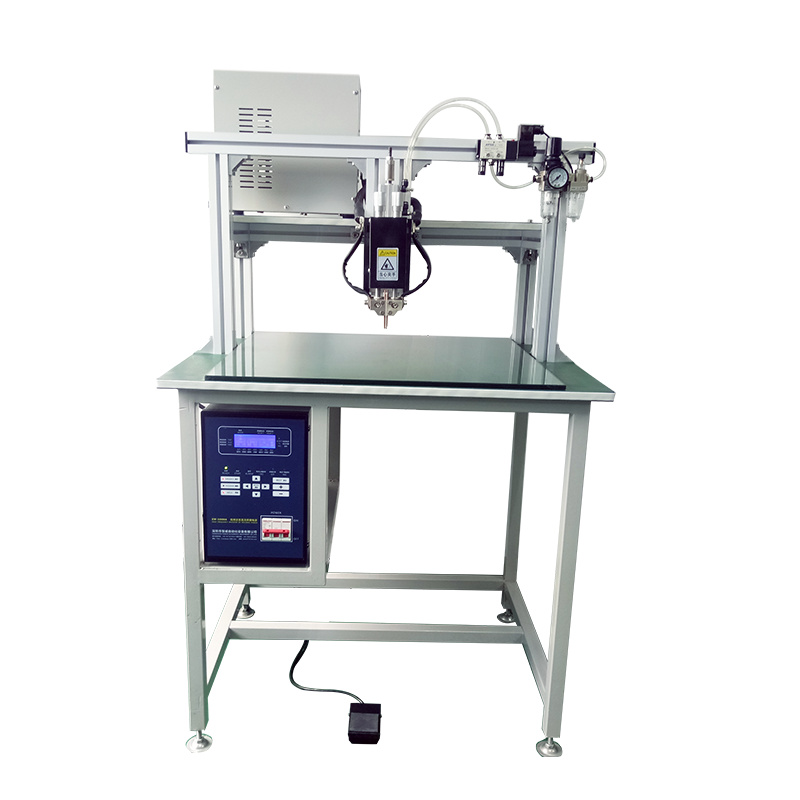

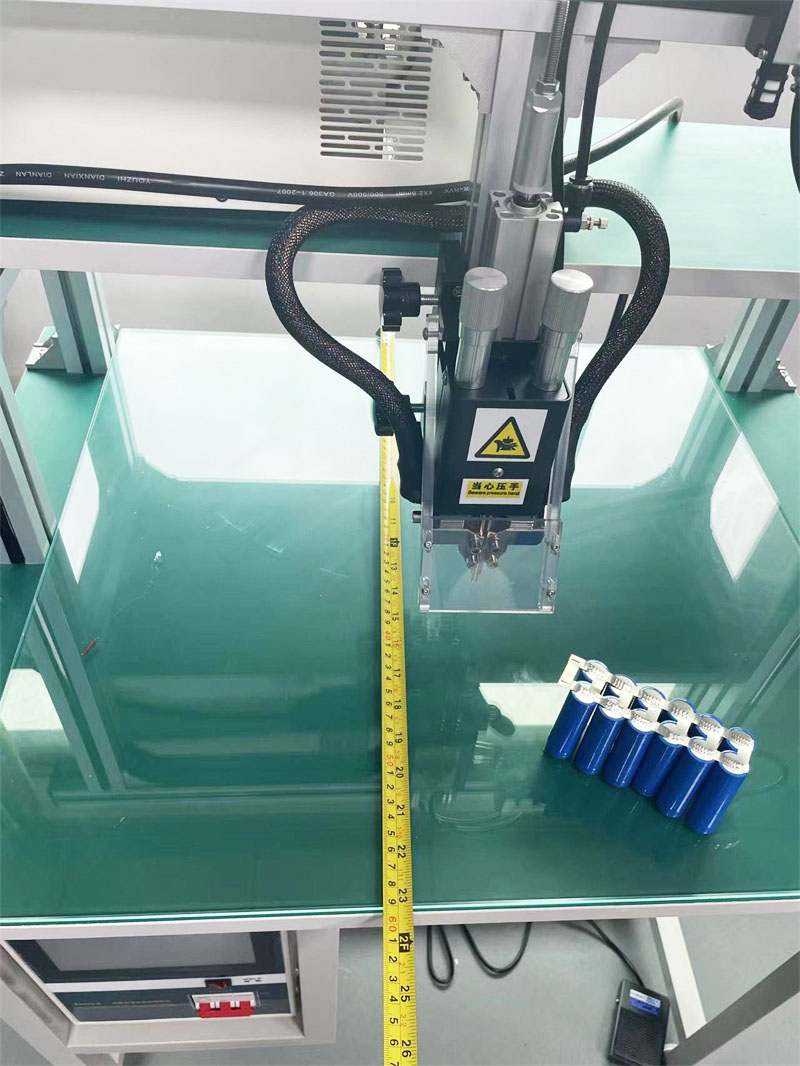

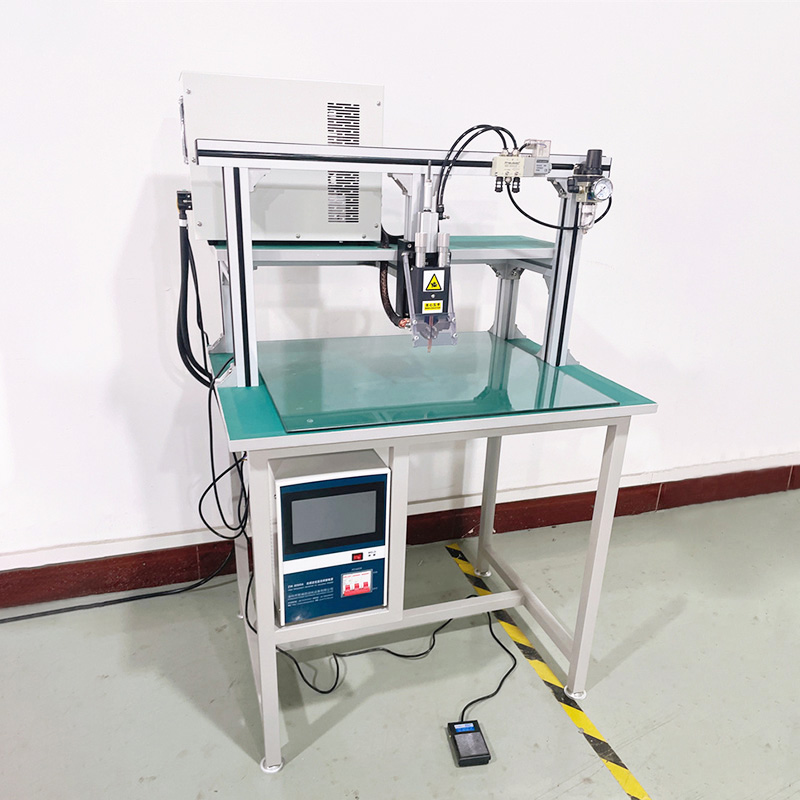

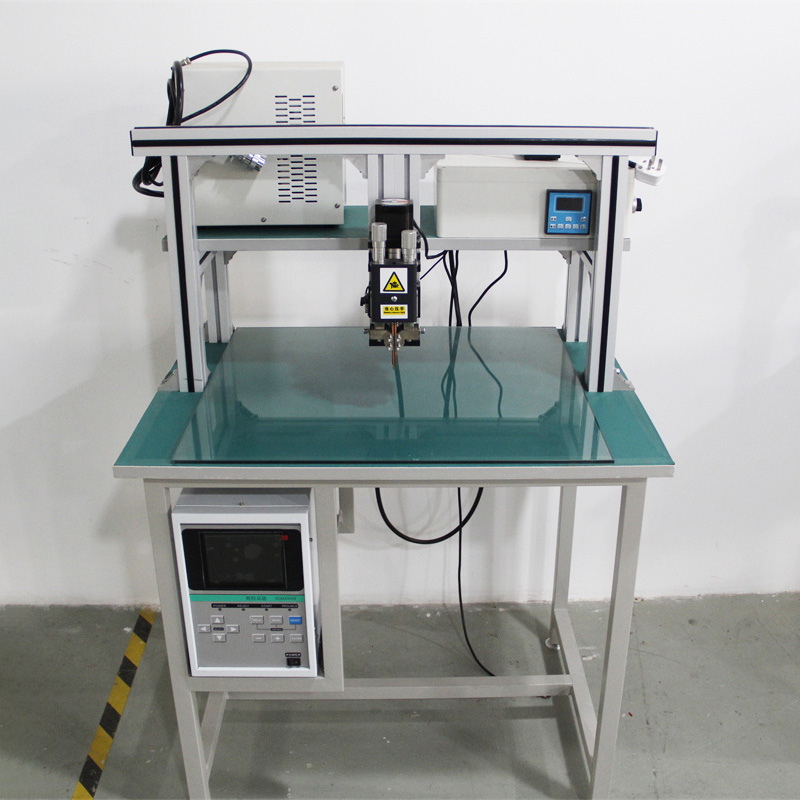

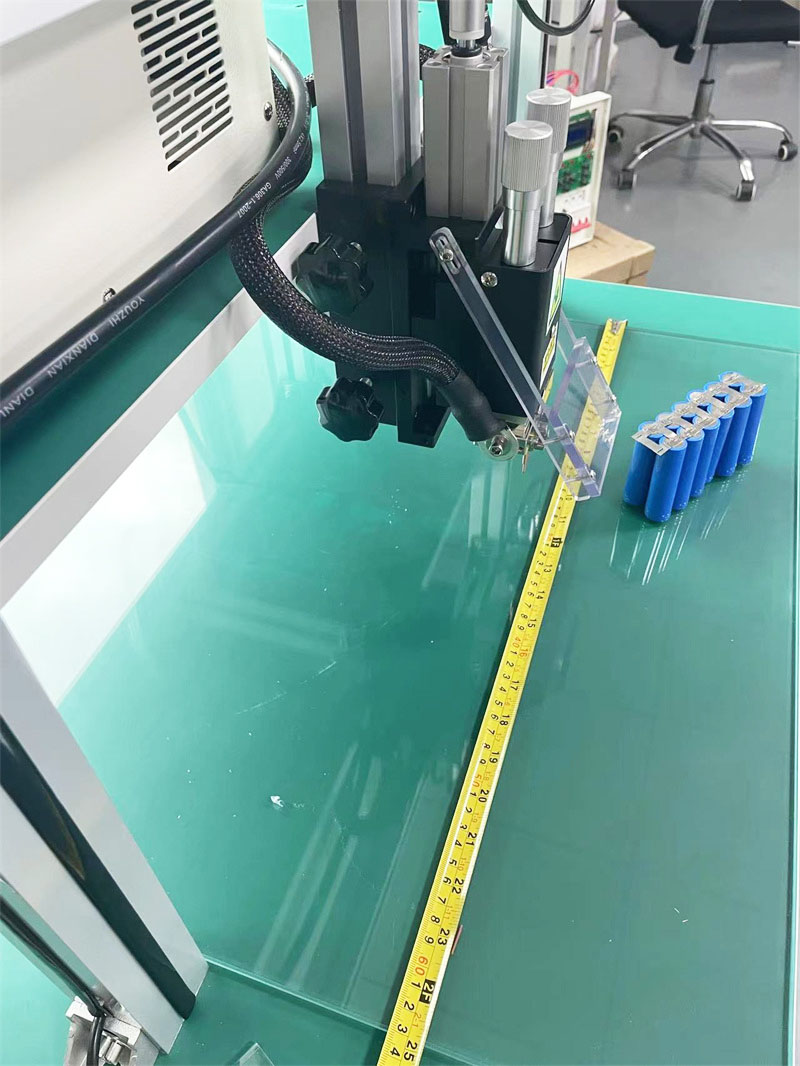

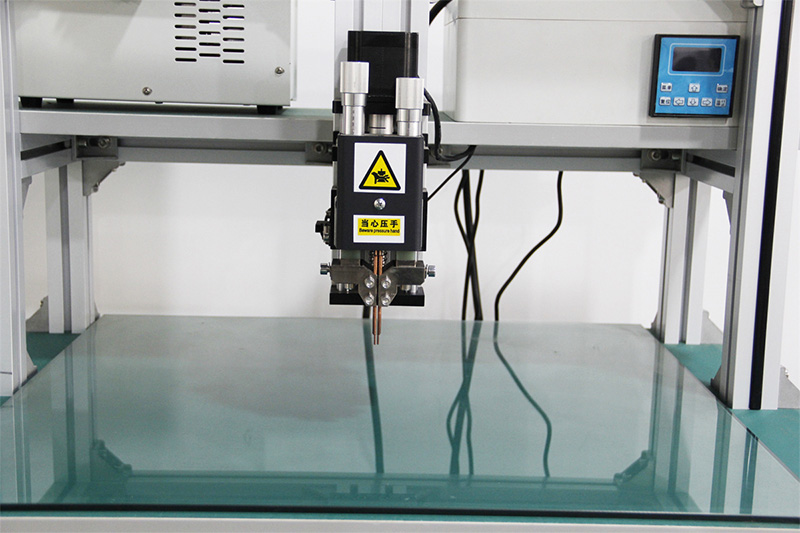

Transistor Gantry Spot Welder

Transistor Gantry Spot Welder

Transistor Gantry Spot Welder

Transistor Gantry Spot Welder

Transistor Gantry Spot Welder

Transistor Gantry Spot Welder
